Square D™ HOMT1515

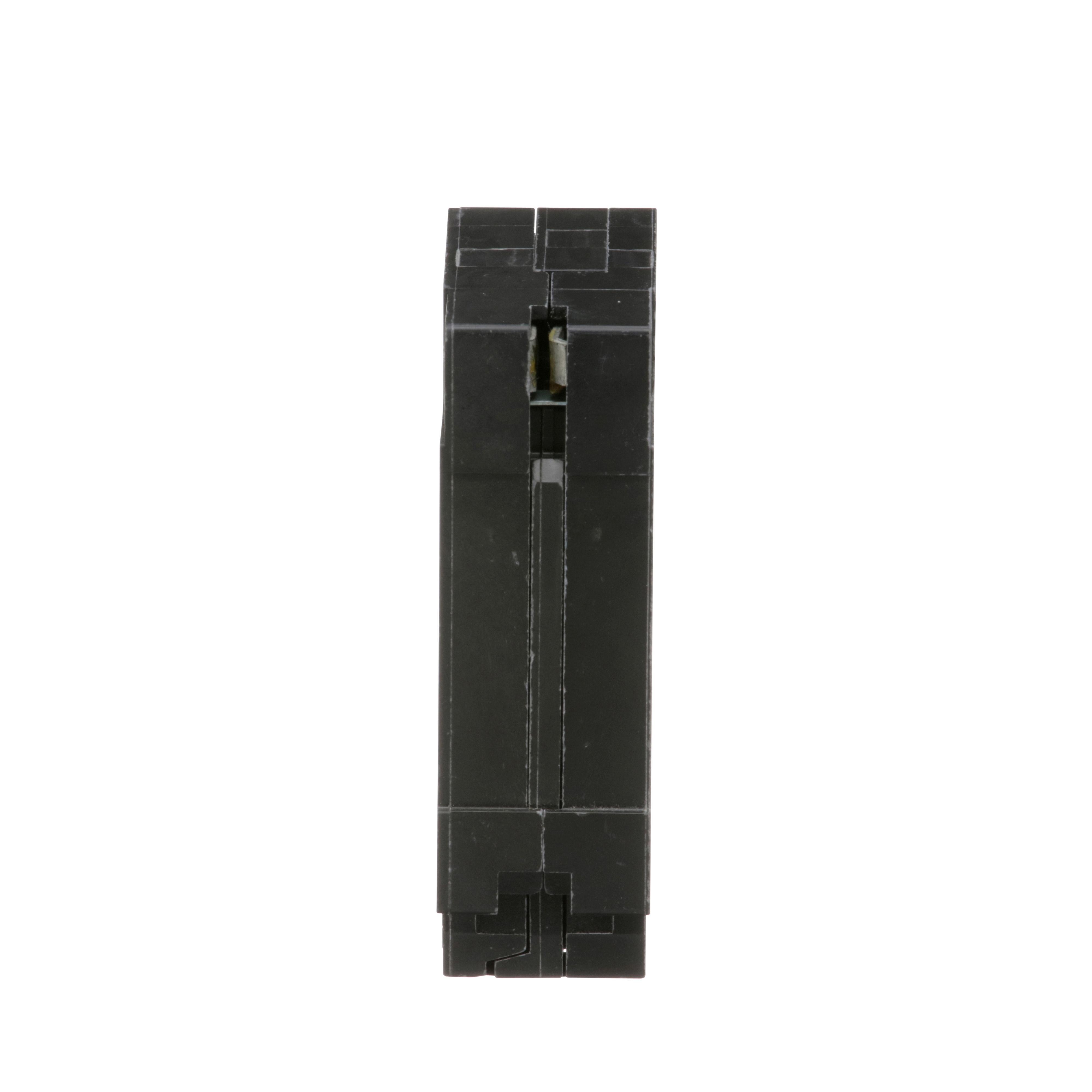

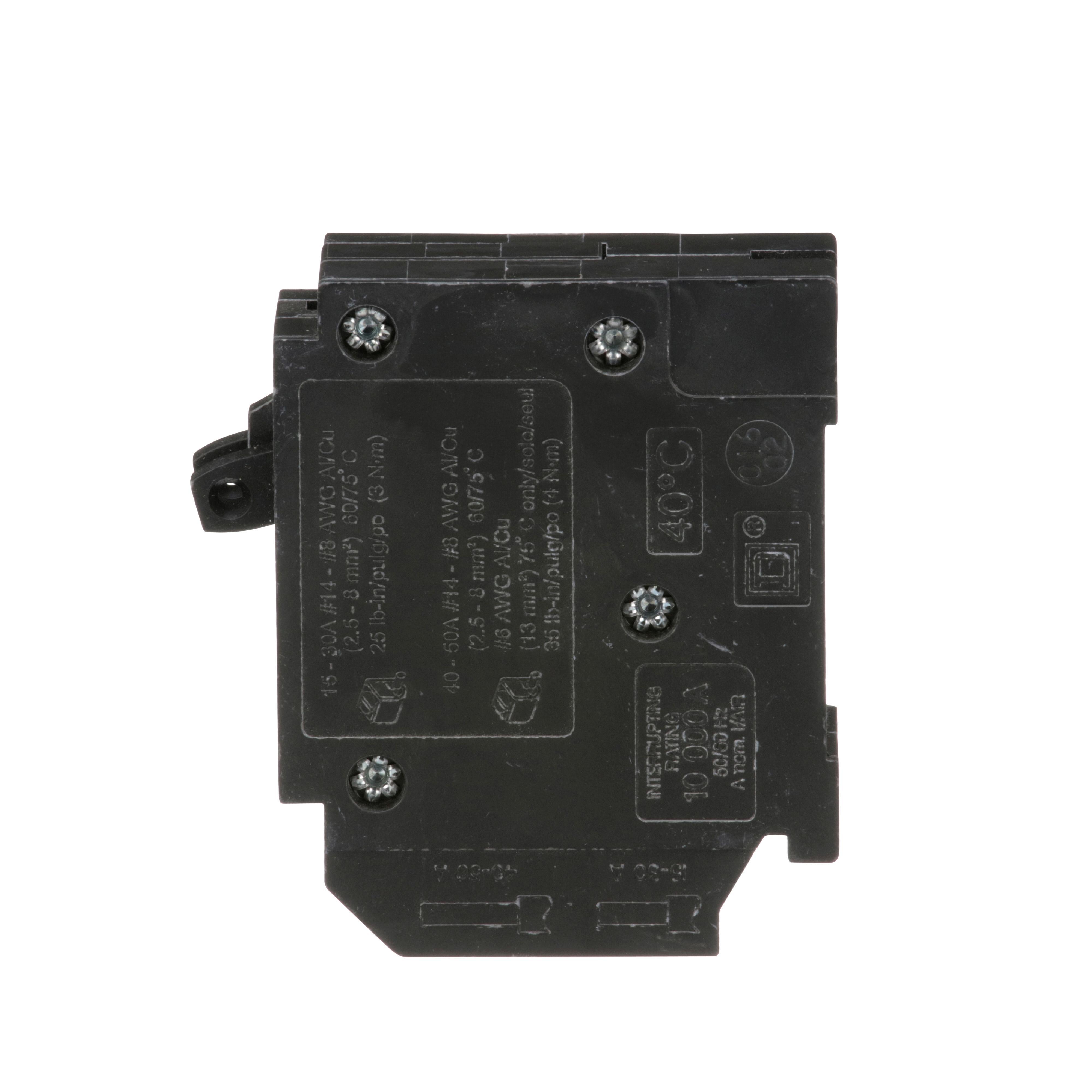

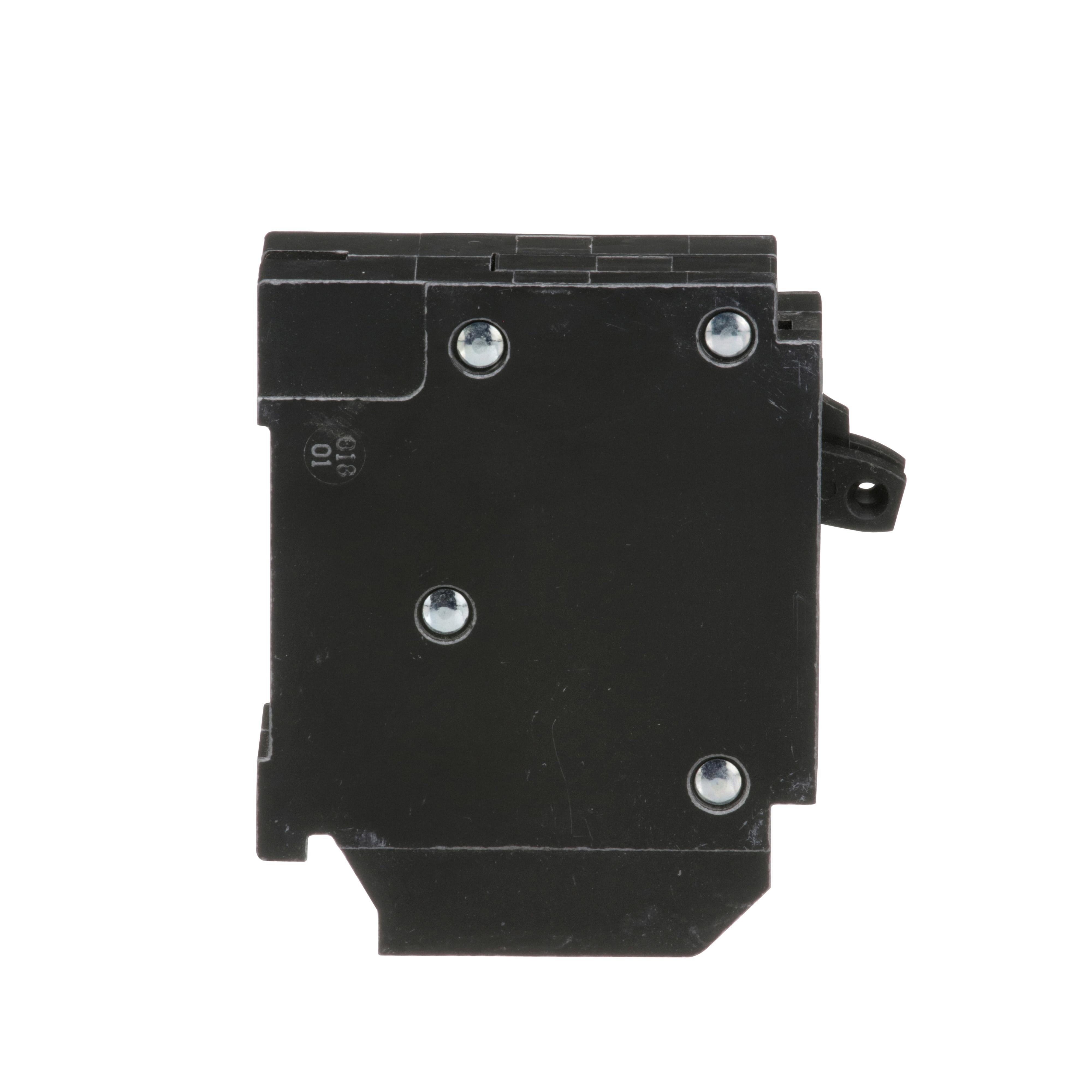

Square D™ Homeline™ HOMT1515 Tandem Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 52451
MPN: HOMT1515
Login for Price
Features
- Aluminum/copper busbar
Description
Square D™ Homeline™ Miniature Circuit Breaker, Tandem, Series: HOM, 120/240 VAC, 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, Box Lug, 14 to 8 AWG Wire, NEMA 1/2, Plug-In Mount, 75 deg C, 2.98 in L x 1 in W x 3.13 in H
Specifications
Amperage Rating |
15 A |
Connection Type |
Box Lug |
Dimensions |
2.98 in L x 1 in W x 3.13 in H |
Enclosure Type |
NEMA 1/2 |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Series |
HOM |
Temperature Rating |
75 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Tandem |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
RoHS Compliant|UL File No. E6294|CSA Certified|Federal Specification W-P-115b|NEC Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For AC systems, overload and short circuit protection |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT1515_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT1515_Specification_Sheet.pdf
