Square D™ HOMT1520

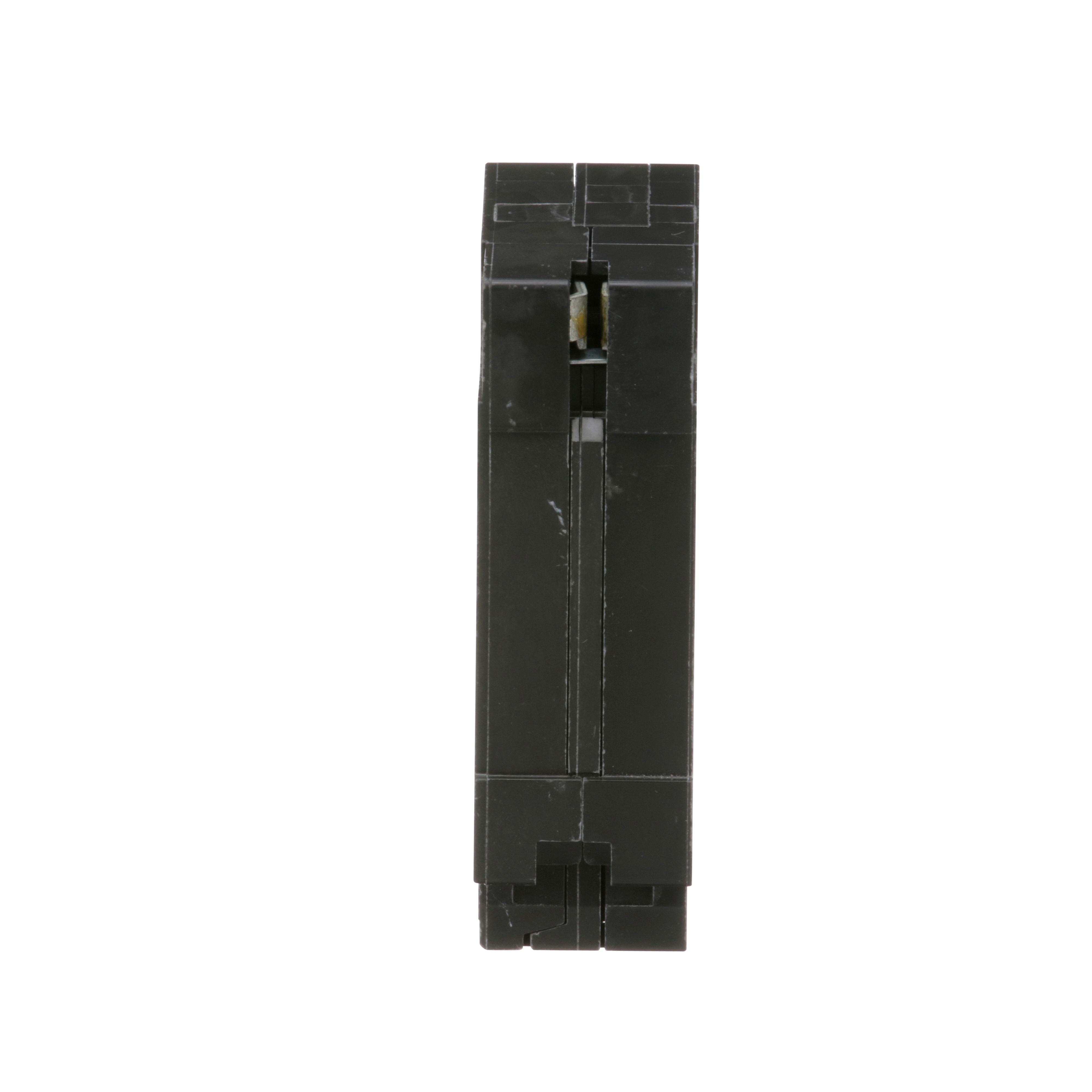

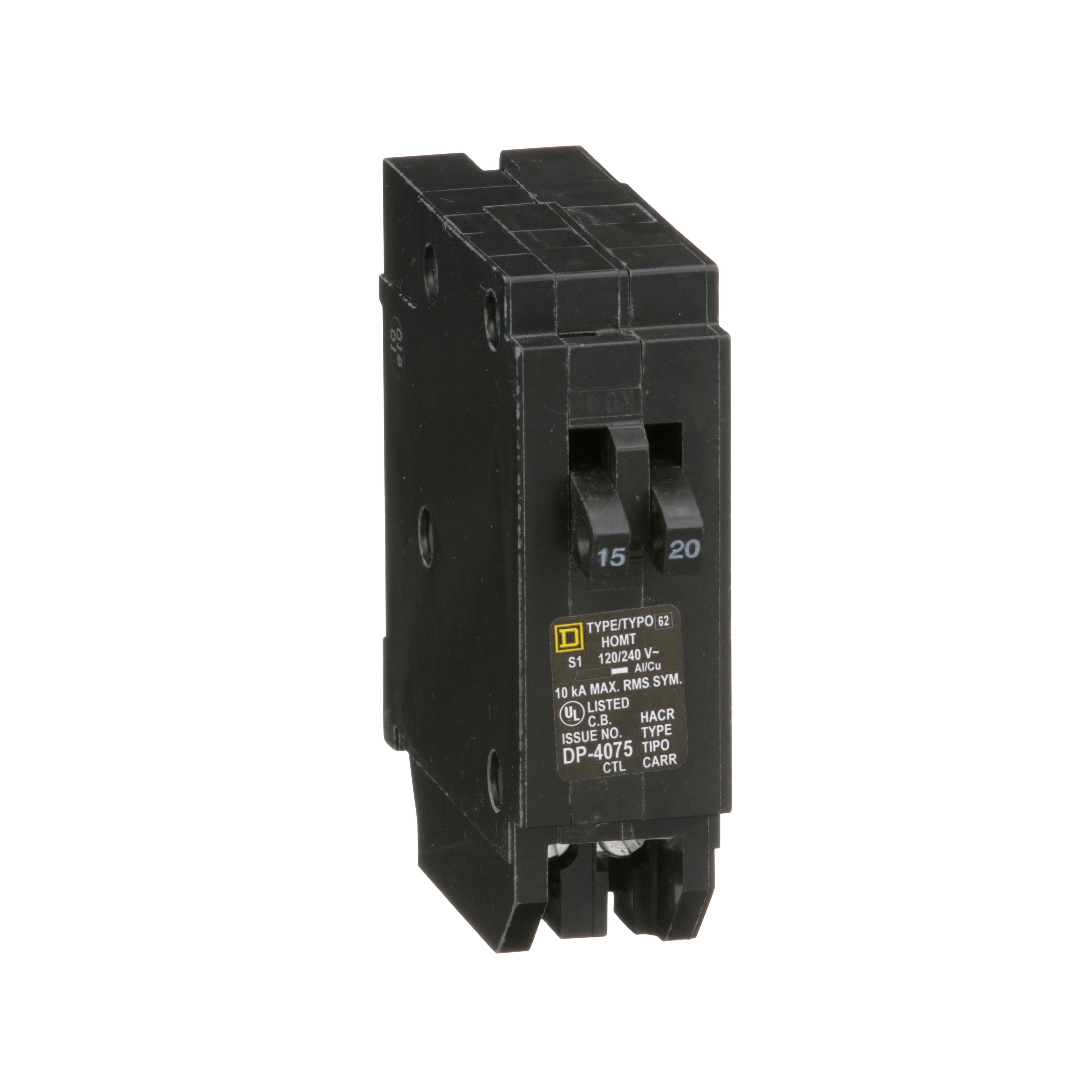

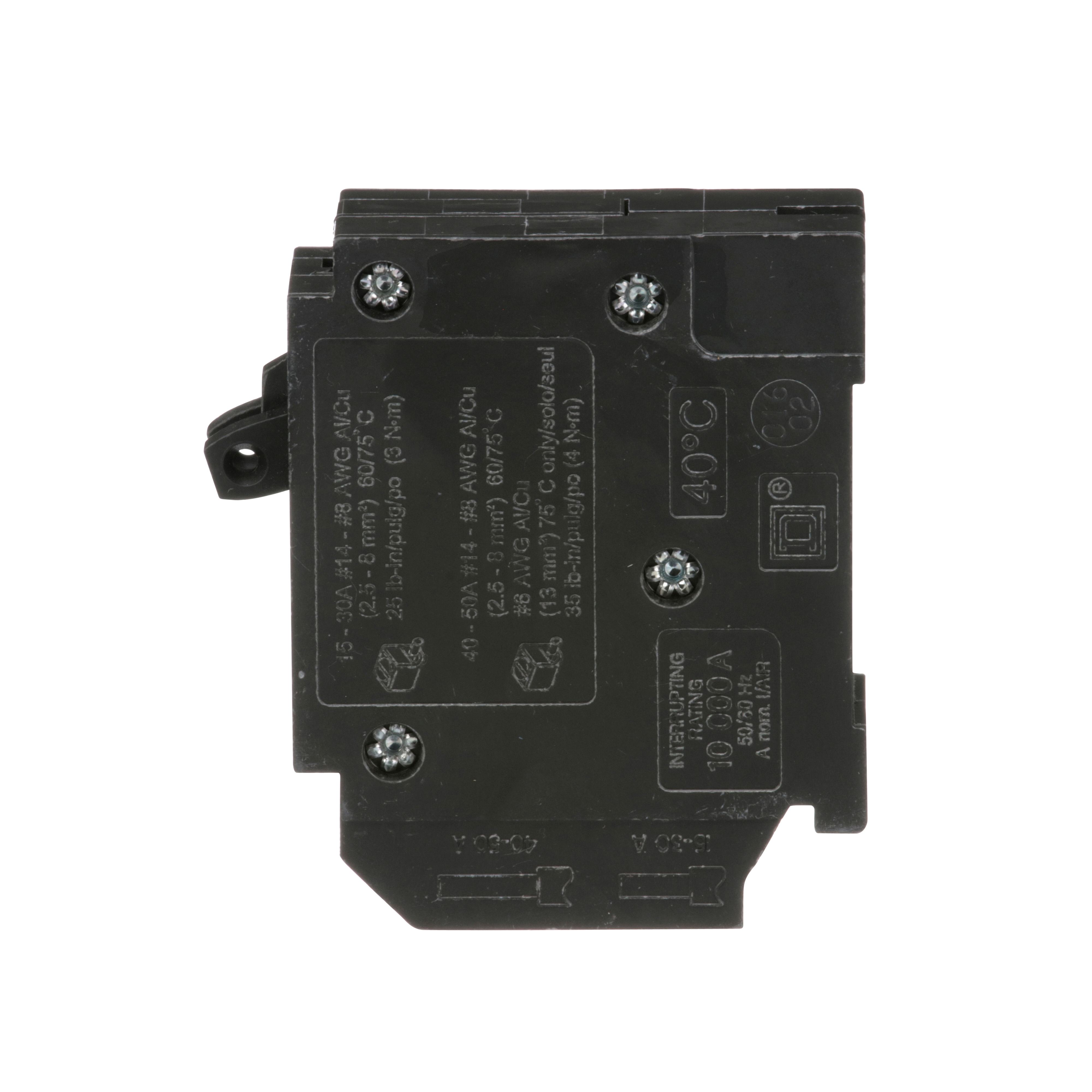

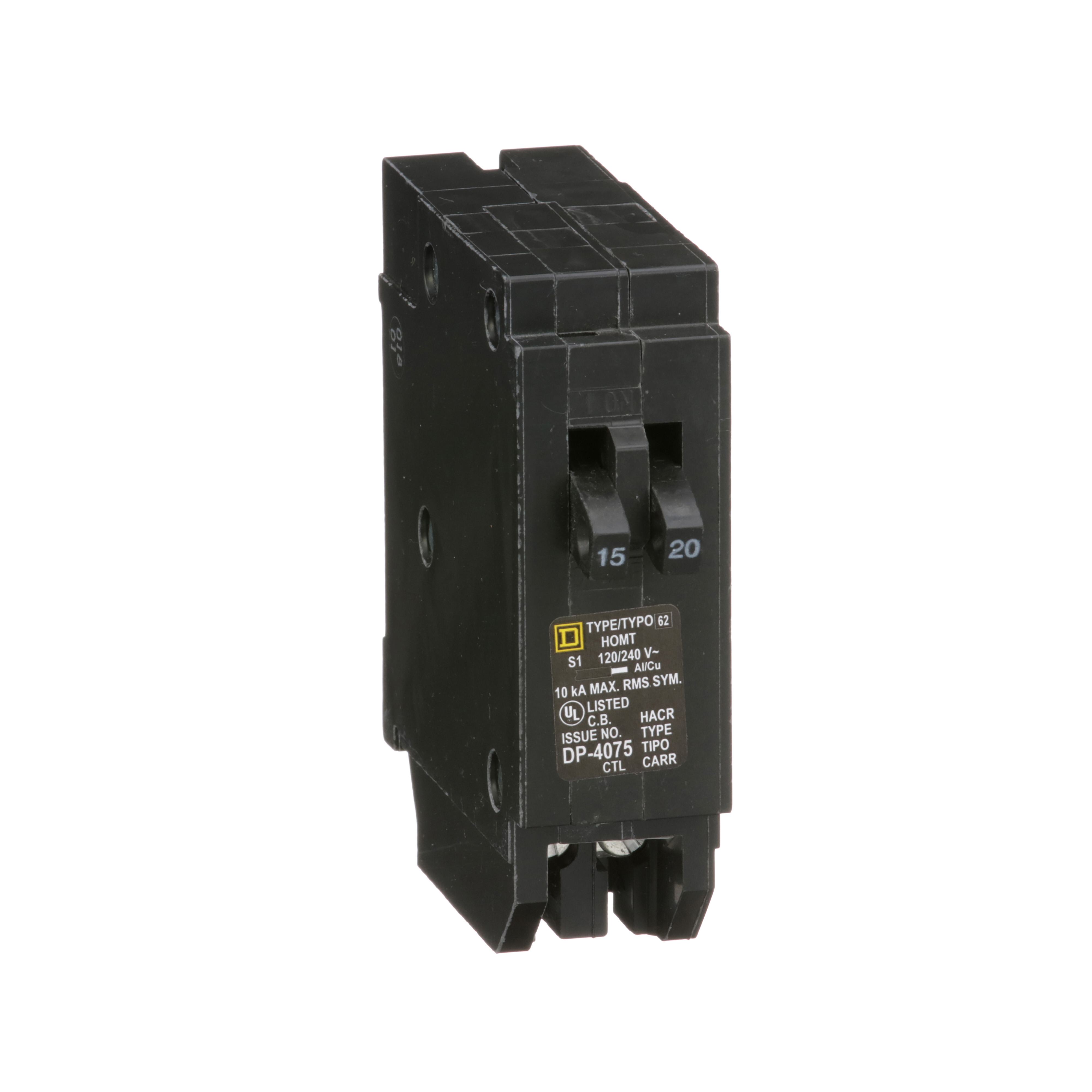

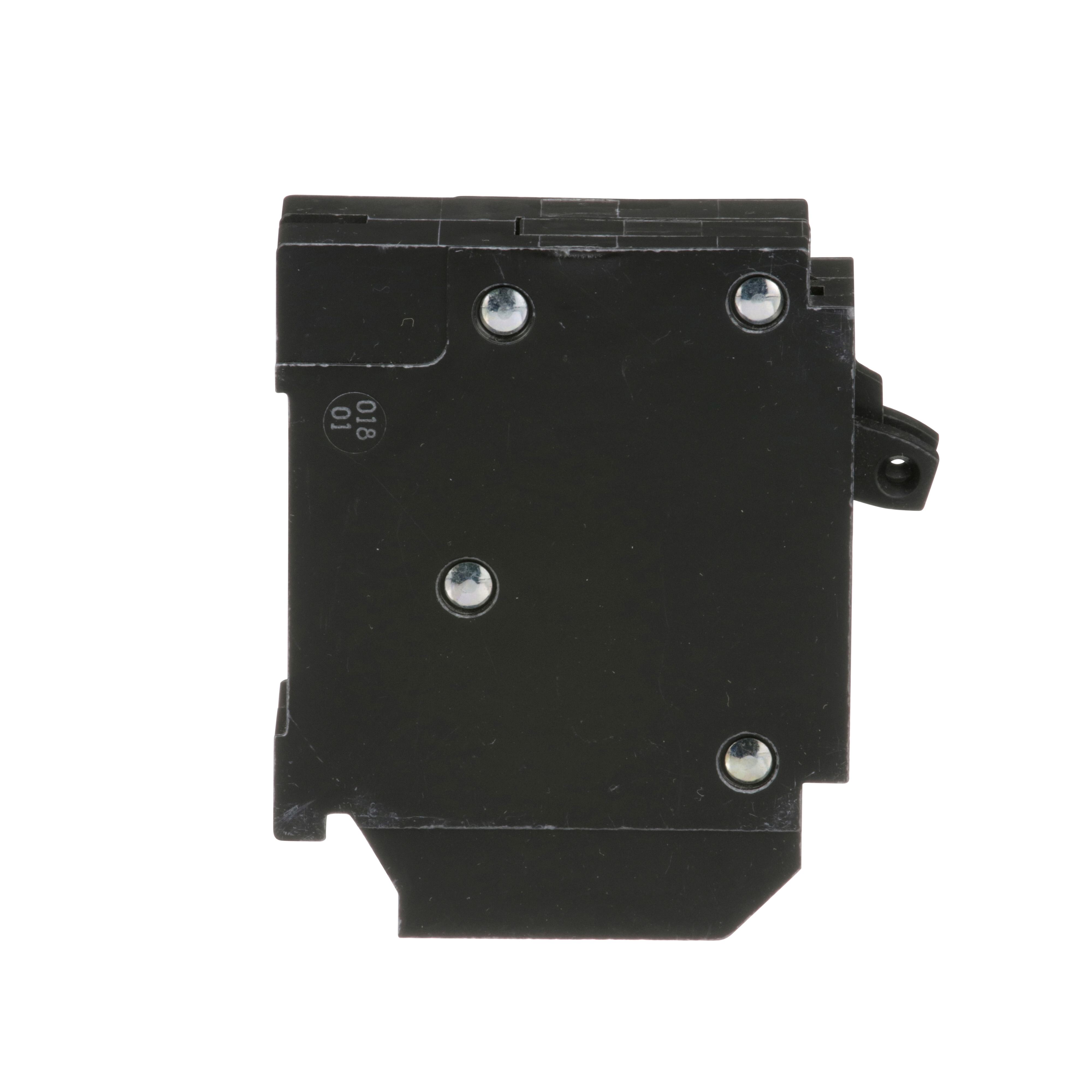

Square D™ Homeline™ HOMT1520 Tandem Miniature Circuit Breaker, 120/240 VAC, 15/20 A, 10 kA Interrupt, 1 Pole, Thermal/Magnetic Trip

Brand: Square D™

Item ID: 52455

MPN: HOMT1520

Add To Cart

Description

Square D™ Homeline™ Miniature Circuit Breaker, Tandem, Series: HOM, 120/240 VAC, 15/20 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, Terminal Screw Connection, 14 to 8 AWG Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 75 deg C, 2.98 in L Dimensions

Specifications

Amperage Rating	15/20 A
Connection Type	Terminal Screw
Dimensions	2.98 in L
Enclosure Type	NEMA 1/2
Interrupt Rating	10 kA
Mounting Type	Plug-In
Number of Poles	1
Series	HOM
Temperature Rating	75 deg C
Trip Type	Thermal/Magnetic
Type	Tandem
Voltage Rating	120/240 VAC
Wire Size	14 to 8 AWG
Standard Approval	RoHS Compliant\|UL File No. E6294\|Federal Specification W-P-115b\|NEC Compliant\|CSA Certified\|HACR Rated\|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
Application	For providing overload and short circuit protection

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f49e0b950a6507493a601dae628e60dc88cc0f5171c03b0c256ad352b55f39b3.pdf

Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b4bf36d6368858e729a3b26db350abbabeba2584a7e52b299ca57b50f88d3fe7.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf

Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c778bd4f9a8210ccdf688e534d70344c2d60eca2cd025b74b66a1f6526edb8c3.pdf

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf

RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT1520_RoHS.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_745b627fab01a35ad6f7ea681c3de7ab8b4cb41acfd83ce3c1fe071cd29f296b.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT1520_Specification_Sheet.pdf

VIDEO LINK https://www.youtube.com/embed/aVvIVVo14po
