Square D™ HOMT2020250

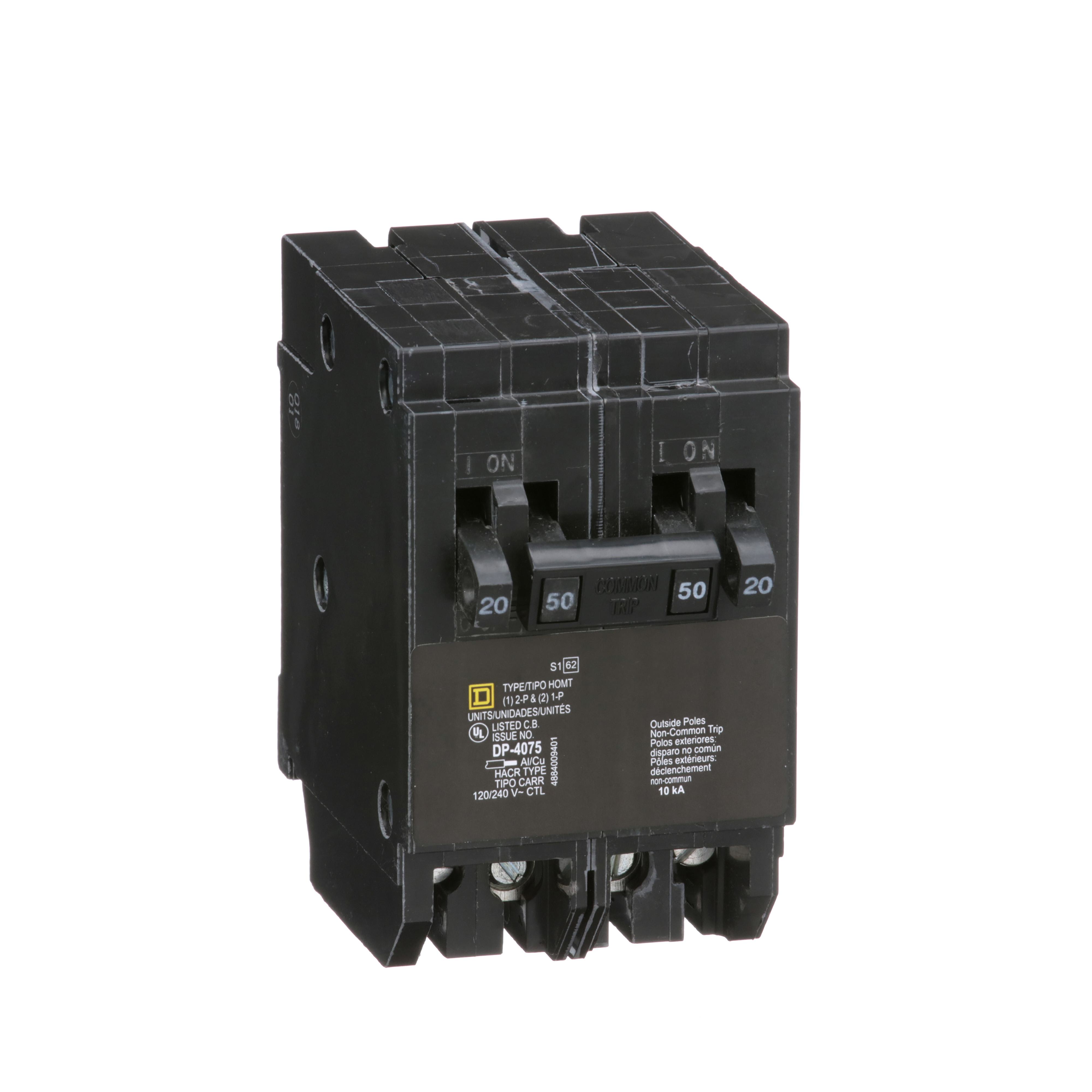

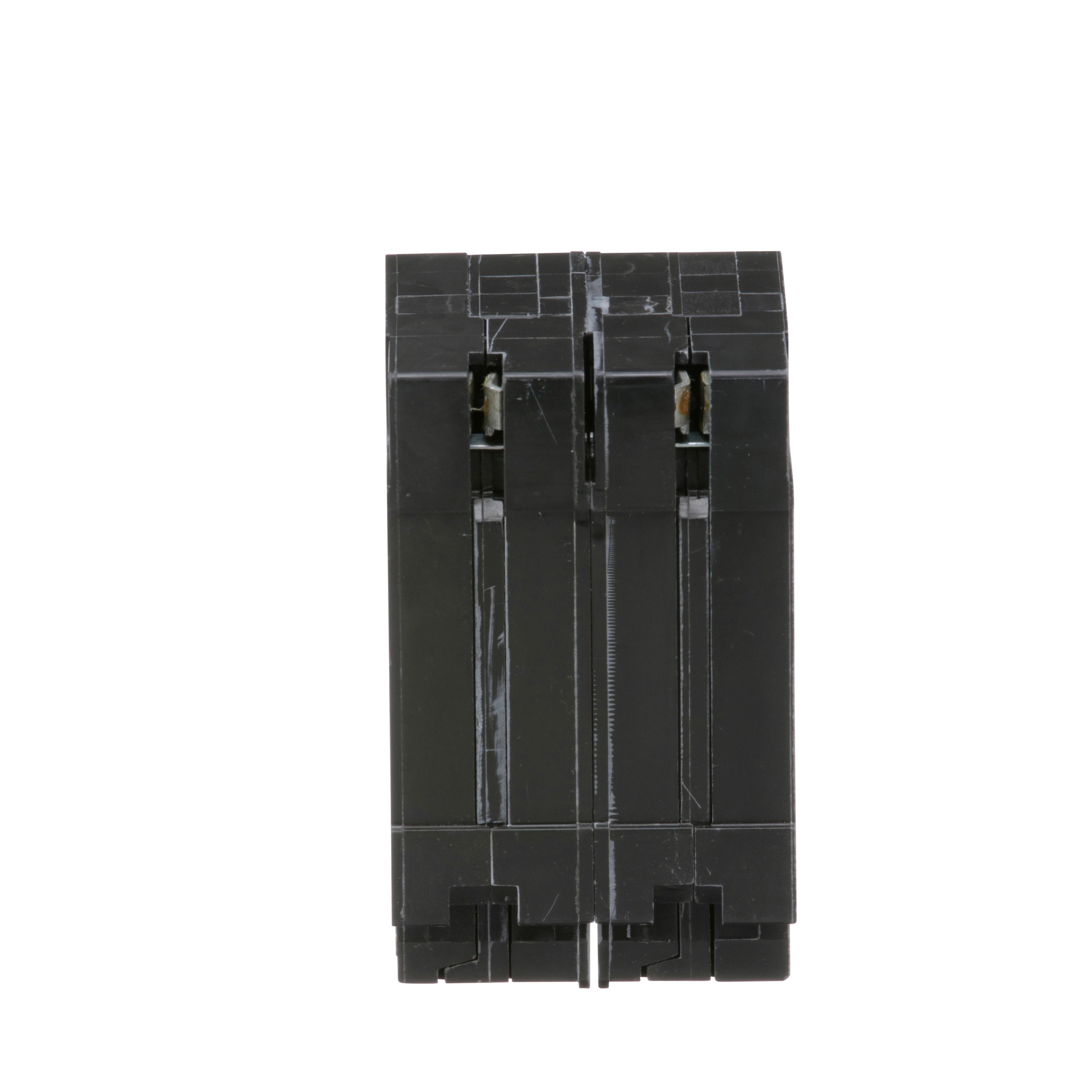

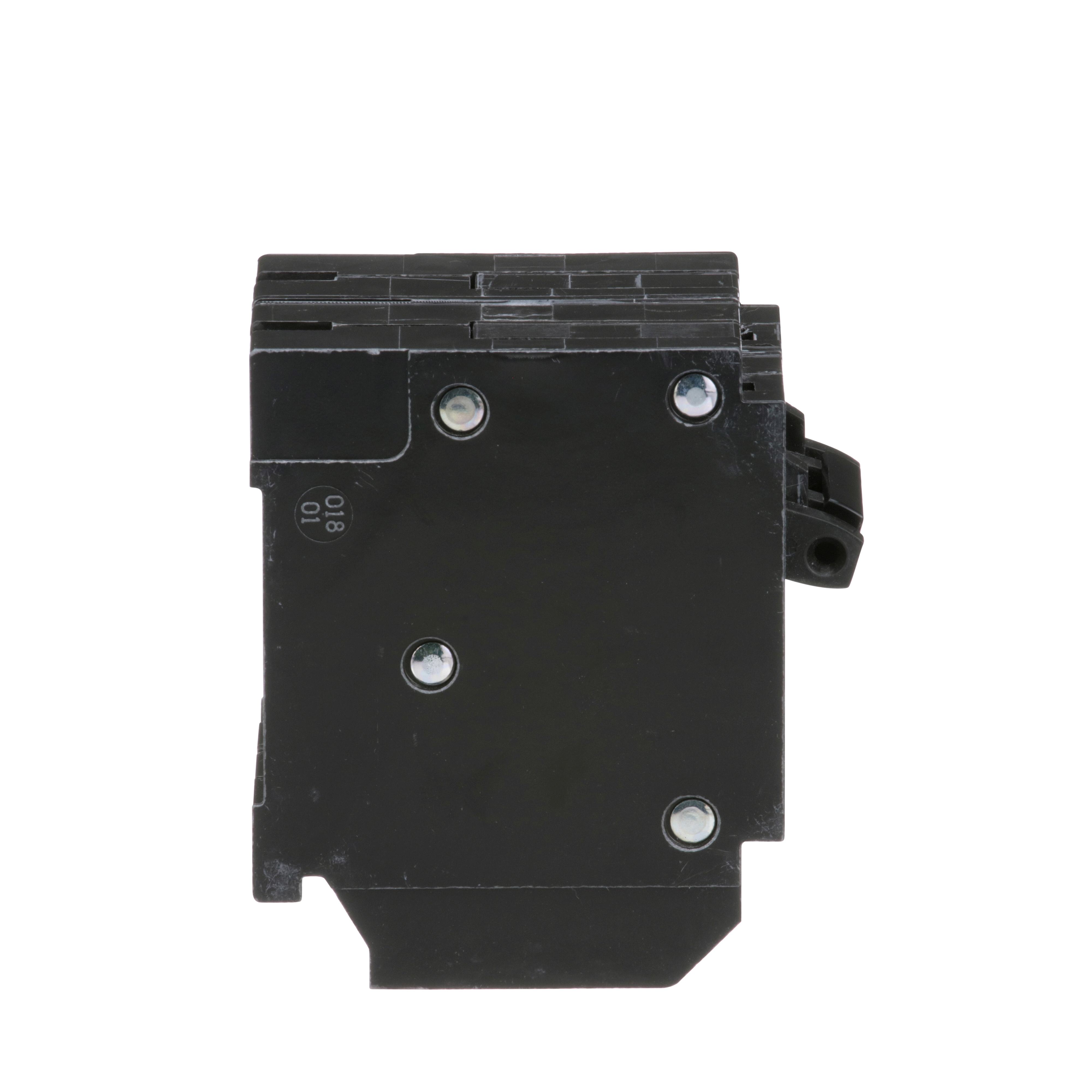

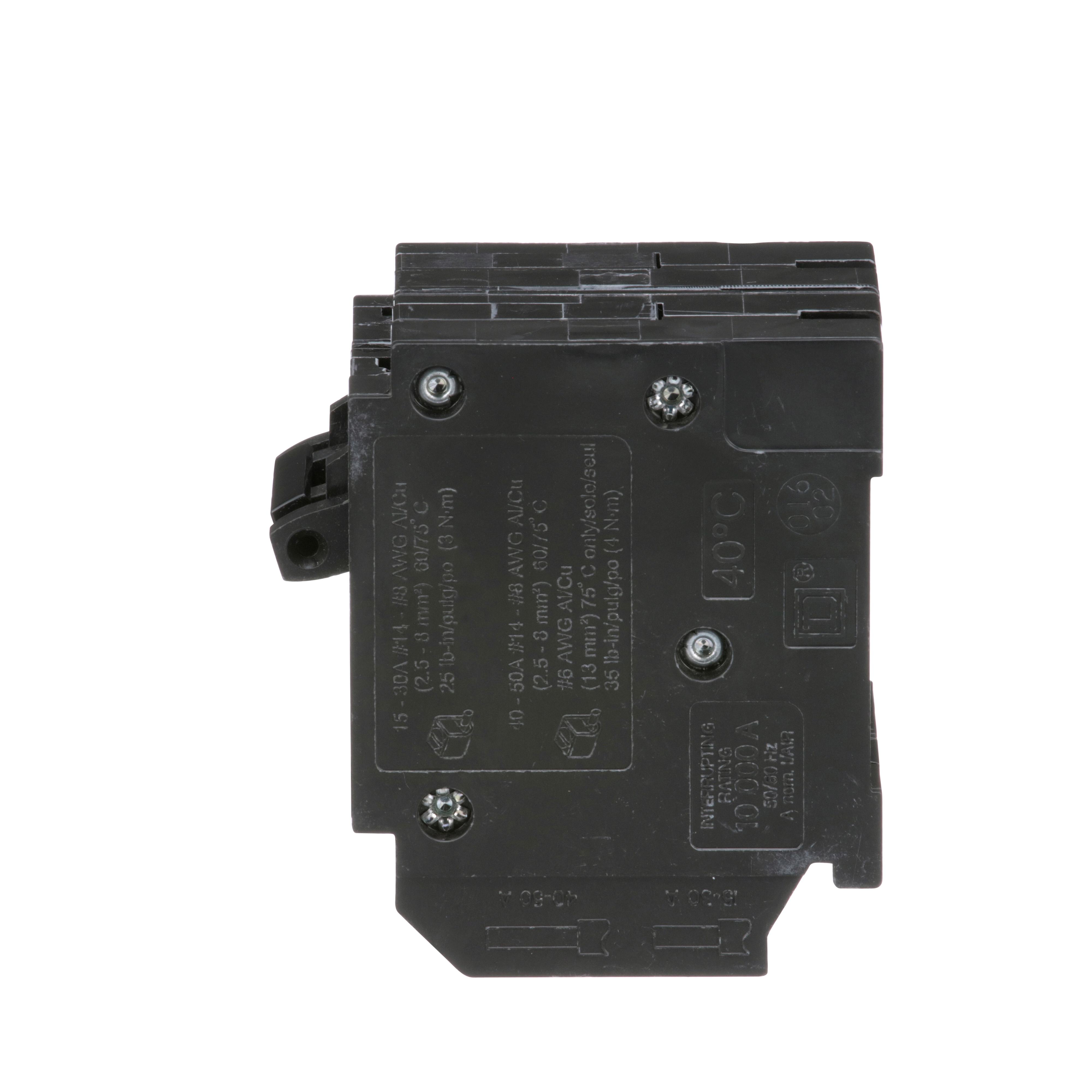

Square D™ Homeline™ HOMT2020250 Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 20/50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 472135
MPN: HOMT2020250
Login for Price
Features
- Aluminum/copper wire
Description
Square D™ Homeline™ Miniature Circuit Breaker, Quad Tandem, Series: HOM, 120/240 VAC, 20/50 A, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, Terminal Screw Connection, 12 to 6 AWG Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 75 deg C, 2.98 in L Dimensions
Specifications
Amperage Rating |
20/50 A |
Connection Type |
Terminal Screw |
Dimensions |
2.98 in L |
Enclosure Type |
NEMA 1/2 |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Series |
HOM |
Temperature Rating |
75 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Quad Tandem |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 6 AWG |
Standard Approval |
RoHS Compliant|UL File No. E6294|Federal Specification W-P-115b|NEC Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_465283ec152a4ec6d95b836310b8de3e8d2be9c6987d7c6417ec8aeac2a44cda.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c2940250cced71b8936828d6995d8121e21af49879478cc240b77c838cab895f.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM215_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_94a82cf4a855afe4fb31c2a445962478f186d49e88b6cafe46d38c70d2d6e655.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_VW3A3721_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT2020250_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f4dce097fb2fec06367e8a74f134dca6adbc146922a596efeaa2a4070ad977e6.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOMT2020250_Specification_Sheet.pdf
