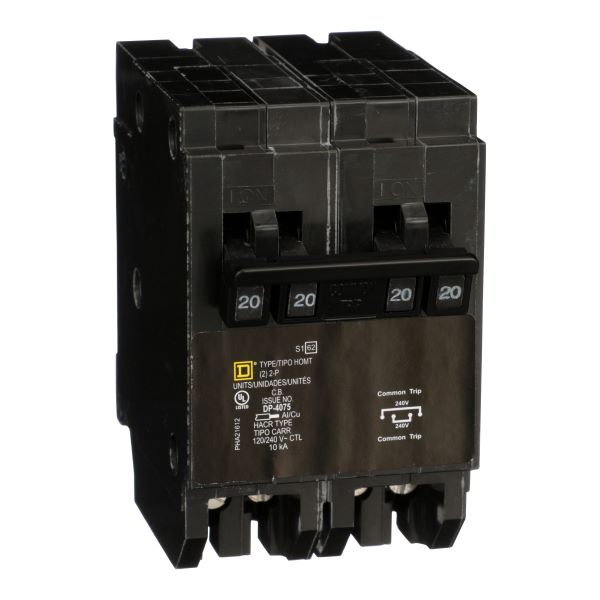

Square D™ Homeline® HOMT220220 Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 20 A, 2 Poles
Brand: Square D™
Item ID: 479350
MPN: HOMT220220
Login for Price
Features
- Combination cover for flush or surface mounting
- Aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight-in wiring to help minimize service cable installation
- Convertible mains meet changing job site requirements
- Single captive screw interior mounting on indoor panels to ease removal
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Combination slot/square drive neutral, ground, and cover screws for positive drive and improved torque
- Three-ground bar mounting locations for ease of wiring
- Automatic flush adjustment cover speeds installation
- Tangential main service knockouts eliminate offsets
- Equipment grounding bar included with main lug load centers
- Cover supplied with load center
- Provisions for door lock on convertible mains panel covers
- Two-branch circuit breaker twist outs are factory removed for easier installation of circuit breakers
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Standard 22/10 k air series rating on main circuit breaker panels increases application capability
Description
Homeline® circuit breaker load centers from Square D™ are UL listed panelboards. they are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™ Homeline® Miniature Circuit Breaker, Quad Tandem, 120/240 VAC, 20 A, 2 Pole, 1 ph, Box Lug, 14 to 8 AWG Aluminum/Copper Wire, Plug-In Mount, 40 deg C, 1.97 in W x 3.23 in D x 3.13 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Box Lug |
Dimensions |
1.97 in W x 3.23 in D x 3.13 in H |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Type |
Quad Tandem |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG Aluminum/Copper |
Standard Approval |
REACH Compliant|ECCN: EAR99|UL Listed |
