Square D™ HOMT220230

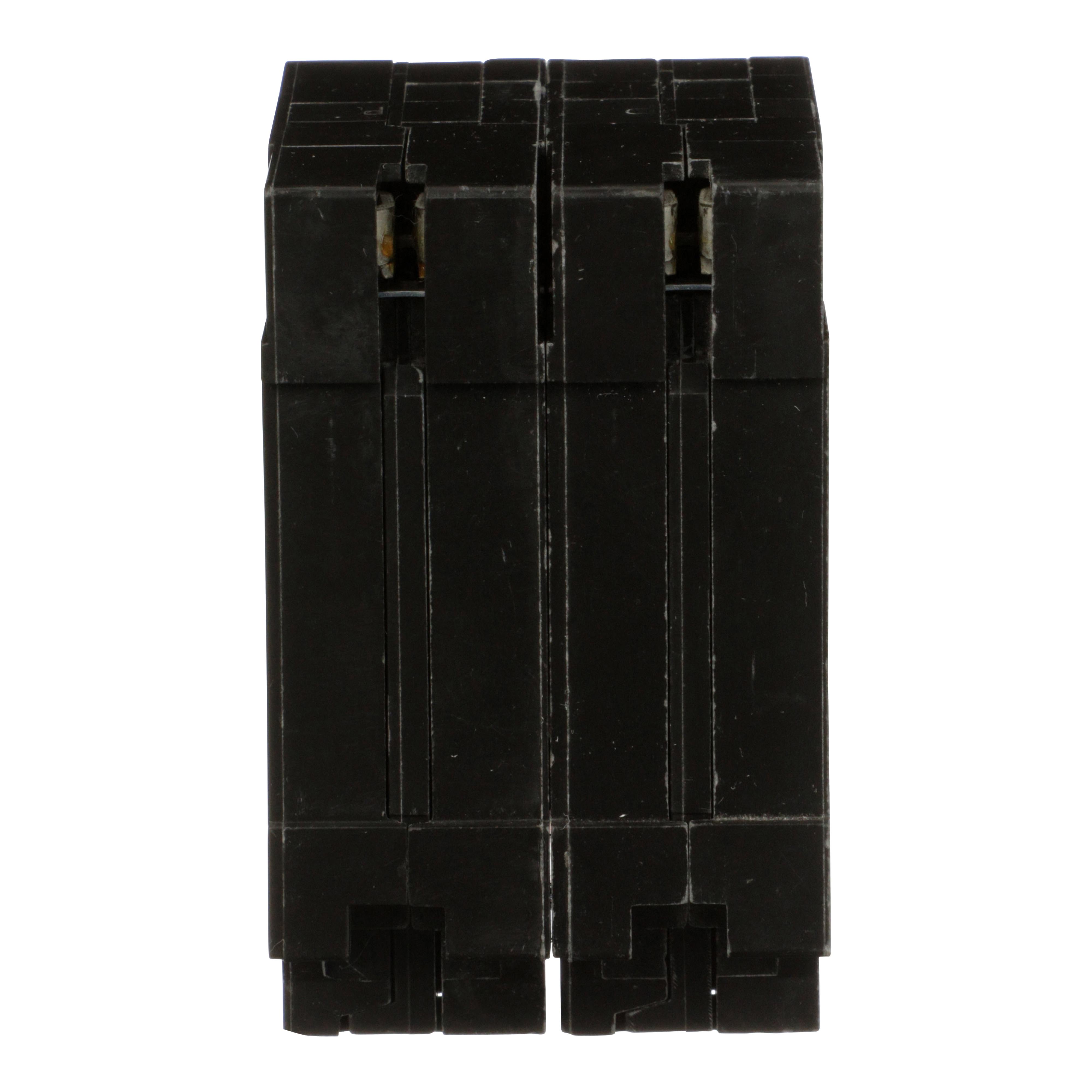

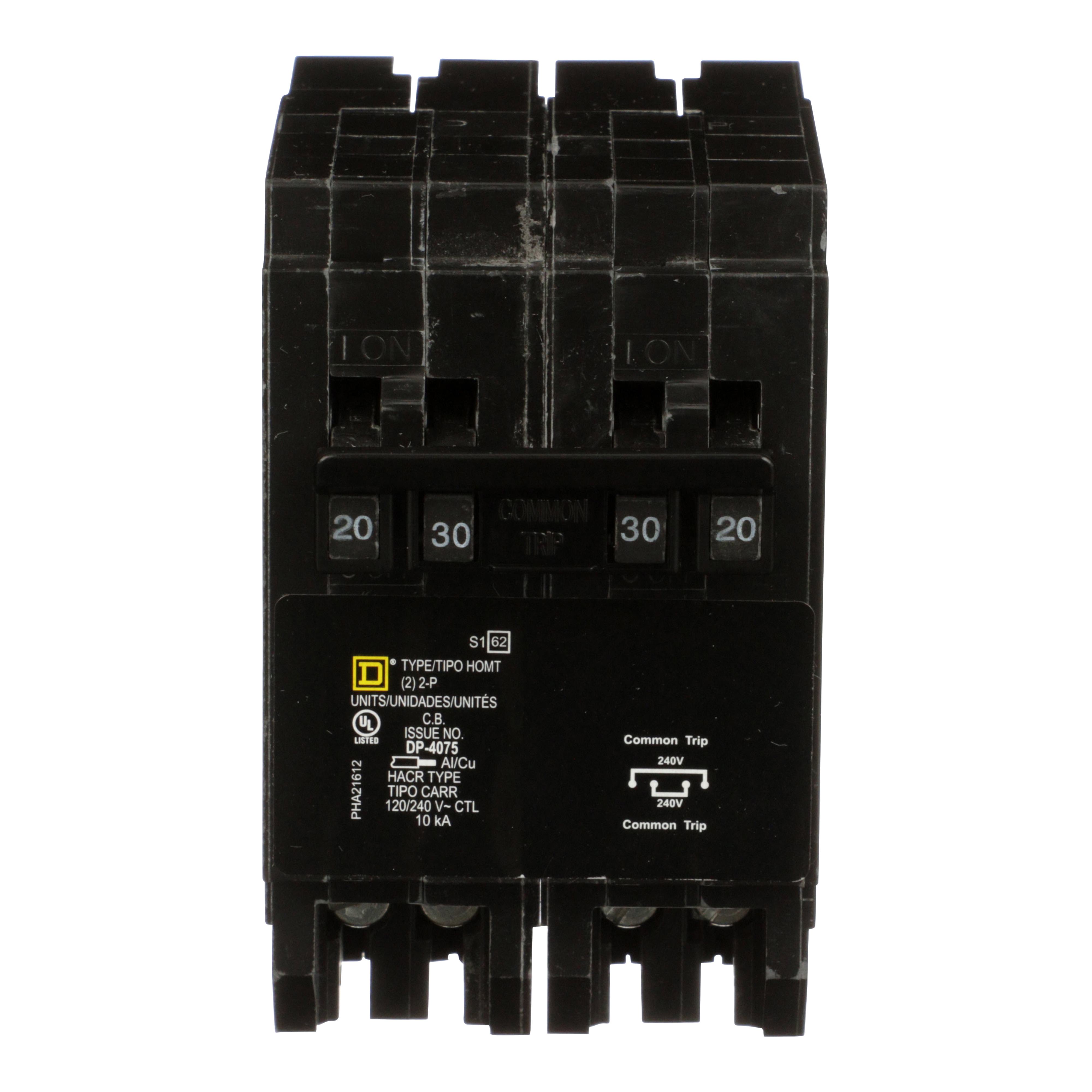

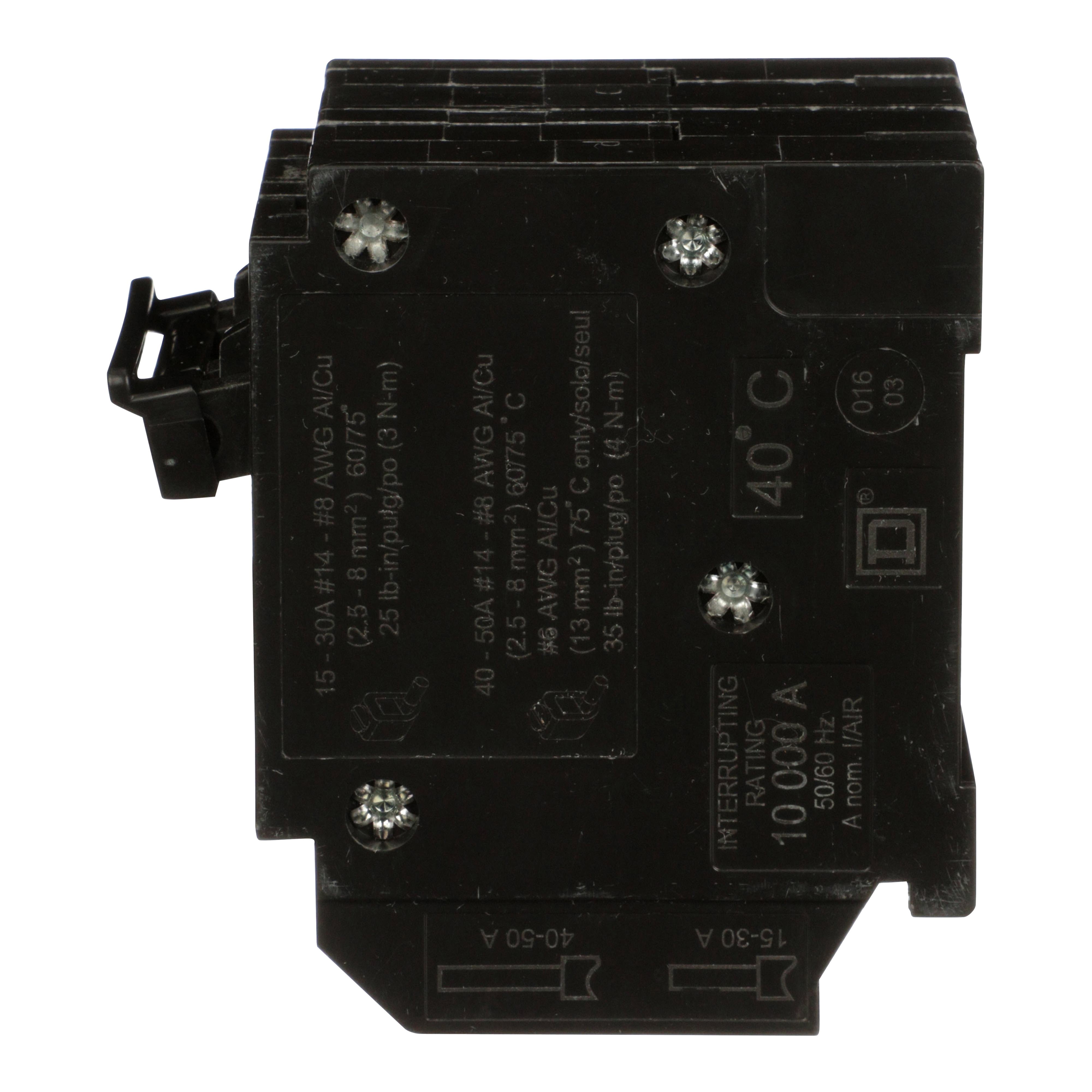

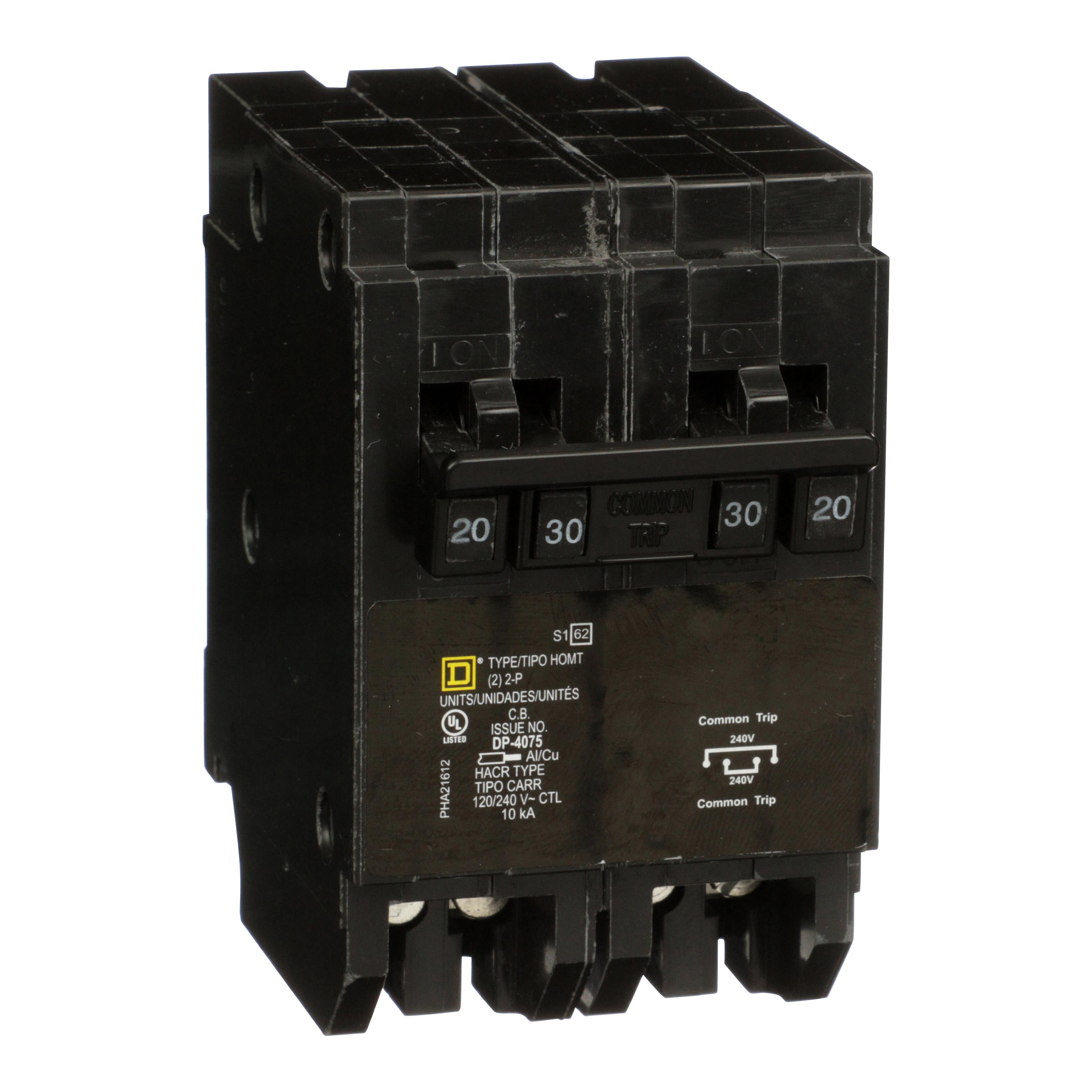

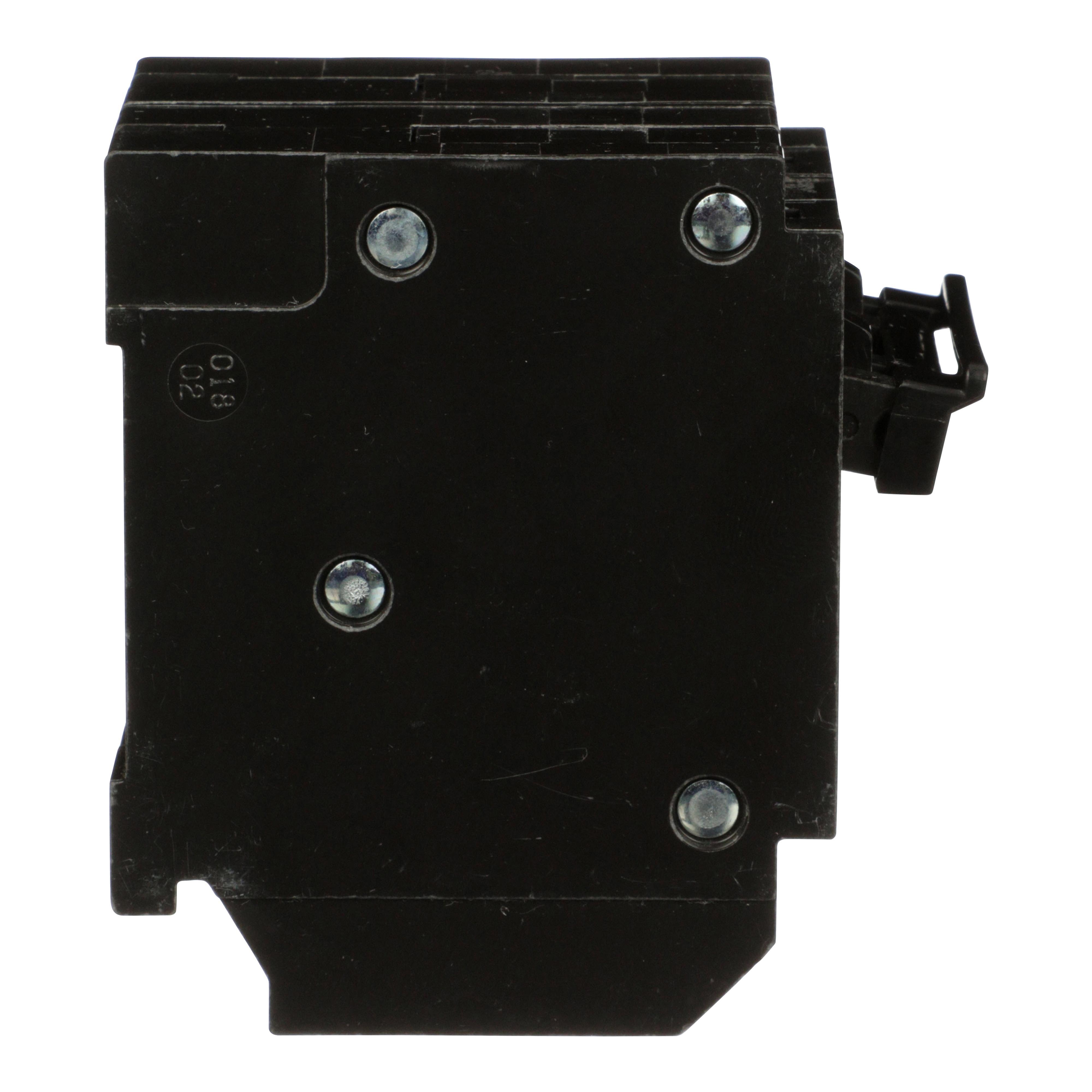

Square D™ Homeline™ HOMT220230 Quad Tandem Mini Circuit Breaker, 120/240 VAC, 20/30 A, 10 kA Interrupt, 2 Poles
Brand: Square D™
Item ID: 479352
MPN: HOMT220230
Login for Price
Features
- Square D™ is the industry leader in circuit protection with a long standing reputation for quality and reliability
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all national electric code requirements and provide superior electrical safety, including - dual function, one and two pole combination arc fault circuit interrupters (CAFIs) and Arc-D-Tect CAFI circuit breakers
- Homeline™ load centers accept plug-on neutral, pigtail, full-size and tandem circuit breakers on every space
- Market-leading circuit protection - designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners
- Multiple applications - Homeline™ circuit breakers offer a full range of amperage, poles, and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- Faster installation - fewer connections
- Saves wire - fully distributed split neutral bar
- Frees gutter space - no pigtails
- Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring - all spaces accept tandems
Description
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D™ Homeline™ circuit breakers are the smart, safe, reliable choice.
Square D™ Homeline™ Quad Tandem Mini Circuit Breaker, 120/240 VAC, 20/30 A, 10 kA Interrupt, 2 Pole, Box Lug Connection, (1) 14 to 8 AWG Al/Cu Wire, Plug-In Mounting, 104 deg F, 1.97 in W x 3.23 in D x 3.13 in H Dimensions
Specifications
Amperage Rating |
20/30 A |
Connection Type |
Box Lug |
Dimensions |
1.97 in W x 3.23 in D x 3.13 in H |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Temperature Rating |
104 deg F |
Voltage Rating |
120/240 VAC |
Wire Size |
(1) 14 to 8 AWG Al/Cu |
Standard Approval |
NEC Certified|RoHS Compliant|REACH Compliant|UL 1699|UL 943 |
Application |
For residential and light commercial circuit protection, single-phase applications, overcurrent protection, short circuit protection, parallel and series arc fault protection and ground fault protection |
