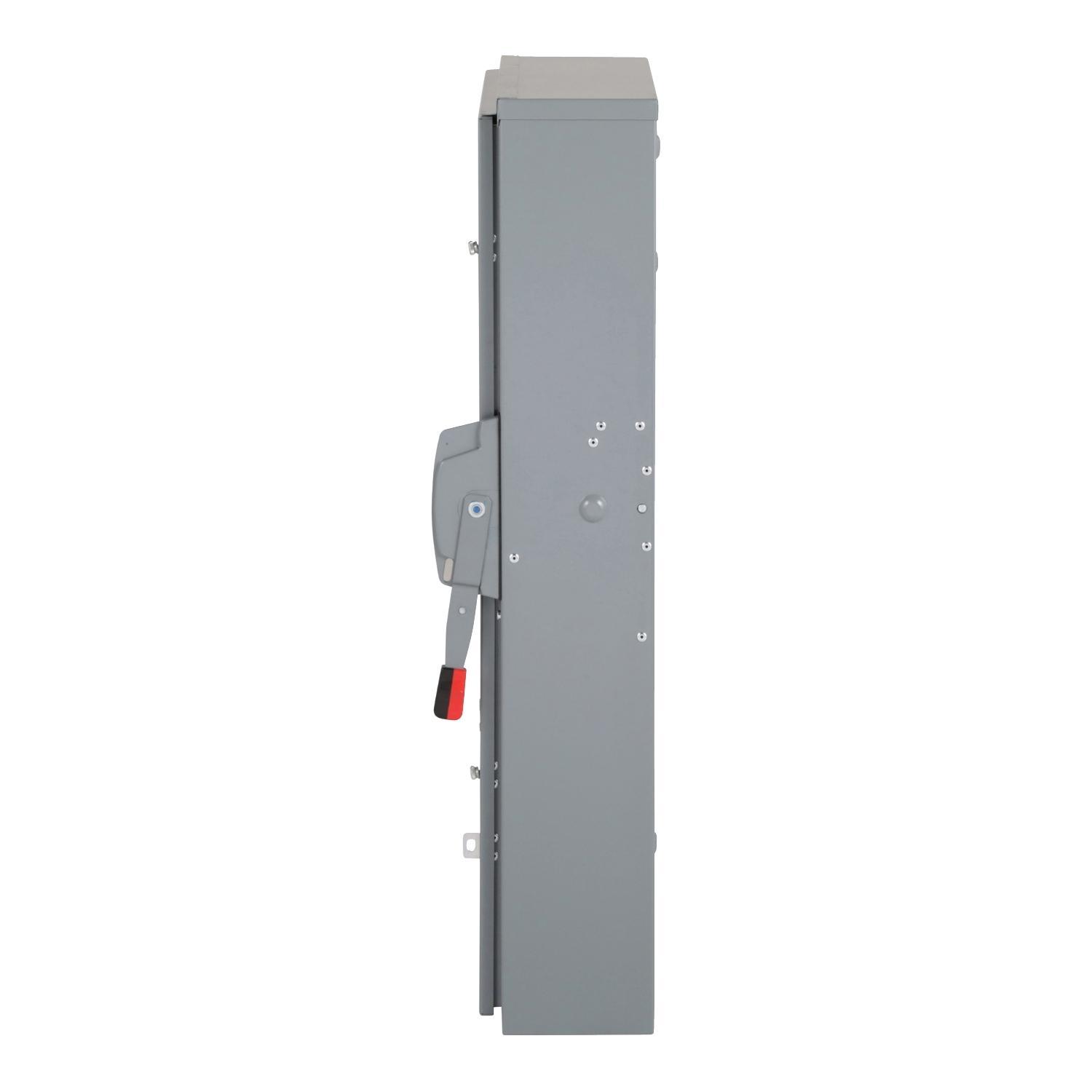

Schneider Electric HU365NR

• Visible blades for positive blade position indication
• Red and black handle indicates the On (red) or OFF (black) switch position
• Side-opening, left hinged covers
• Quick-make, quick break operating mechanism
• Standard with plated aluminum lugs which accepts both copper and aluminum wires
• Lock off provision is standard on all heavy duty safety switches
• Load make, load break rated for the switch current rating
• 350 hp 3-phases at 600 VAC/50 hp at 600 VDC standard power rating
• Factory installed neutral (neutrals are field installable on most general duty and heavy duty safety switches)

The Square D™ by schneider electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions from commercial and institutional to industrial and manufacturing facilities. F series safety switches provide significantly higher levels of mechanical endurance than NEMA KS1 or UL 98 standards require. The design life of a F series switch is a minimum of 3 times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by schneider electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick-make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.

Schneider Electric Disconnect Switch, Heavy Duty Non-Fusible Single Throw, 600 VAC/VDC, 400 A, 350 hp, 3 Pole, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 50.31 in H x 27.88 in W x 10.13 in D Dimensions
