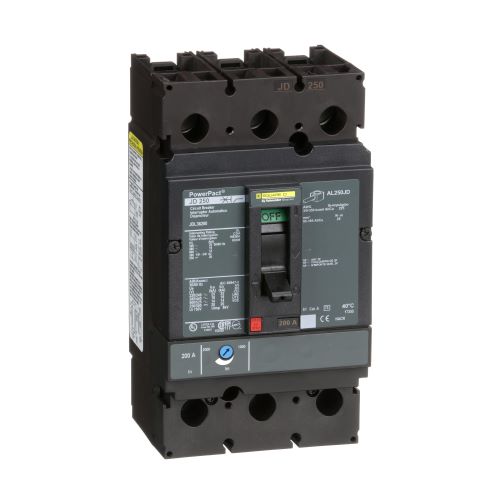

Square D™ JDL36200
Square D™ JDL36200 Jdl Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 367746
MPN: JDL36200
Login for Price
Features
- JDL36200 is a PowerPact J-Frame Molded Case Circuit Breaker, 600V, 200A, 3P, 25kA at 240 VAC
- This thermal-magnetic circuit breaker has a magnetic tripping current of 2000A and a magnetic hold current of 1000A
- 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating
- 3/0 AWG to 350 kcmil aluminum copper wire
- Unit mount
Description
The PowerPact™ J-frame circuit breaker, JDL36200 are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact™ J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. This breaker is certified to UL, IEC, CE, CSA Standards.
Square D™, JDL36200, Jdl Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 50/60 Hz Frequency, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, J Frame, Thermal Magnetic Trip, 1000 to 2000 A Trip, 3 Pole, 3 ph, Handle Actuator, Line/Load Lug Connection, 3/0 AWG to 350 kcmil Wire, -13 to 158 deg F, 86 mm L x 104 mm W x 191 mm H Dimensions
Specifications
Actuator Type |
Handle |
Amperage Rating |
200 A |
Connection Type |
Line/Load Lug |
Dimensions |
86 mm L x 104 mm W x 191 mm H |
Frame |
J |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC |
Number of Poles |
3 |
Phase |
3 ph |
Temperature Rating |
-13 to 158 deg F |
Trip Range |
1000 to 2000 A |
Trip Type |
Thermal Magnetic |
Type |
Standard Type JDL |
Voltage Rating |
600 VAC/250 VDC |
Wire Size |
3/0 AWG to 350 kcmil |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|IEC Certified|UL Listed|CCC Certified|CE Certified|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6421fe8e802613a1f9a0984a28a4e1ac6d97149384c7b22dfd03e19fb2dfcd14.pdf
Full Engineering Drawing 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_JJA36250U43X_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_JGA36150_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_JGA36150_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_JJA36225_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDA36100_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a40de0203b9088db5ca6d6bdf9c49fb98877efdd7c2bc16d92bde9a82a52d014.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_DRI0481C24W_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_JDL36200_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82e0be8845ea1f4ac4f3d68edbfcafbc08adef33fc41ecc64f42f972b9e42658.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_JDL36200_Specification_Sheet.pdf
