Square D™ L111N

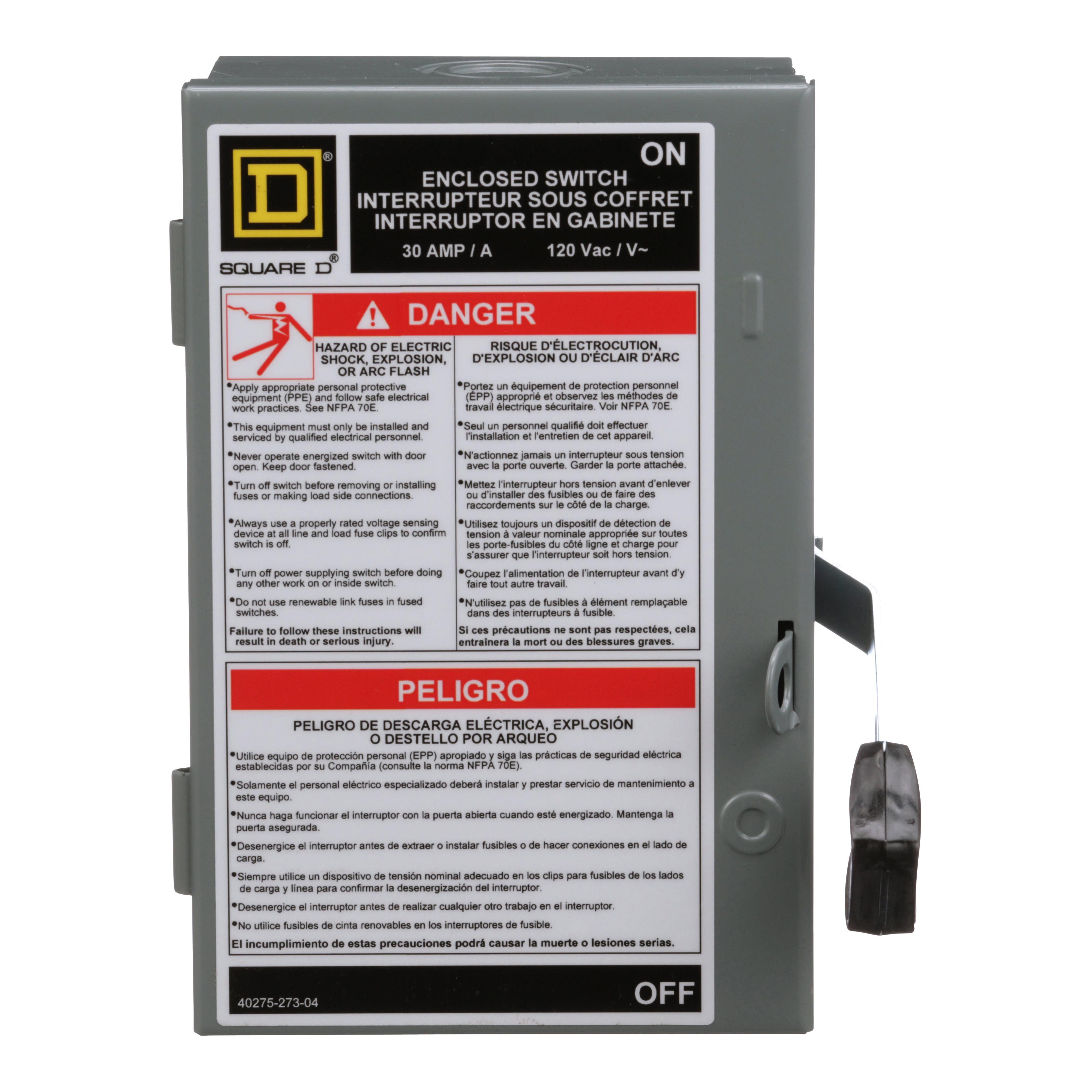

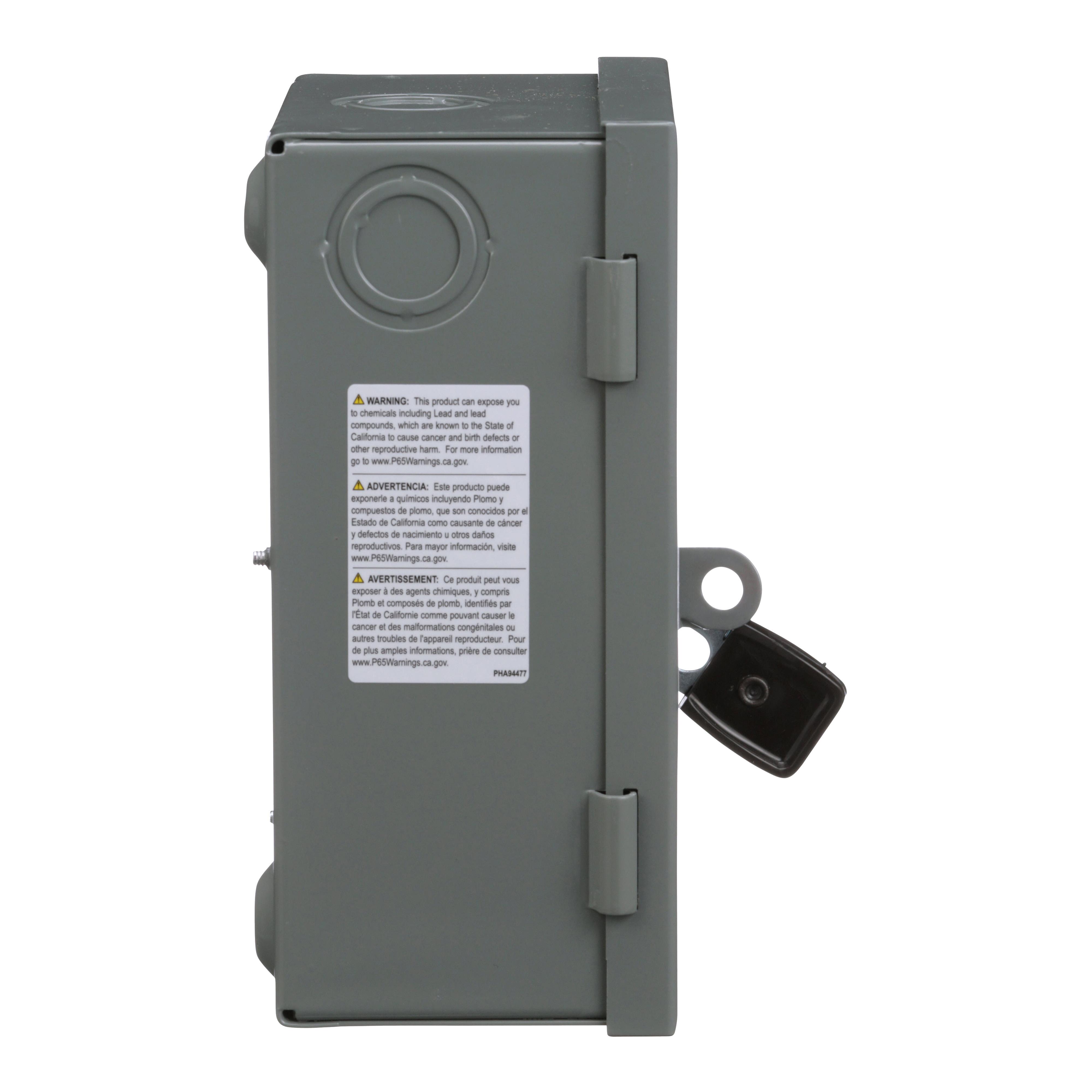

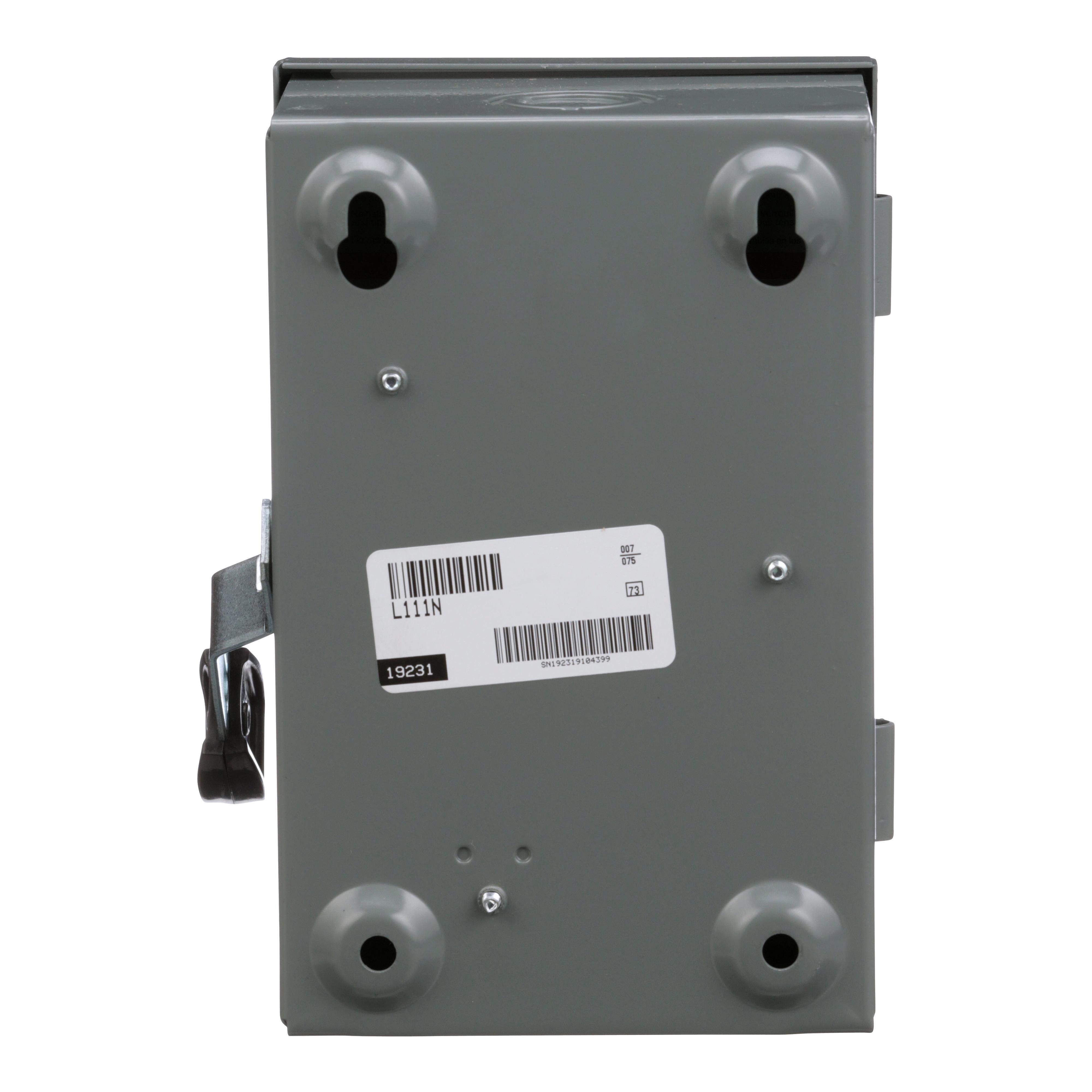

Square D™ L111N Fusible Light Duty Safety Switch, 120 VAC, 30 A, 1/2 hp, 2 hp, Single Throw Contact, 1 Poles
Brand: Square D™
Item ID: 542803
MPN: L111N
UPC: 785901115489
Login for Price
Features
- L111N is a Light Duty Safety Switch Fusible 120V 30A 1P NEMA1 This is a Single Throw Safety Switch certified to UL Listed standards
- This switch is a fusible disconnect with a plug fuse type
- Light duty safety switches are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages
- Indoor enclosure
- Neutral (factory installed) device composition
- 14 to 8 AWG copper/aluminum wire
Description
Light duty safety switches are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages.
Square D™, L111N, Light Duty Safety Switch, Fusible, 120 VAC, 30 A, 1/2 hp, 2 hp, 1 Pole, 2 Wires, 10 kA Short Circuit, Single Throw Contact Form, NEMA 1 Enclosure, Surface Mounting, 7.63 in H x 6.13 in W x 4 in D Dimensions
Specifications
Amperage Rating |
30 A |
Contact Form |
Single Throw |
Dimensions |
7.63 in H x 6.13 in W x 4 in D |
Enclosure Type |
NEMA 1 |
Horsepower |
1/2 hp, 2 hp |
Mounting Type |
Surface |
Number of Poles |
1 |
Number of Wires |
2 |
Short Circuit Current Rating |
10 kA |
Type |
Fusible |
Voltage Rating |
120 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For home applications in disconnecting power to workshops, hobby rooms, furnace, garage, indoor and general purpose applications |
