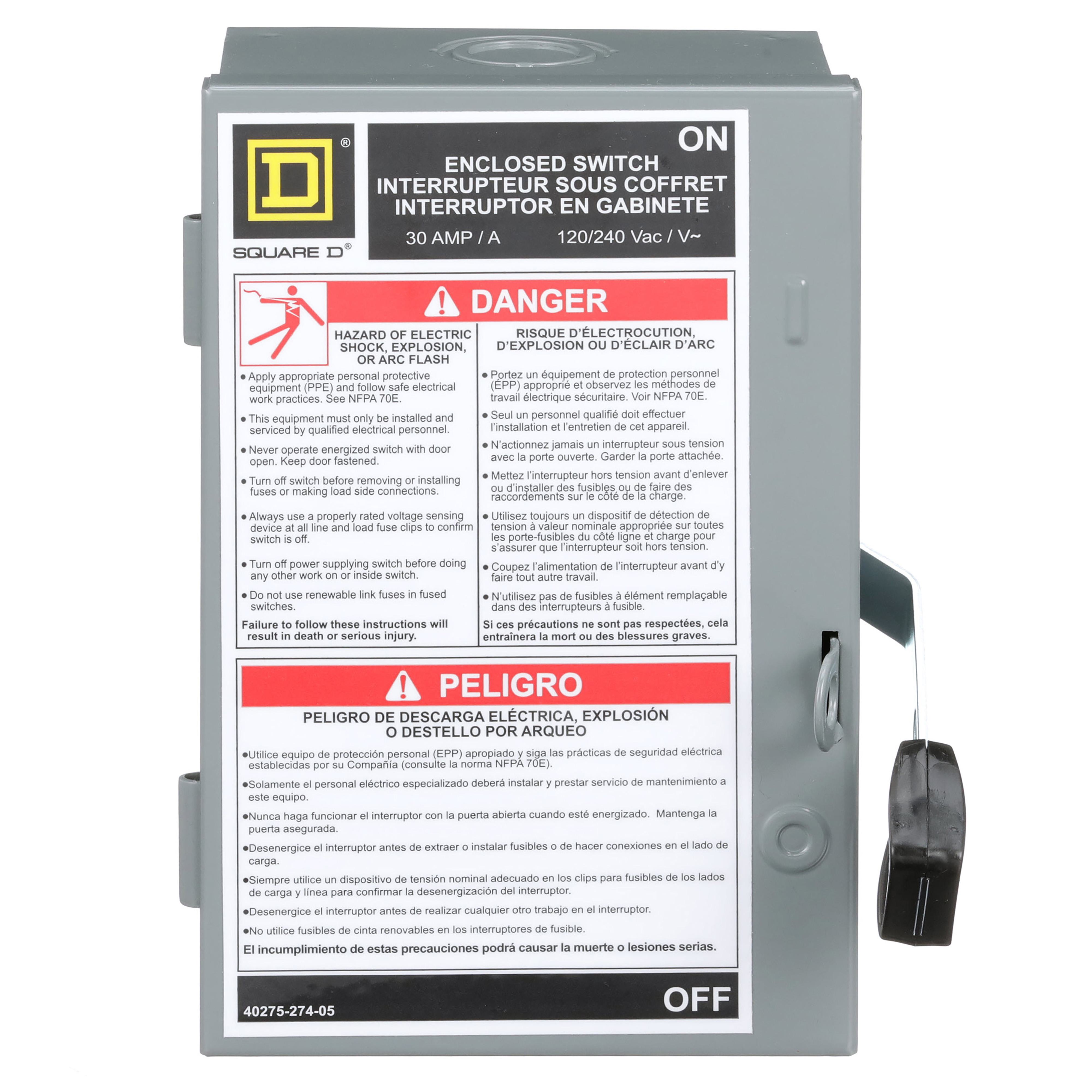

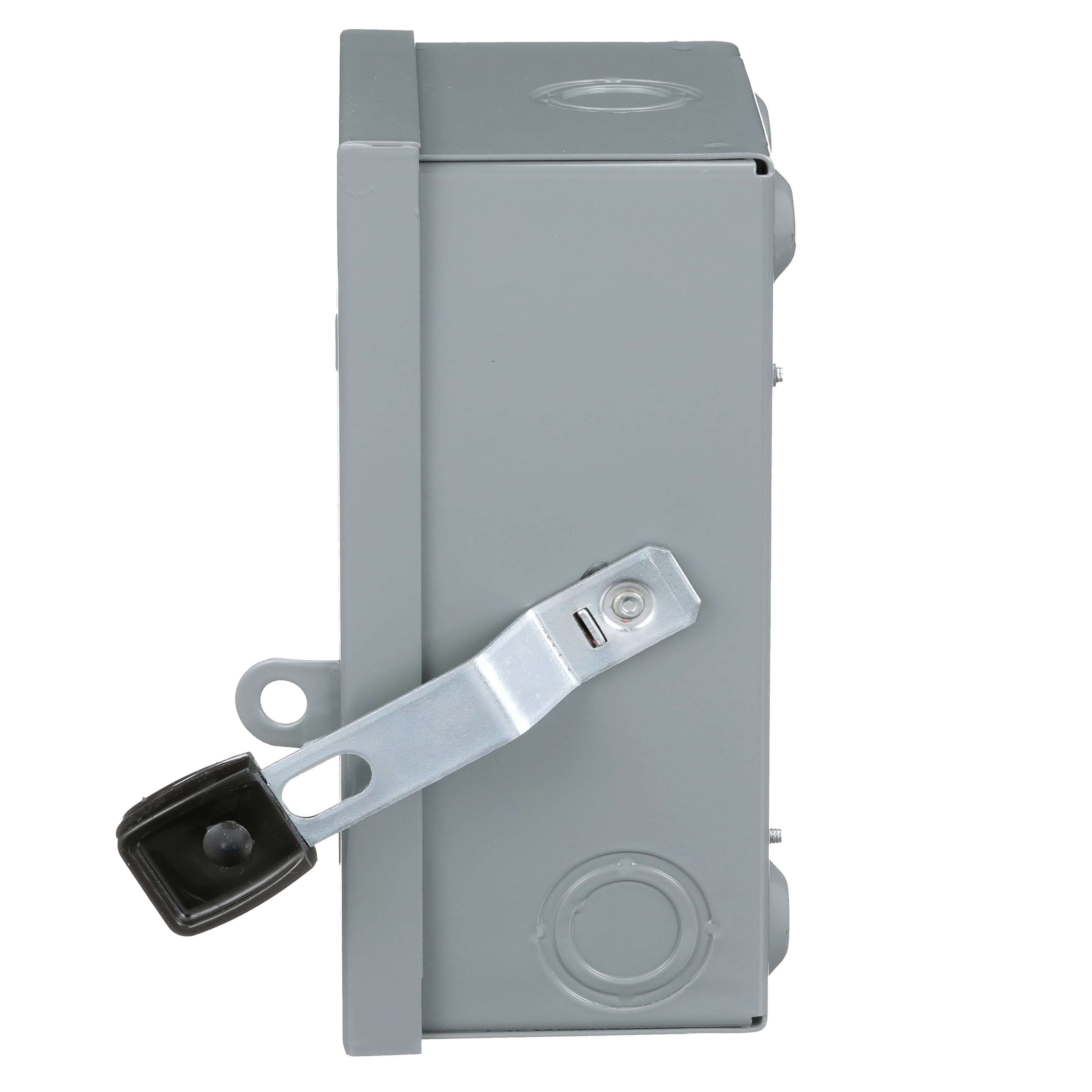

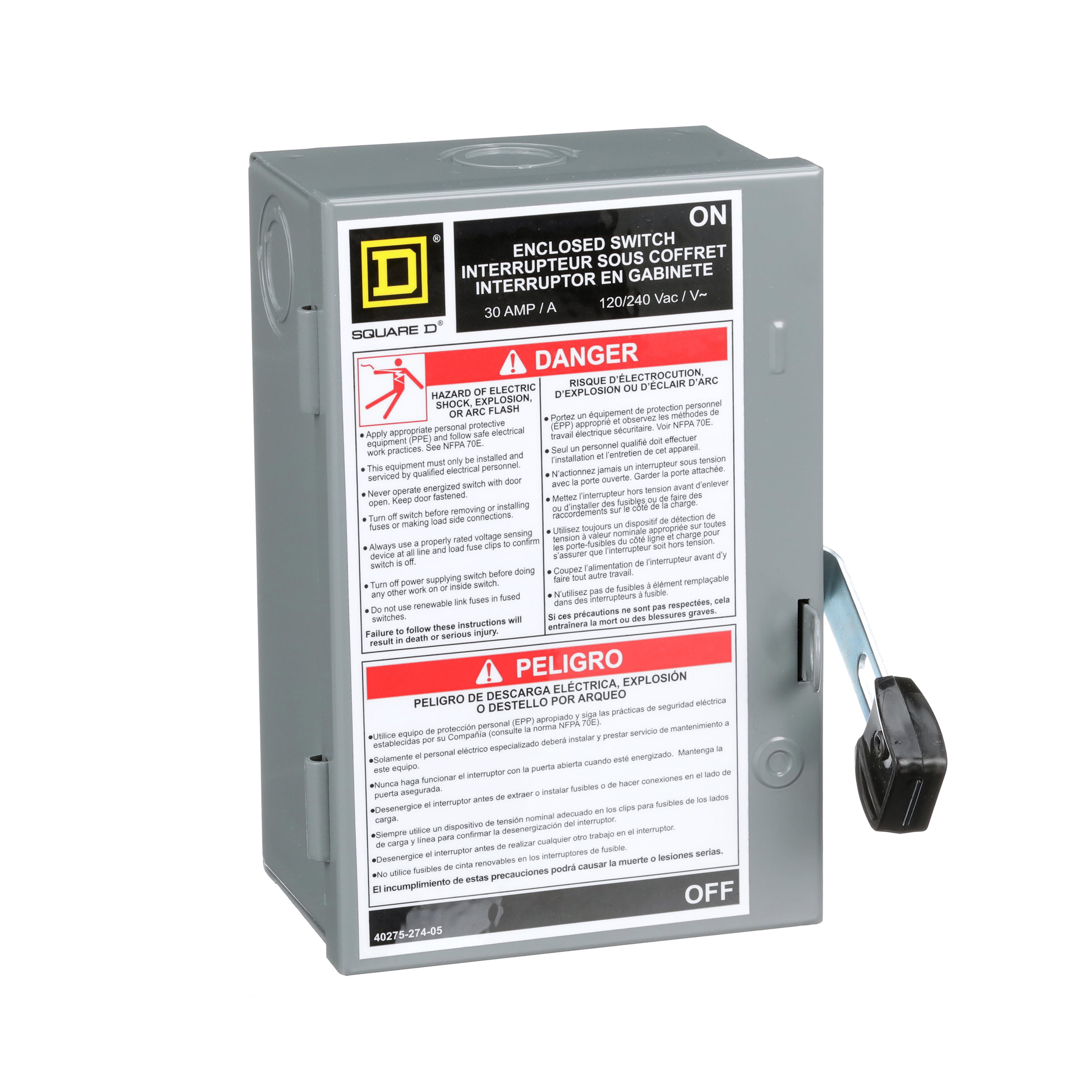

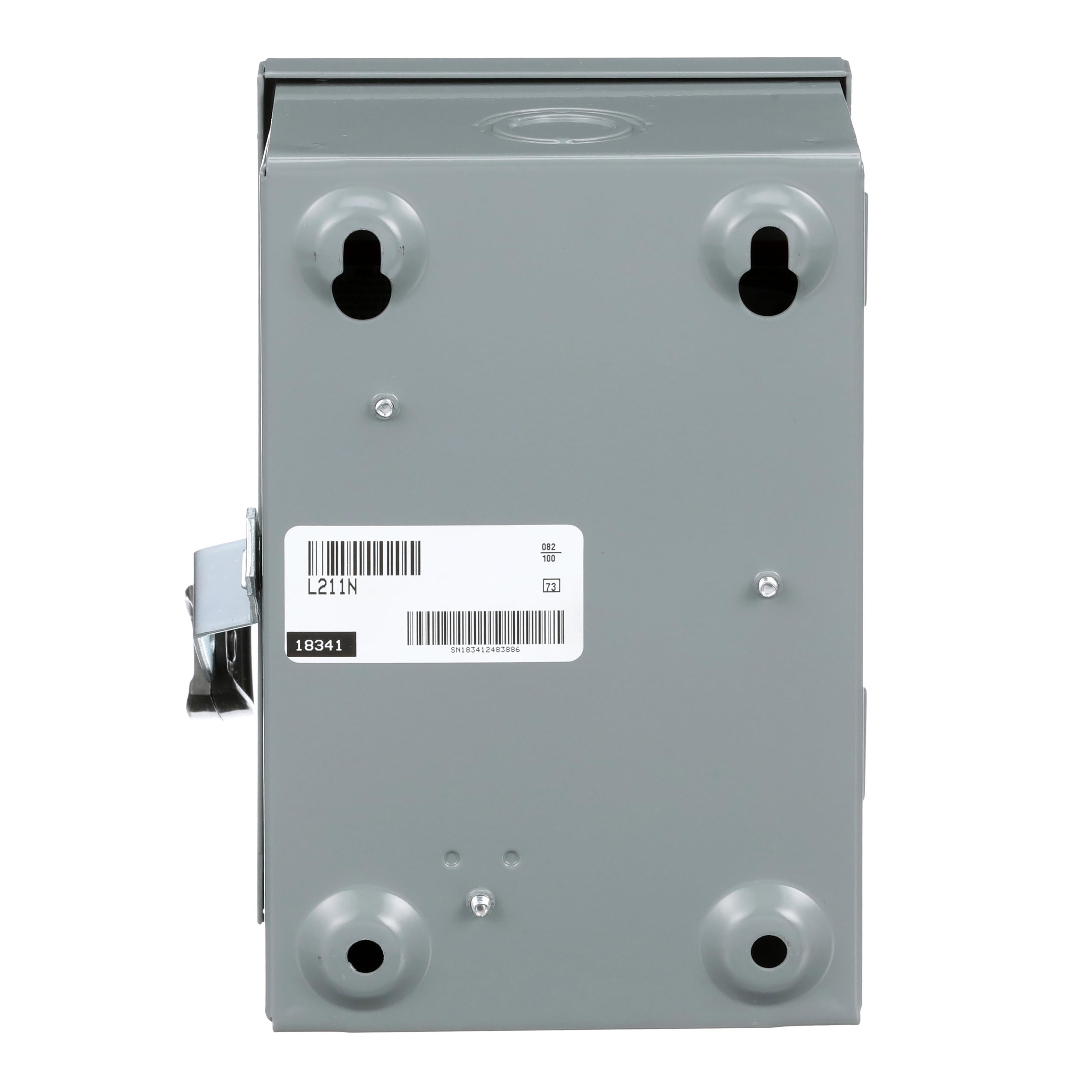

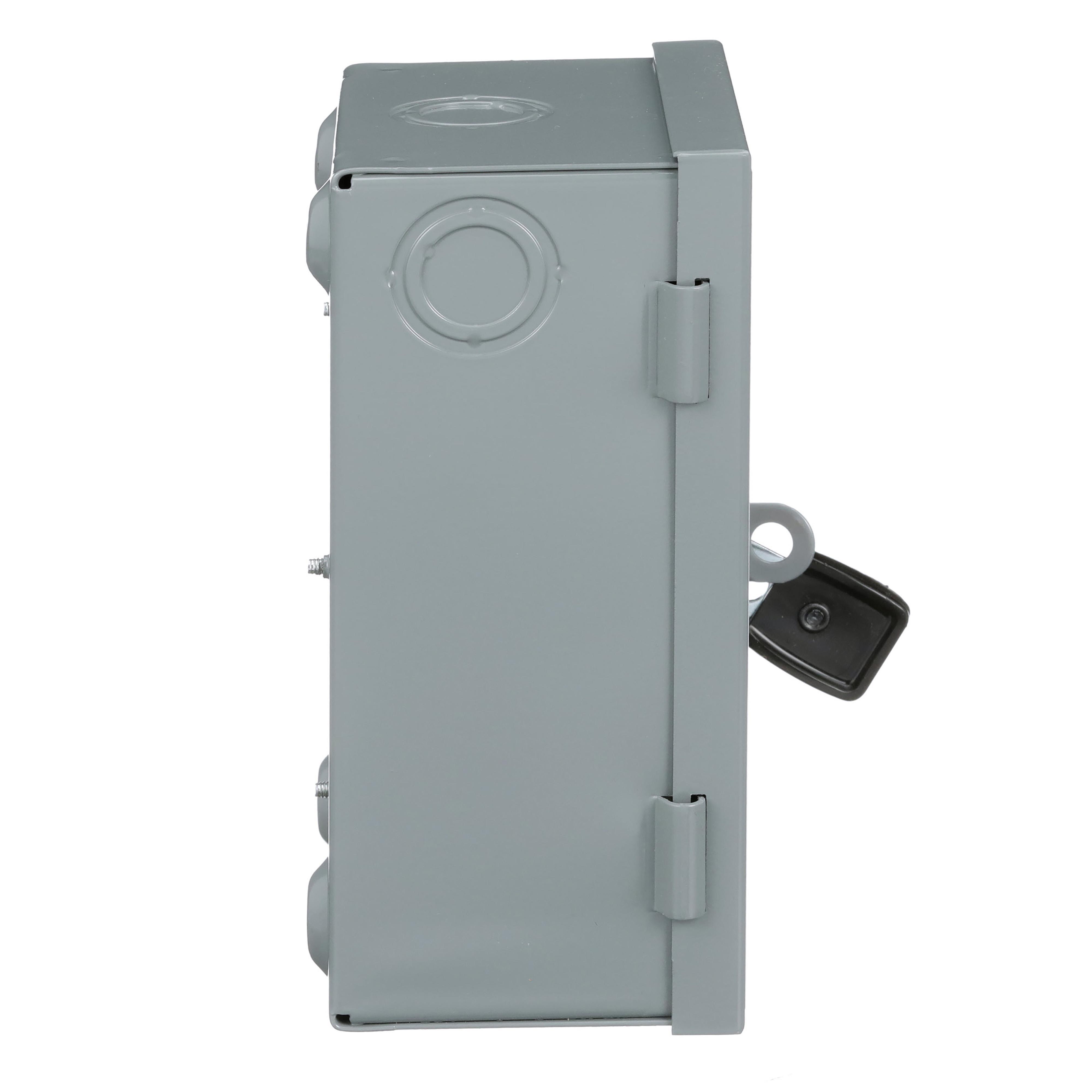

Square D™ L211N
Square D™ L211N E2 Series Fusible General Purpose Light Duty Safety Switch, 120/240 VAC, 30 A, 2 or 3 hp, 2 Poles
Brand: Square D™
Item ID: 525959
MPN: L211N
UPC: 785901090526
Login for Price
Features
- L111N is a Light Duty Safety Switch Fusible 120V 30A 1P NEMA1 This is a Single Throw Safety Switch certified to UL Listed standards
- This switch is a fusible disconnect with a plug fuse type
- The light duty safety switch has visible blades and a ground lug as standard features
Description
Light duty safety switch, L211N, are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages. Typical loads include lighting, air conditioning and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. Light duty safety switches are UL® Listed, File E2875 and meet or exceed the NEMA® Standard KS1.
Square D™ Safety Switch, Fusible General Purpose Light Duty, Series: E2 Series, 120/240 VAC, 30 A, 2 or 3 hp, 1 ph, 2 Pole, 3 Wires, 10 kA Short Circuit, NEMA 1 Enclosure, Surface Mounting, 5 in W x 4 in D x 7.63 in H Dimensions
Specifications
Amperage Rating |
30 A |
Dimensions |
5 in W x 4 in D x 7.63 in H |
Enclosure Type |
NEMA 1 |
Horsepower |
2 or 3 hp |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
3 |
Phase |
1 |
Series |
E2 Series |
Short Circuit Current Rating |
10 kA |
Type |
Fusible General Purpose Light Duty |
Voltage Rating |
120/240 VAC |
Standard Approval |
RoHS Compliant|UL 98|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For home applications in disconnecting power to workshops, hobby rooms, furnaces, garages and indoor |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_645841a7a8e5572db2ccaf0f052ea31303c03ae6cb72d368c95544313122f5e5.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6cc29f18961b2330b70260766f8f66438be2005f681c482c48dae746e3098b09.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_L211N_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_L211N_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8639b0e2cf60a351093aee512bb8692fedfe9d008d09985322792433f78c6e3a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_L211N_Specification_Sheet.pdf
