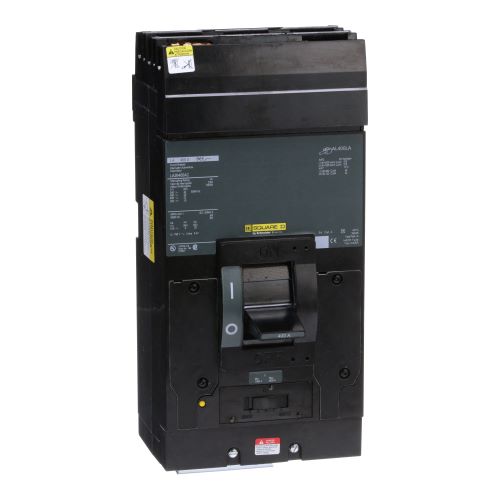

Square D™ I-Line™ PowerPact™ LA26400AC Type LA Molded Case Circuit Breaker, 600 VAC, 250 VDC, 400 A, 25/42/30 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 53116
MPN: LA26400AC
Login for Price
Features
- 25 ka at 600 VAC, 42 ka at 240 VAC, 30 ka at 480 vac interrupt rating
Description
The PowerPact™ L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic™ electronic trip units only.
Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type LA, 600 VAC, 250 VDC, 400 A, 50/60 Hz Frequency, 25/42/30 kA Interrupt, L Frame, Thermal/Magnetic Trip, 2000 to 4000 A Trip, 2 Pole, 1 ph, Toggle Actuator, Load Lug Connection, 3A-3B Auxiliary, (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Al/Cu Wire, Plug-In Mounting, -13 to 158 deg F, 5.84 in L x 6 in W x 11 in H Dimensions
Specifications
Actuator Type |
Toggle |
Amperage Rating |
400 A |
Auxiliary Contact Rating |
3A-3B |
Connection Type |
Load Lug |
Dimensions |
5.84 in L x 6 in W x 11 in H |
Frame |
L |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
25/42/30 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 |
Temperature Rating |
-13 to 158 deg F |
Trip Range |
2000 to 4000 A |
Trip Type |
Thermal/Magnetic |
Type |
Type LA |
Voltage Rating |
600 VAC/250 VDC |
Wire Size |
(1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Al/Cu |
Standard Approval |
RoHS Compliant|UL 489 File No. E10027|CSA C22.2 No. 5-02 File No. LR40970|CCC Certified|CE Certified|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NEMA AB1|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For I-Line™ panelboards and switchboards applications |
