Square D™ LA400DS

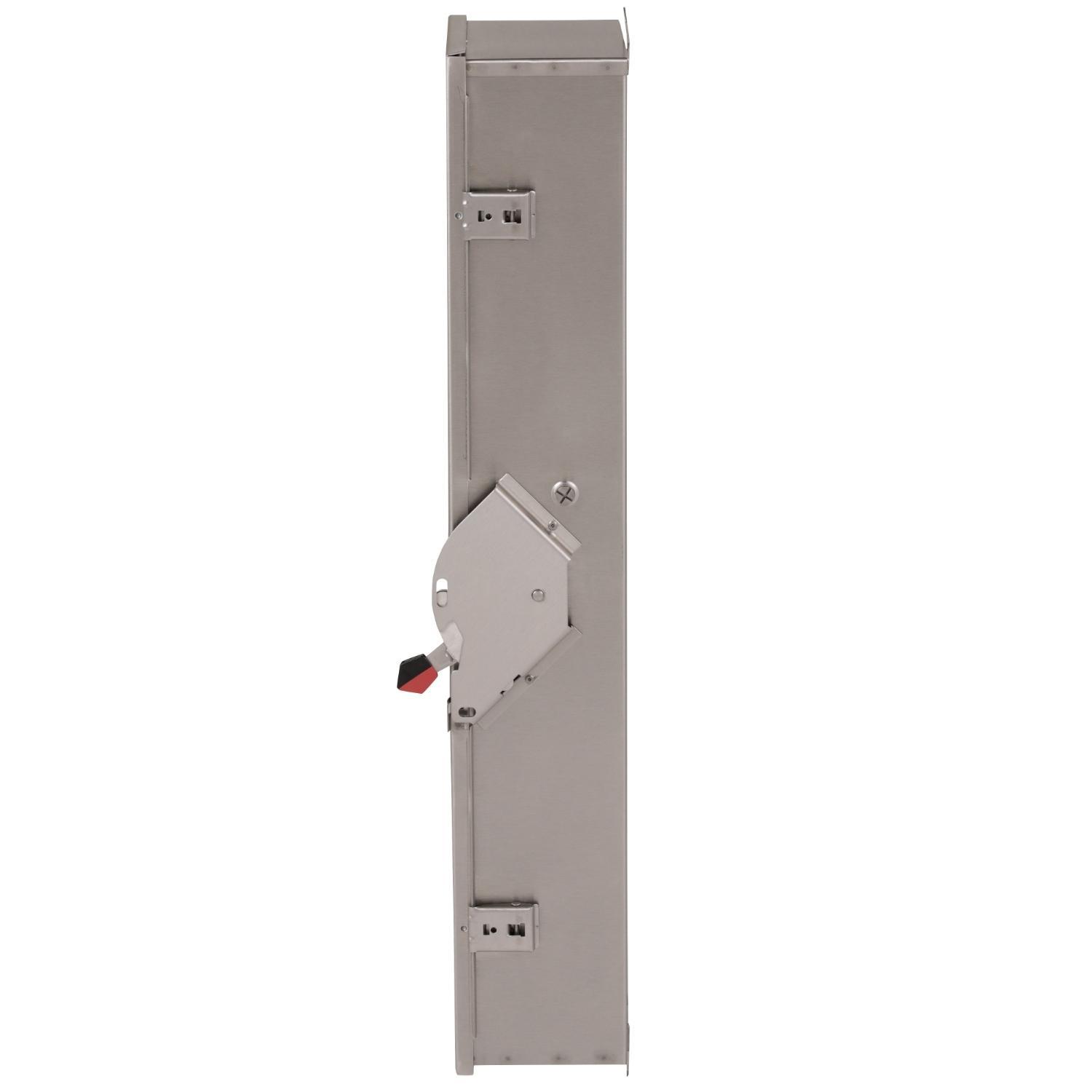

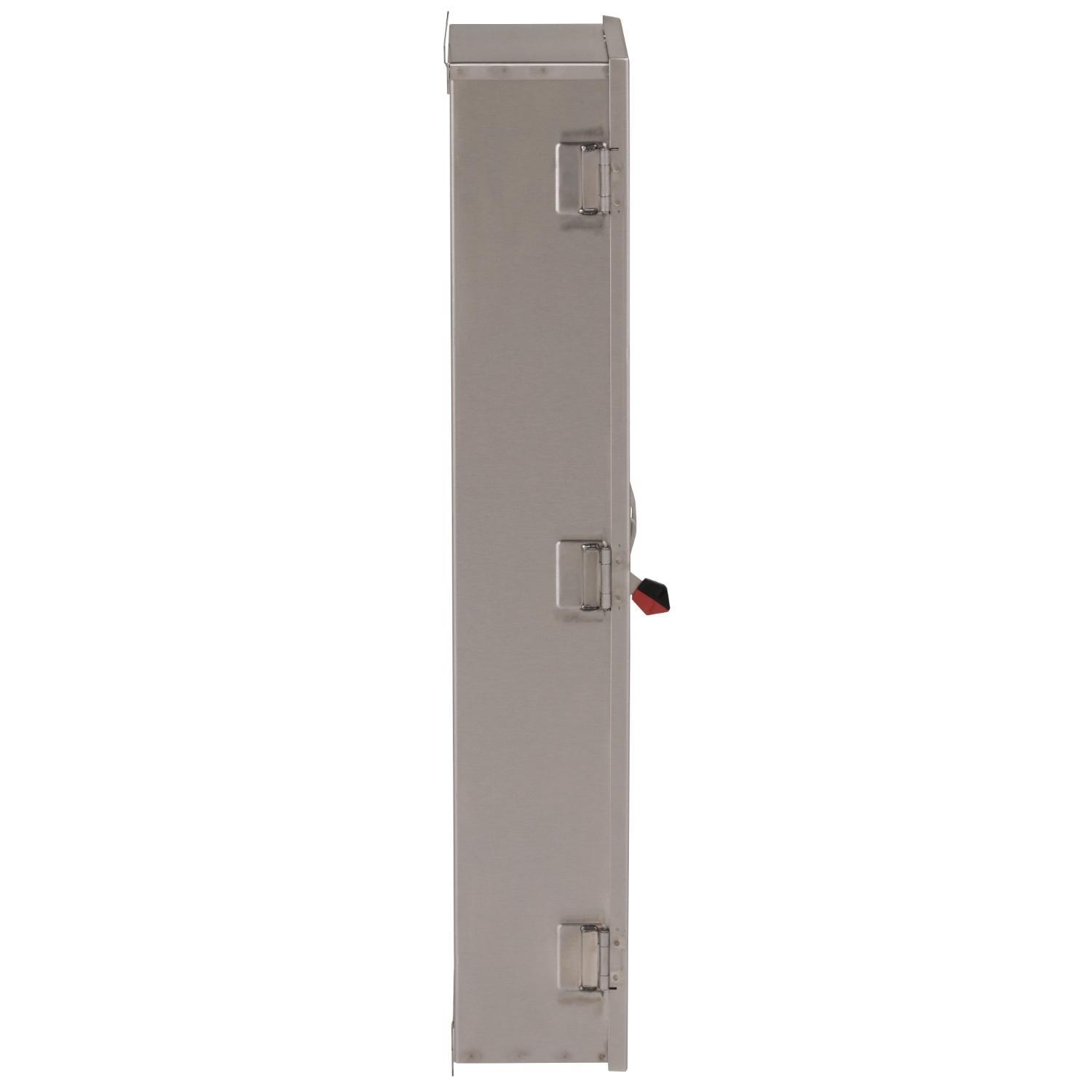

Square D™ LA400DS E05 Enclosure, 349 mm W x 184 mm D x 1073 mm H, NEMA 3/3R/4/4X/5 NEMA Rating, Stainless Steel
Brand: Square D™
Item ID: 512126
MPN: LA400DS
UPC: 785901148661
Login for Price
Features
- For use with type LAL/LHL/Q4L 2/3 Pole 125 to 225 A/225 to 400 A circuit breaker
Description
The enclosures for the L-frame thermal magnetic circuit breakers are UL listed and CSA certified. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit ratings of these enclosed circuit breakers are equal to the interrupter rating, at the supply voltage marked on the circuit breaker installed.
Square D™ Enclosure, Series: E05, 349 mm Width, 184 mm D, 1073 mm Height, NEMA 3/3R/4/4X/5, L Frame, 2/3 Pole, Surface Mount, Stainless Steel
Specifications
Depth |
184 mm |
Frame |
L |
Height |
1073 mm |
Material |
Stainless Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 3/3R/4/4X/5 |
Number of Poles |
2/3 |
Series |
E05 |
Width |
349 mm |
Standard Approval |
ECCN EAR99|CSA Certified|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8850736045c6bfad49386fa20803d3899ae45734ae946e70dd8293212bede171.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_884815b9669e5eb051e1ee69550e790f98548a3eb19aa1d6fa6749c7dc74b3e1.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB6AF3B1B_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_LA400DS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_626bbc848c6dd355955d0e53870b5fe3fa3ad9f53133183c4a4ac80766c65abb.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_LA400DS_Specification_Sheet.pdf
