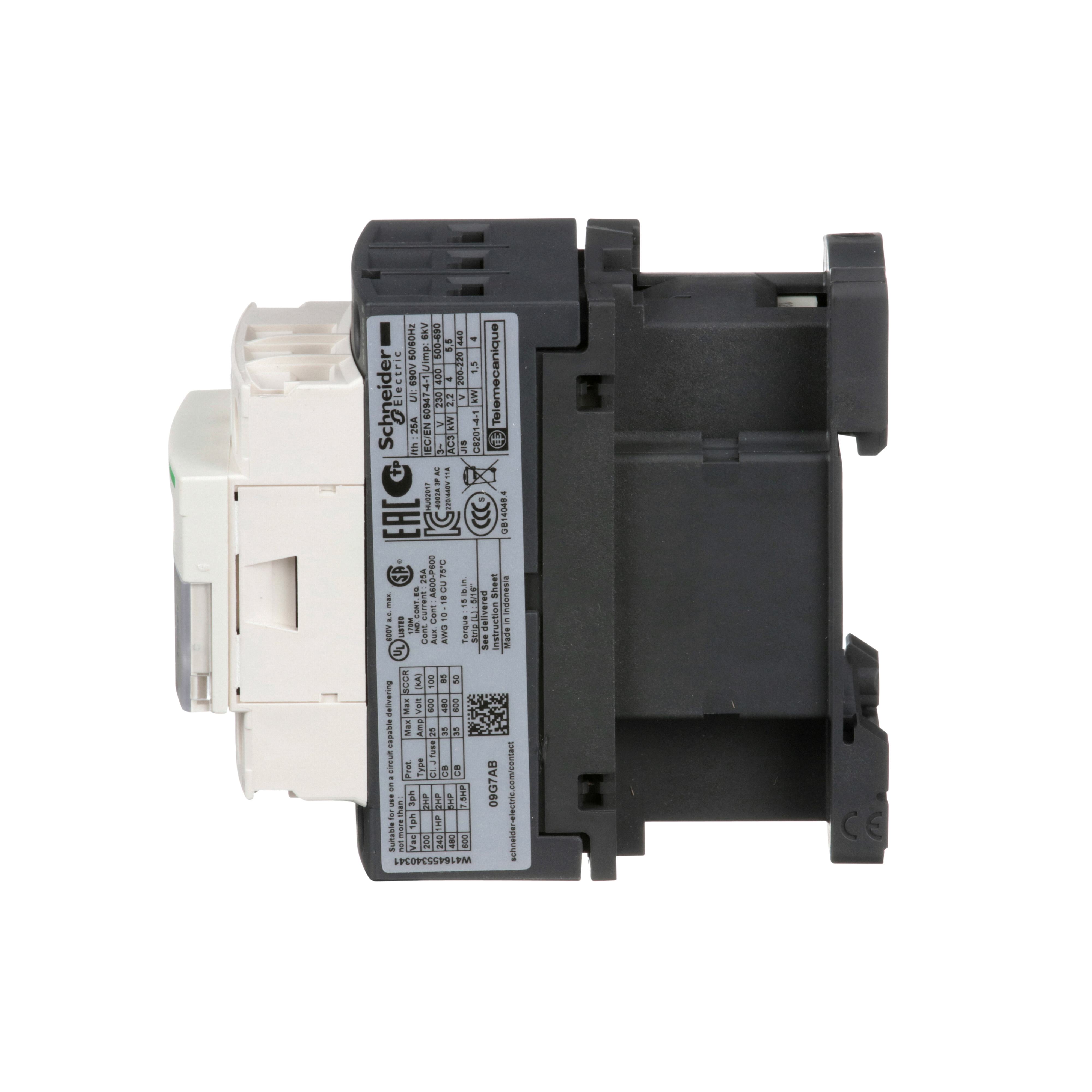

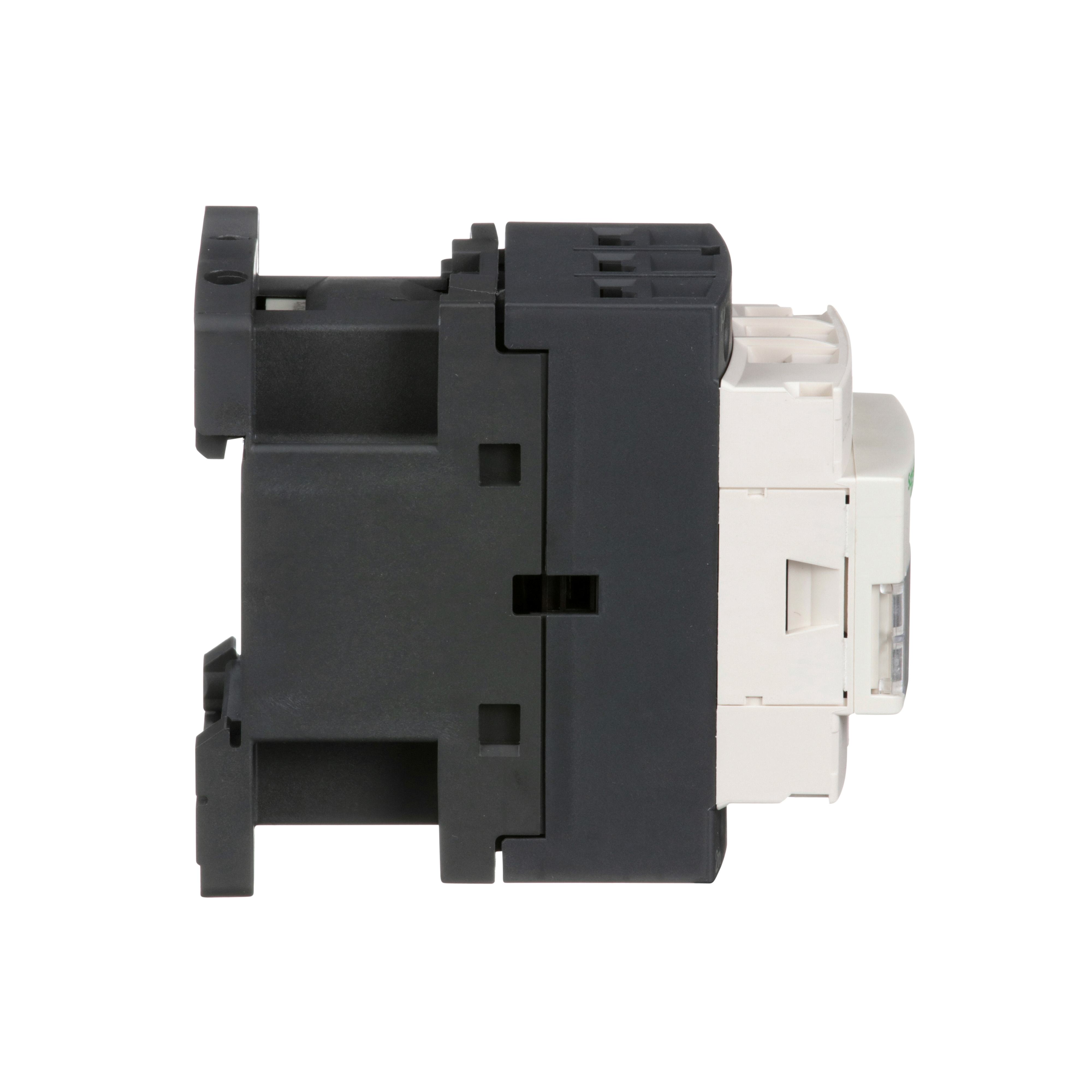

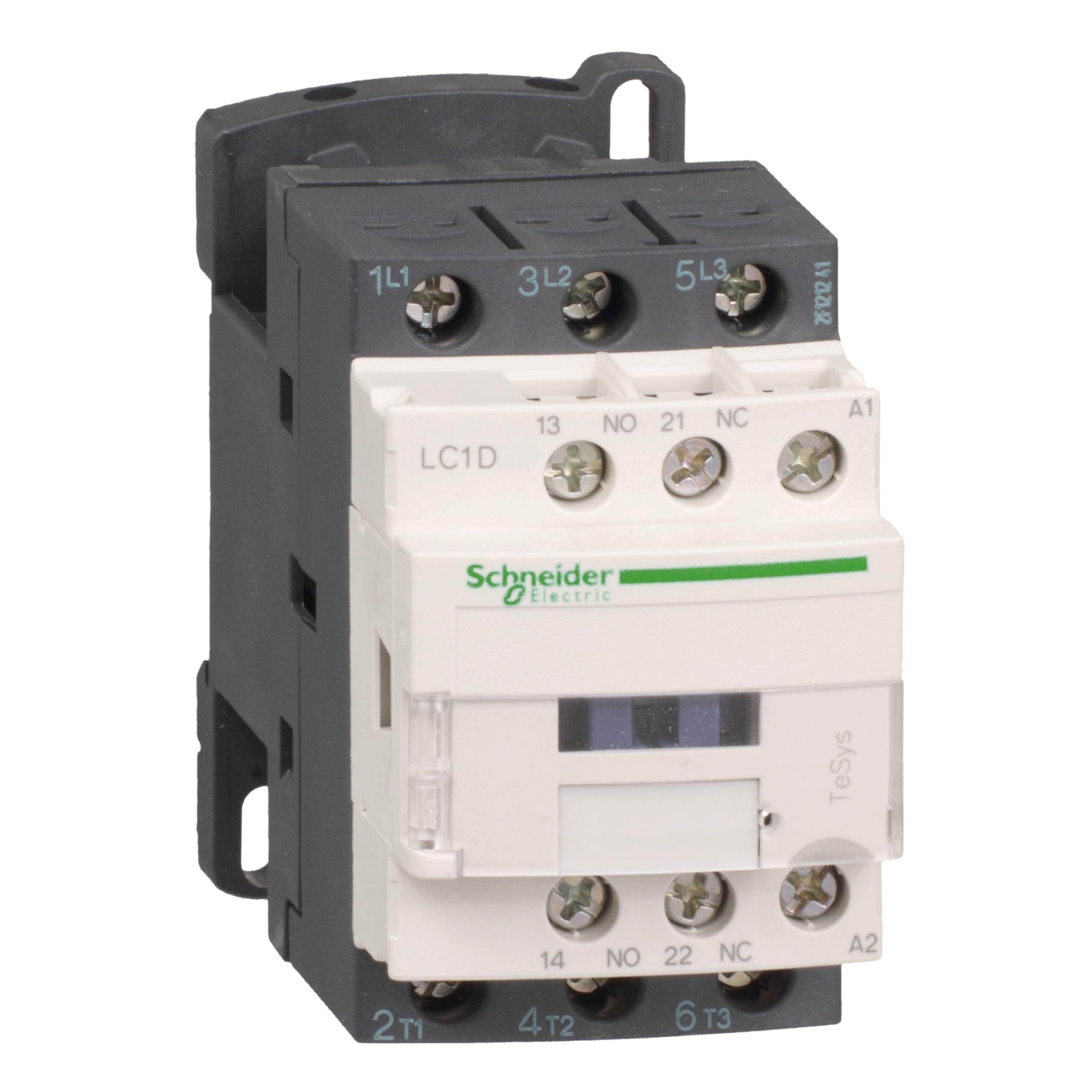

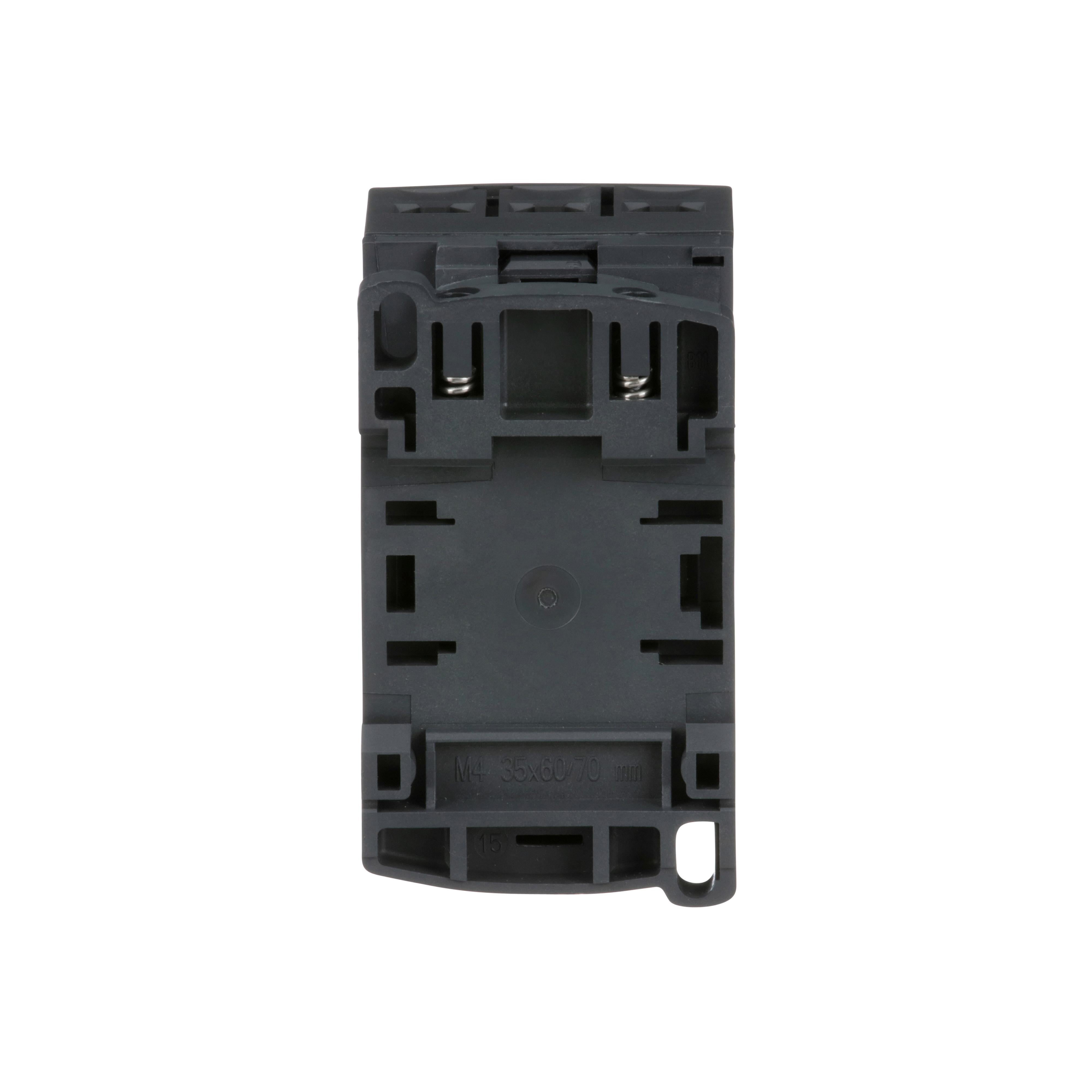

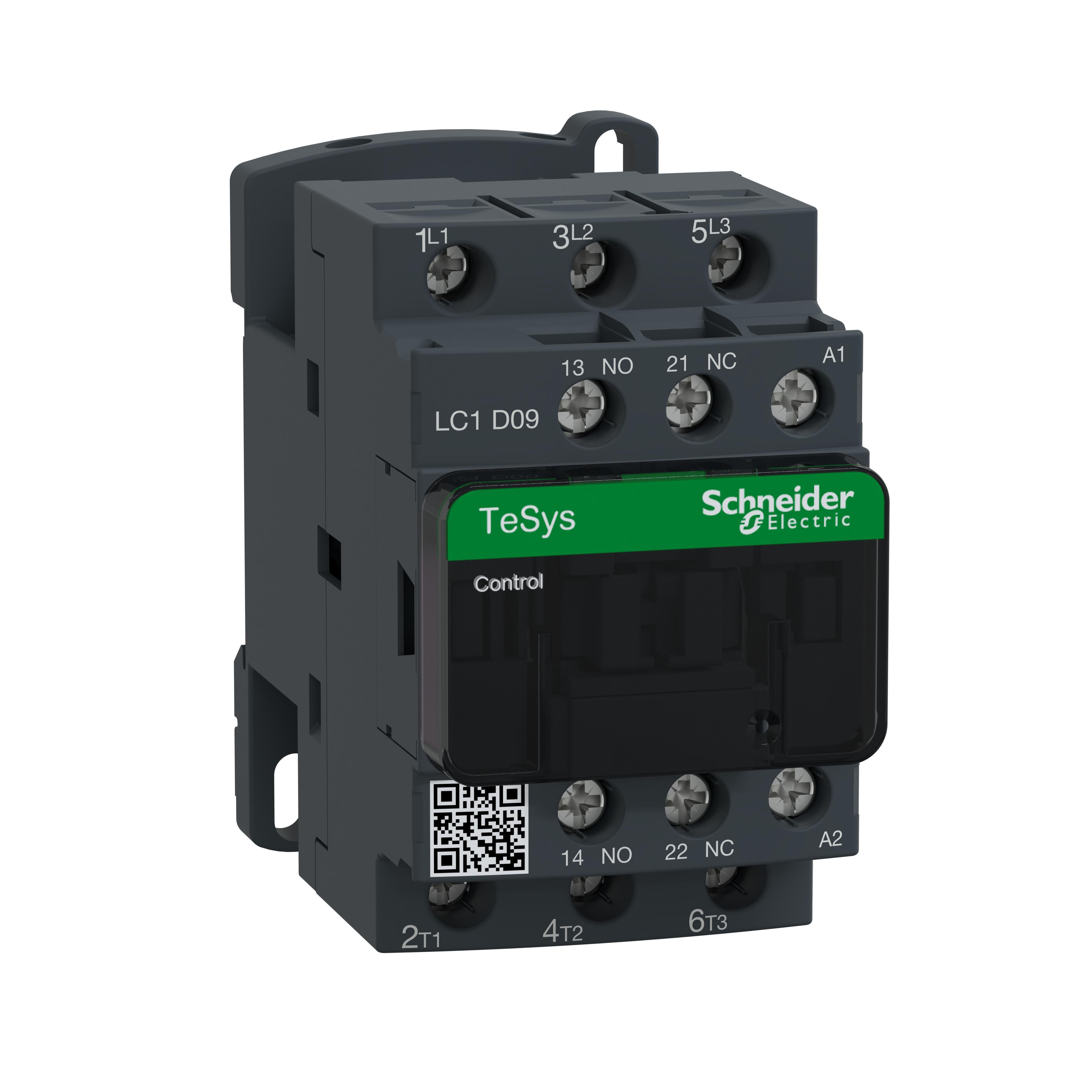

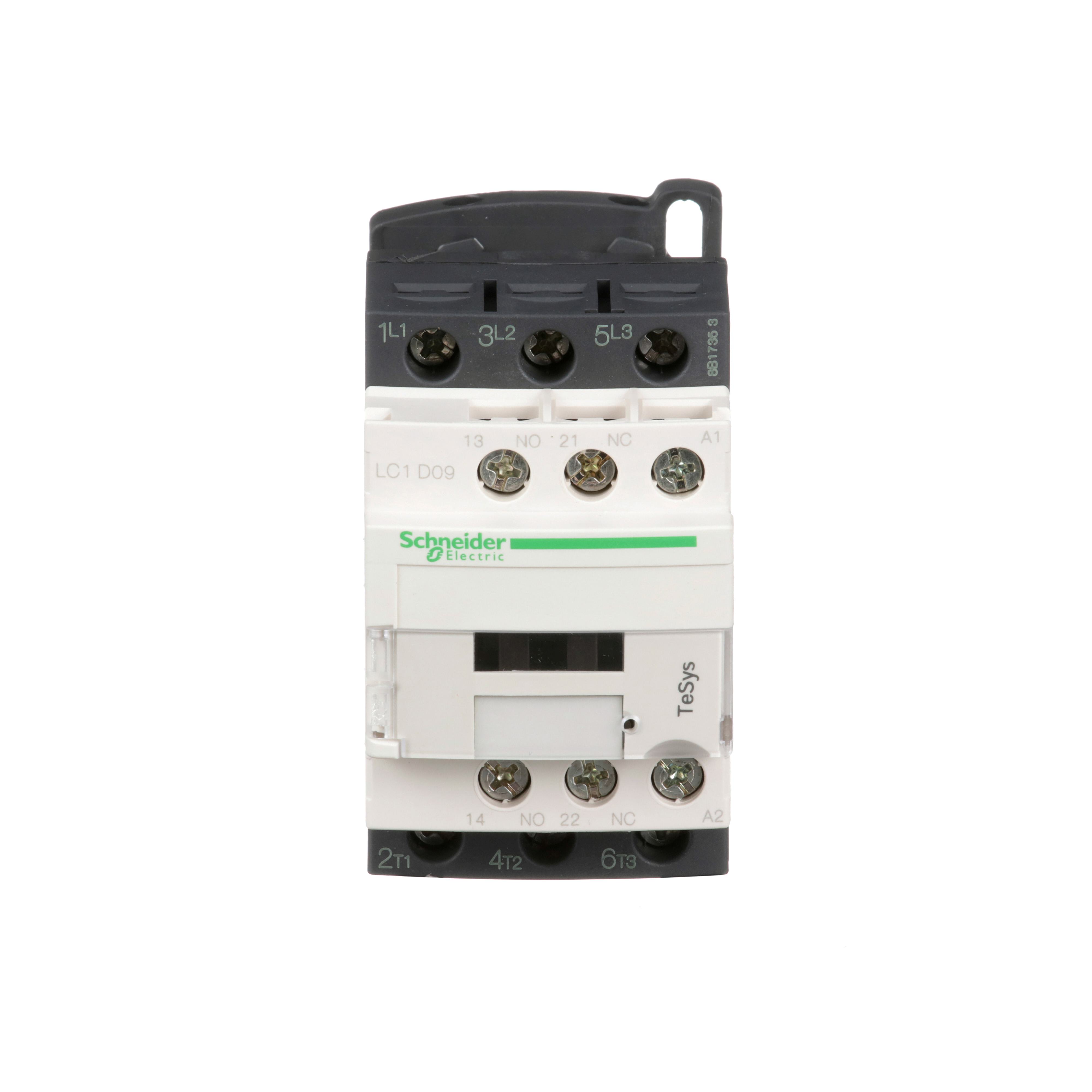

Schneider Electric LC1D09G7
Schneider Electric LC1D09G7 LC1D Direct On-Line IEC Contactor, 120/690 VDC, 300 VDC V Coil, 9/25 A, 3NO Contact, 3 Poles
Brand: Schneider Electric
Item ID: 255938
MPN: LC1D09G7
UPC: 785901206958
Login for Price
Features
- 0.5 hp at 115 VAC - 1 hp at 230 VAC (Single Phase), 2 hp at 200/230 VAC - 5 hp at 460 VAC -7.5 hp at 575 VAC (Polyphase)
Description
Schneider Electric, LC1D09G7, IEC Contactor, Direct On-Line, Series: LC1D, 120/690 VDC, 300 VDC Coil, 9/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz Frequency, 0.2/1.56 W Wattage, Mechanically Linked/Mirror/Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25/60 A at 600 VAC, 10/60 A at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, 45/77/86 mm Size, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 84 mm D x 77 mm H Dimensions
Specifications
Coil Power Rating |
7.5/7.7 VA |
Coil Voltage |
120/690 VDC, 300 VDC |
Connection Type |
Screw Clamp |
Contact Configuration |
3NO |
Contact Rating |
25/60 A at 600 VAC, 10/60 A at 600 VAC |
Contact Type |
Mechanically Linked/Mirror/Non-Reversing |
Dimensions |
45 mm W x 84 mm D x 77 mm H |
Enclosure Type |
IP20 |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
9/25 A |
Mounting Type |
Rail/Surface |
Number of Auxiliary Contacts |
1NO-1NC |
Number of Poles |
3 |
Operating Cycles |
3600 cycles/hr |
Operating Temperature |
-5 to 60/-40 to 70 deg C |
Power Factor |
0.75 Inrush, 0.3 Hold-In |
Series |
LC1D |
Size |
45/77/86 mm |
Terminal Type |
Screw Clamp |
Type |
Direct On-Line |
Wattage |
0.2/1.56 W |
Standard Approval |
CCC Certified|CE Certified|CSA C22.2 File No. 14 File No. LR43364|DNV/GOST Approved|ECCN EAR99|IEC 60947-4-1/60947-5-1|LROS NLDX Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA/BV/GL Certified|RoHS Compliant|UL 508 File No. E164862 |
Application |
For motor control and resistive loads |
