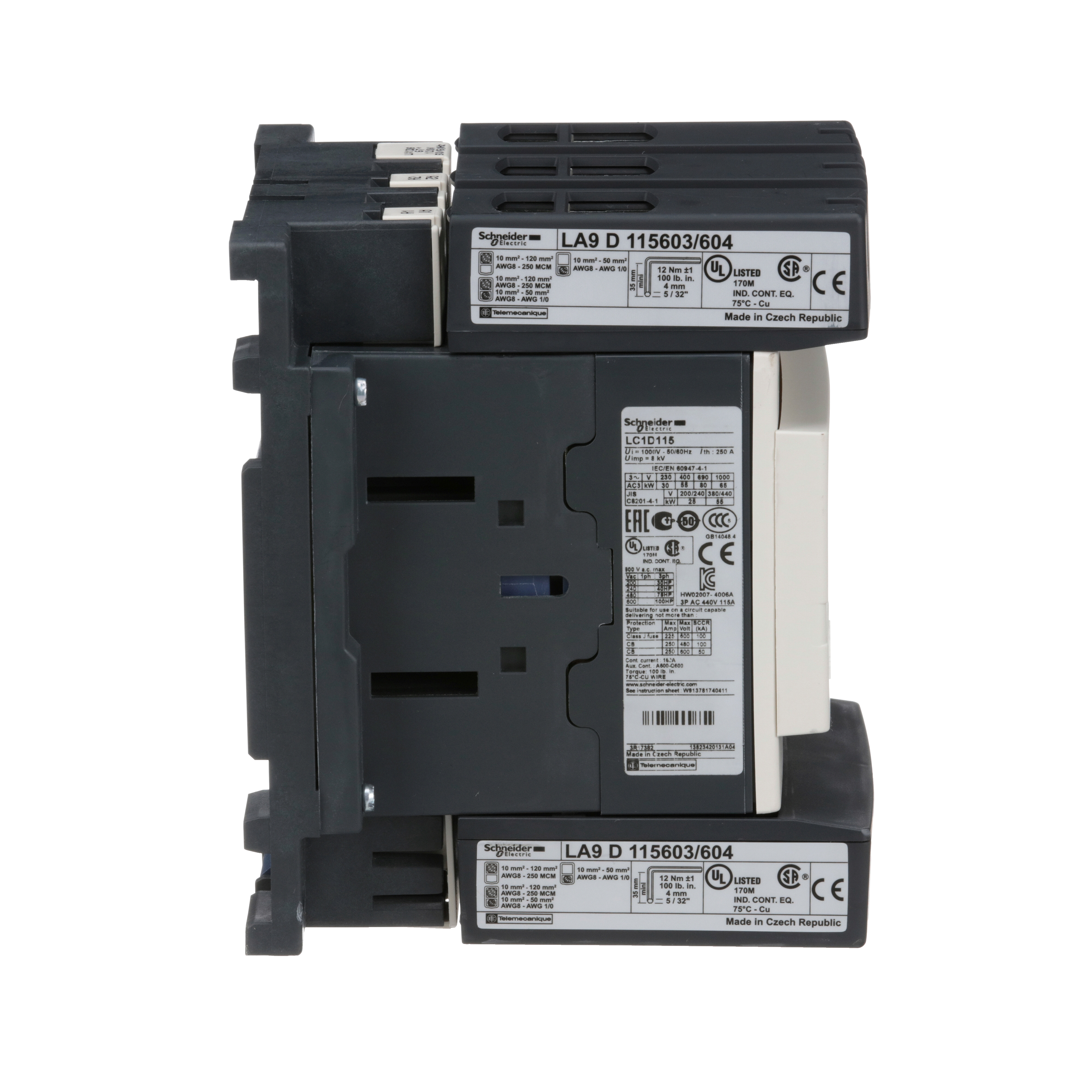

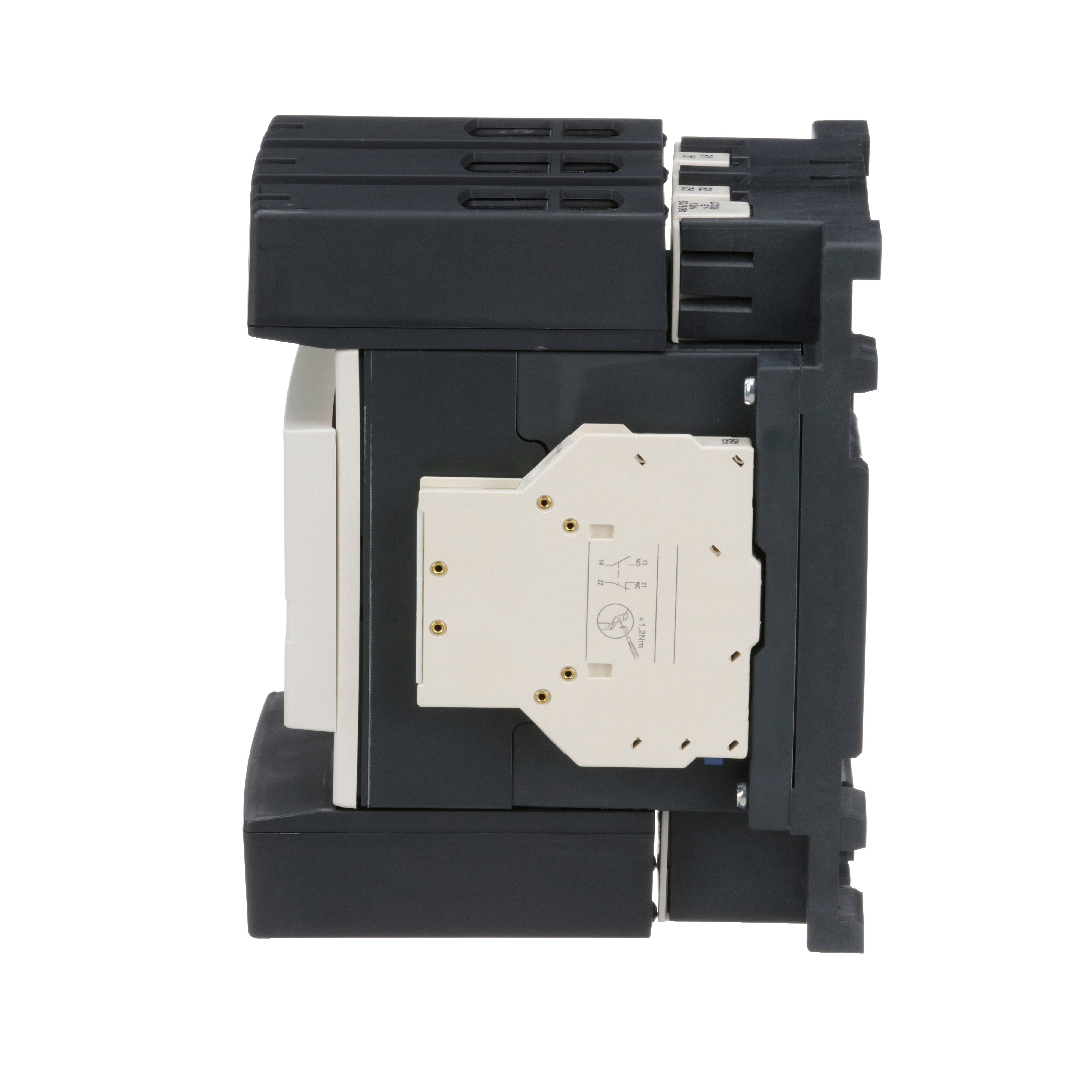

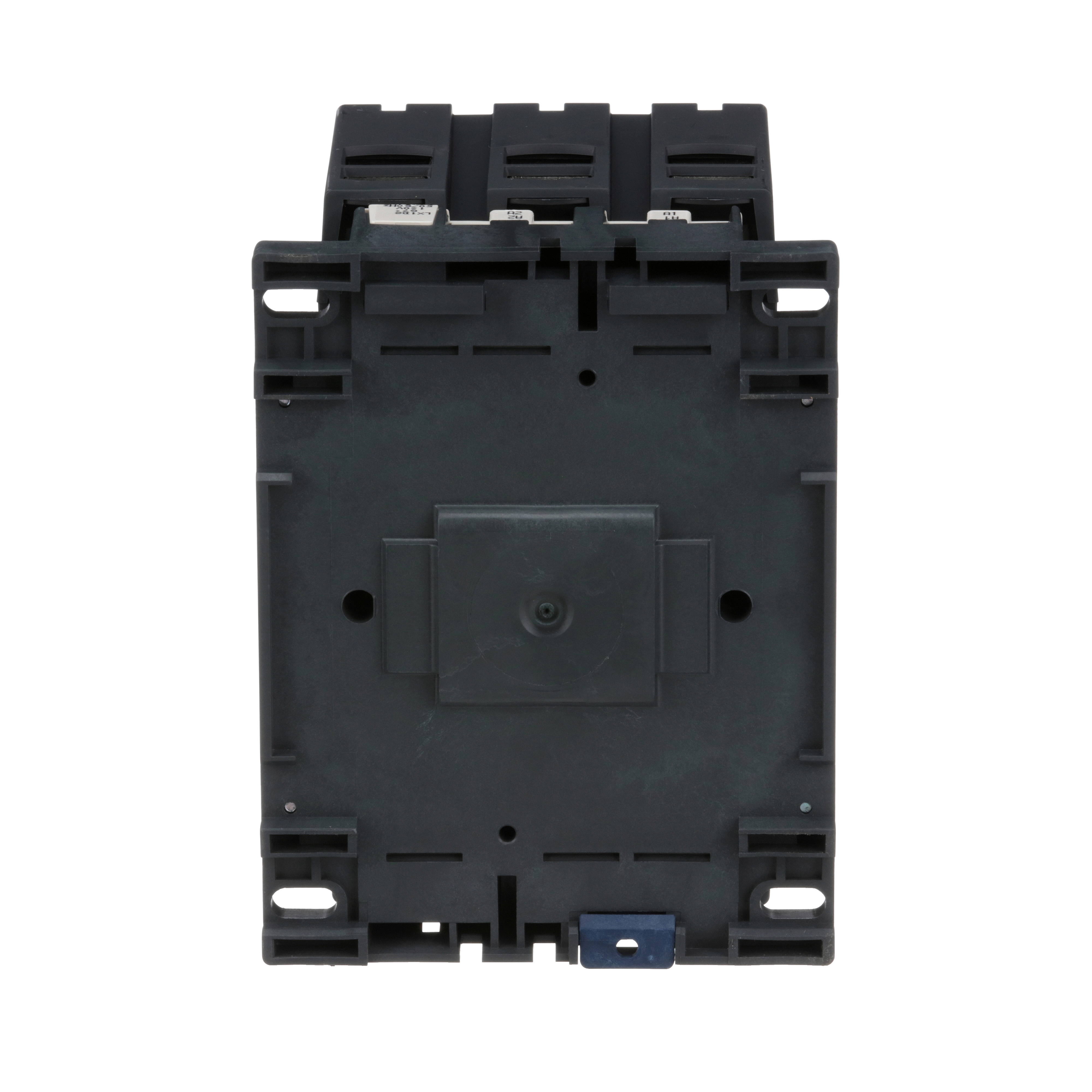

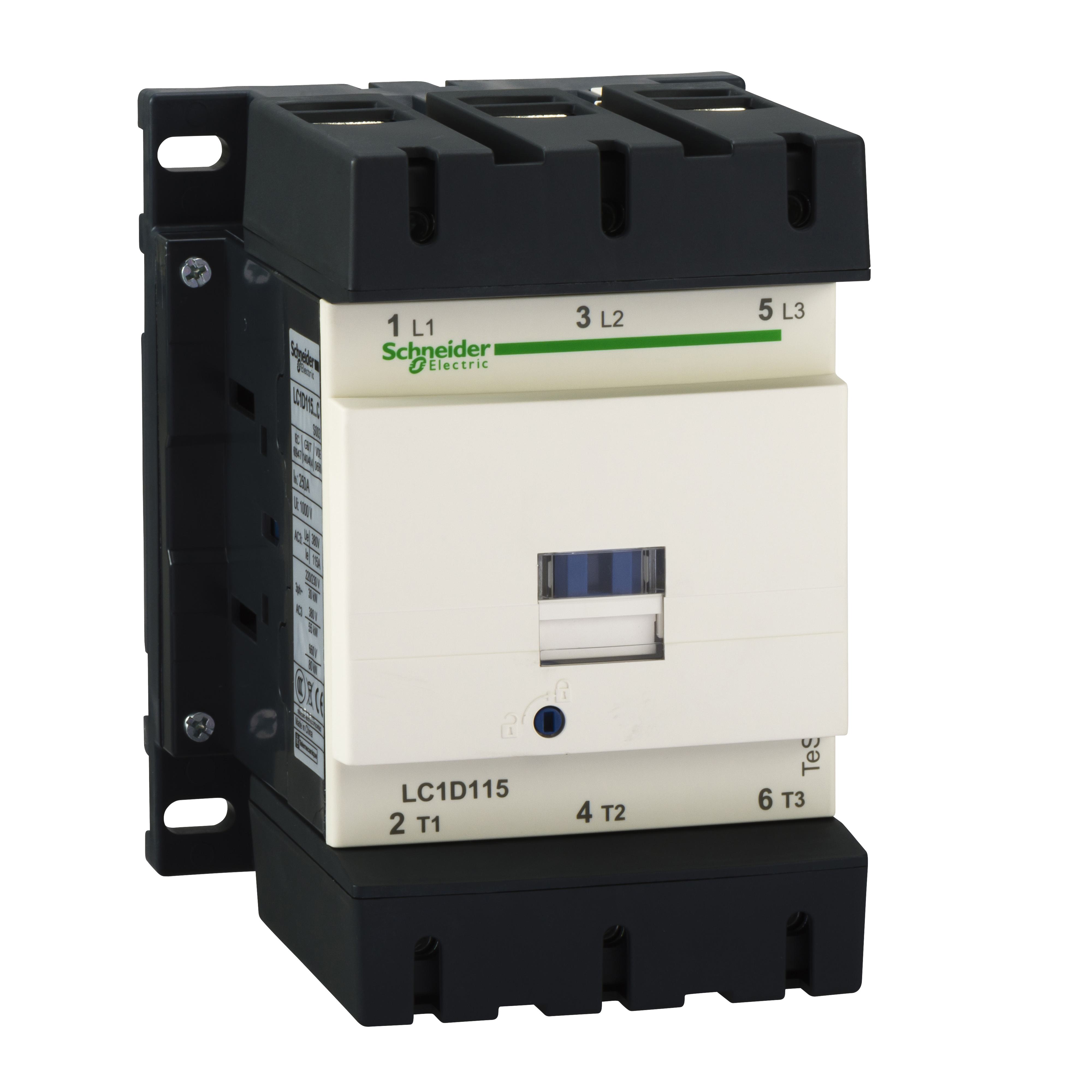

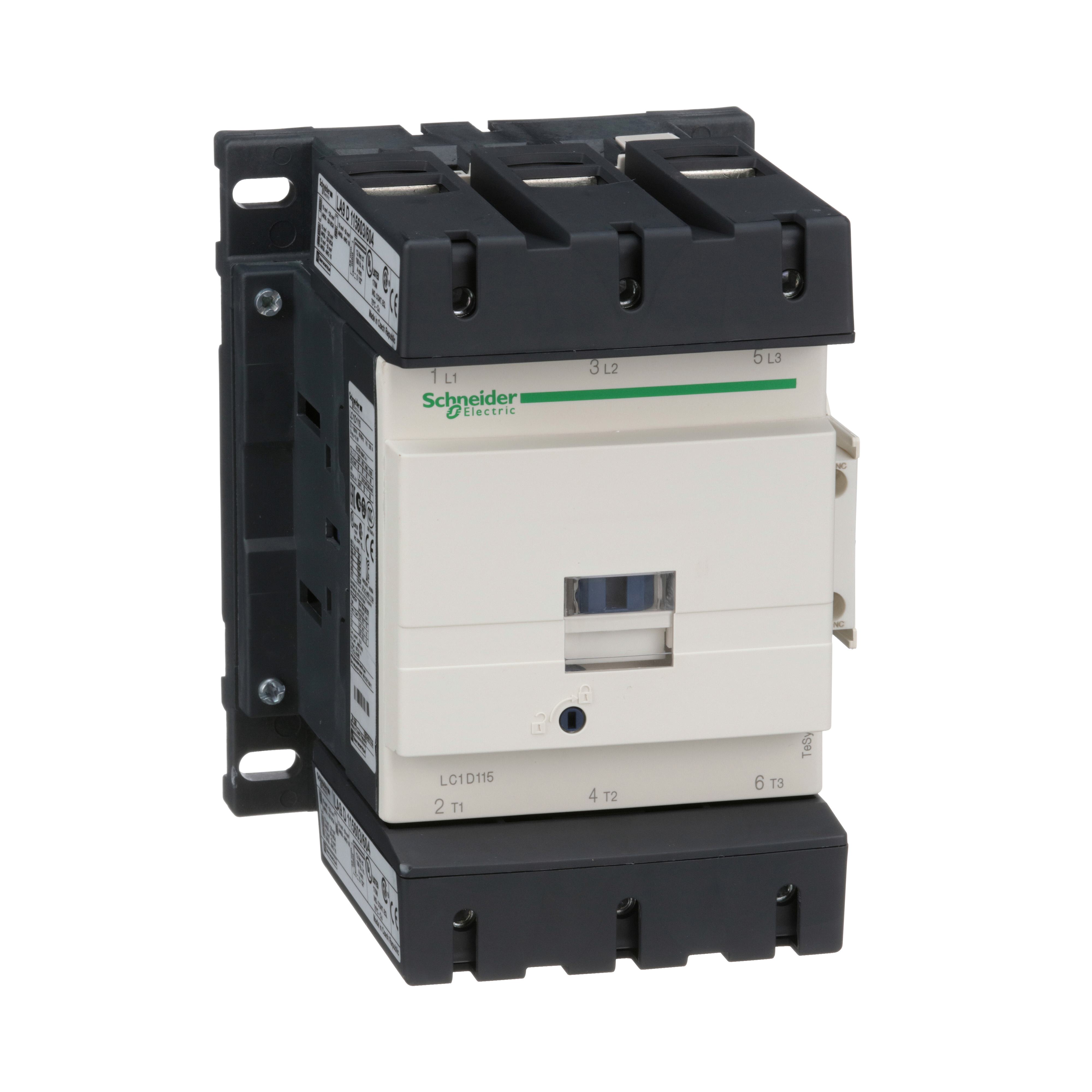

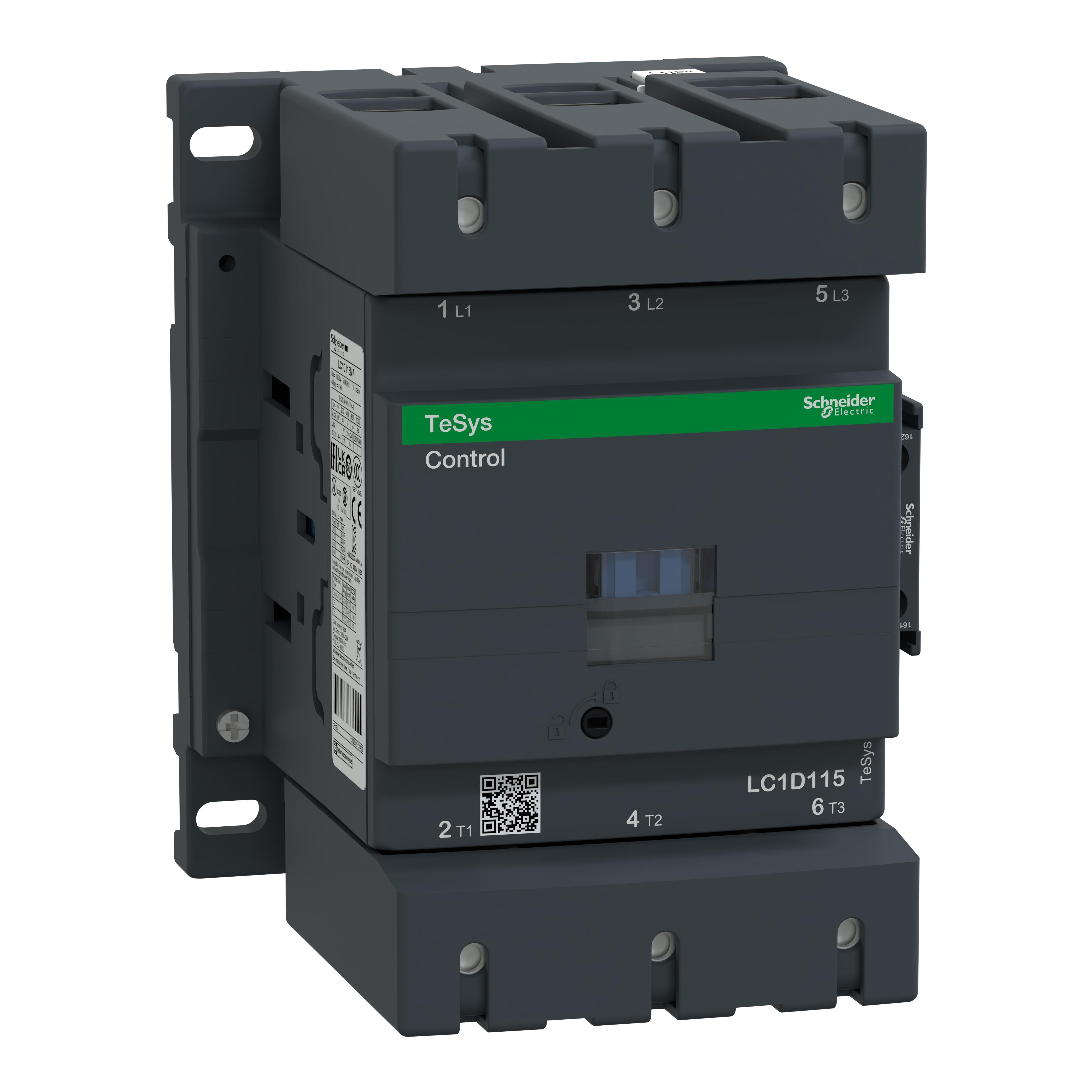

Schneider Electric LC1D115G7
Schneider Electric LC1D115G7 LC1D D-Line IEC Contactor, 120/1000 VAC, 300 VDC V Coil, 115/200 A, 3NO Contact, 3 Poles
Brand: Schneider Electric
Item ID: 500159
MPN: LC1D115G7
UPC: 785901213499
Login for Price
Features
- 200 A at 60 deg C for power circuit
- 30 hp at 200 VAC - 40 hp at 230 VAC -75 hp at 460 VAC - 100 hp at 575 VAC (polyphase)
Description
Schneider Electric, LC1D115G7, IEC Contactor, D-Line, Series: LC1D, 120/1000 VAC, 300 VDC Coil, 115/200 A Maximum Load Current, 2 to 18 VA Coil, 3 Pole, 50/60 Hz Frequency, 7.9/24 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 60/200 A at 600 VAC Contact, Power Factor: 0.8 Inrush, 0.3 Hold-In, Screw Clamp Connection, 120/136/158 mm Size, IP2X Enclosure, 2400 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 120 mm W x 132 mm D x 158 mm H Dimensions
Specifications
Coil Power Rating |
2 to 18 VA |
Coil Voltage |
120/1000 VAC, 300 VDC |
Connection Type |
Screw Clamp |
Contact Configuration |
3NO |
Contact Rating |
60/200 A at 600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
120 mm W x 132 mm D x 158 mm H |
Enclosure Type |
IP2X |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
115/200 A |
Mounting Type |
Rail/Surface |
Number of Auxiliary Contacts |
1NO-1NC |
Number of Poles |
3 |
Operating Cycles |
2400 cycles/hr |
Operating Temperature |
-5 to 60/-40 to 70 deg C |
Power Factor |
0.8 Inrush, 0.3 Hold-In |
Series |
LC1D |
Size |
120/136/158 mm |
Terminal Type |
Screw Clamp |
Type |
D-Line |
Wattage |
7.9/24 W |
Standard Approval |
CCC Certified|CE Certified|CSA 3211 04|CSA C22.2 No 14|CSA Certified|CSA File No. LR43364|EN 60947-4-1/60947-5-1|GOST|IEC 60529|IEC 60647-4 Rated|IEC 60695-2-1|IEC 60947-4-1/60947-5-1|NLDX|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA|RoHS Compliant|UL 508|UL 94 Flammability|UL File No. E164862|UL Listed |
Application |
Motor Control and Resistive Load Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ba5bcb6a5e5fd52838854288edfe235d0a81ed57340e9dba8e91316207f324b.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1acee57d98904c03a25251f17746b7bc5625b8814f7963de87bf270e435d6ba9.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D115G7_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b52010ab4479d4de8d6a2ae1452fdeb4489b053fe6c0d15a2853bb82141a17ea.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D115G7_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TF2_Technical_Bulletin.pdf
