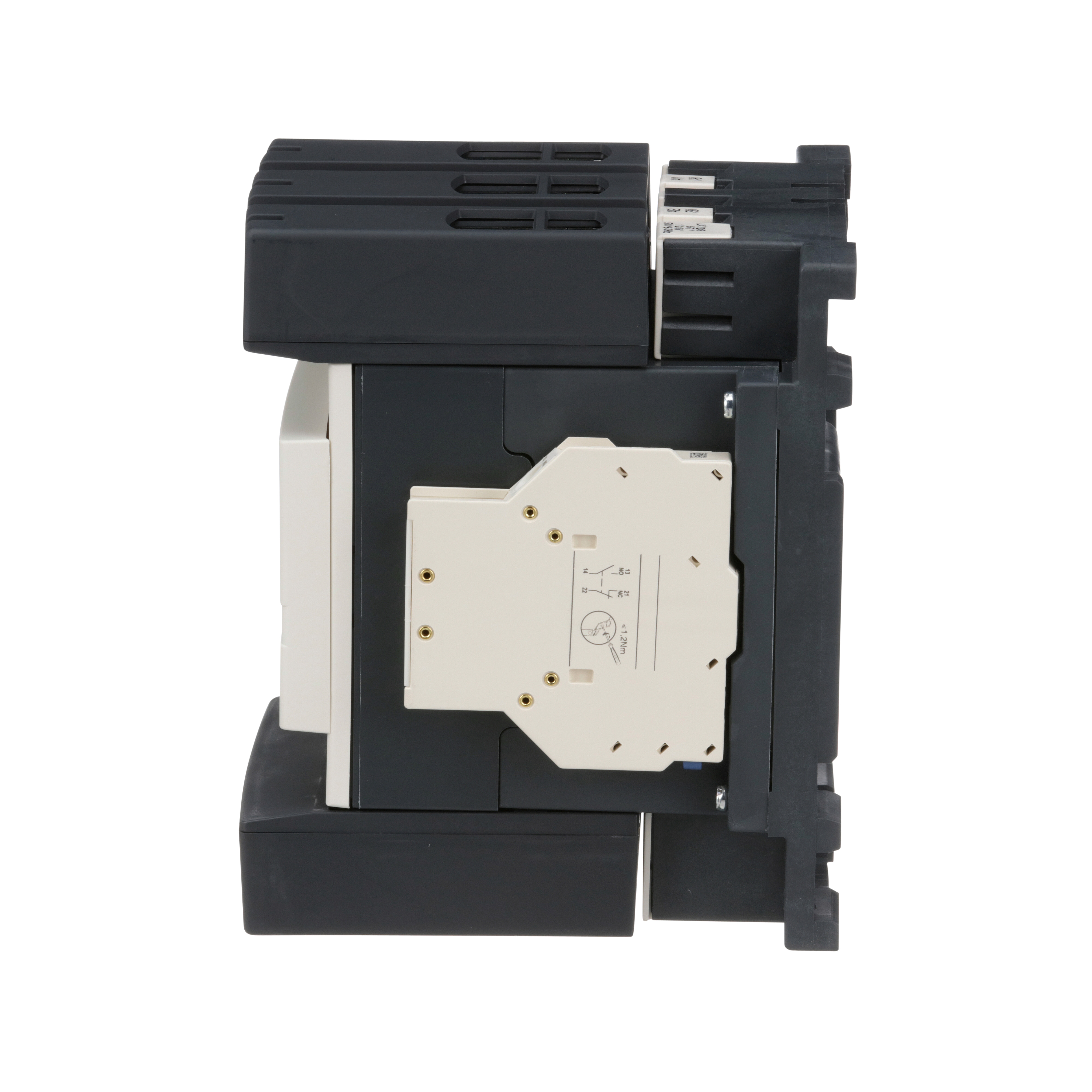

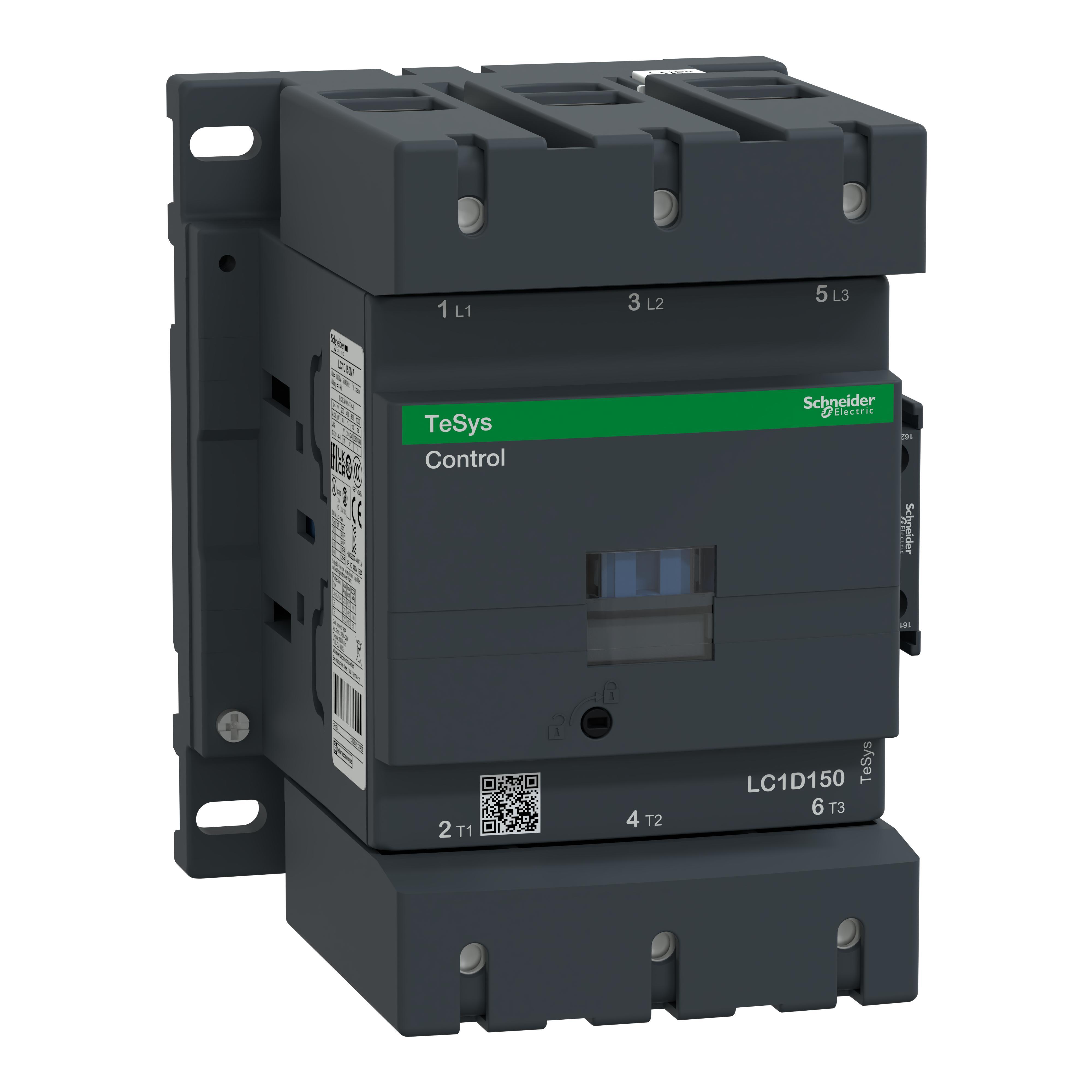

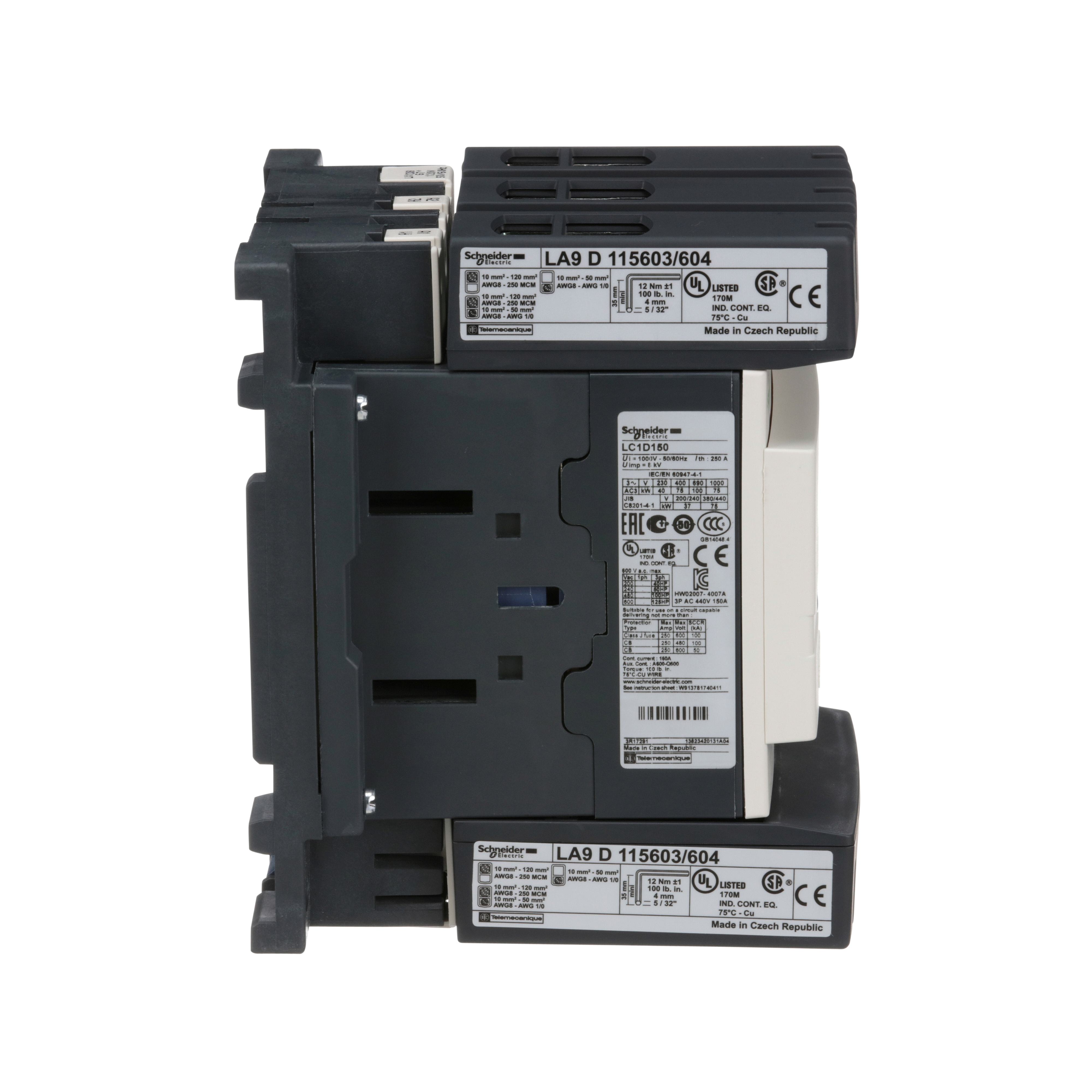

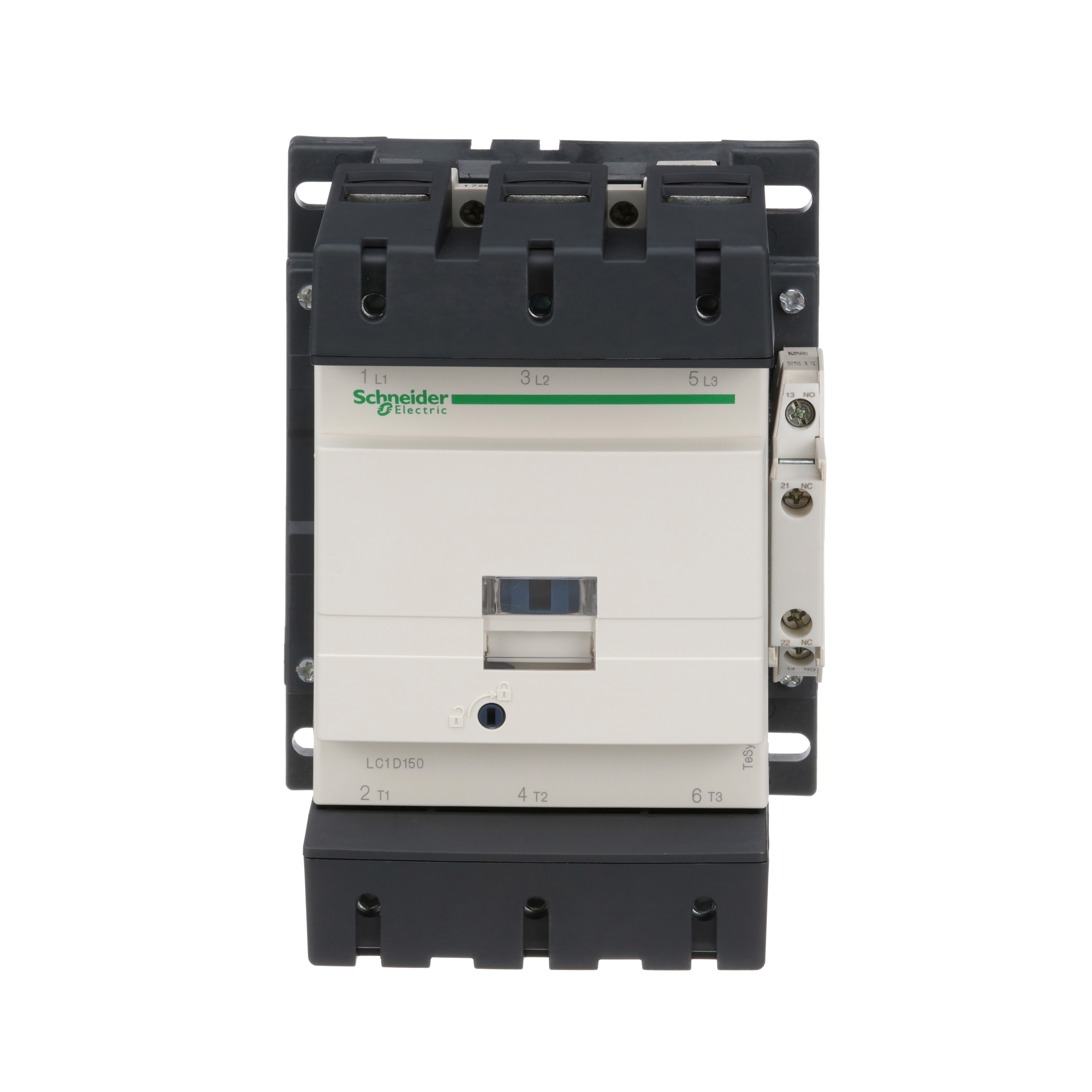

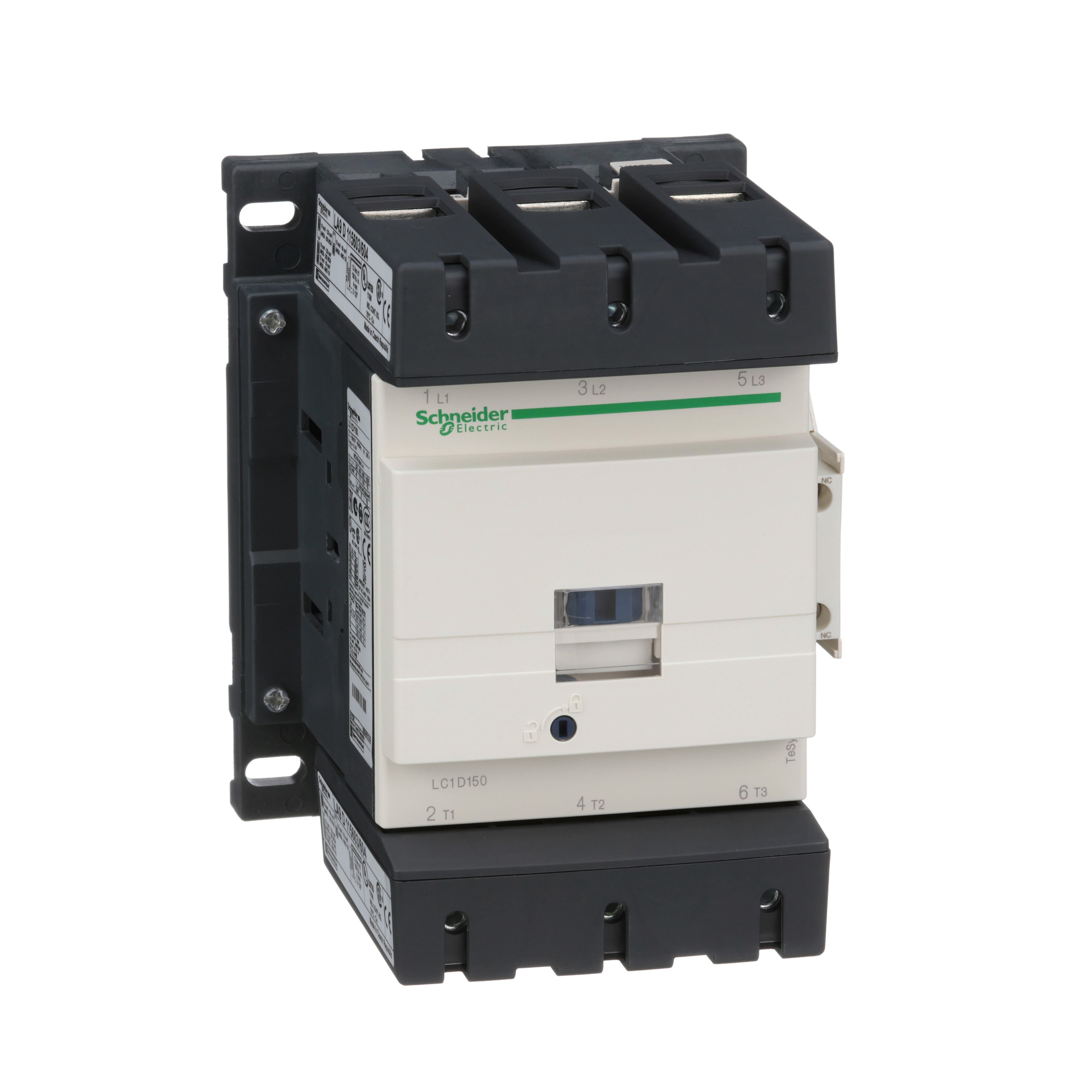

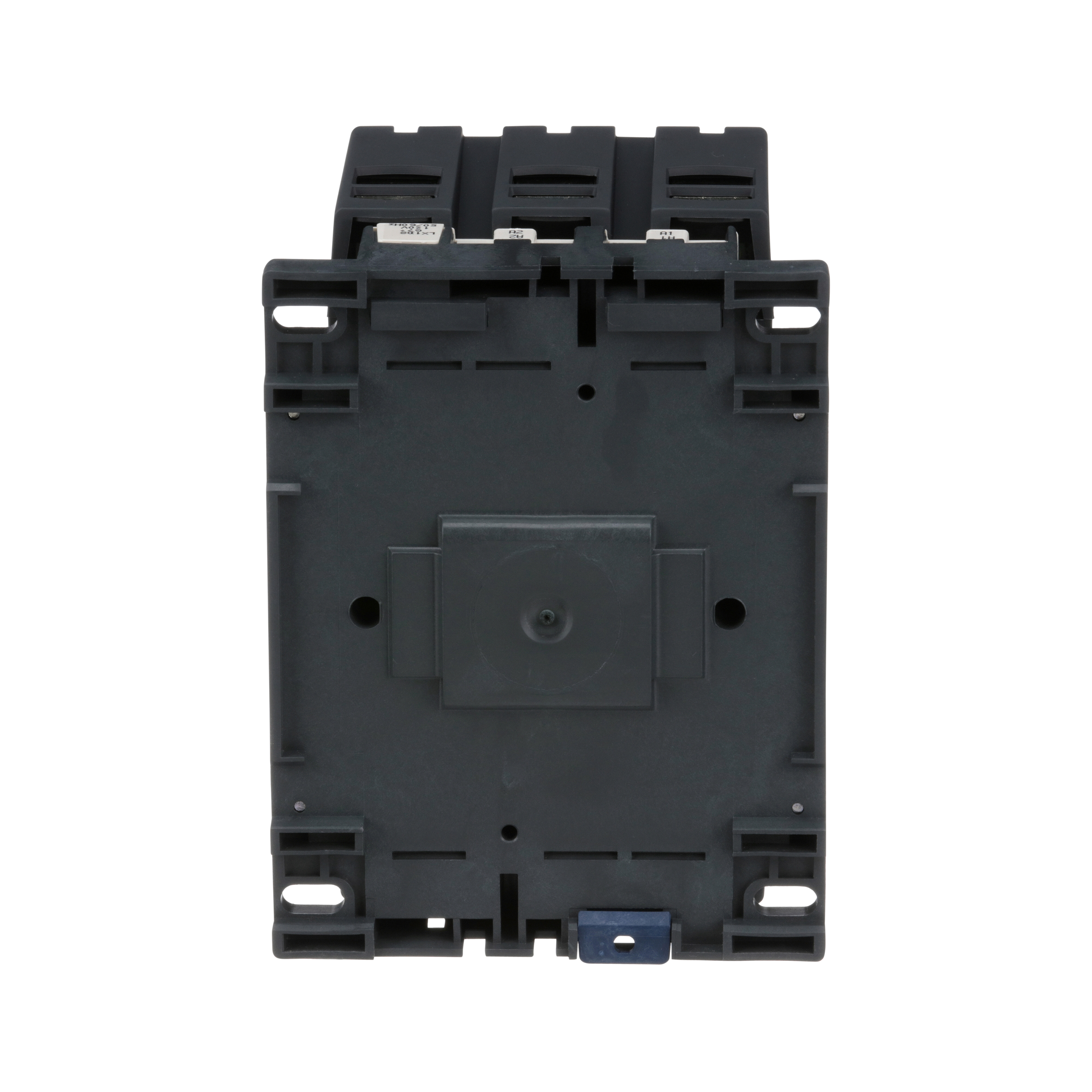

Square D™ LC1D150G7
Square D™ TeSys™ D LC1D150G7 D-Line IEC Contactor, 120/1000 VAC, 300 VDC V Coil, 150/200 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 471491
MPN: LC1D150G7
UPC: 785901214519
Login for Price
Features
- 200 A at 60 deg C for power circuit
Description
Square D™ TeSys™ D IEC Contactor, D-Line, Series: LC1D, 120/1000 VAC, 300 VDC Coil, 150/200 A Maximum Load Current, 2 to 18 VA Coil, 3 Pole, 50/60 Hz, 13.5/24 W, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 60/200 A at 600 VAC Contact, Power Factor: 0.9 Inrush, 0.9 Hold-In, Screw Clamp, 120/136/158 mm, Screw Clamp Terminal, IP2X, 1200 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 120 mm W x 132 mm D x 158 mm H
Specifications
Coil Power Rating |
2 to 18 VA |
Coil Voltage |
120/1000 VAC, 300 VDC |
Connection Type |
Screw Clamp |
Contact Configuration |
3NO |
Contact Rating |
60/200 A at 600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
120 mm W x 132 mm D x 158 mm H |
Enclosure Type |
IP2X |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
150/200 A |
Mounting Type |
Rail/Surface |
Number of Auxiliary Contacts |
1NO-1NC |
Number of Poles |
3 |
Operating Cycles |
1200 cycles/hr |
Operating Temperature |
-5 to 60/-40 to 70 deg C |
Power Factor |
0.9 Inrush, 0.9 Hold-In |
Series |
LC1D |
Size |
120/136/158 mm |
Terminal Type |
Screw Clamp |
Type |
D-Line |
Wattage |
13.5/24 W |
Standard Approval |
CCC Certified|CE Certified|Class 3211-04 IEC 60529 Rated|CSA C22.2 No 14|CSA Certified|CSA File No. LR43364 Certified|EN 60947-4-1/60947-5-1|GOST|IEC 60529|IEC 60695-2-1|IEC 60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA|RoHS Compliant|UL 508|UL 94 Flammability|UL File No. E164862 CCN NLDX Listed|UL Listed |
Application |
Motor Control and Resistive Load Applications |
