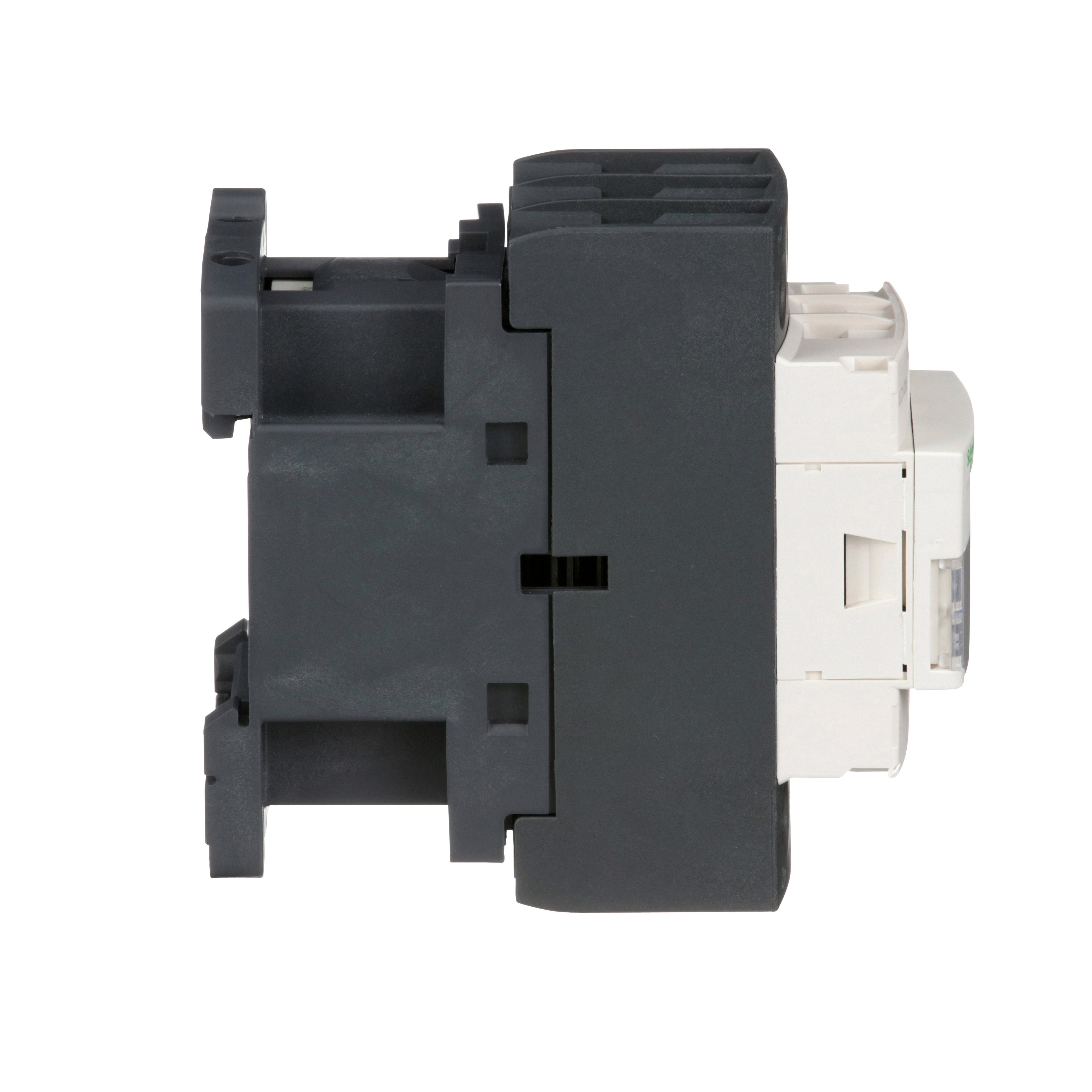

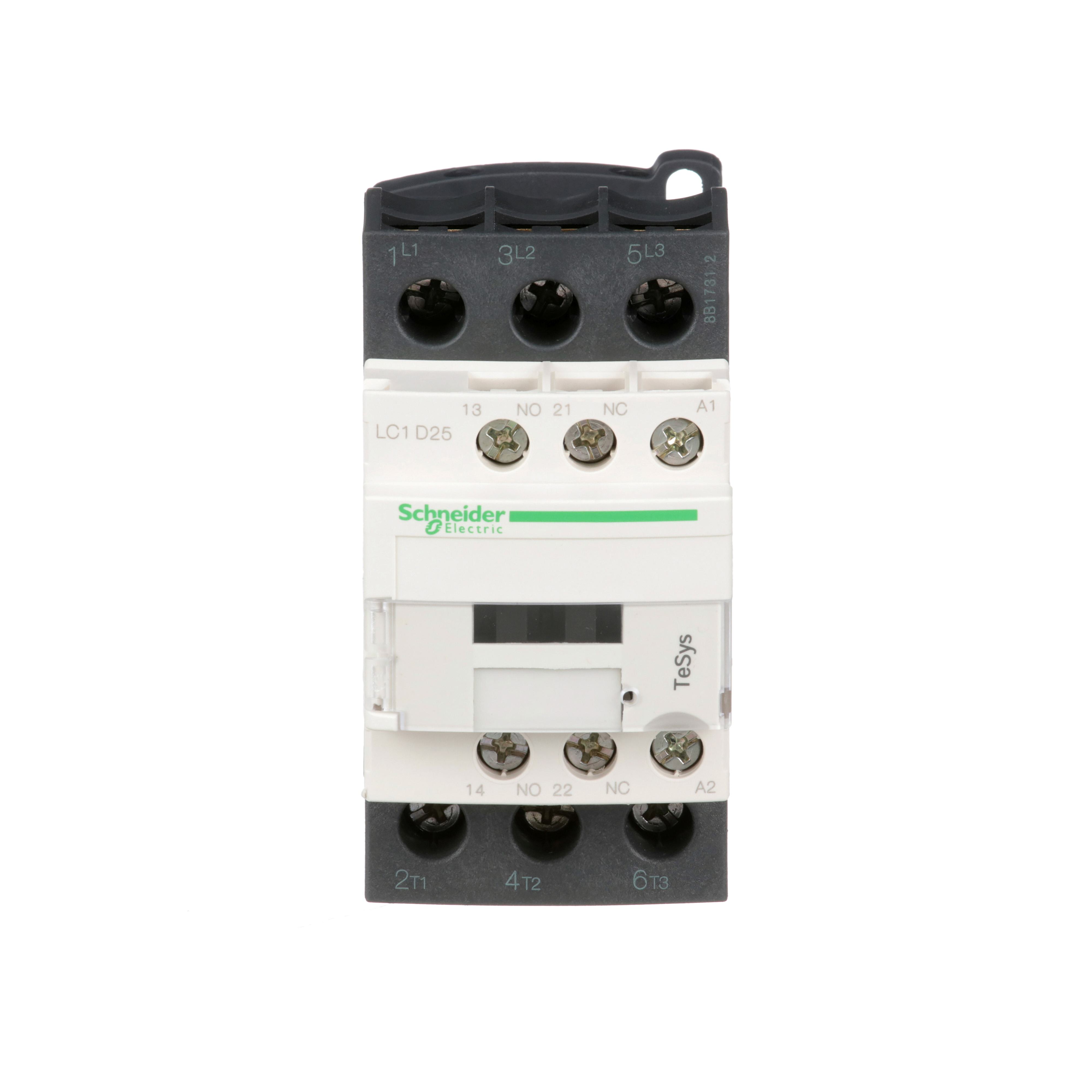

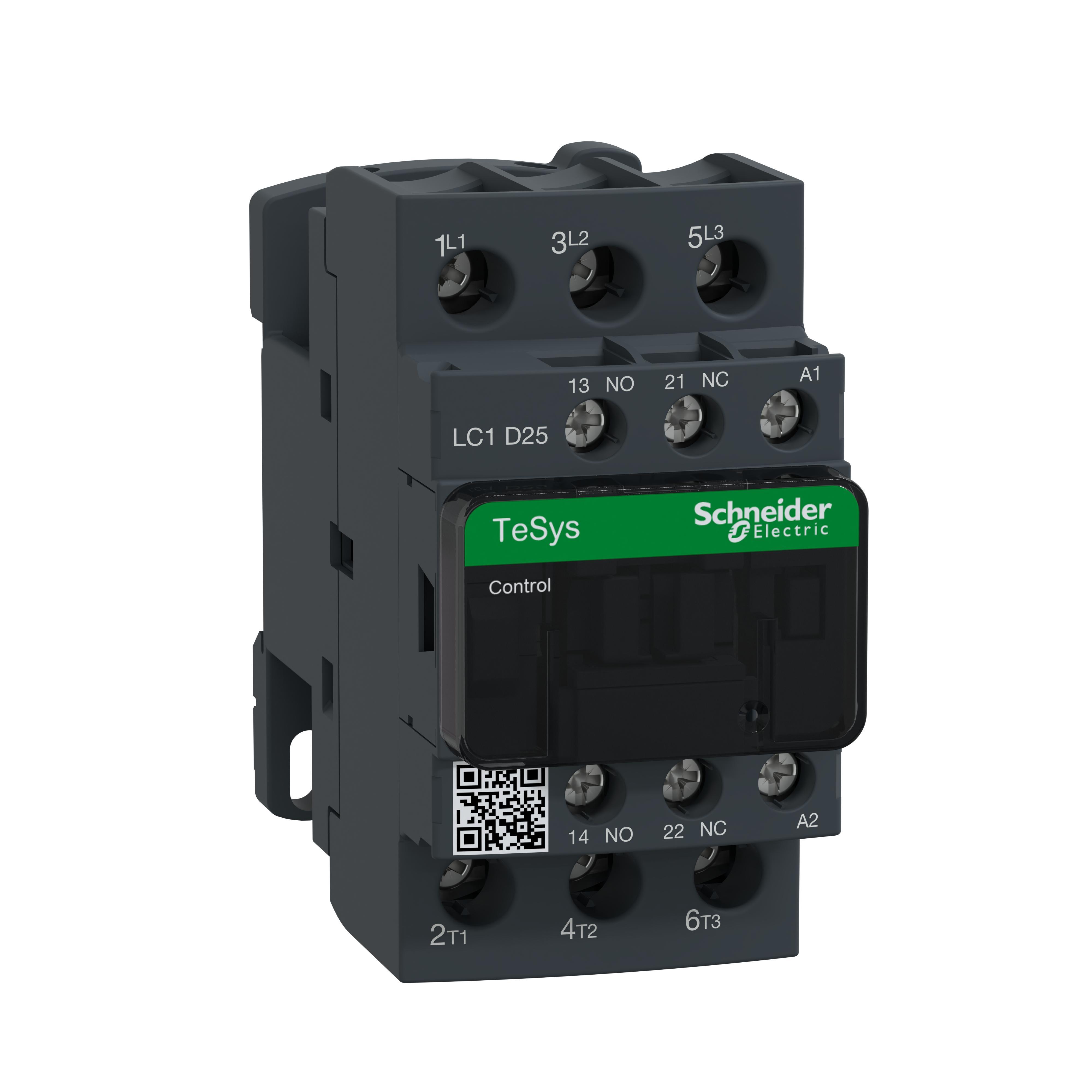

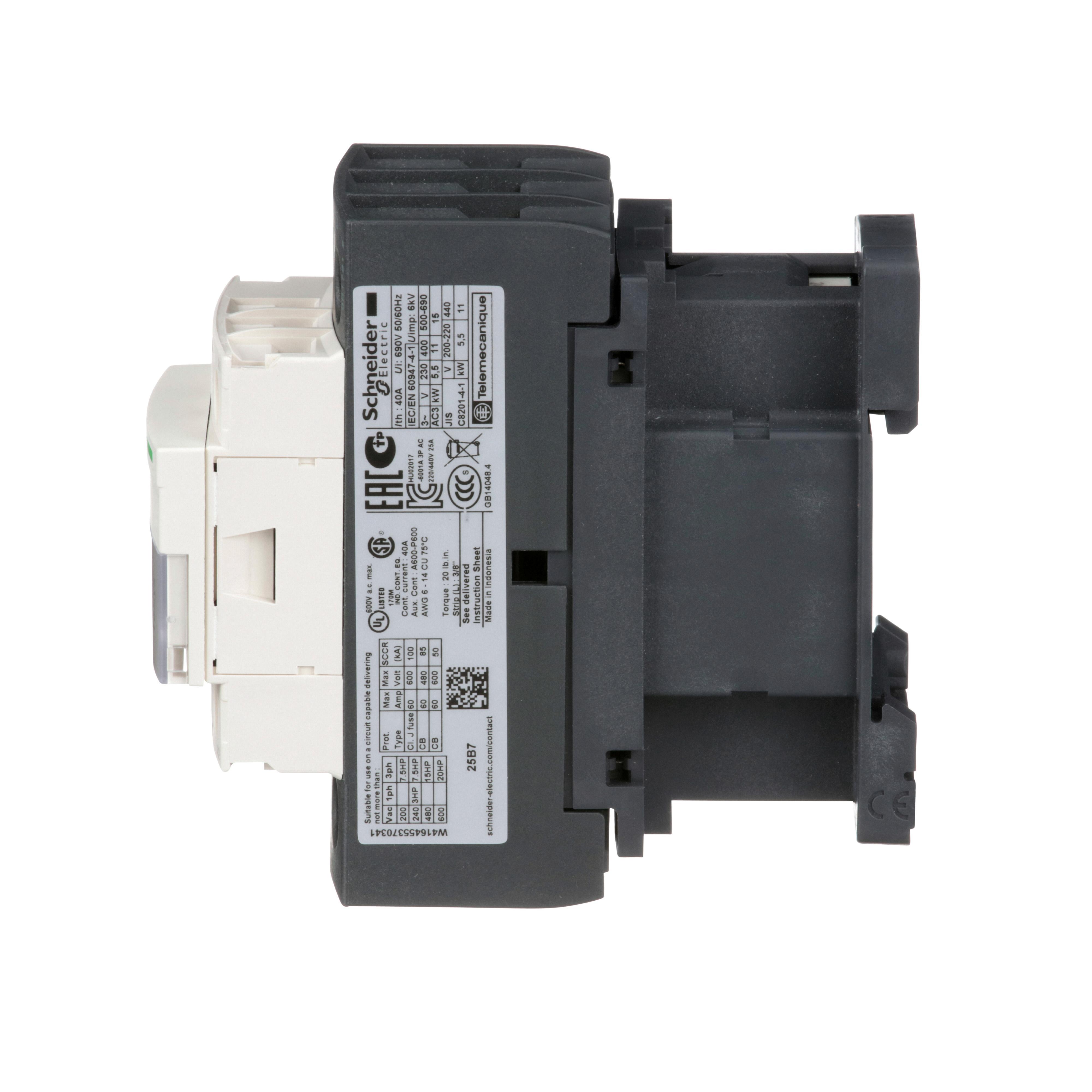

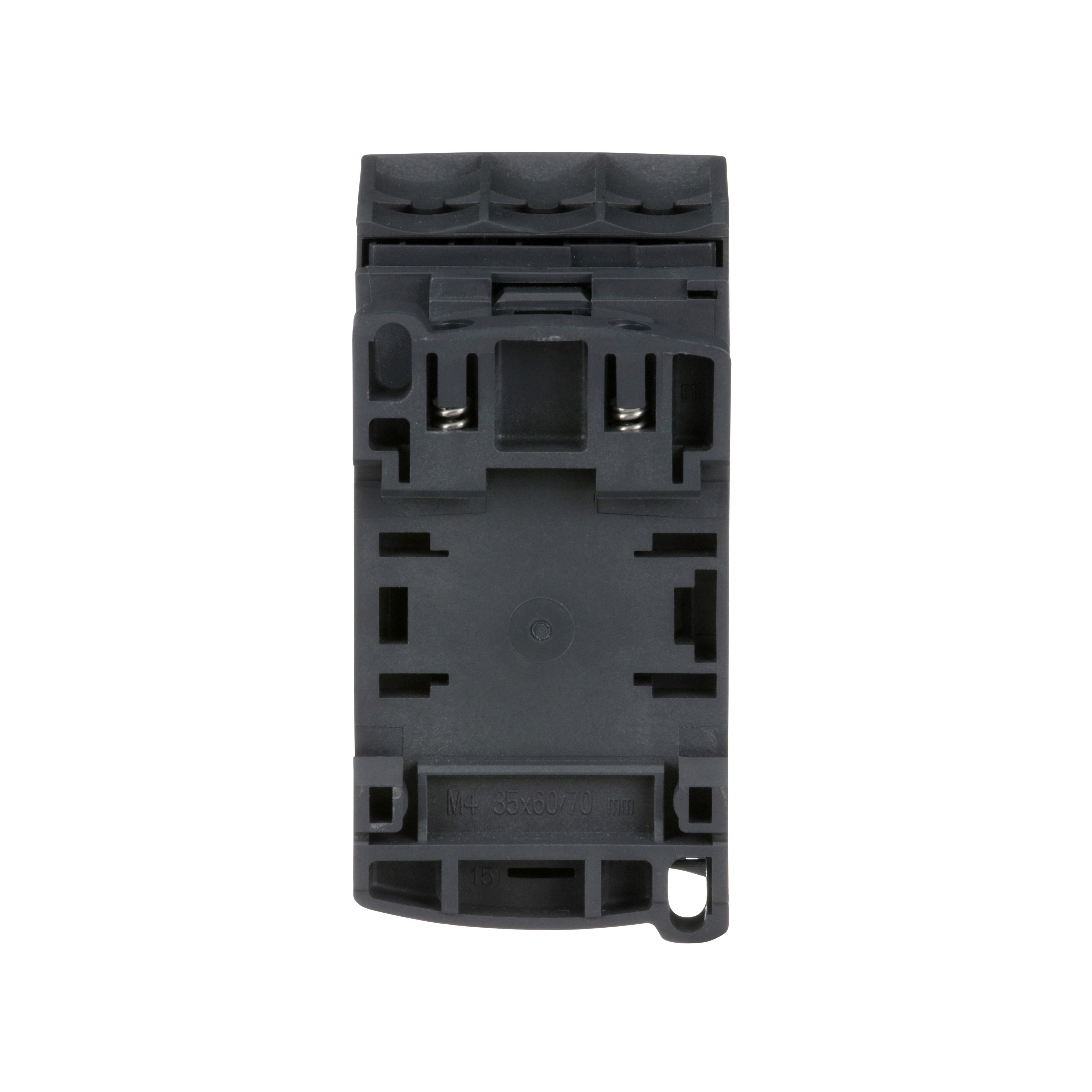

Schneider Electric LC1D25B7

• Plate, rail mounting support, 4 to 19 ms opening, 12 to 22 ms closing operating time, 15 M cycles mechanical durability, 3600 cycle/hr at <=140 deg F (60 deg C) operating rate
• Pollution degree 3, 9842.52 ft (3000 m) without derating in temperature operating altitude, 1562 deg F (850 deg C) conforming to IEC 60695-2-1 fire-resistance
• Motor control, resistive load, 3-pole, 3 NO power pole contact composition, <= 300 V DC power circuit, <= 690 V AC 25 to 400 Hz power circuit voltage
• 11 kW at 380 to 400 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 Hz, 15 kW at 660 to 690 V AC 50/60 Hz, 5.5 kW at 220 to 230 V AC 50/60 Hz, 11 kW at 415 to 440 V AC 50/60 Hz motor power
• 7.5 hp at 230/240 V AC 50/60 Hz 3 phases motors, 15 hp at 460/480 V AC 50/60 Hz 3 phases motors, 20 hp at 575/600 V AC 50/60 Hz 3 phases motors
• 24 V AC 50/60 Hz control circuit voltage, 1 NO + 1 NC auxiliary contact composition, 6 kV conforming to IEC 60947 rated impulse withstand voltage, 40 A at <= 140 deg F (60 deg C) power circuit, 10 A at <= 140 deg F (60 deg C) signaling circuit
• 120 A <= 104 deg F (40 deg C) 1 min power circuit, 240 A <= 104 deg F (40 deg C) 10 s power circuit, 380 A <= 104 deg F (40 deg C) 1 s power circuit, 50 A <= 104 deg F (40 deg C) 10 min power circuit, 100 A 1 s signaling circuit, 120 A 500 ms signaling circuit, 140 A 100 ms signaling circuit rated short-time withstand current
• 40 A gG at <= 690 V coordination type 2 power circuit, 63 A gG at <= 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 fuse rating
• 2 mOhm at 50 Hz - Ith 40 A power circuit average impedance, 1.65 M cycles 25 A AC-3 at Ue <= 440 V, 1.4 M cycles 40 A AC-1 at Ue <= 440 V electrical durability, 3.2 W AC-1, 1.25 W AC-3 power dissipation per pole
• V1 conforming to UL 94 flame retardance

Schneider Electric, LC1D25B7, IEC Contactor, Direct On-Line, Series: LC1D, 24/690 VAC, 300 VDC Coil, 25/40 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz Frequency, 1.25/3.2 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 40/60 at 600 VAC Contact, Screw Clamp Connection, 45/85/92 mm Size, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 92 mm D x 85 mm H Dimensions
