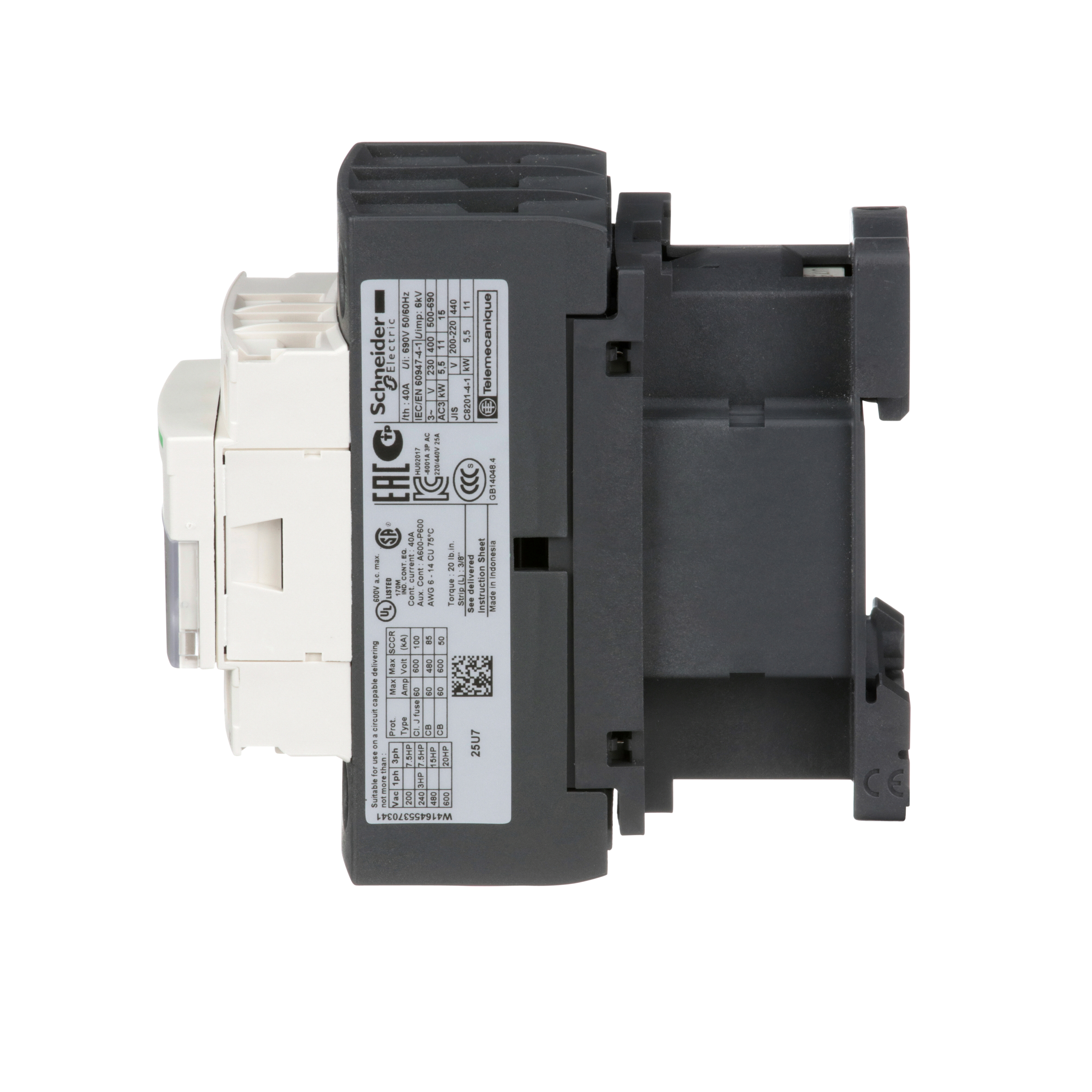

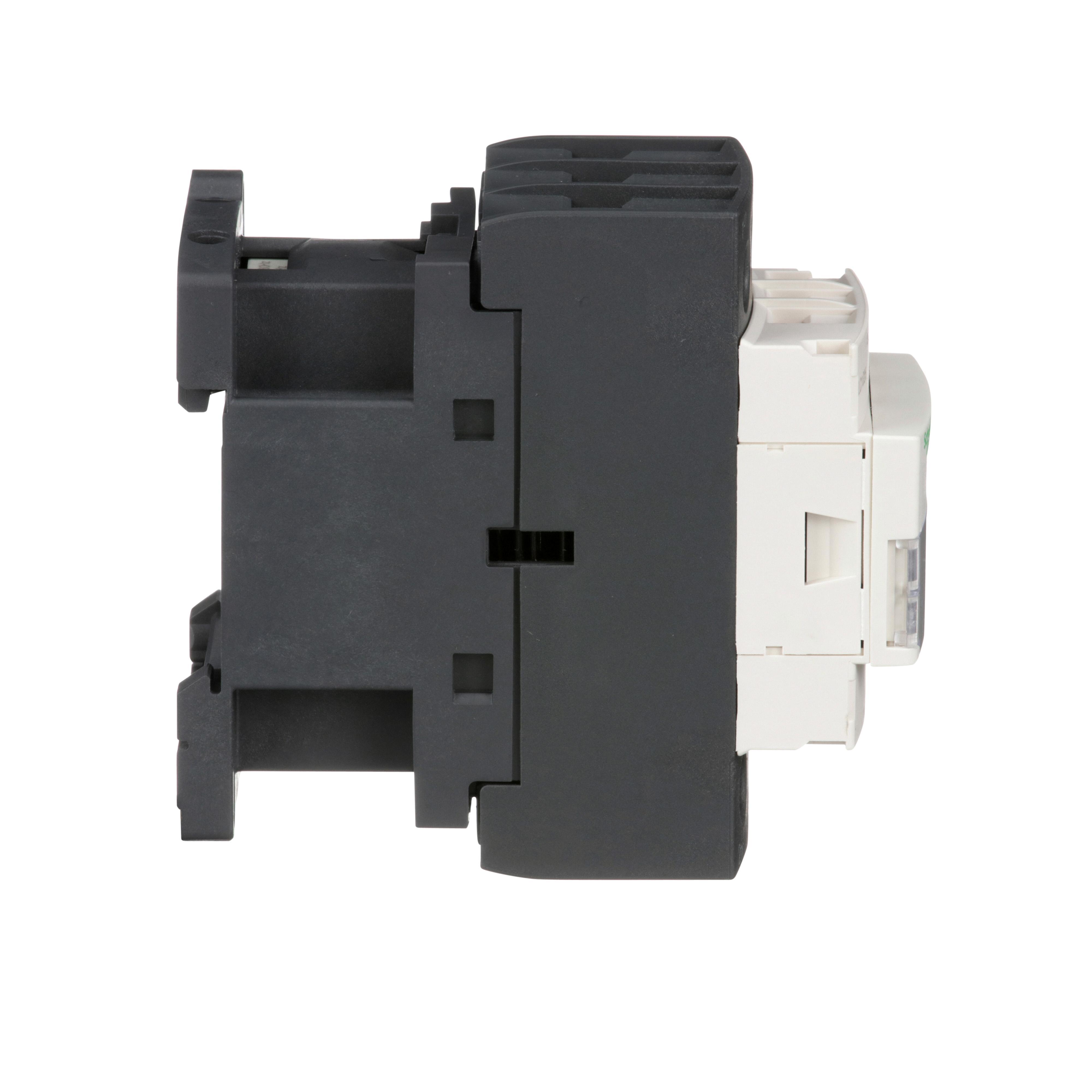

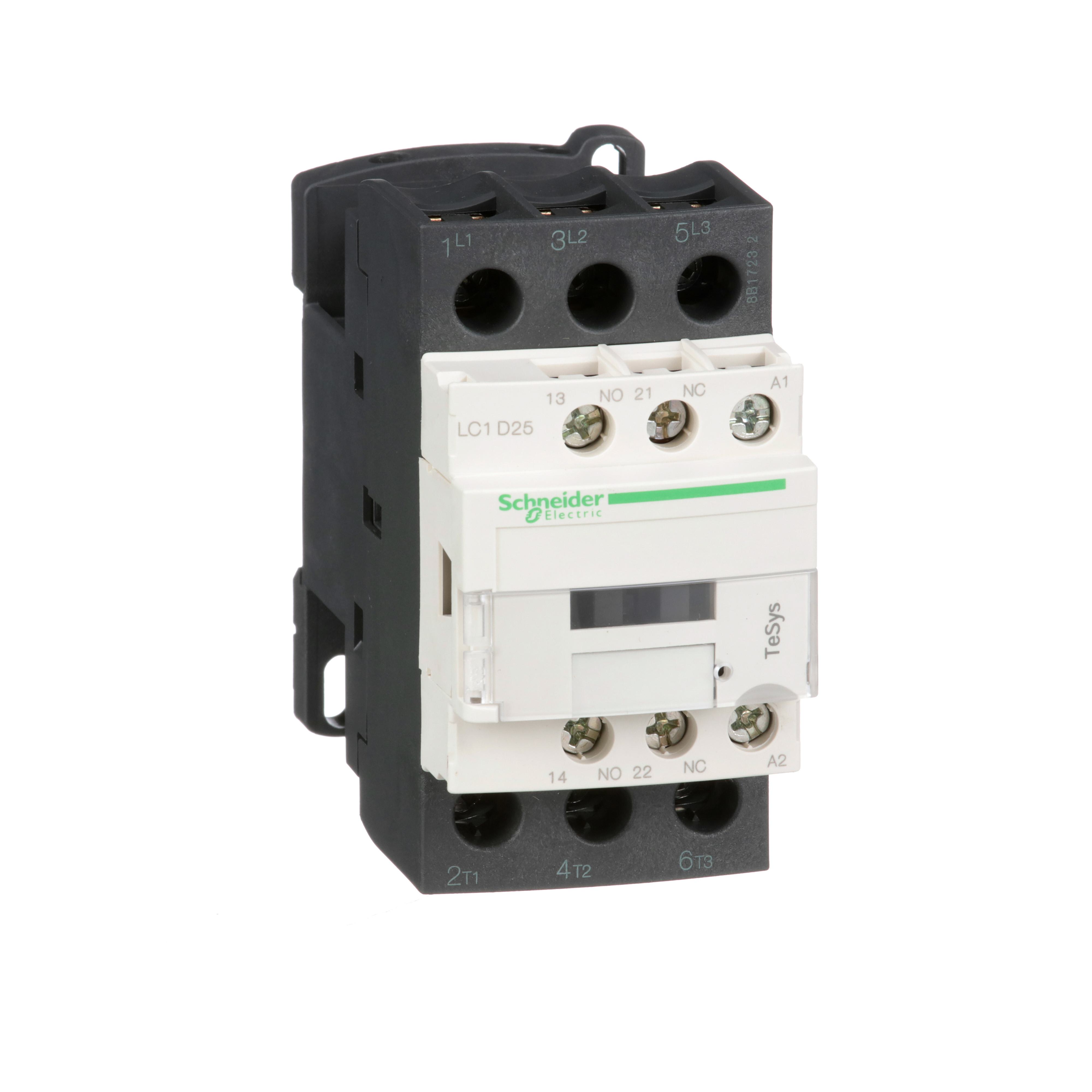

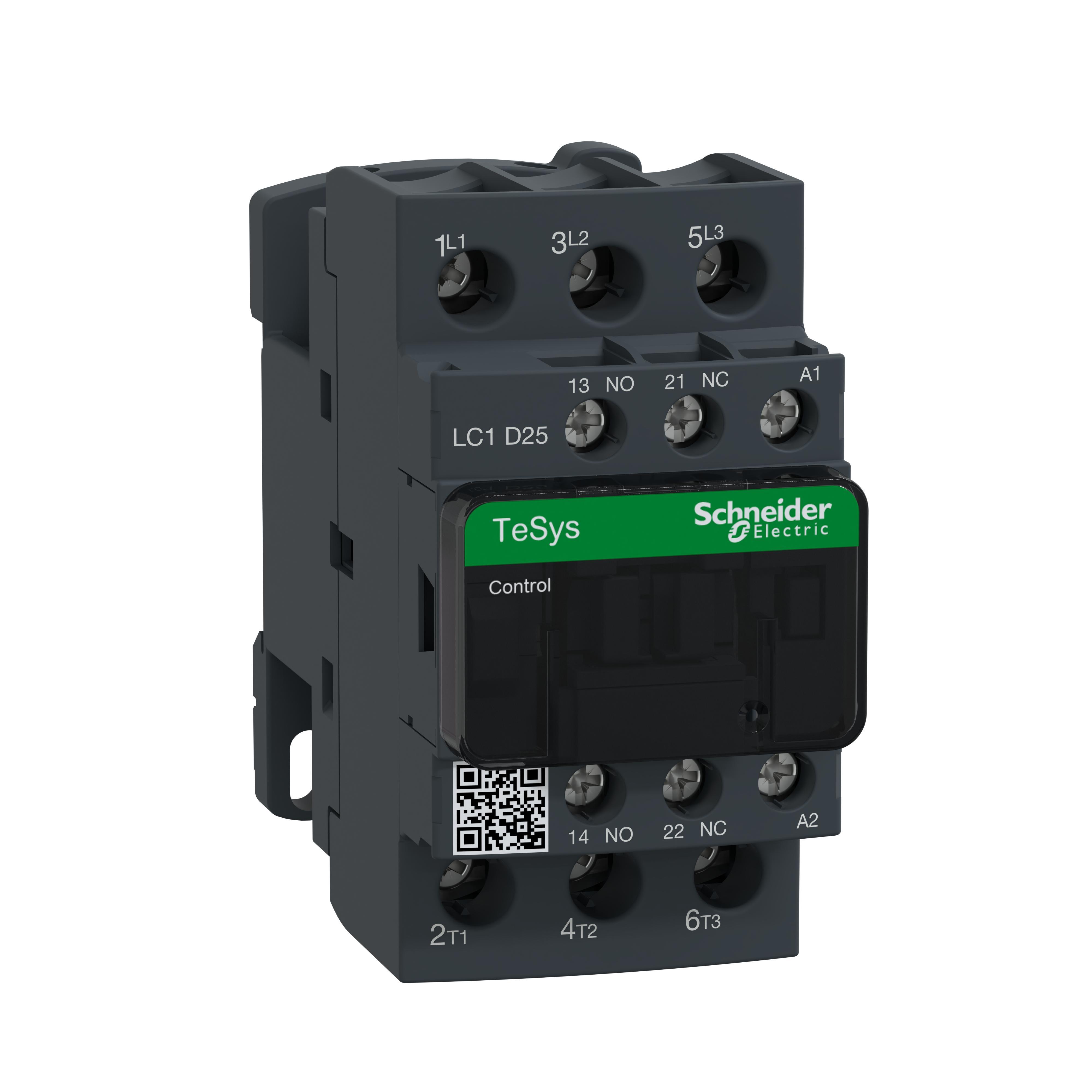

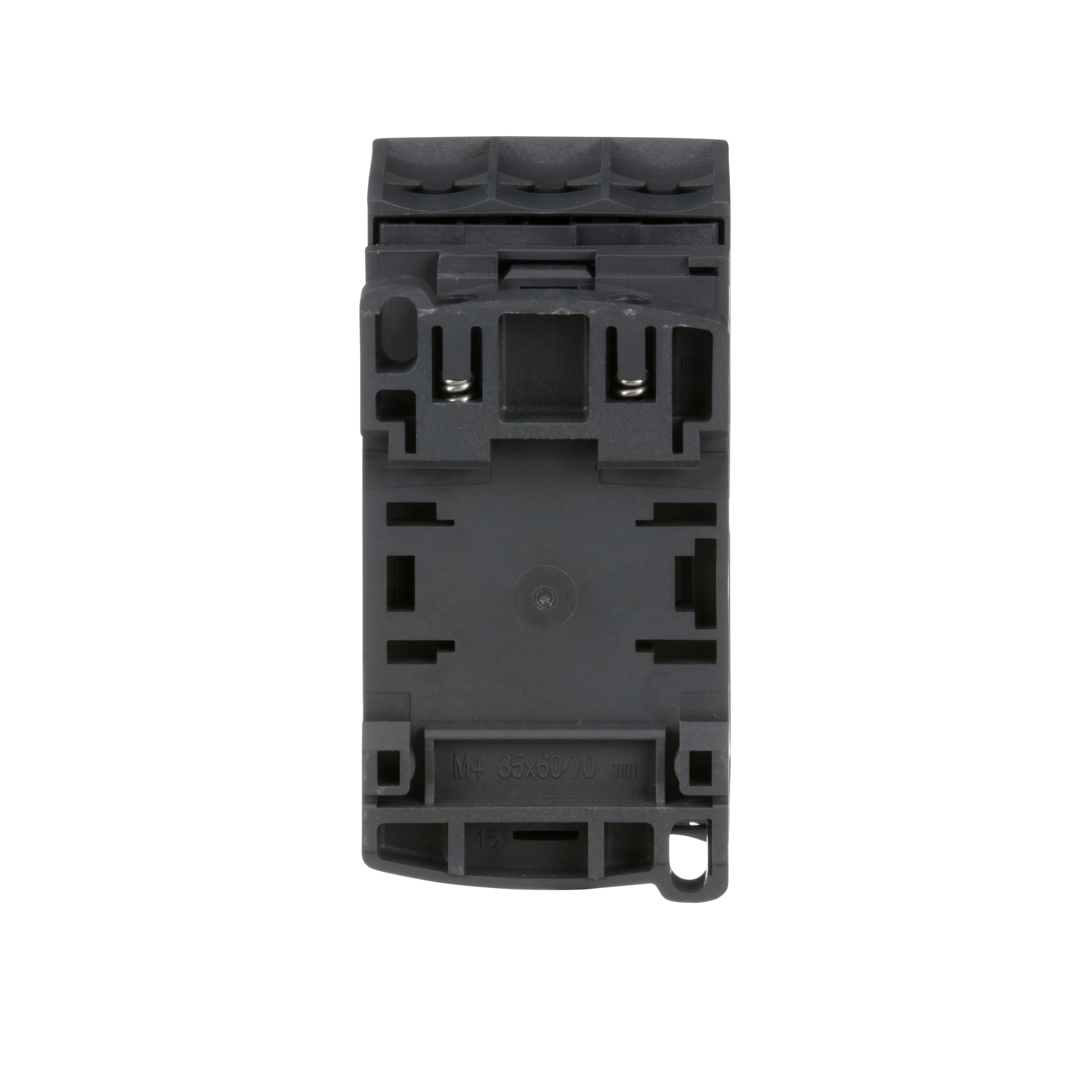

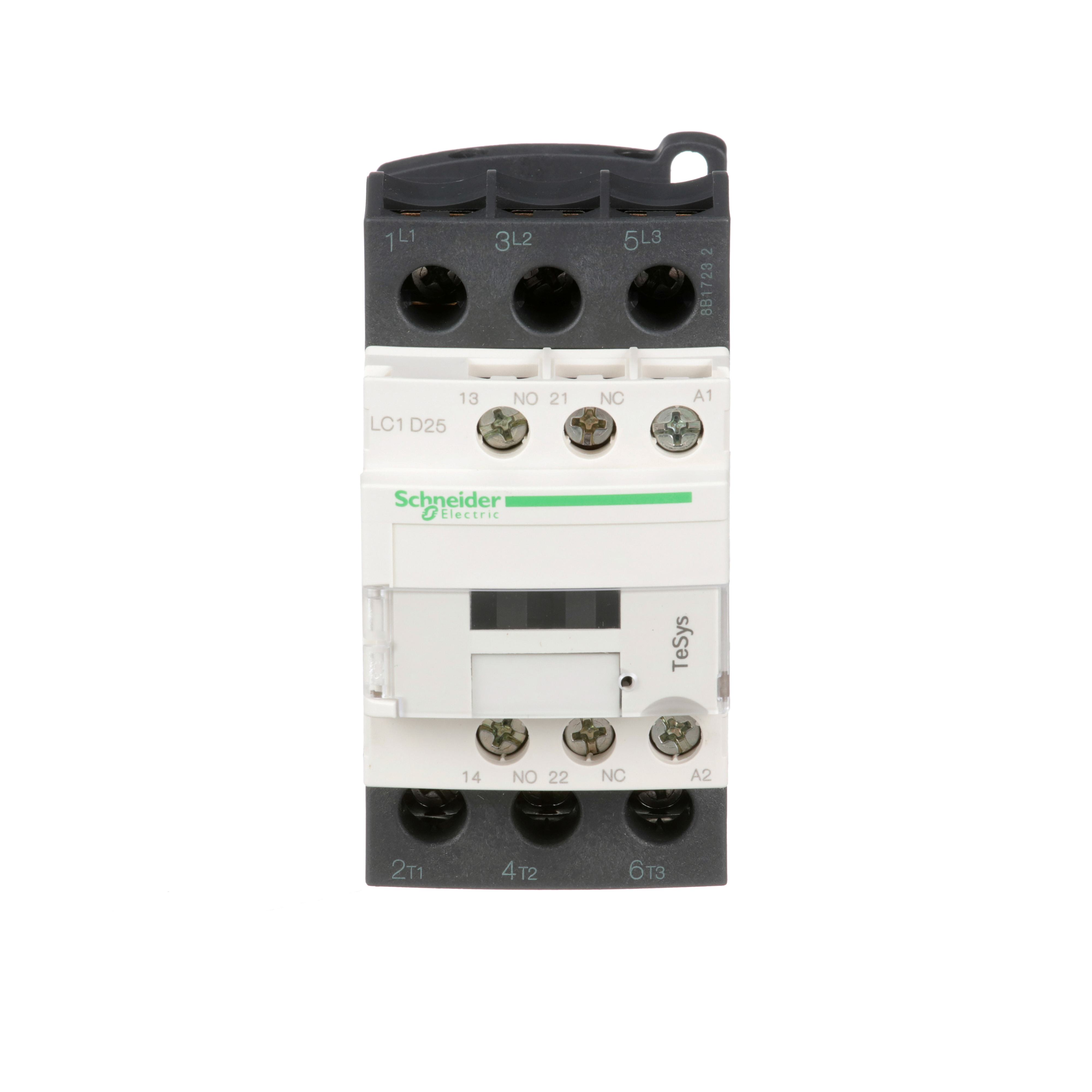

Square D™ LC1D25U7
Square D™ TeSys™ D LC1D25U7 Direct On-Line Standard IEC Contactor, 240/690 VAC, 300 VDC V Coil, 25/40 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 535033
MPN: LC1D25U7
UPC: 785901207177
Login for Price
Features
- Without built-in bi-directional peak limiting diode suppressor coil technology
- IP2X IEC 60529/VDE 0106
- 40 A at 60 deg C for power circuit and 10 A at 60 deg C for signaling circuit
Description
Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 240/690 VAC, 300 VDC Coil, 25/40 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz, 1.25/3.2 W, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 40/60 at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp, 45/85/92 mm, Screw Clamp Terminal, IP2X, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 45 mm W x 92 mm D x 85 mm H
Specifications
Coil Power Rating |
7.5/7.7 VA |
Coil Voltage |
240/690 VAC, 300 VDC |
Connection Type |
Screw Clamp |
Contact Configuration |
3NO |
Contact Rating |
10/60 A at 600 VAC, 40/60 at 600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
45 mm W x 92 mm D x 85 mm H |
Enclosure Type |
IP2X |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
25/40 A |
Mounting Type |
Rail/Surface |
Number of Auxiliary Contacts |
1NO-1NC |
Number of Poles |
3 |
Operating Cycles |
3600 cycles/hr |
Operating Temperature |
-5 to 60/-40 to 70 deg C |
Power Factor |
0.75 Inrush, 0.3 Hold-In |
Series |
LC1D |
Size |
45/85/92 mm |
Terminal Type |
Screw Clamp |
Type |
Direct On-Line Standard |
Wattage |
1.25/3.2 W |
Standard Approval |
BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications|CE Certified|CSA 3211 04|CSA C22.2 No.LR43364|EN 60947-4-1/EN 60947-5-1|File File No. E164862 NLDX|IEC 60529/VDE 0106|IEC 60647-4|IEC 60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508 |
Application |
Motor Control and Resistive Load Applications |
