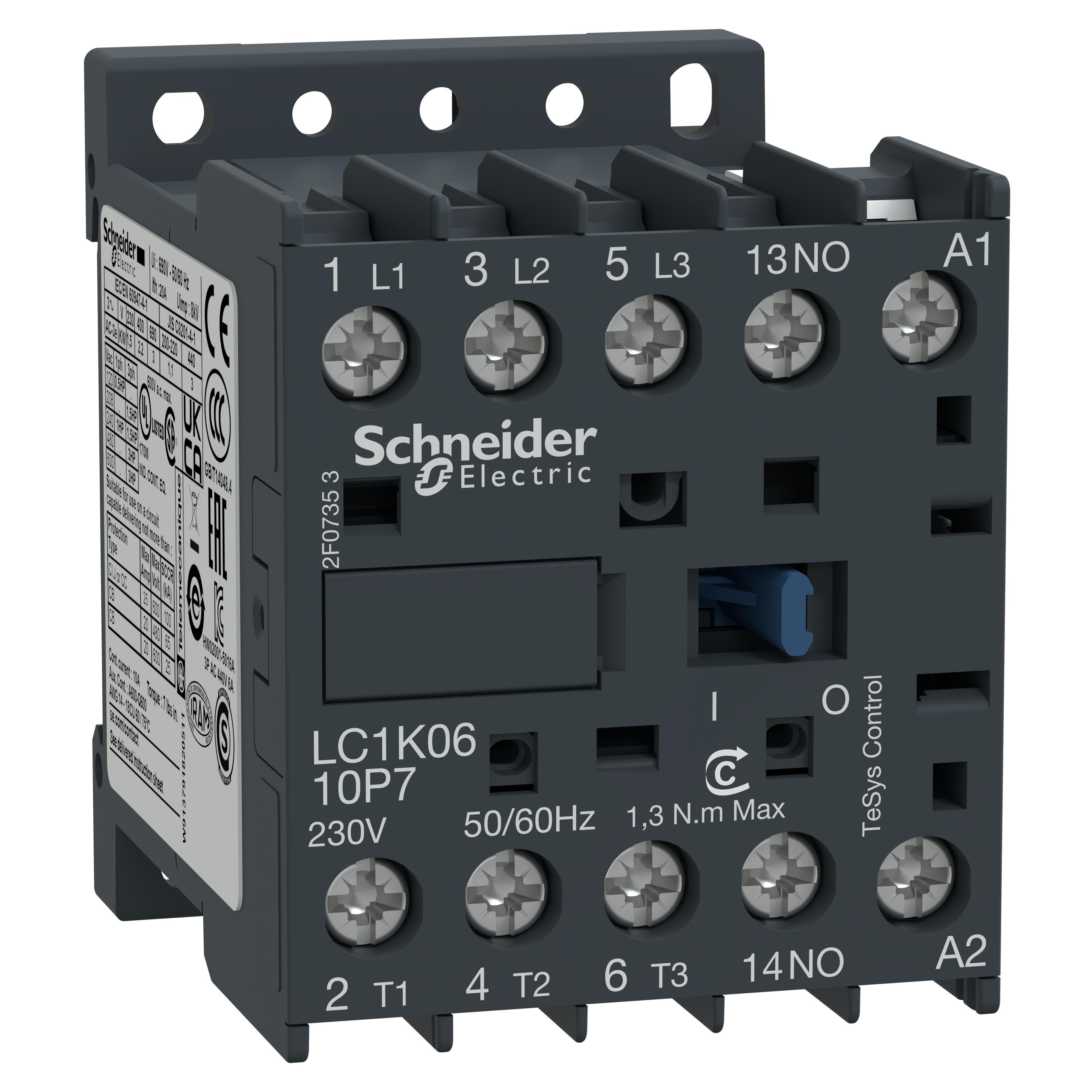

Schneider Electric LC1K0610F7

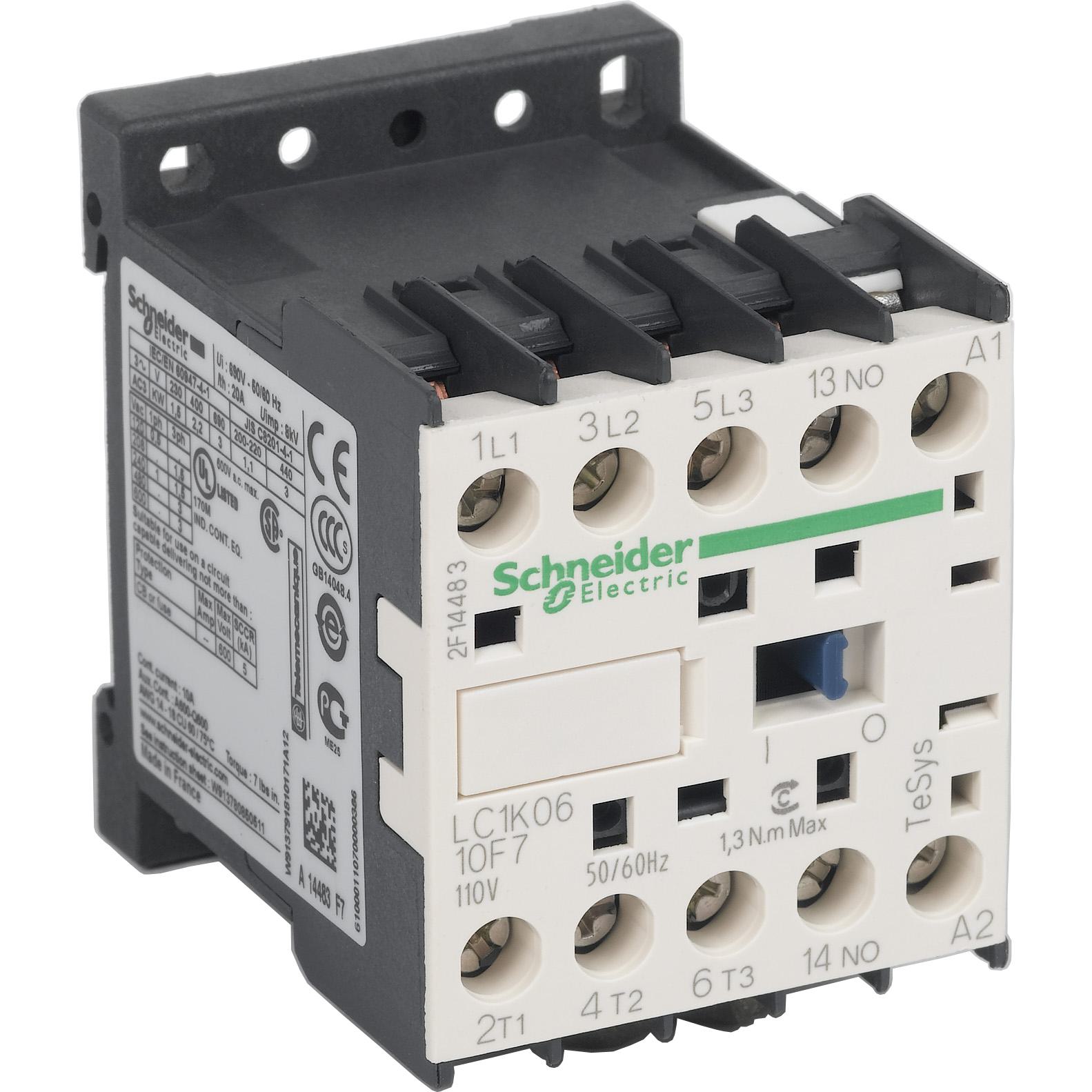

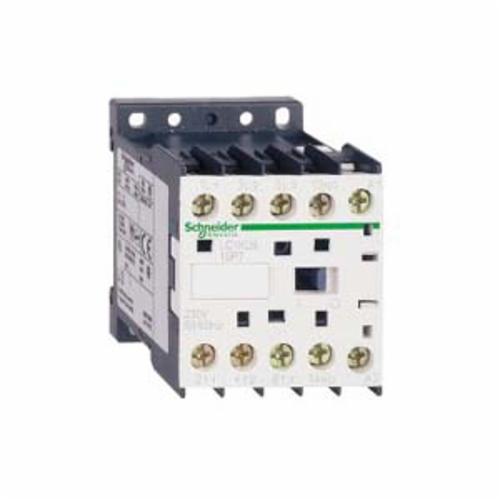

Schneider Electric Square D™ TeSys™ K LC1K0610F7 Direct On-Line K-Line IEC Contactor, 110/690 VAC V Coil, 6 A, 3NO Contact, 3 Poles
Brand: Schneider Electric
Item ID: 440805
MPN: LC1K0610F7
UPC: 785901883272
Login for Price
Features
- LC1K0610F7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications
- Rated 6A AC-3 2 2kW at 400V, it includes a 110V 50/60Hz AC coil and 1NO auxiliary contact
- 20 A at 50 deg C for power circuit and 10 A at 50 deg C for signaling circuit
Description
LC1K0610F7 is a 3-pole TeSys™ K contactor from Schneider Electric for simple motor applications rated up to 2.2 kW at 400 V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 110 V 50/60 Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHS/Reach).
Schneider Electric Square D™ TeSys™ K IEC Contactor, Direct On-Line K-Line, Series: LC1K, 110/690 VAC Coil, 6 A Maximum Load Current, 4.5 VA Coil, 3 Pole, 400 Hz Frequency, 3 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20/50 A at 600 VAC, 10/50 A at 600 VAC Contact, Screw Clamp Connection, 45/57/58 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 45 mm W x 57 mm D x 58 mm H Dimensions
Specifications
Coil Power Rating |
4.5 VA |
Coil Voltage |
110/690 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
3NO |
Contact Rating |
20/50 A at 600 VAC, 10/50 A at 600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
45 mm W x 57 mm D x 58 mm H |
Enclosure Type |
IP2X |
Frequency Rating |
400 Hz |
Maximum Load Current |
6 A |
Mounting Type |
Rail/Surface |
Number of Auxiliary Contacts |
1NO |
Number of Poles |
3 |
Operating Cycles |
3600 cycles/hr |
Operating Temperature |
-25 to 50 deg C |
Series |
LC1K |
Size |
45/57/58 mm |
Terminal Type |
Screw Clamp |
Type |
Direct On-Line K-Line |
Wattage |
3 kW |
Standard Approval |
CE Certified|CSA File No. LR43364/Class 3211-04|IEC 60947|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 94-V-1 Flammability Rating|UL CCN NLDX2|UL File No. E164862|UL NLDX2|VDE 0106|VDE 0106 |
Application |
Motor Control Applications |
