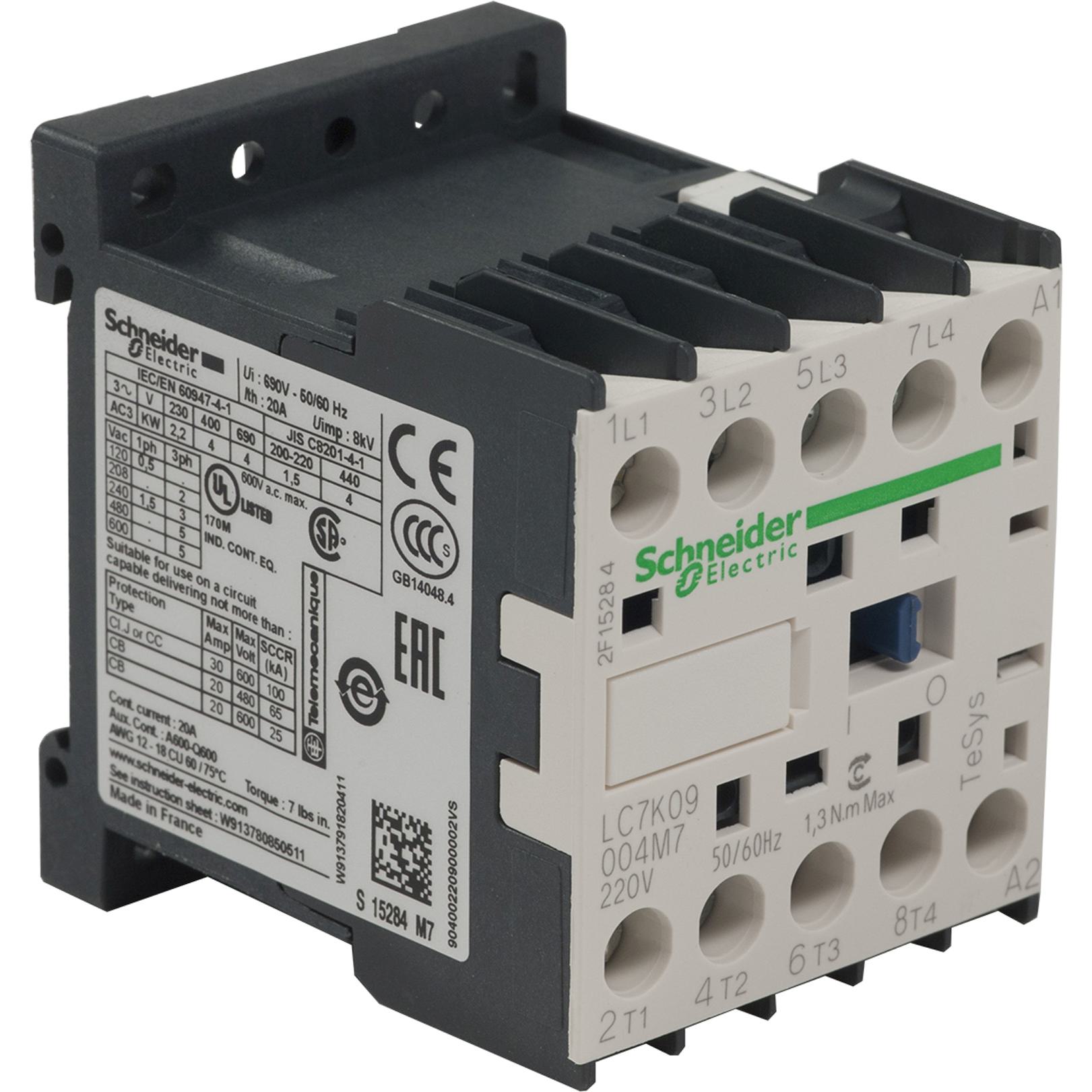

Schneider Electric LC7K09004M7
Schneider Electric Square D™ LC7K09004M7 TeSys™ K LC7K Miniature IEC Contactor, 220 to 230 VAC V Coil, 16/20 A, 4NO Contact, 4 Poles
Brand: Schneider Electric
Item ID: 430917
MPN: LC7K09004M7
UPC: 785901839187
Login for Price
Features
- IP20 finger safe terminals with both North American and international terminal markings
- Mountable on 35 mm DIN rail or panel mount with screws
- Easily installed accessories
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Control circuit flexibility
- Bi-metallic overload relays
Description
TeSys™ K contactors and overload relays are ideal for general duty applications where small size and reliability are key concerns. The special armature structure design allows all devices and all operating coils, either AC or DC, to have the same physical size and panel footprint for convenience. Devices are available with low consumption DC operating coils for direct connection to PLC circuits.
Schneider Electric Square D™ Miniature IEC Contactor, Series: TeSys™ K LC7K, 220 to 230 VAC Coil, 16/20 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Screw Clamp Terminal, IP2X Enclosure, 3600 Cycles/hr Operating Cycles, -25 to 50 deg C Operating, Plate/Rail Mounting, 2.28 in H x 3.54 in W x 2.24 in D Dimensions
Specifications
Coil Voltage |
220 to 230 VAC |
Contact Configuration |
4NO |
Dimensions |
2.28 in H x 3.54 in W x 2.24 in D |
Enclosure Type |
IP2X |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
16/20 A |
Mounting Type |
Plate/Rail |
Number of Poles |
4 |
Operating Cycles |
3600 Cycles/hr |
Operating Temperature |
-25 to 50 deg C |
Series |
TeSys™ K LC7K |
Terminal Type |
Screw Clamp |
Standard Approval |
RoHS Compliant|WEEE Compliant|REACH Compliant|Green Premium|BS 5424|CSA Certified|IEC 60947|NFC 63-110|UL Listed|VDE 0660|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov |
Application |
General Duty and Resistive Load Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_579cb2d96d9842b97e059209fee194a769a88ac23c74d2bf4107724af17be8f7.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_CA2SKE20B7_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LP4K12015BW3_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LP4K12015BW3_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC7K09004M7_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QDP32110TM_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5ec1cab01a23bc02455edb23c9b4453cc183a50707b5ef3b08dca401f7364657.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC7K09004M7_Specification_Sheet.pdf
