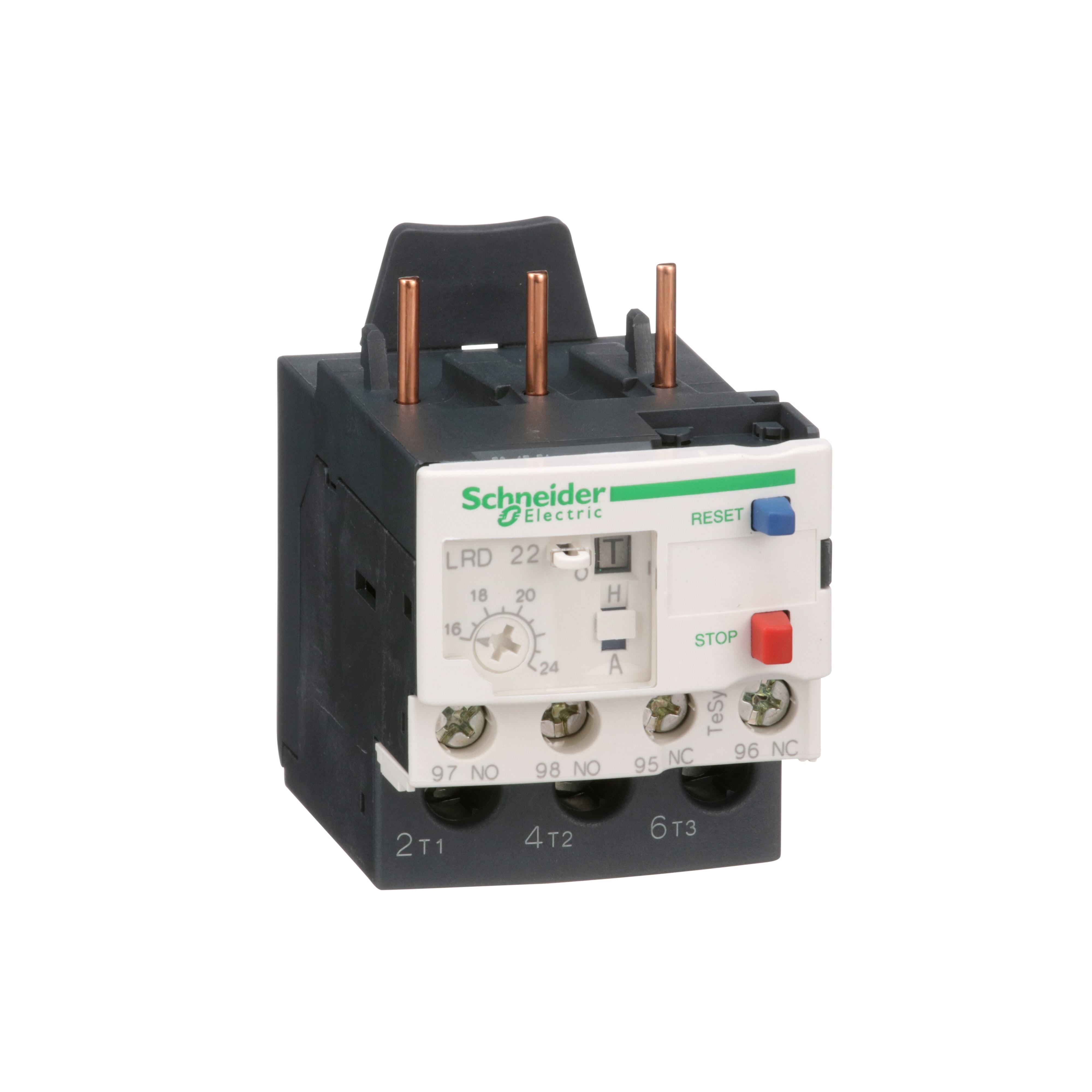

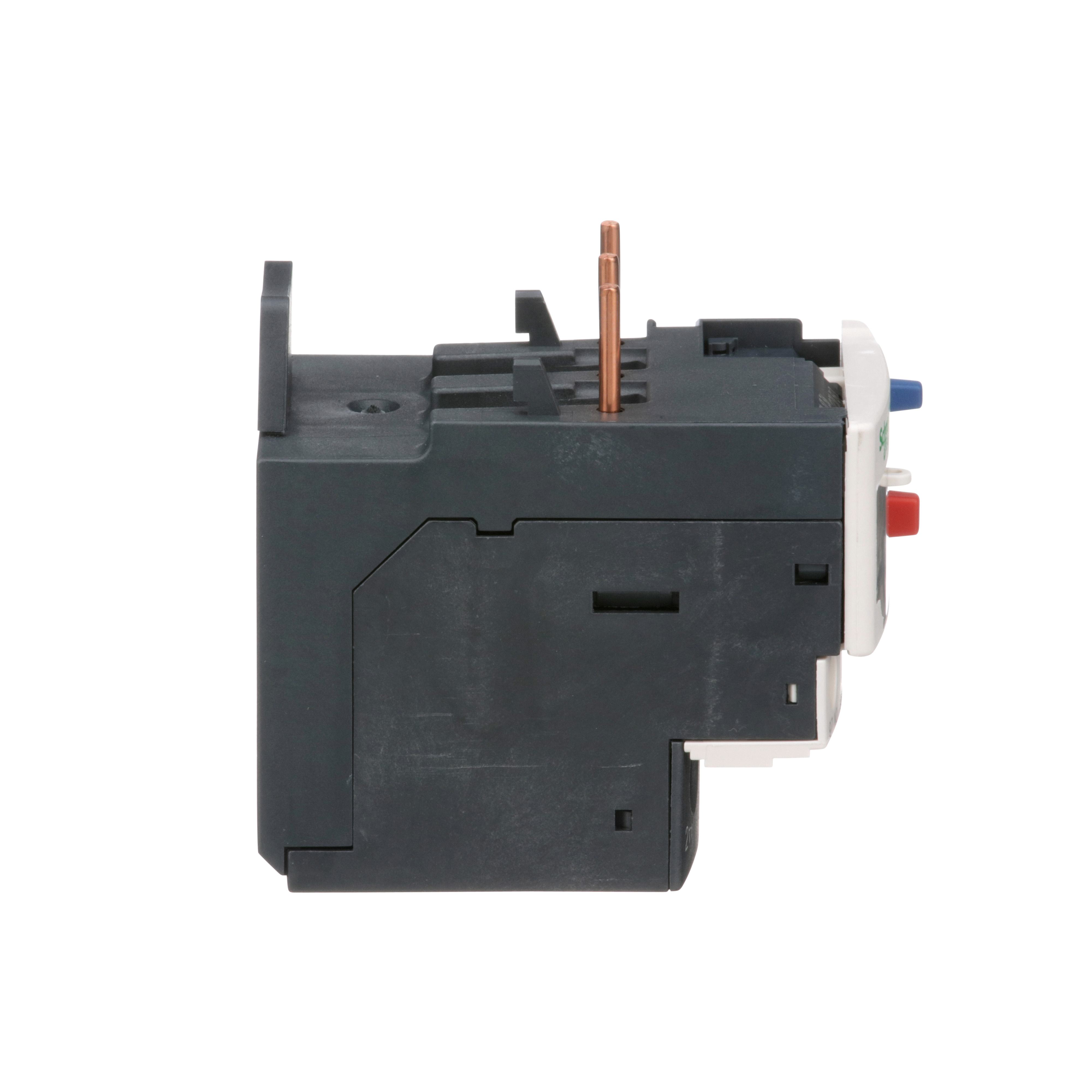

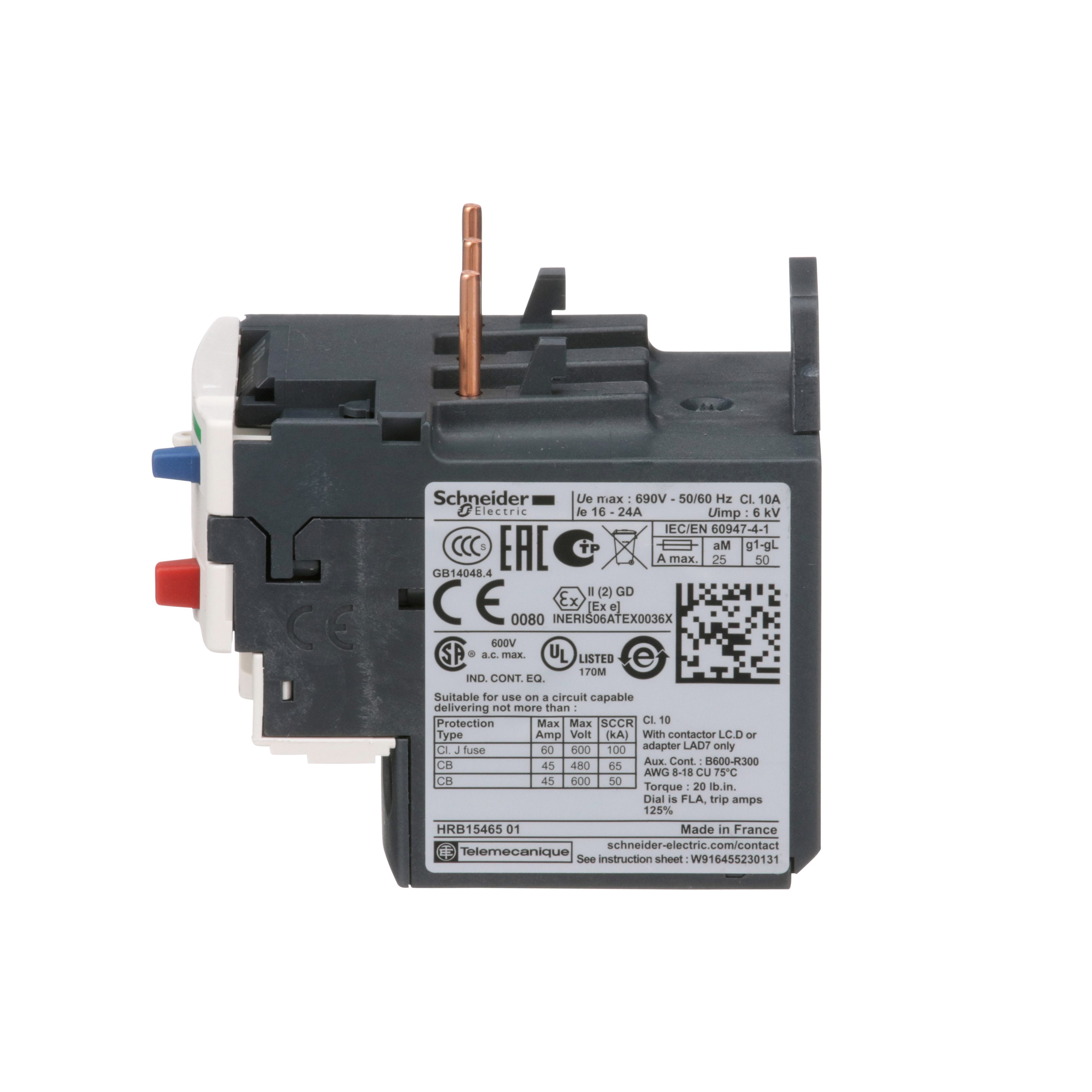

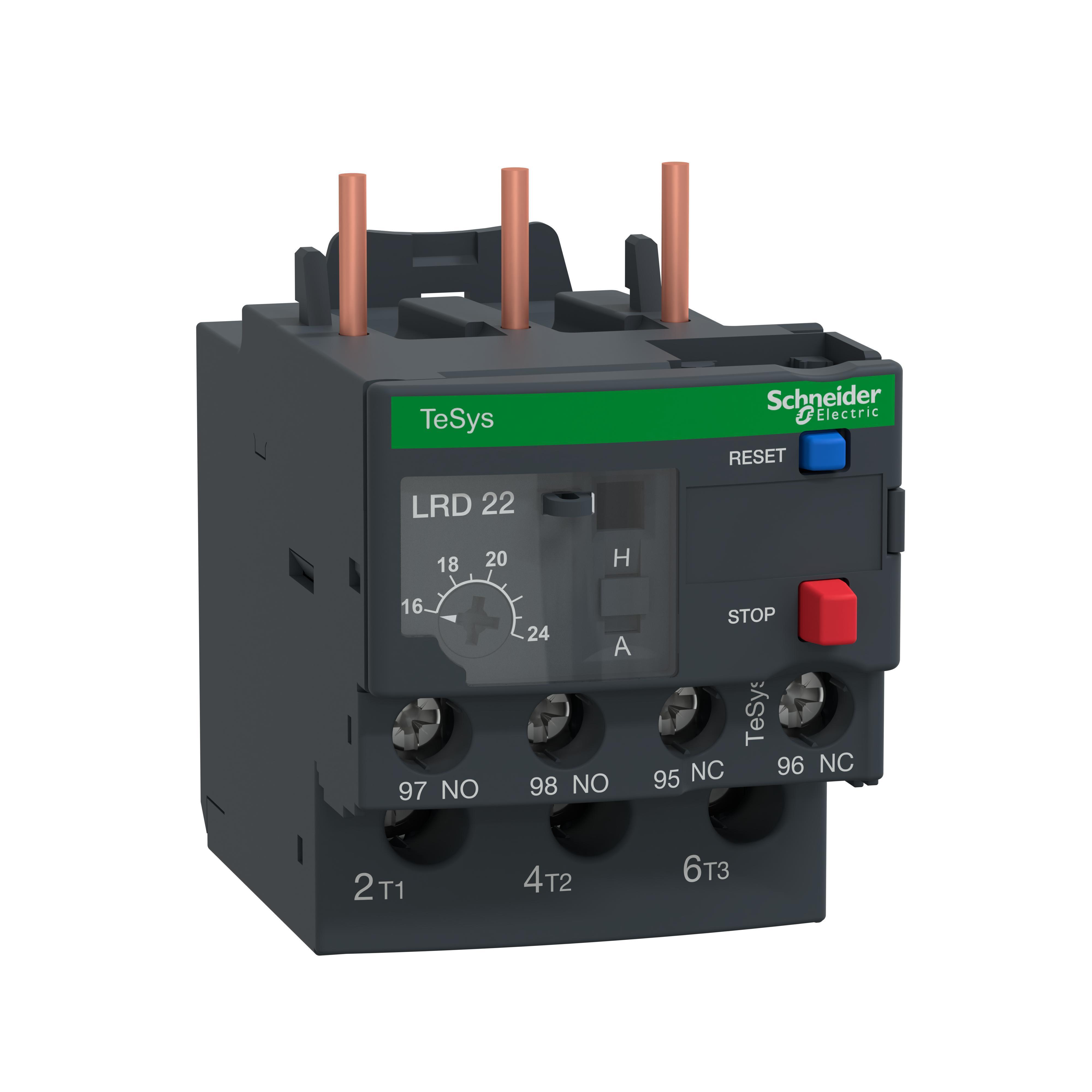

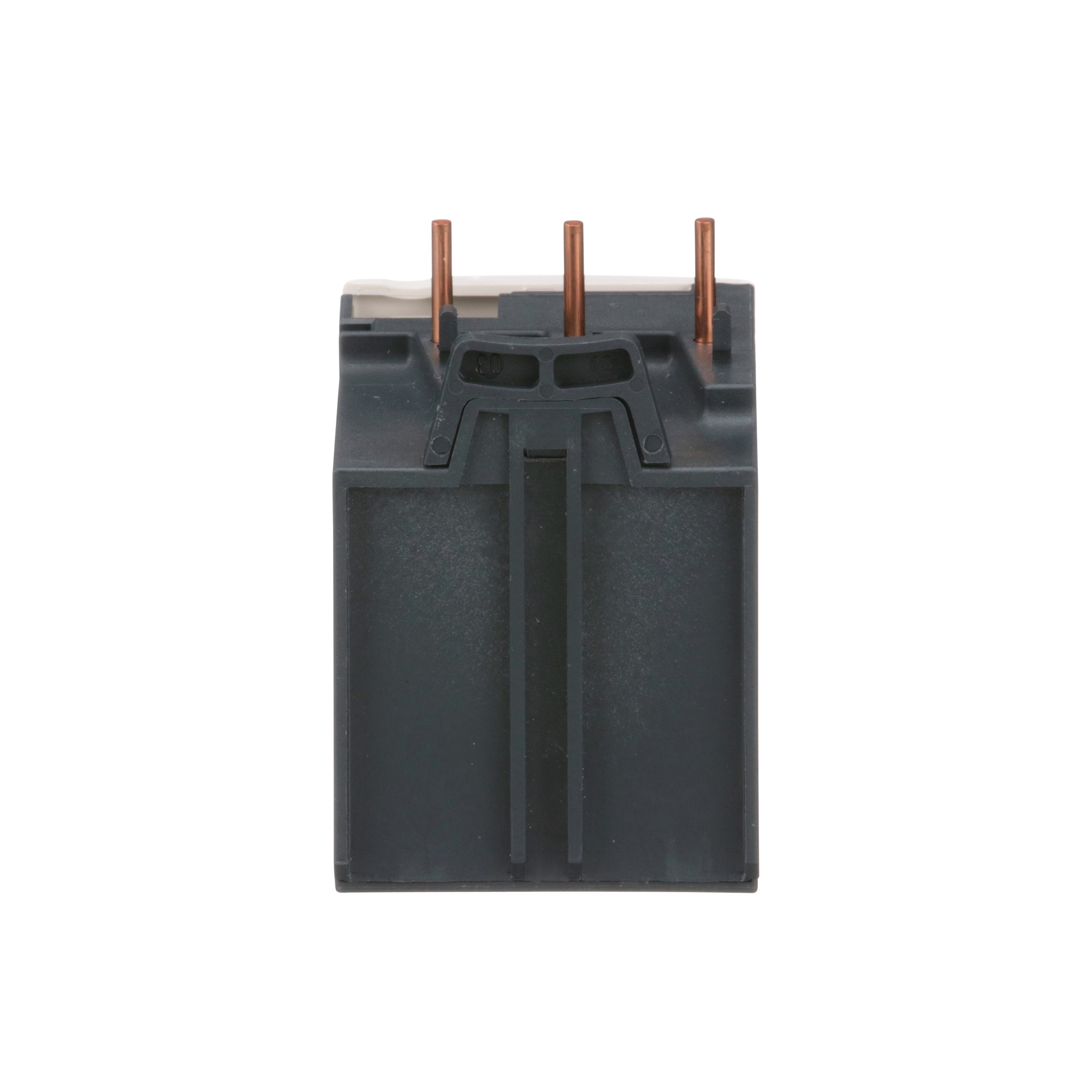

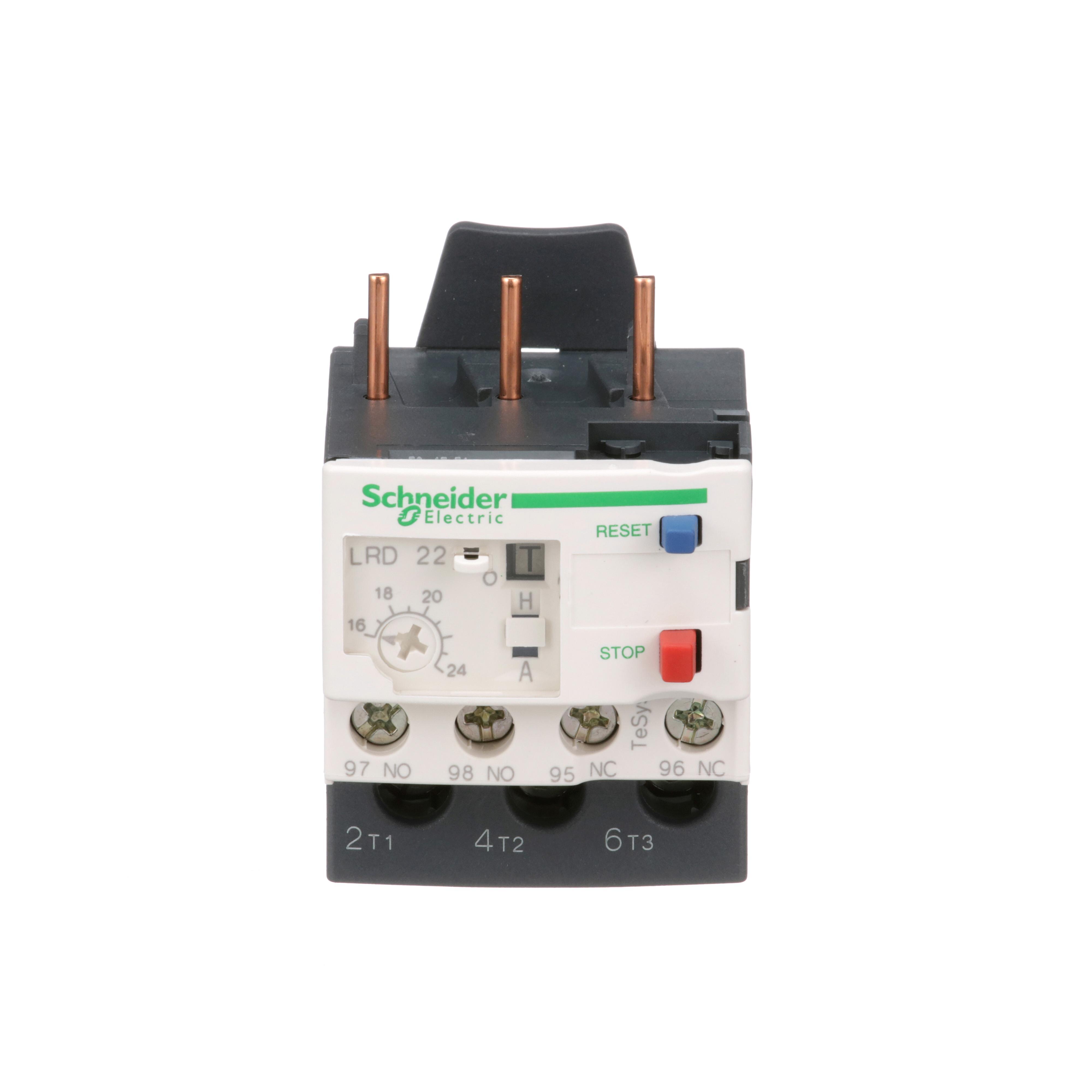

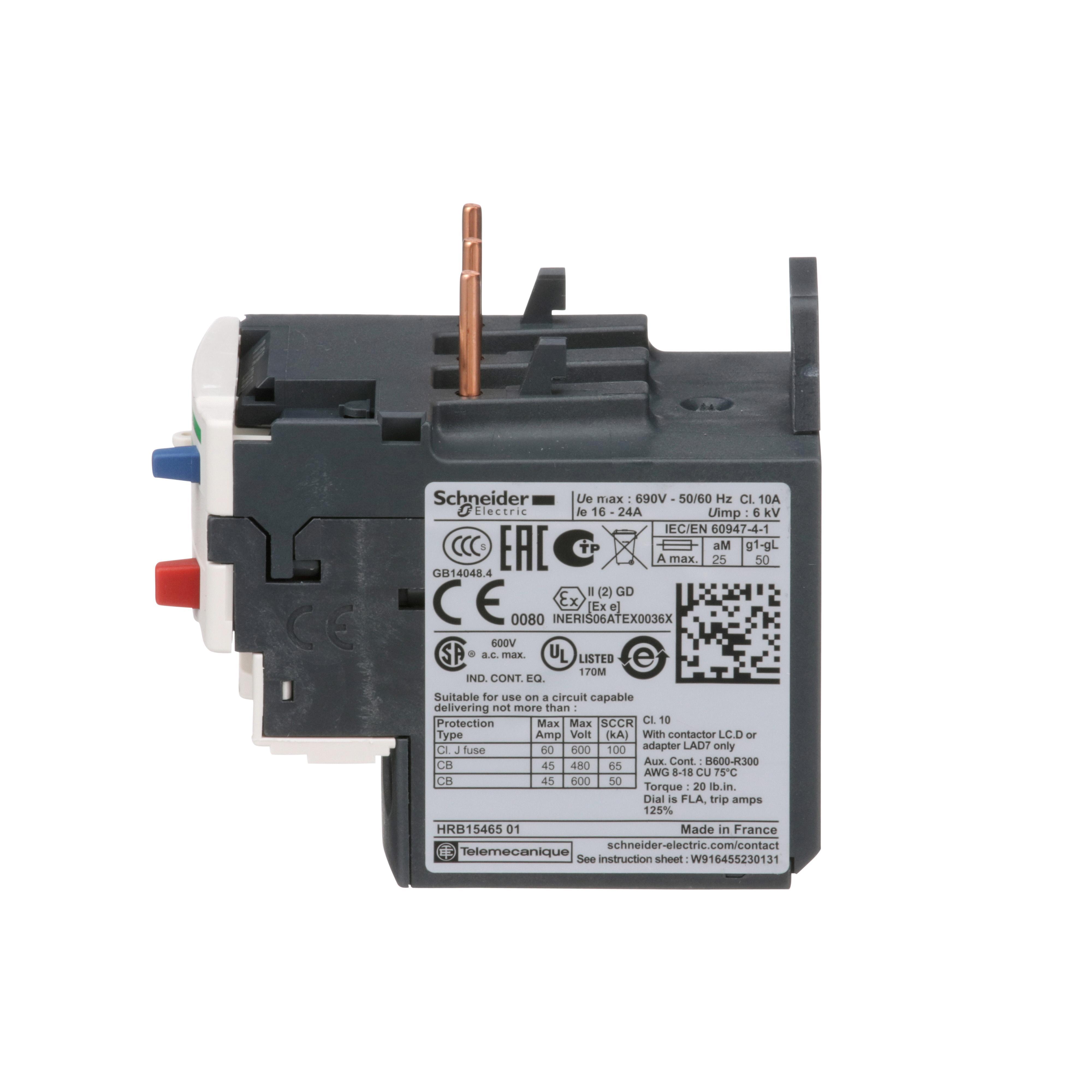

Schneider Electric TeSys® LRD22 D-Line Thermal Overload Relay, 16 to 24 A, 1NC-1NO Contact
Brand: Schneider Electric
Item ID: 375588
MPN: LRD22
Login for Price
Features
- LRD22 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor
- It protects motors 9-11kW at 400V thanks to a thermal range 16-24A, a tripping class 10A and phase unbalance protection
- Ambient compensated
- Bi-metallic/differential trip
- Trip class 10 with single phase sensitivity
- Direct on under contactor mounting, plate with specific accessories, rail with specific accessories
Description
LRD22 is a TeSys® LRD thermal overload relay from schneider electric for direct mounting on TeSys® D contactors. With a thermal setting range 16 to 24 A, a tripping class 10A and phase unbalance detection, it protects motors 11 kW at 400 V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi standard certified (IEC, UL, CSA, CCC, EAC, Marine) and green premium compliant (RoHS/Reach).
Schneider Electric TeSys® Thermal Overload Relay, Series: D-Line, 16 to 24 A, 0 to 400 Hz Frequency, 1NC-1NO Contact Form, 10 A Contact, 3 Pole, Contactor/Stand Alone Mounting, Screw Clamp Terminal, IP20 Enclosure, -20 to 60 deg C, 70 mm L x 45 mm W Dimensions
Specifications
Amperage Rating |
16 to 24 A |
Contact Form |
1NC-1NO |
Contact Rating |
10 A |
Dimensions |
70 mm L x 45 mm W |
Enclosure Type |
IP20 |
Frequency Rating |
0 to 400 Hz |
Mounting Type |
Contactor/Stand Alone |
Number of Poles |
3 |
Series |
D-Line |
Temperature Rating |
-20 to 60 deg C |
Terminal Type |
Screw Clamp |
Standard Approval |
RoHS Compliant|ATEX 94/9|CE Certified|CSA C22 2 No. 14|EN 60947-4-1/60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For TeSys™ D contactors or standalone applications |
