Schneider Electric LRD32

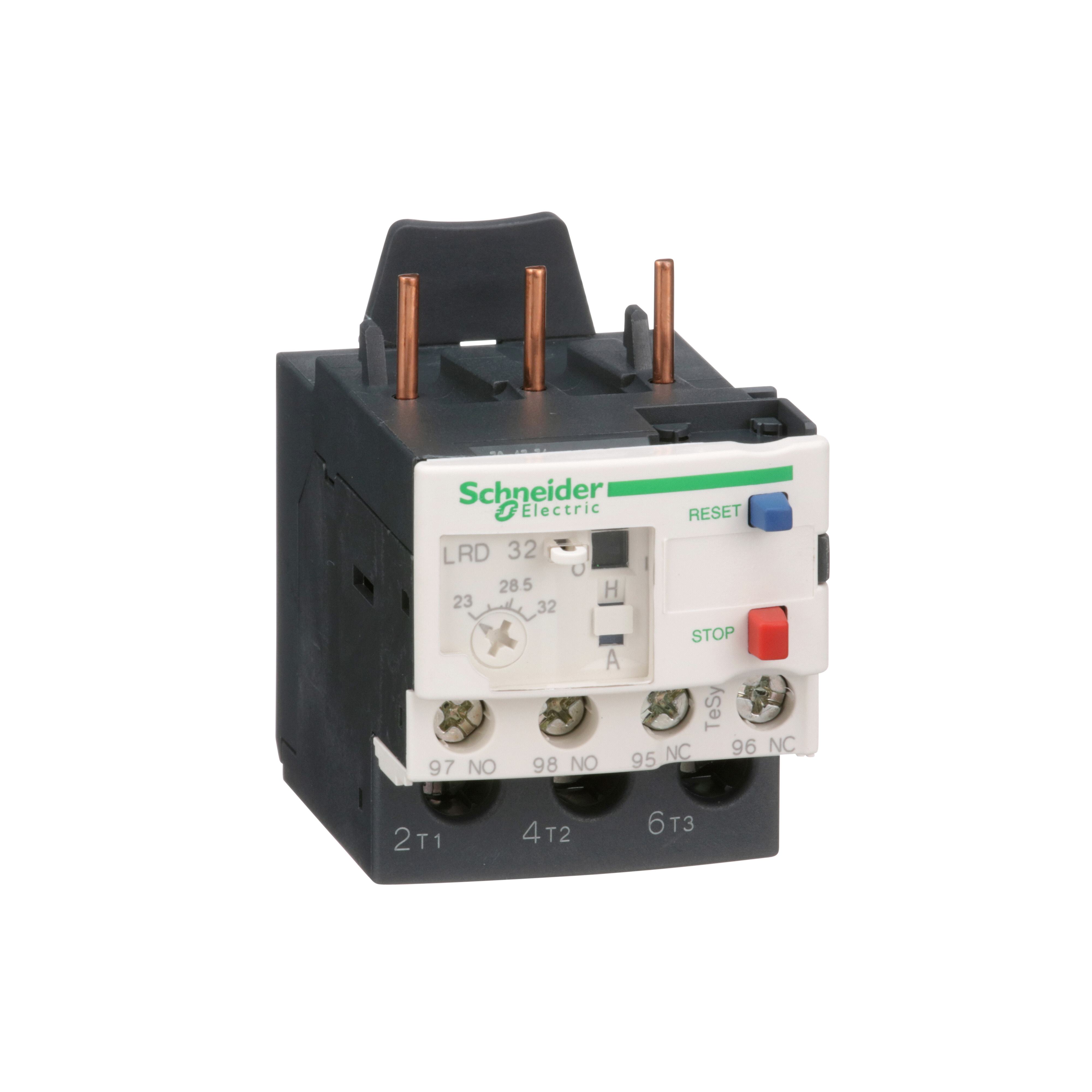

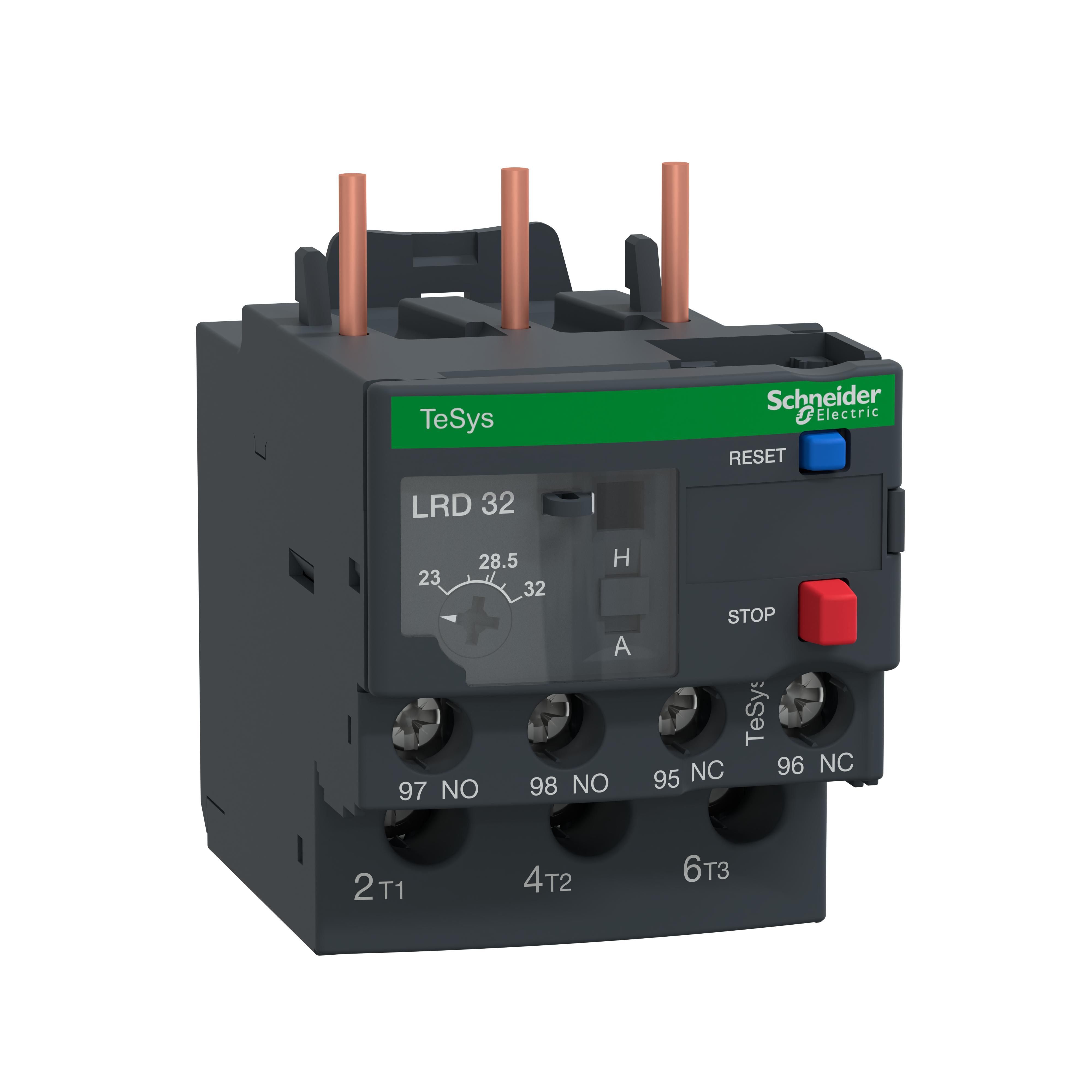

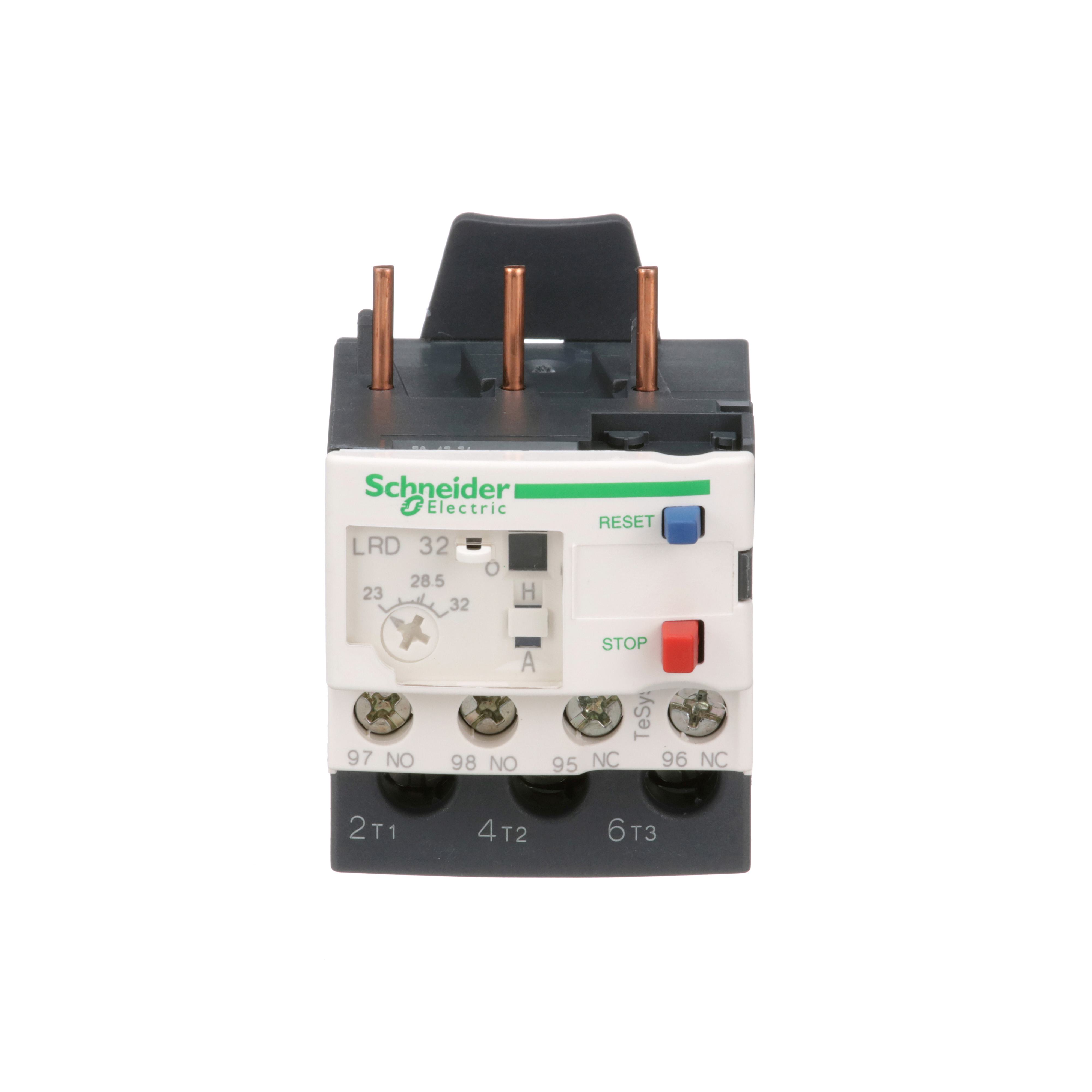

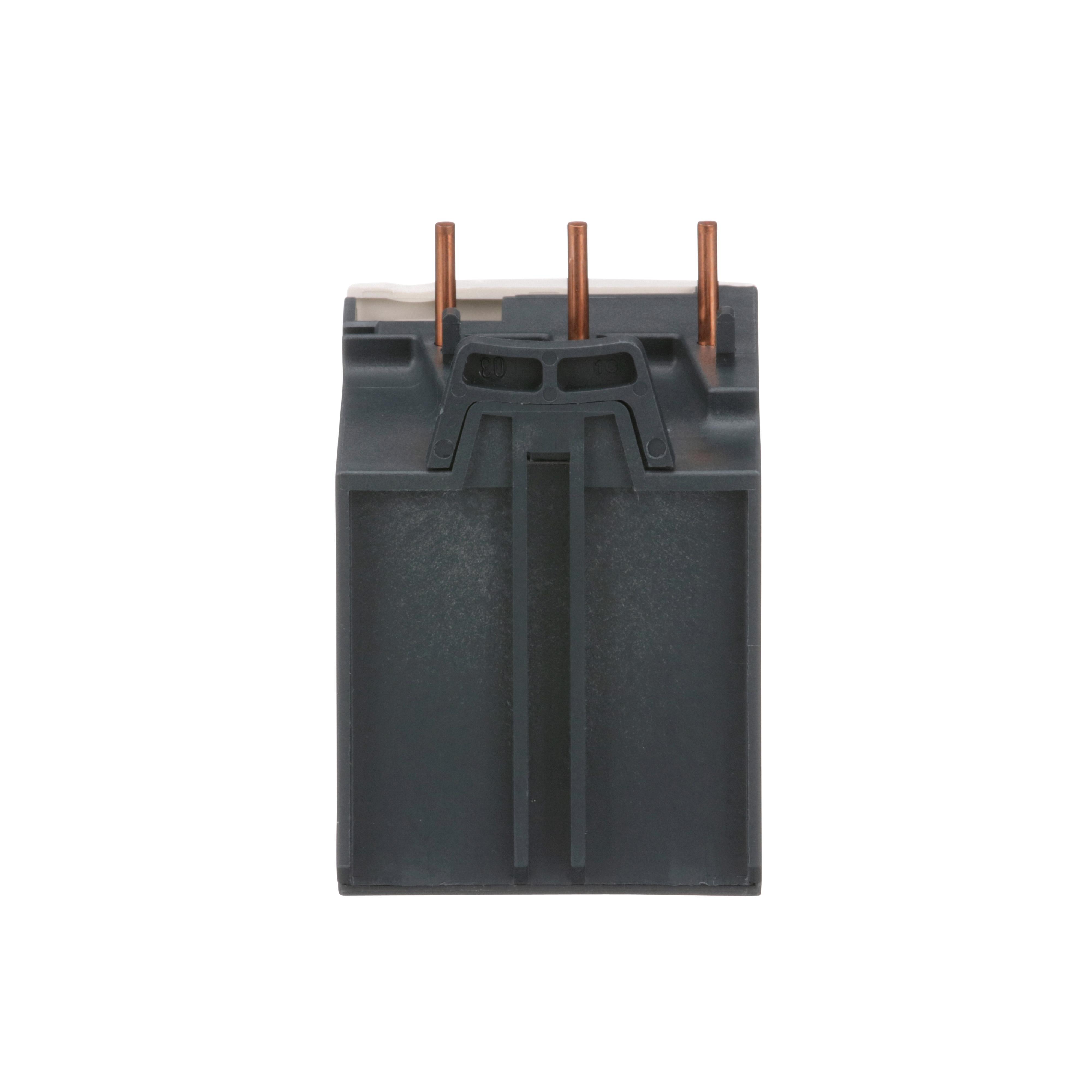

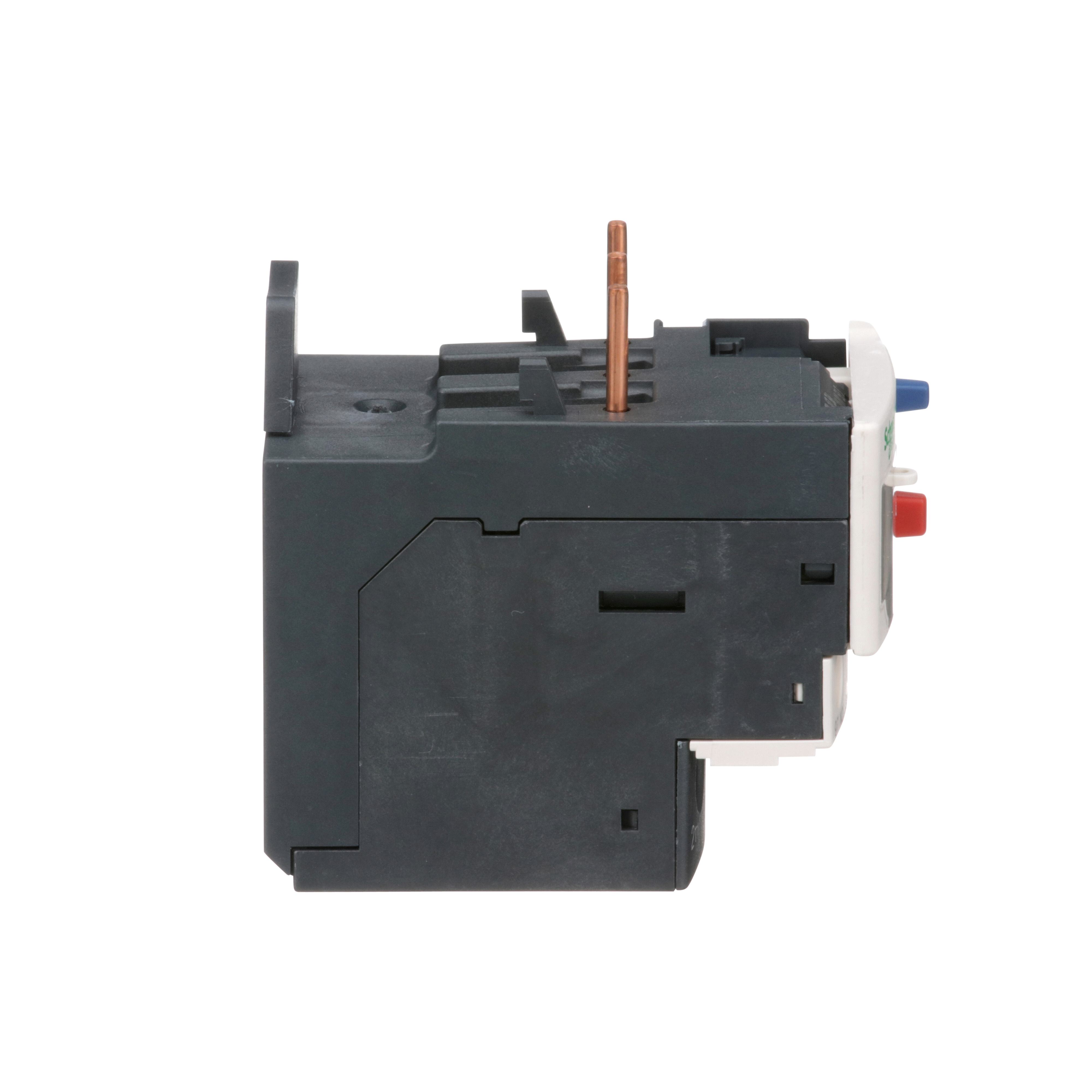

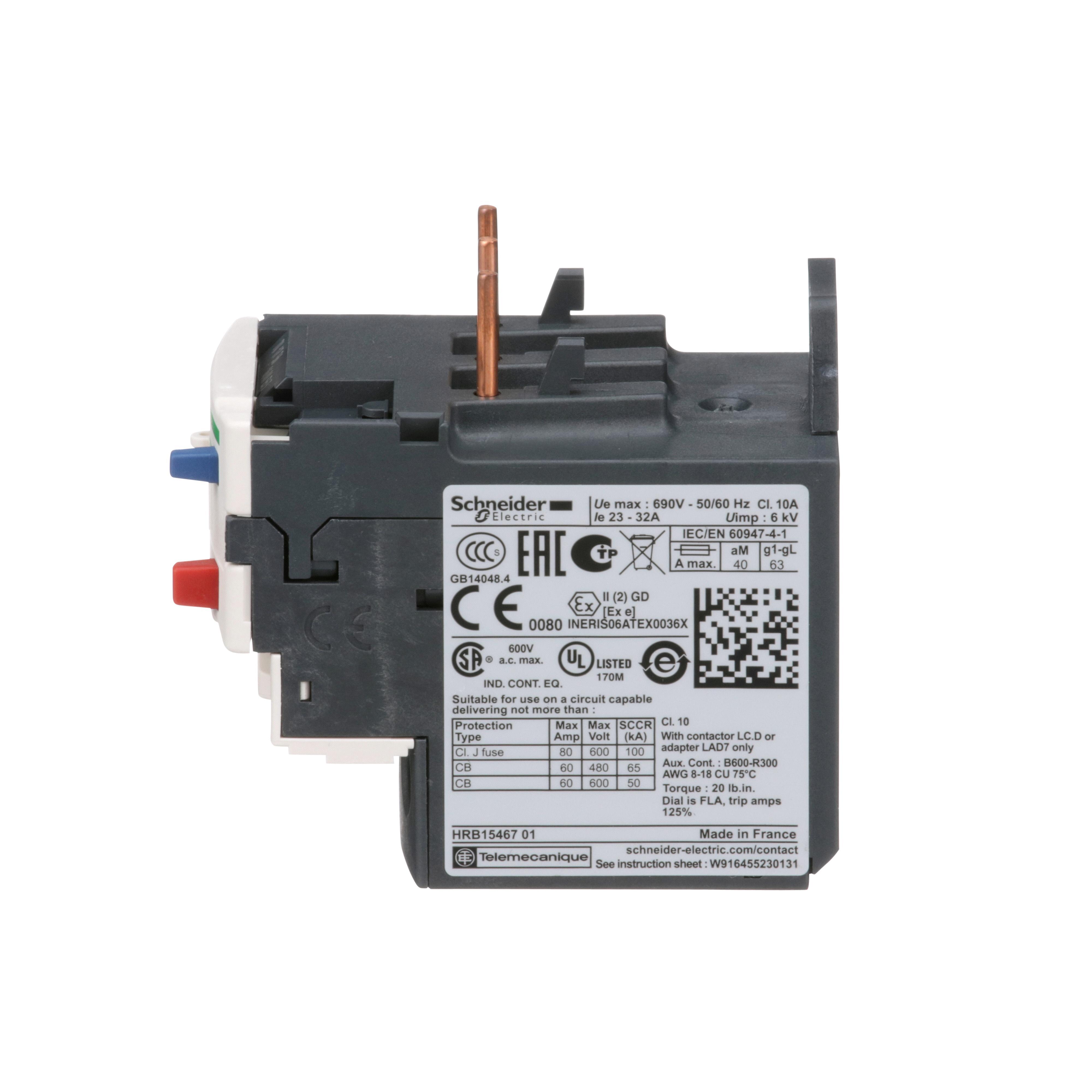

Schneider Electric TeSys® LRD32 D-Line Thermal Overload Relay, 23 to 32 A, 1NC-1NO Contact
Brand: Schneider Electric
Item ID: 370319
MPN: LRD32
Login for Price
Features
- LRD32 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor
- It protects motors 15kW at 400V thanks to a thermal range 23-32A, a tripping class 10A and phase unbalance protection
- Ambient compensated
- Bi-metallic/differential trip
- Trip class 10 with single phase sensitivity
- Direct on under contactor mounting, plate with specific accessories, rail with specific accessories
Description
LRD32 is a TeSys® LRD thermal overload relay from schneider electric for direct mounting on TeSys® D contactors. With a thermal setting range 23 to 32 A, a tripping class 10A and phase unbalance detection, it protects motors 15 kW at 400 V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi standard certified (IEC, UL, CSA, CCC, EAC, Marine) and green premium compliant (RoHS/Reach).
Schneider Electric TeSys® Thermal Overload Relay, Series: D-Line, 23 to 32 A, 0 to 400 Hz Frequency, 1NC-1NO Contact Form, 10 A Contact, 3 Pole, Contactor/Stand Alone Mounting, Screw Clamp Terminal, IP20 Enclosure, -20 to 60 deg C, 70 mm L x 45 mm W Dimensions
Specifications
Amperage Rating |
23 to 32 A |
Contact Form |
1NC-1NO |
Contact Rating |
10 A |
Dimensions |
70 mm L x 45 mm W |
Enclosure Type |
IP20 |
Frequency Rating |
0 to 400 Hz |
Mounting Type |
Contactor/Stand Alone |
Number of Poles |
3 |
Series |
D-Line |
Temperature Rating |
-20 to 60 deg C |
Terminal Type |
Screw Clamp |
Standard Approval |
RoHS Compliant|ATEX 94/9|CE Certified|CSA C22 2 No. 14|EN 60947-4-1/60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For TeSys™ D contactors or standalone applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2ec0f999f6020f520e4a85f9bb05ba79961e0a2b73f4ad91f3939fc30bfe5faa.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_556809c3c5885a0bf39f17d3893e867155d1c7835ebc796bf7f4b70a1ef15fb7.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD063_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6115786b200f065e27e9115cf8a1987b86b6b41b88ec020d54631dd0653c7570.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD32_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5011f6432ec0ab7b2697837912b702dd15142742e1f804f2674b0507f9222748.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD32_Specification_Sheet.pdf
