Schneider Electric LRD35

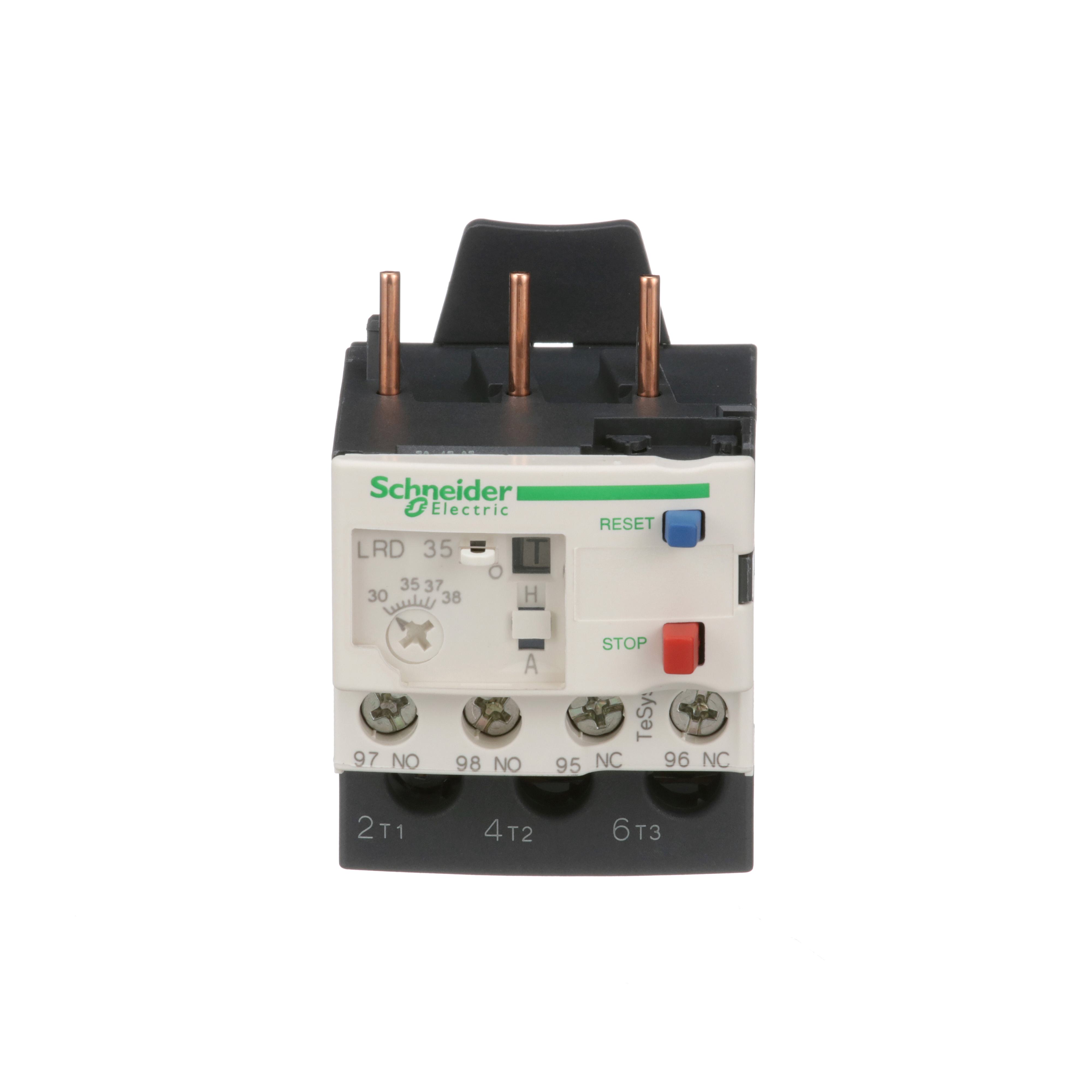

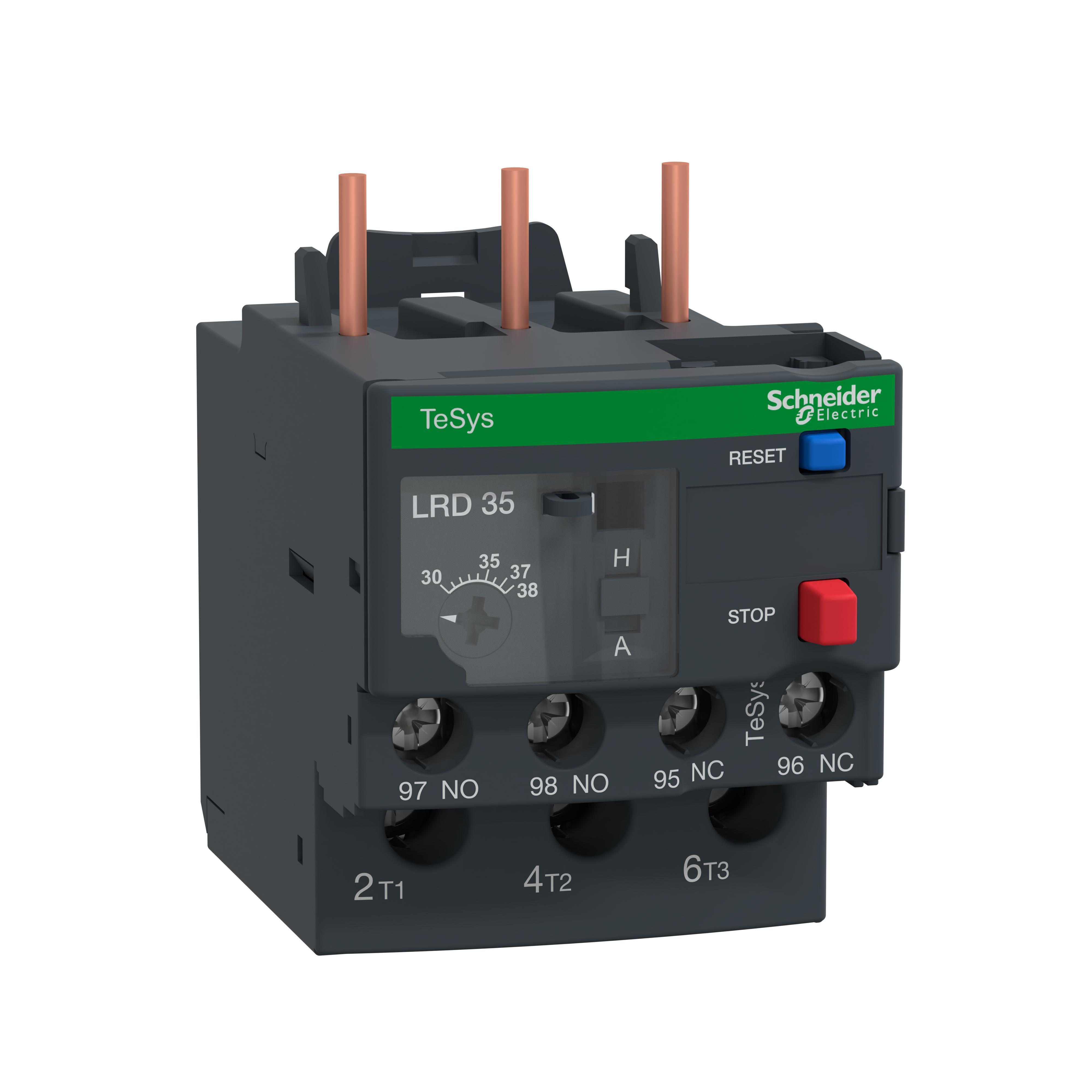

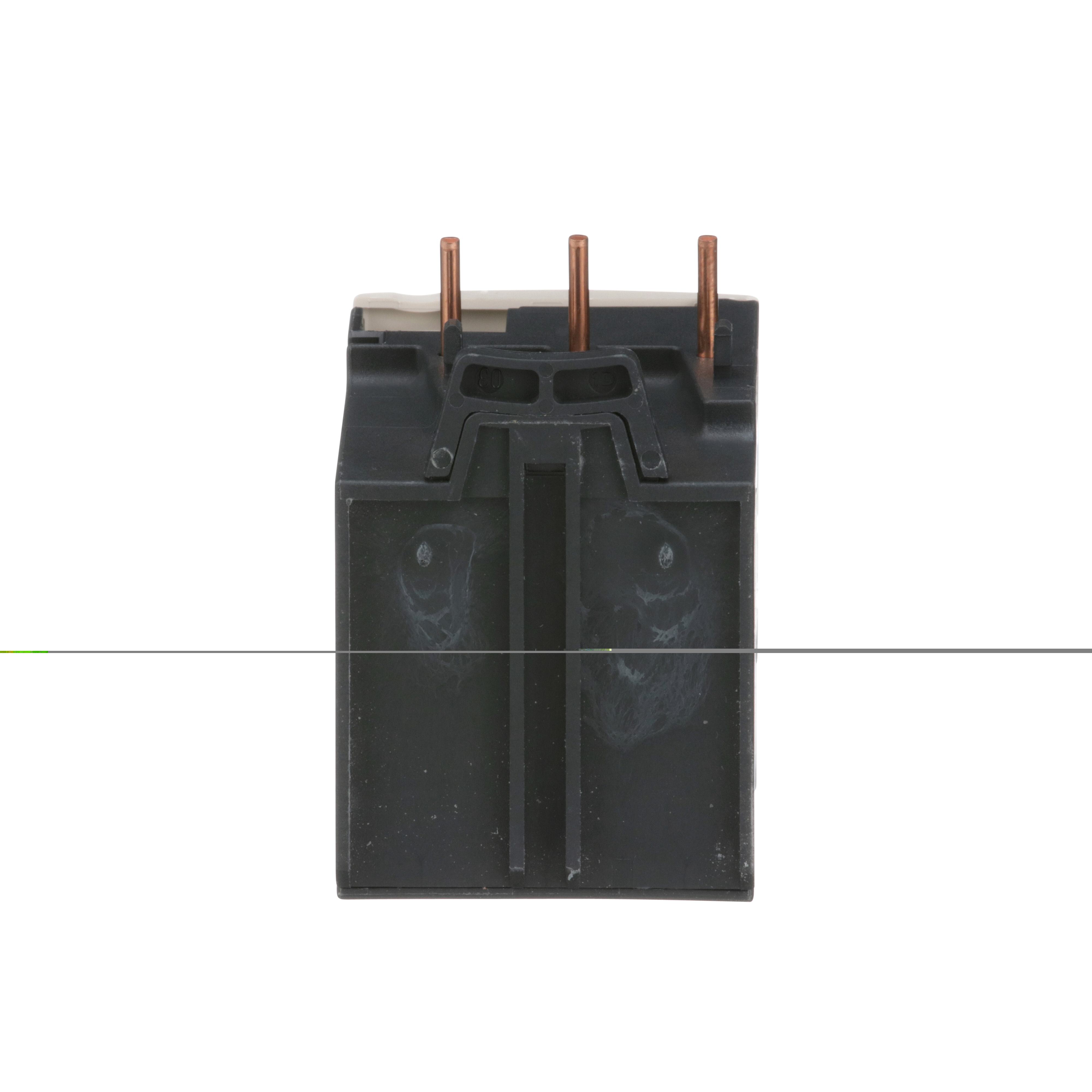

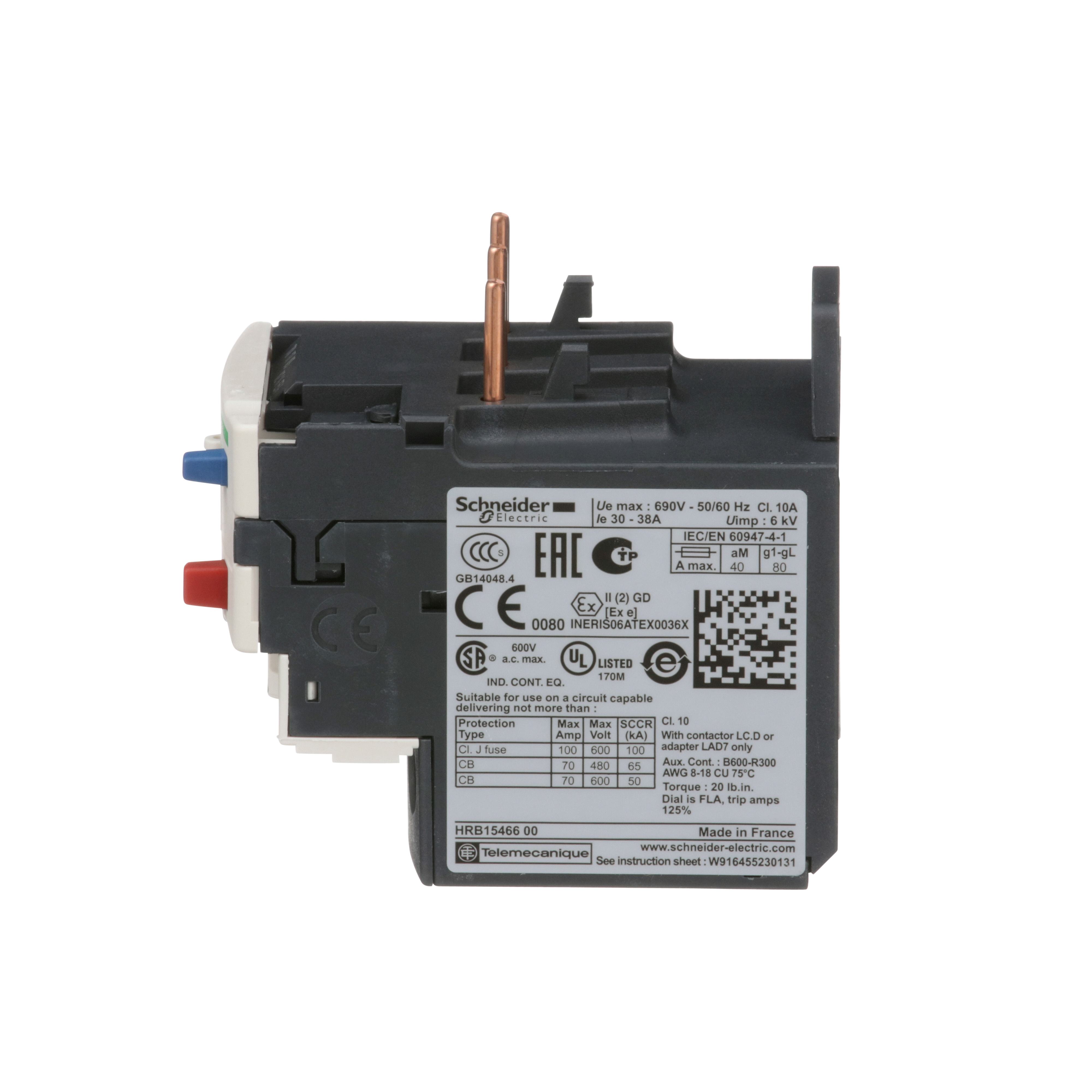

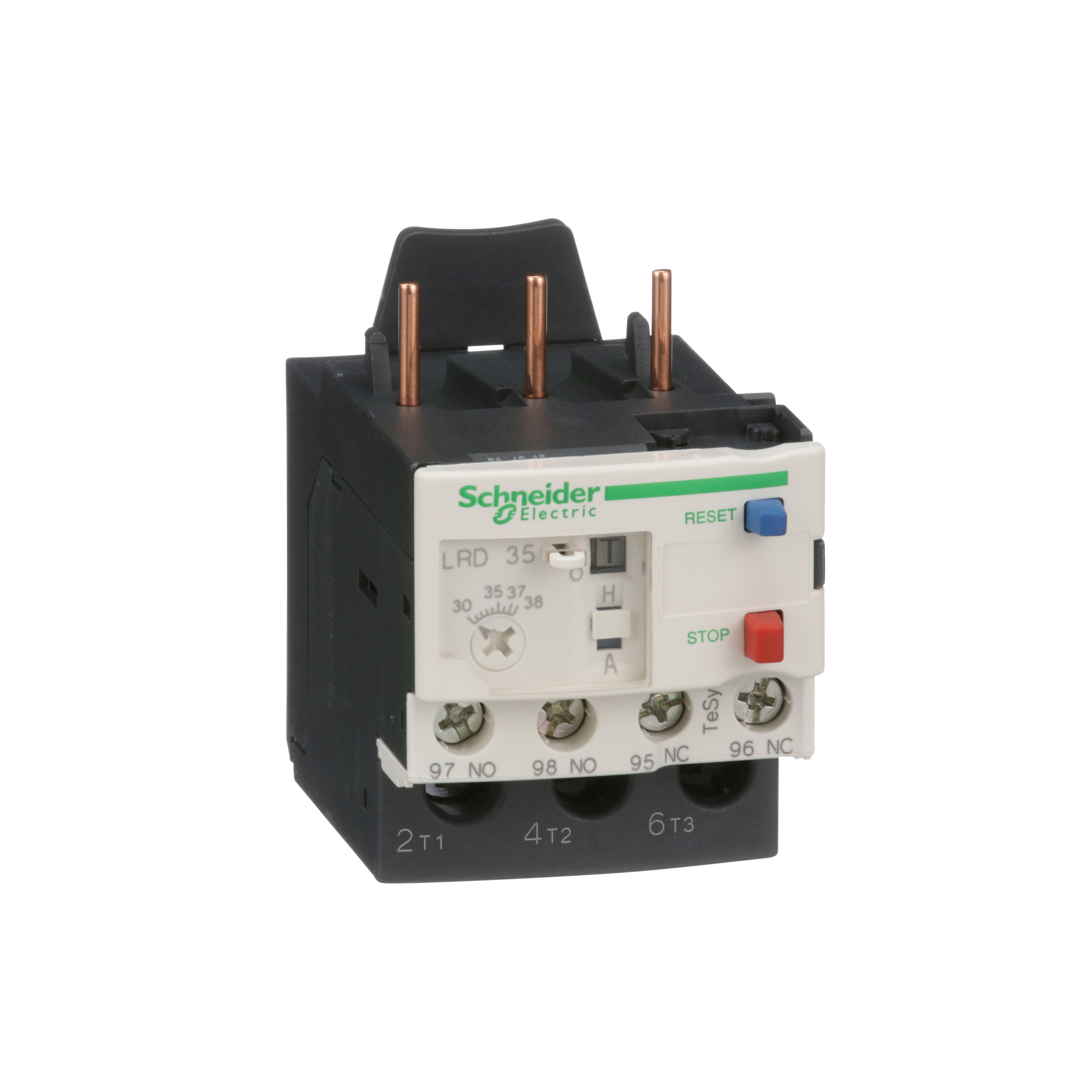

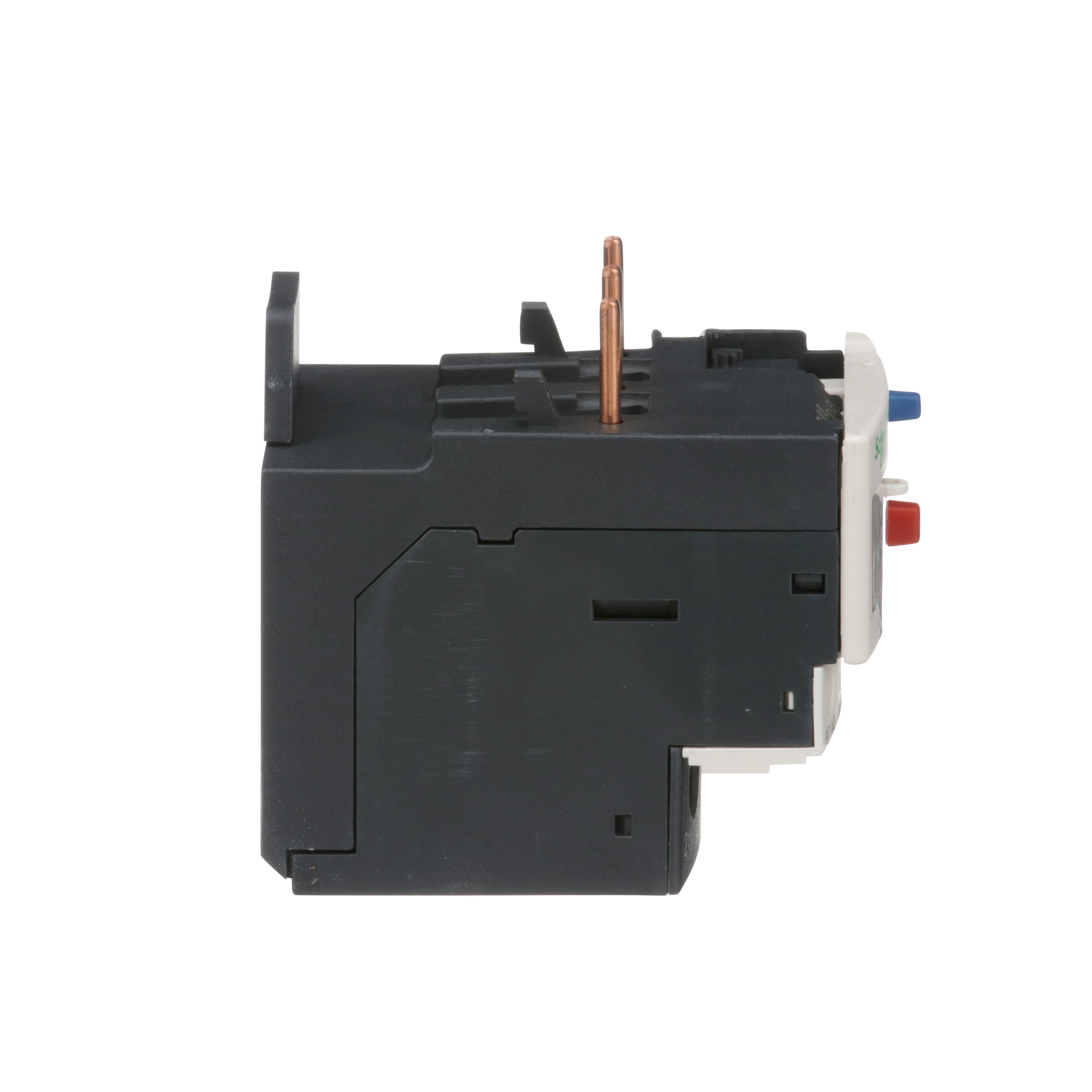

Schneider Electric TeSys® LRD35 D-Line Bi-Metallic Thermal Overload Relay, 30 to 38 A, 1NC-1NO Contact
Brand: Schneider Electric
Item ID: 345799
MPN: LRD35
Login for Price
Features
- LRD35 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor
- It protects motors 15-18 5kW at 400V thanks to a thermal range 30-38A, a tripping class 10A and phase unbalance protection
- Ambient compensated
- Trip class 10 with single phase sensitivity
- Direct on under contactor mounting, plate with specific accessories, rail with specific accessories
- Manual or auto reset control type
Description
LRD35 is a TeSys® LRD thermal overload relay from schneider electric for direct mounting on TeSys® D contactors. With a thermal setting range 30 to 38 A, a tripping class 10A and phase unbalance detection, it protects motors 15-18.5 kW at 400 V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi standard certified (IEC, UL, CSA, CCC, EAC, Marine) and green premium compliant (RoHS/Reach).
Schneider Electric TeSys® Thermal Overload Relay, Bi-Metallic, Series: D-Line, 30 to 38 A, 0 to 400 Hz Frequency, 1NC-1NO Contact Form, 10 A Contact, 3 Pole, Surface Mounting, Clamp/Threaded Terminal, IP20 Enclosure, -20 to 60 deg C, 1.77 in W x 2.76 in D x 2.76 in H Dimensions
Specifications
Amperage Rating |
30 to 38 A |
Contact Form |
1NC-1NO |
Contact Rating |
10 A |
Dimensions |
1.77 in W x 2.76 in D x 2.76 in H |
Enclosure Type |
IP20 |
Frequency Rating |
0 to 400 Hz |
Mounting Type |
Surface |
Number of Poles |
3 |
Series |
D-Line |
Temperature Rating |
-20 to 60 deg C |
Terminal Type |
Clamp/Threaded |
Type |
Bi-Metallic |
Standard Approval |
RoHS Compliant|ATEX 94/9|CE Certified|CSA C22.2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For TeSys™ D32 contactors or standalone applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD063_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_590fb58811b814259ff0039a1b205467862ae83c18bff541871aefc7f686c98d.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5e2a7bc8b0783728445e3559d860985f4927140573289e380ac3593c9a4fc934.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD35_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LXM32CD72N4_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0390b7d41daba2d919e2af68b1c1de83e3eea1106142bd36a8a66cc527c84f77.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD35_Specification_Sheet.pdf
