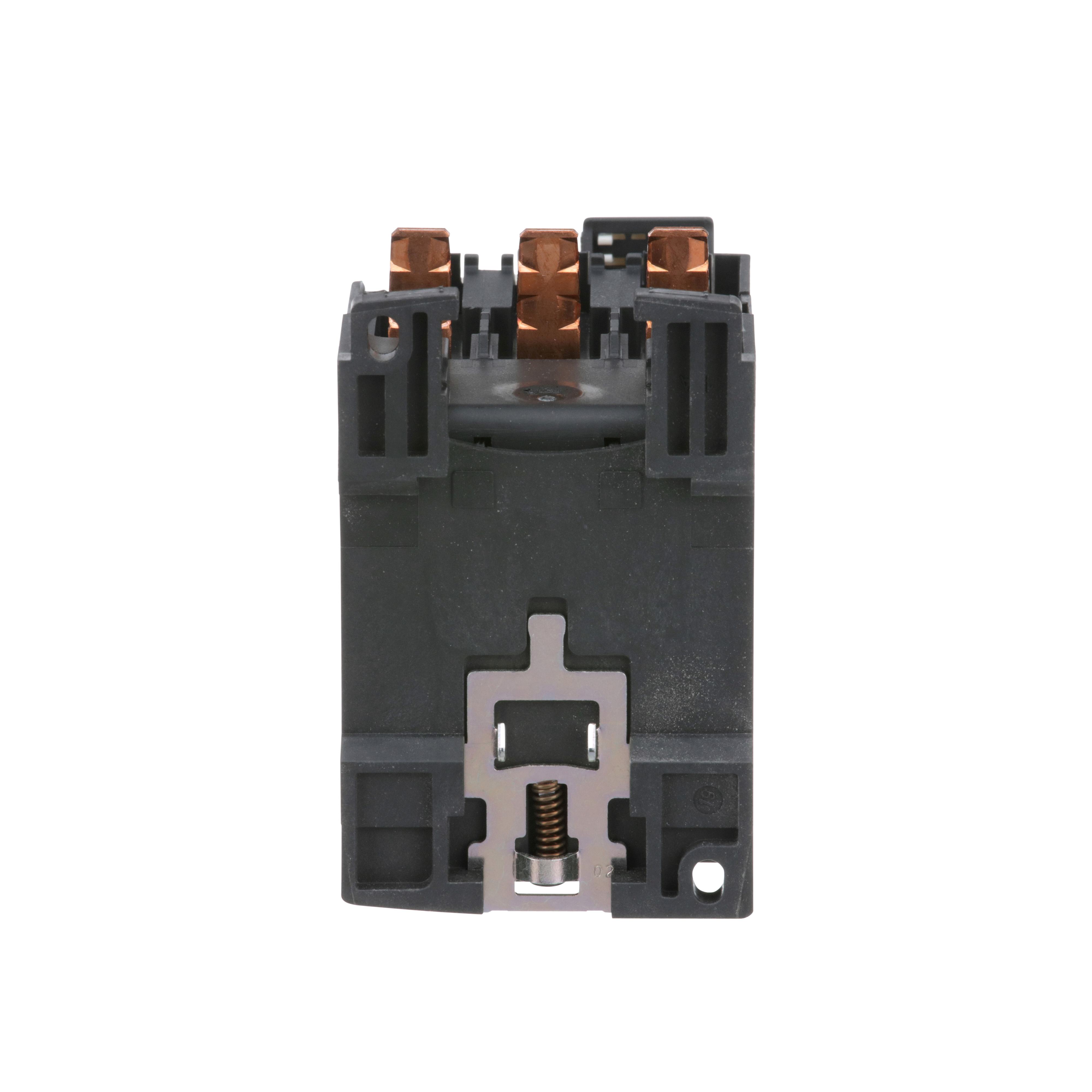

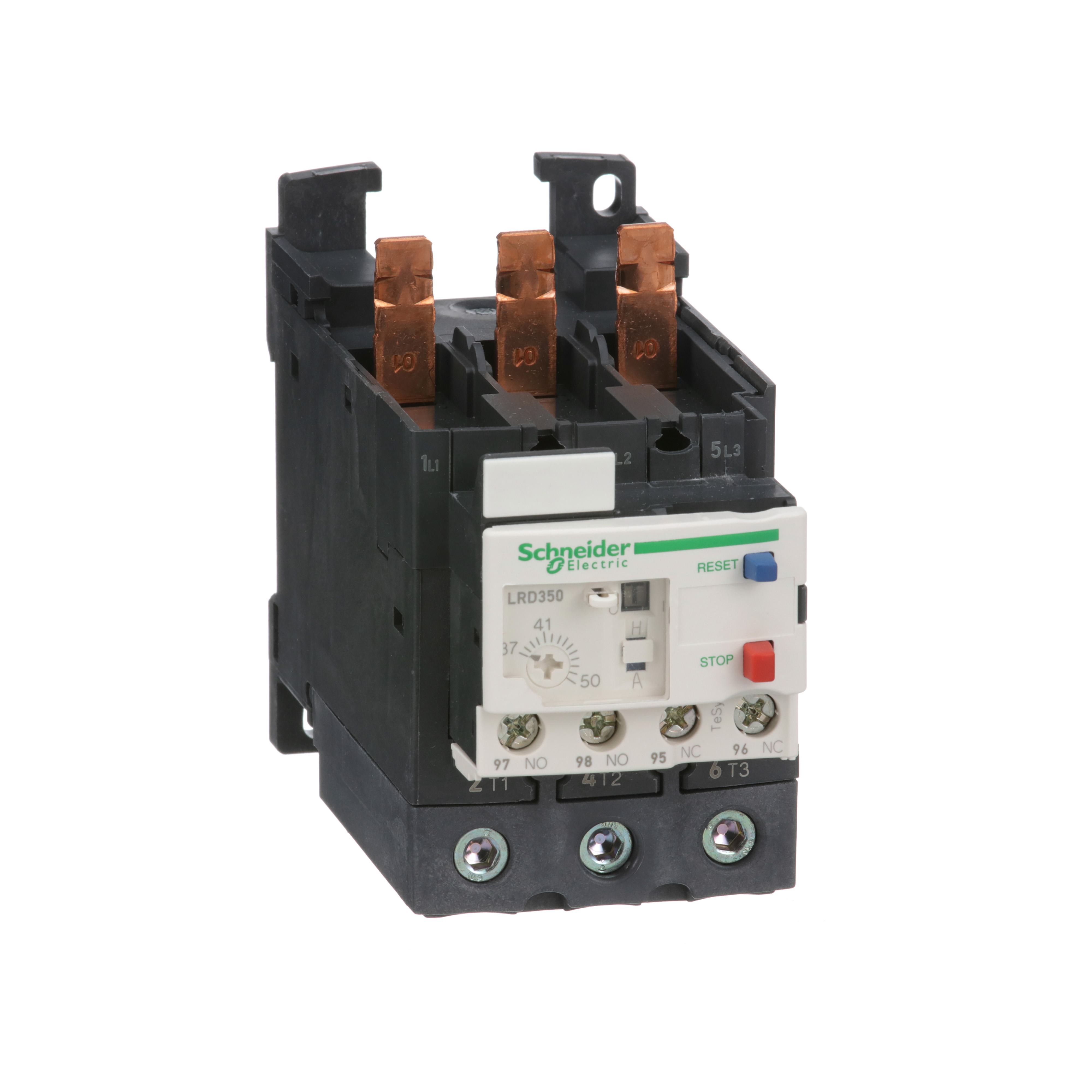

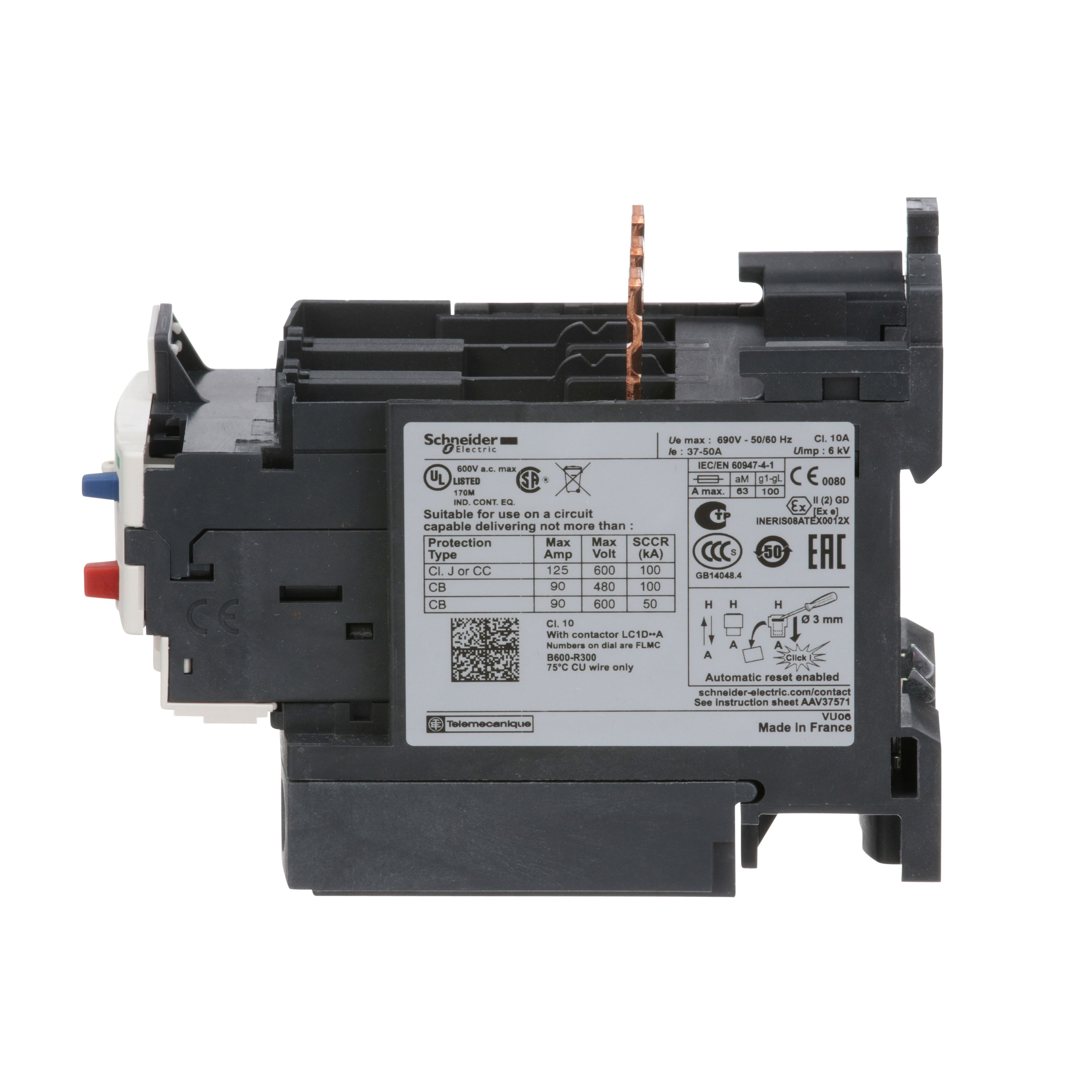

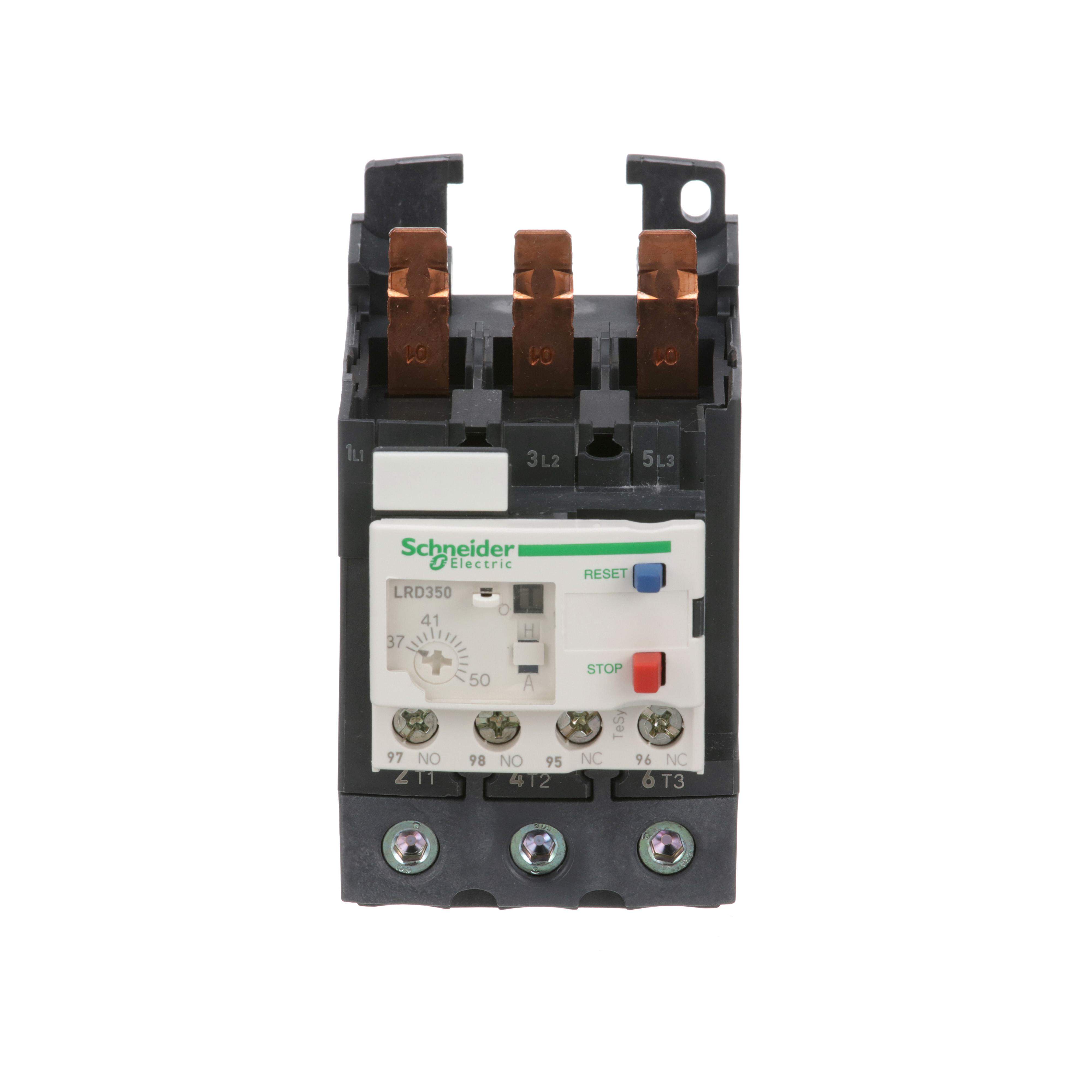

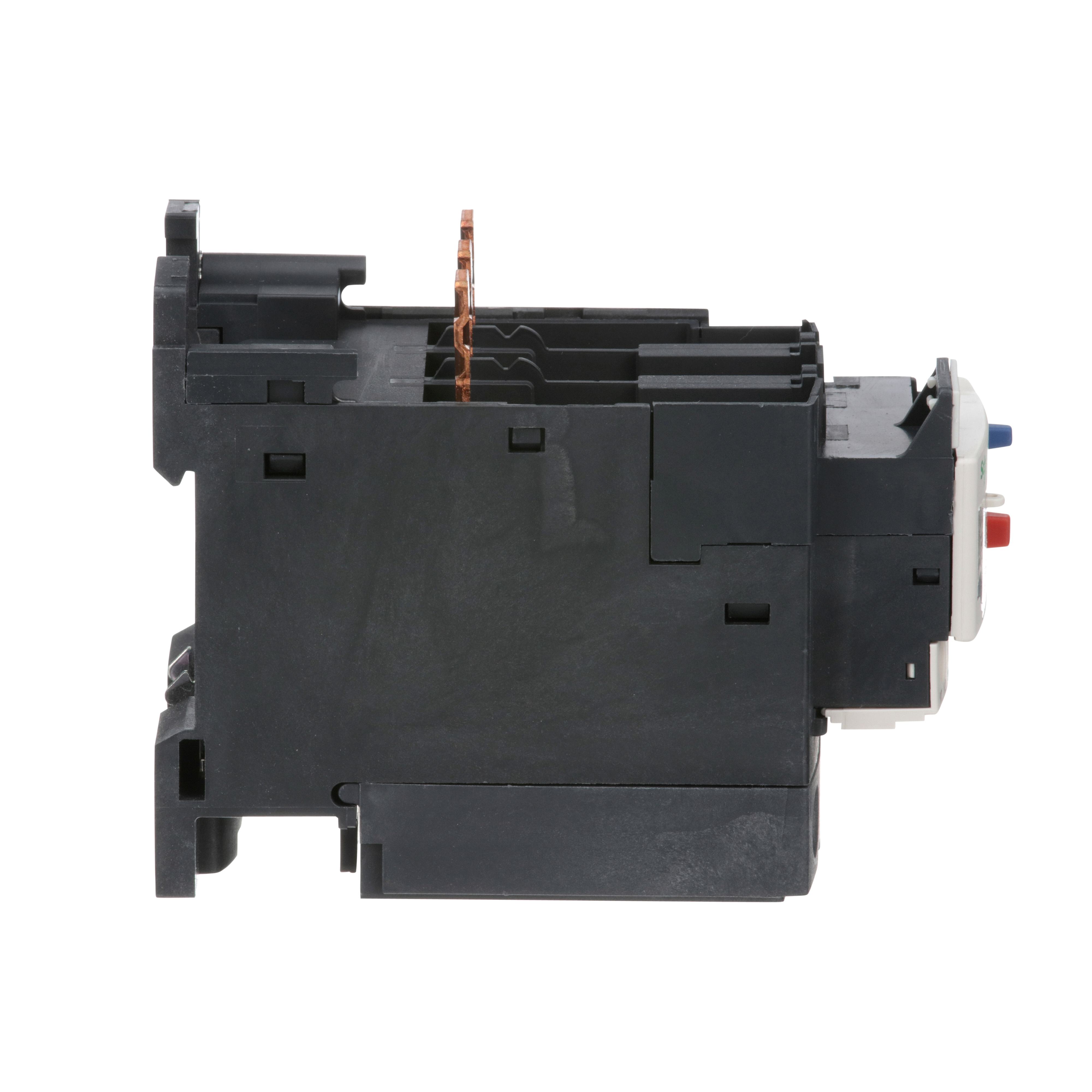

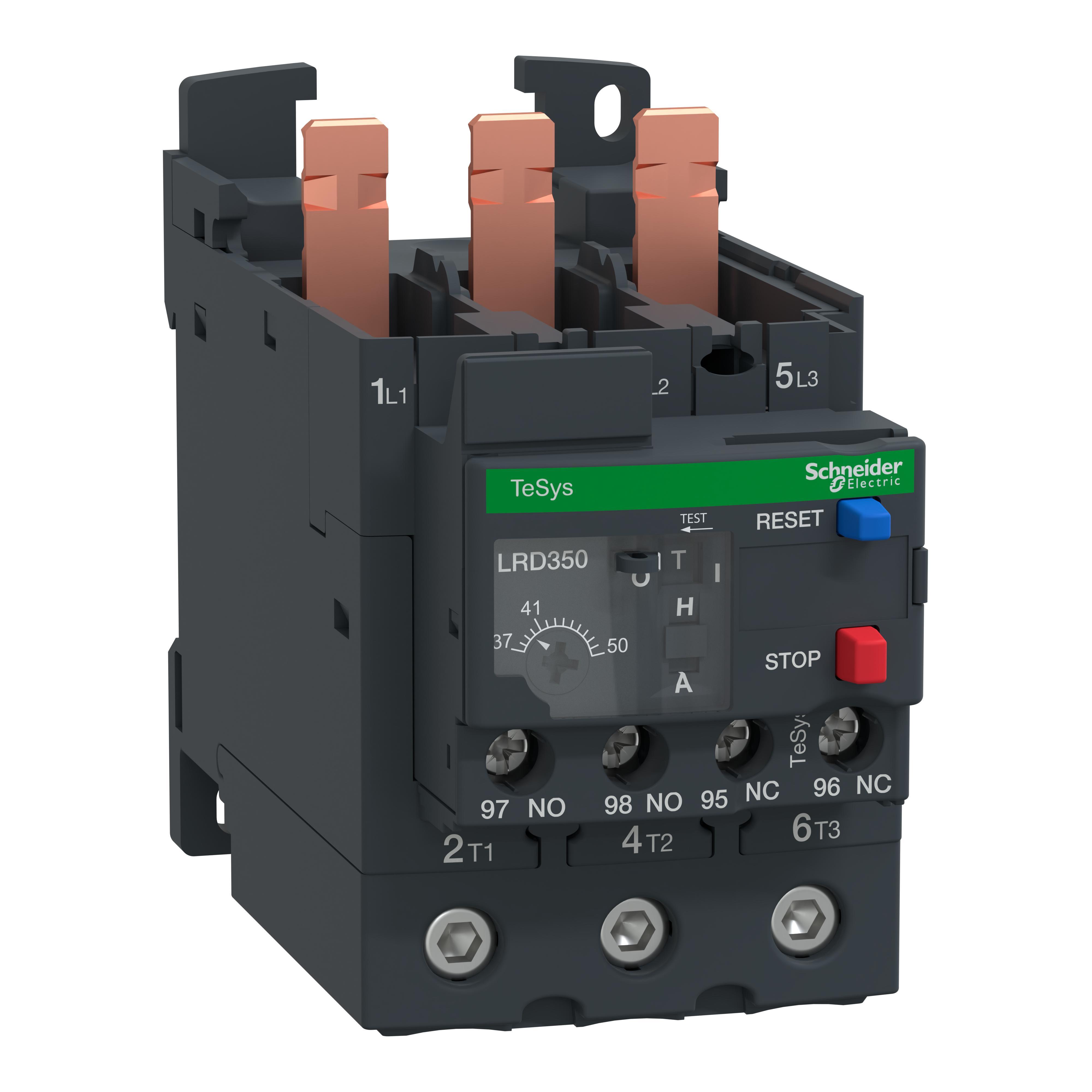

Schneider Electric TeSys® LRD350 D-Line Class 10 Thermal Overload Relay With Everlink™ Power Terminal, 37 to 50 A, 1NC-1NO Contact
Brand: Schneider Electric
Item ID: 447630
MPN: LRD350
Login for Price
Features
- LRD350 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor
- It protects motors 22kW at 400V thanks to a thermal range 37-50A, a tripping class 10A and phase unbalance protection
- Ambient compensated
- Bi-metallic/differential trip
- Trip class 10 with single phase sensitivity
- Direct on under contactor mounting, plate with specific accessories, rail with specific accessories
Description
LRD350 is a TeSys® LRD thermal overload relay from schneider electric for direct mounting on TeSys® D contactors. With a thermal setting range 37 to 50 A, a tripping class 10A and phase unbalance detection, it protects motors 22 kW at 400 V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi standard certified (IEC, UL, CSA, CCC, EAC, Marine) and green premium compliant (RoHS/Reach).
Schneider Electric TeSys® Thermal Overload Relay, Class 10, Series: D-Line, 37 to 50 A, 0 to 400 Hz Frequency, 1NC-1NO Contact Form, 10 A Contact, 3 Pole, Contactor/Stand Alone Mounting, Screw Clamp Terminal, IP20 Enclosure, -20 to 60 deg C, 55 mm W x 123 mm D x 70 mm H Dimensions
Specifications
Amperage Rating |
37 to 50 A |
Contact Form |
1NC-1NO |
Contact Rating |
10 A |
Dimensions |
55 mm W x 123 mm D x 70 mm H |
Enclosure Type |
IP20 |
Frequency Rating |
0 to 400 Hz |
Mounting Type |
Contactor/Stand Alone |
Number of Poles |
3 |
Series |
D-Line |
Temperature Rating |
-20 to 60 deg C |
Terminal Type |
Screw Clamp |
Type |
Class 10 |
Standard Approval |
RoHS Compliant|ATEX 94/9|CE Certified|CSA C22 2 No. 14|EN 60947-4-1/60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For TeSys™ D contactors or standalone applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8daa7427cf6b792417718d1c460c23384ff1ce47da5524bb39c662ff462e1195.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a6e1705c49faf7e0296124fe606ad6e57f492d506d6705f1201c3260e0ef33e4.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD350_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3689ee945a928ba77e04dc28dda97562a916c522c1d0de966cd4fe79a89e4f5c.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LRD350_Specification_Sheet.pdf
