Schneider Electric LU9SP0

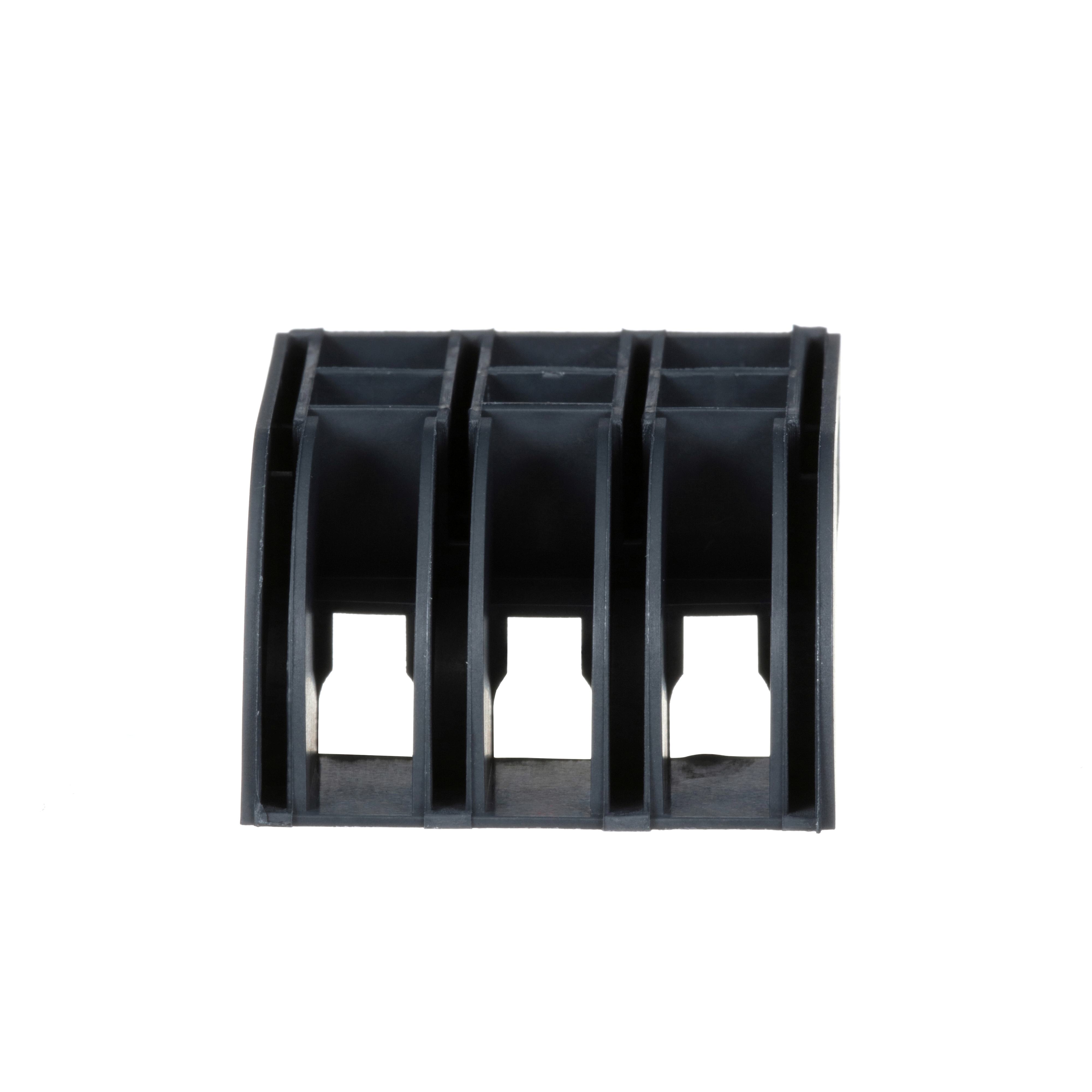

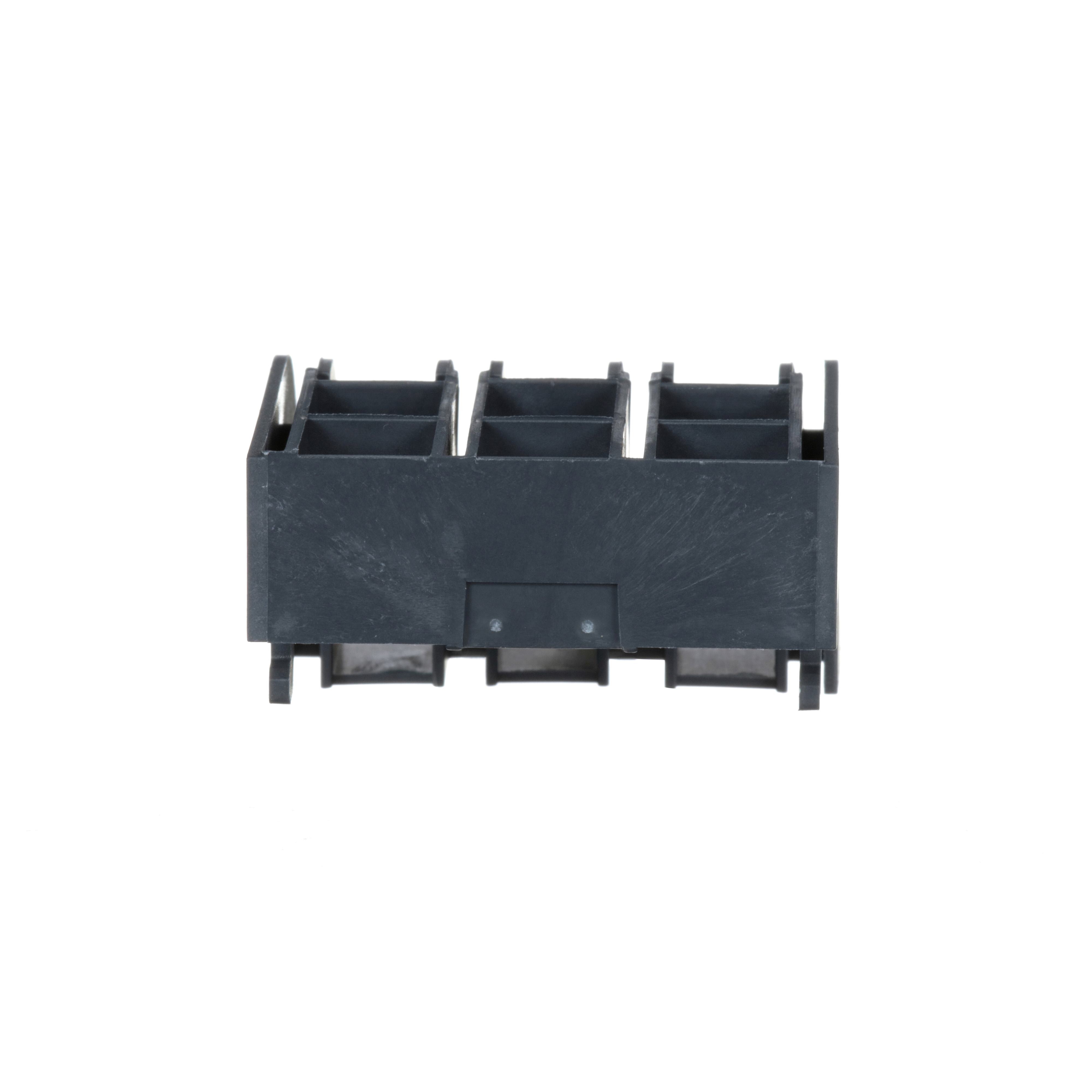

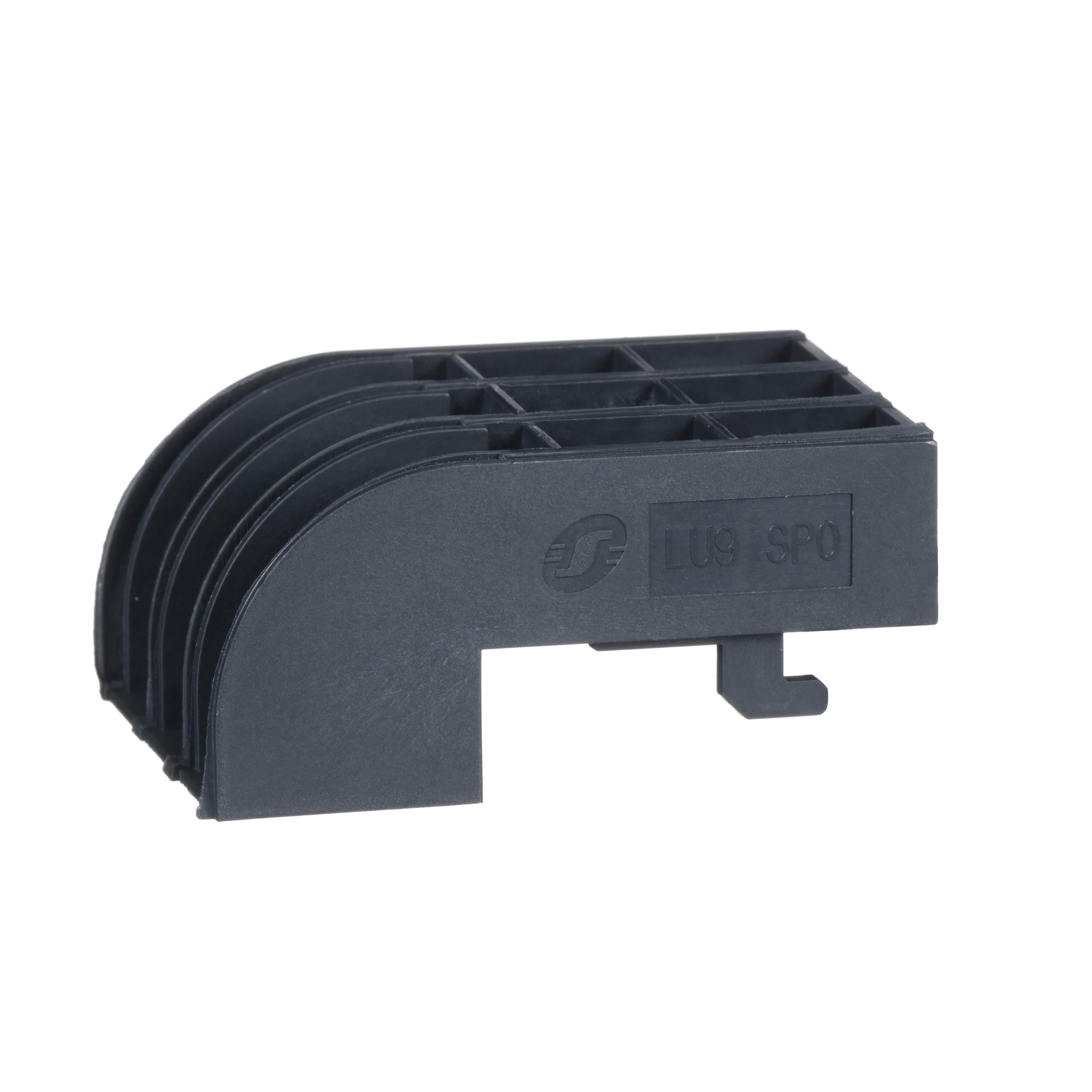

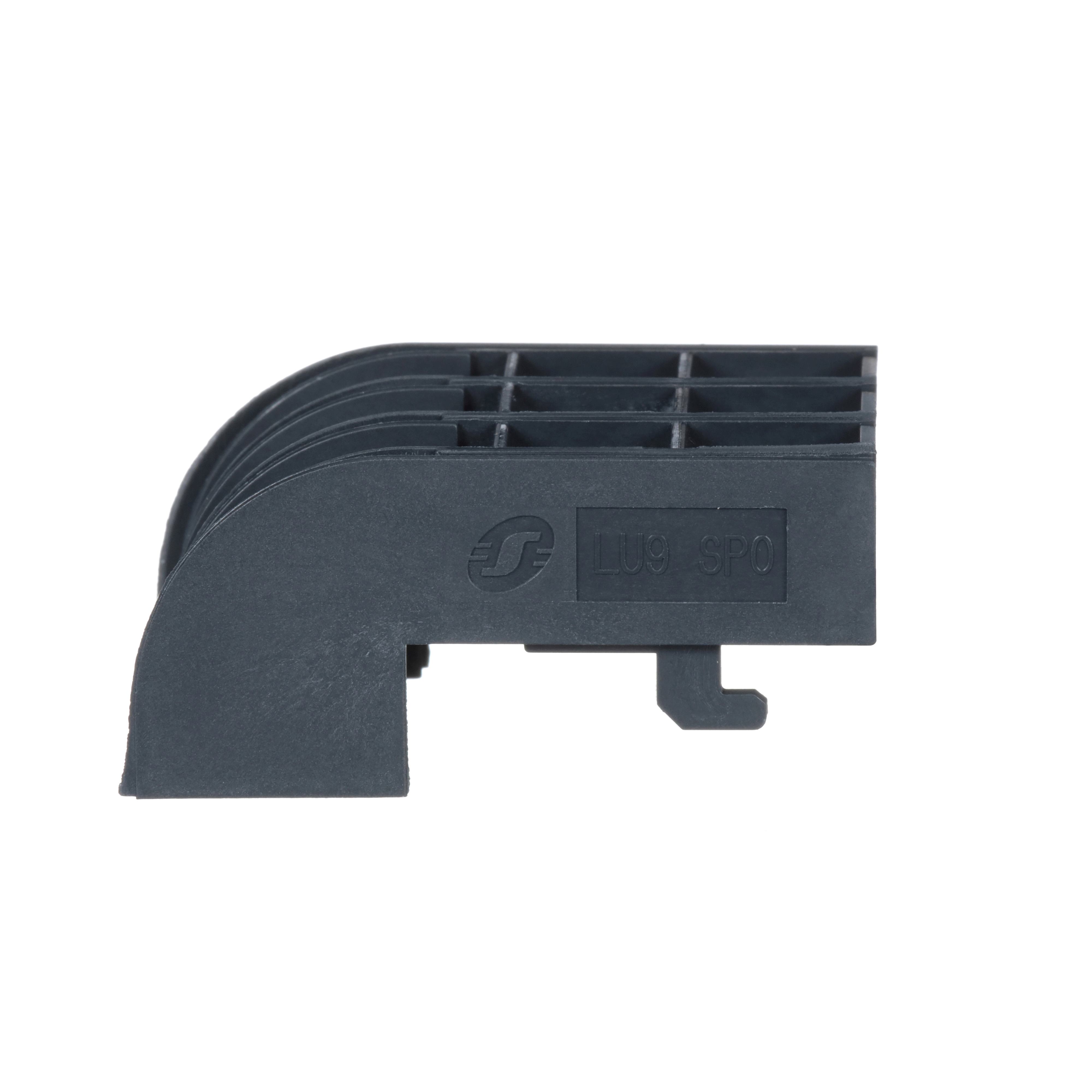

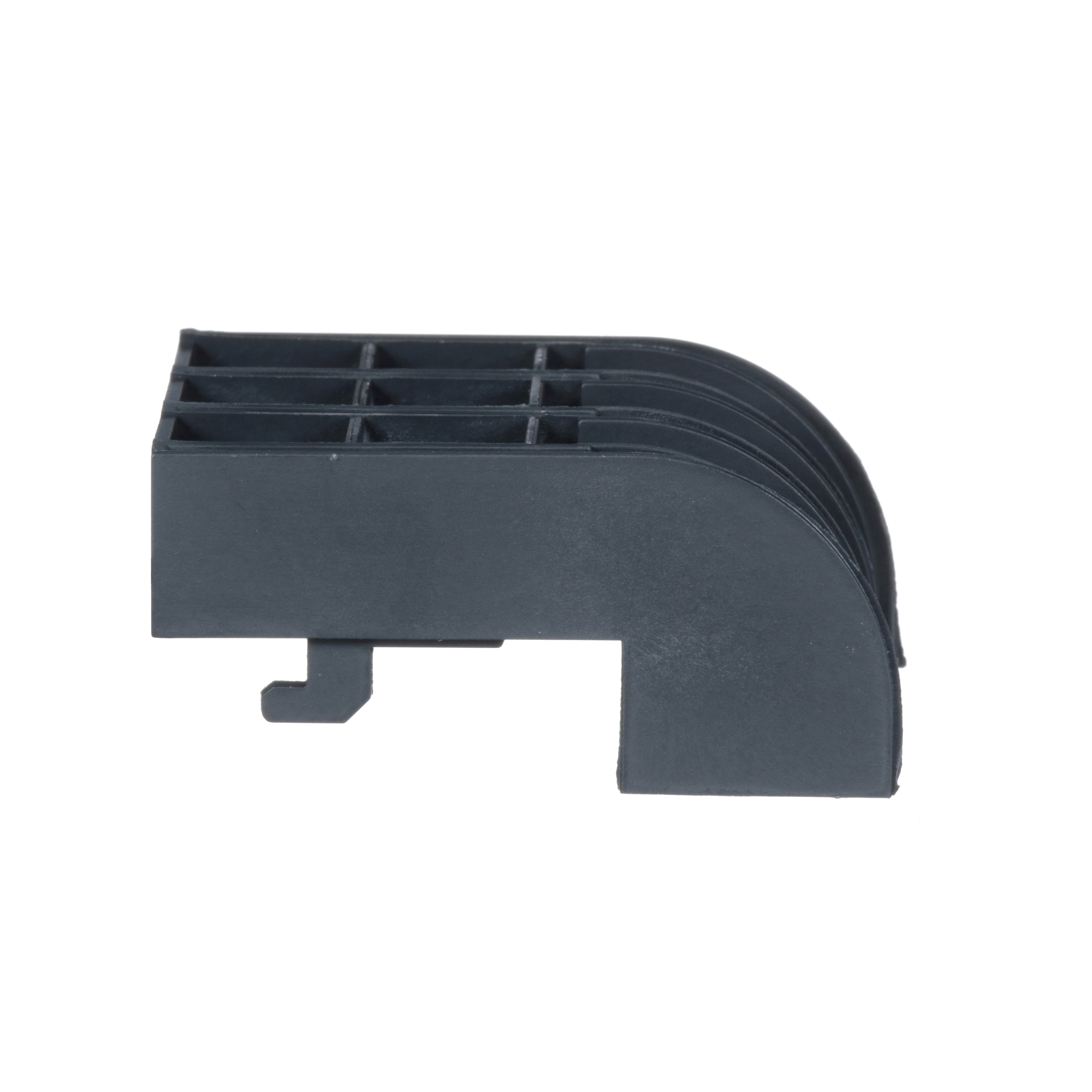

Schneider Electric TeSys® LU9SP0 Type E Phase Barrier, 3 Poles, For Use With LU2B120/LUB/LU2B32/LU2B320/LUALB1/LU2B12 Power Base and TeSys™ U Simple Motor Starter
Brand: Schneider Electric
Item ID: 405404
MPN: LU9SP0
UPC: 785901526605
Login for Price
Features
- Incoming line phase barrier to allow the TeSys® U to be used as a self-protected combination starter according to UL 508 type E
- Required to create UL 508 type E self-protected combination motor controller
Description
Schneider Electric TeSys® Phase Barrier, Type E, 3 Pole, For Use With: LU2B120/LUB/LU2B32/LU2B320/LUALB1/LU2B12 Power Base and TeSys™ U Simple Motor Starter, Specifications: Clip-On Connection, -25 to 70 deg C Operating Temperature, Open Enclosure, 45 mm W x 135 mm D x 169 mm H Dimensions
Specifications
Dimensions |
45 mm W x 135 mm D x 169 mm H |
Number of Poles |
3 |
Specifications |
Clip-On Connection, -25 to 70 deg C Operating Temperature, Open Enclosure |
Suitable For Use With |
LU2B120/LUB/LU2B32/LU2B320/LUALB1/LU2B12 Power Base and TeSys™ U Simple Motor Starter |
Type |
Type E |
Standard Approval |
RoHS Compliant|UL 508|ECCN: EAR99 |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0912c564bbfbf4e881564fd4e820443eb253f57e4a9400dc9793bd32fa925d3.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR24BH6_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LU9BN11C_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LU9BN11C_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LU9BN11C_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR24RH6_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LU9SP0_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_05c0974893ec7e503d8b4a0dd82c18449c7a35877e28cdbf610ca6f87e7c26fe.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LU9SP0_Specification_Sheet.pdf
