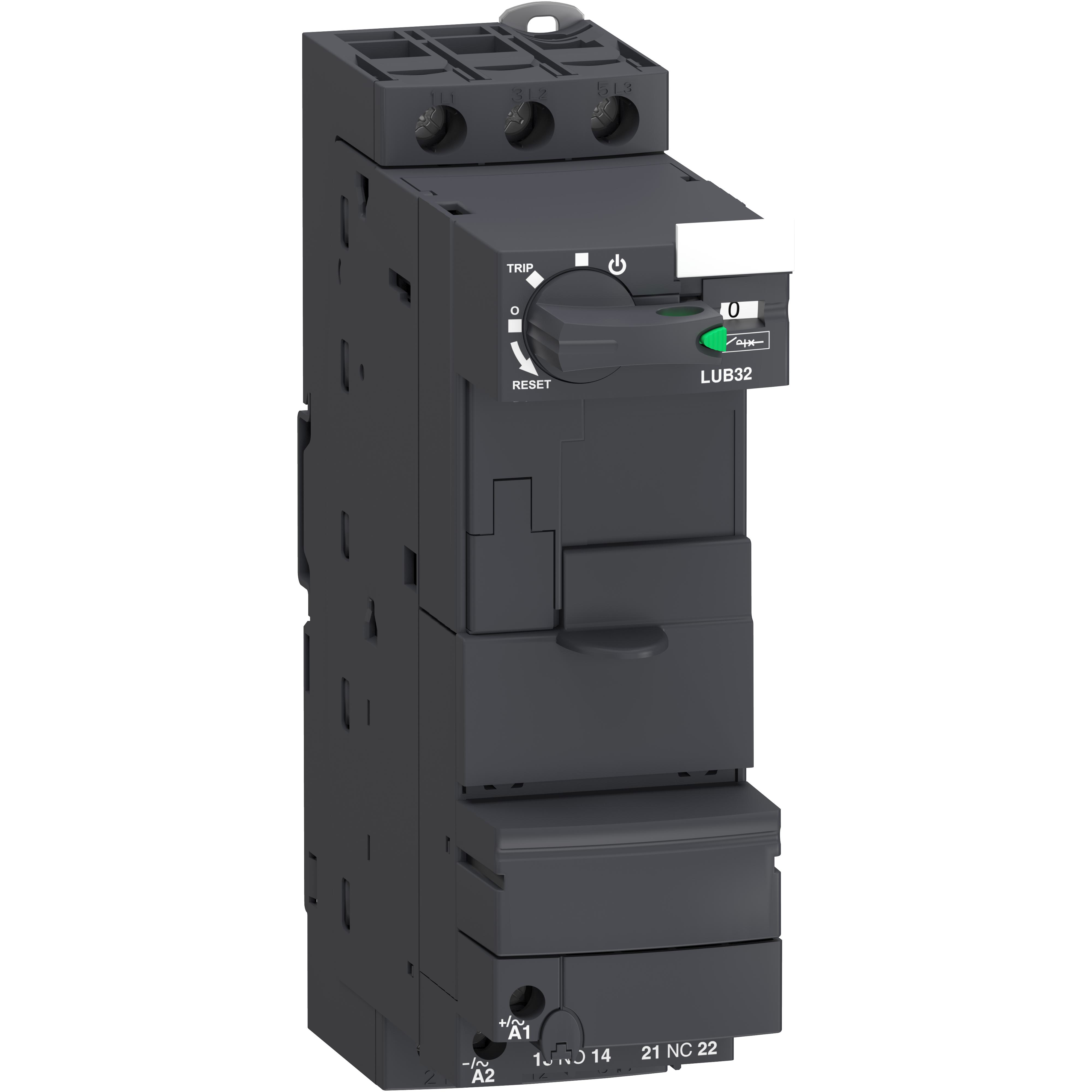

Schneider Electric LUB32
Schneider Electric TeSys® U LUB32 Non-Reversing Self-Protected Motor Starter, 3 Poles
Brand: Schneider Electric
Item ID: 403035
MPN: LUB32
UPC: 785901221814
Login for Price
Features
- 2 hp at 115 VAC, 5 hp at 230 VAC, 10 hp at 200/230 VAC, 20 hp at 460 VAC, 25 hp at 575/600 vac
Description
Schneider Electric TeSys® U Motor Starter, Non-Reversing Self-Protected, Series: LUB, 3 Pole, Specifications: 600 VAC, 3 ph, 2 to 25 hp, Screw Clamp Connection, 1NO-1NC, IP20/IP40/Open Enclosure, 15000000 Operating Cycles, -25 to 70 Operating Cycle, 40/60 Hz, 32 A, 24 VDC, DIN Rail/Panel Mount, Manual, 45 mm W x 126 mm D x 145 mm H Dimensions
Specifications
Dimensions |
45 mm W x 126 mm D x 145 mm H |
Number of Poles |
3 |
Series |
LUB |
Specifications |
600 VAC, 3 ph, 2 to 25 hp, Screw Clamp Connection, 1NO-1NC, IP20/IP40/Open Enclosure, 15000000 Operating Cycles, -25 to 70 Operating Cycle, 40/60 Hz, 32 A, 24 VDC, DIN Rail/Panel Mount, Manual |
Type |
Non-Reversing Self-Protected |
Standard Approval |
RoHS Compliant|UL 508|CSA C22.2 No. 14|EN 60947-6-2|IEC 60947-6-2|CE Certified|ECCN: EAR99 |
Application |
Motor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3637cb2946a5b60d88701b03a63d4d26cd3eb93a702dac28936addf0ca48a42.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUB32_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUB32_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUB32_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUB32_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RXM4AB2B7_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6e5d7967d99a19b26f3f269314c0ab17b95e2ac205357c42ac48cda3419b4071.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUB32_Specification_Sheet.pdf
