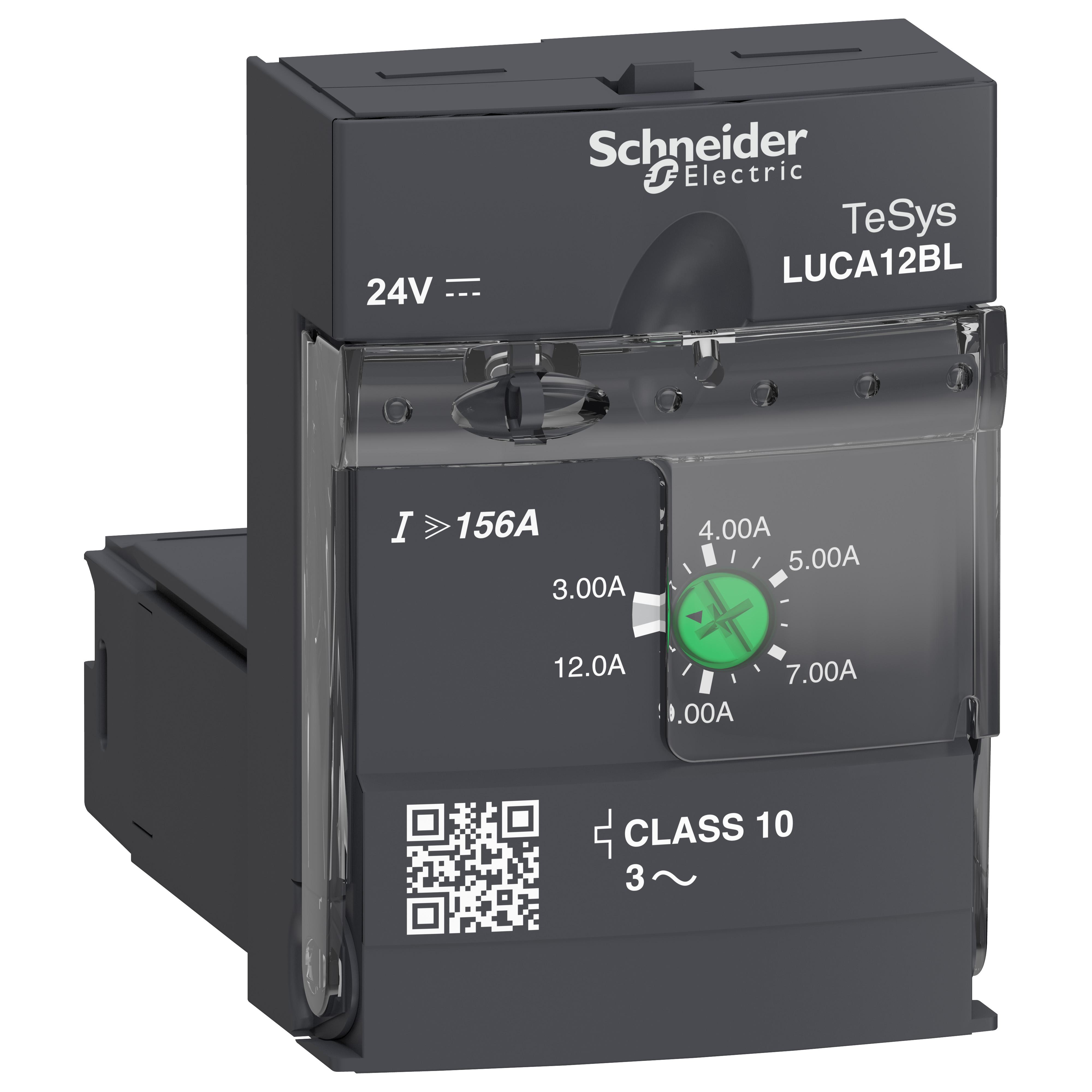

Schneider Electric LUCA12BL
Schneider Electric Square D™ TeSys™ U LUCA12BL 3-Phase Manual Solid State Standard Control Unit With Class 10 Solid State Reset, 3 Poles, For Use With ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module
Brand: Schneider Electric
Item ID: 521008
MPN: LUCA12BL
UPC: 785901221906
Login for Price
Features
- Front side, plug-in surface mount
- IP20 front panel and wired terminals conforming to IEC 60947-1-IP20 other faces conforming to IEC 60947-1-IP40 front panel outside connection zone conforming to IEC 60947-1
- Manual reset protection against overload and short circuit protection against phase failure and phase imbalance earth fault protection
Description
Schneider Electric Square D™ TeSys™ U Control Unit, 3-Phase Manual Solid State Standard, Series: LUCA, 3 Pole, For Use With: ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module, Specifications: 690 VAC, 3 ph, 12 A, 50/60 Hz, -25 to 70 deg C Operating Temperature, 3 to 12 A Full Load Current, 24 VDC Coil Voltage, Front Side Mount, Plug-In
Specifications
Number of Poles |
3 |
Series |
LUCA |
Specifications |
690 VAC, 3 ph, 12 A, 50/60 Hz, -25 to 70 deg C Operating Temperature, 3 to 12 A Full Load Current, 24 VDC Coil Voltage, Front Side Mount, Plug-In |
Suitable For Use With |
ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module |
Type |
3-Phase Manual Solid State Standard |
Standard Approval |
ABS Approved|ASEFA Certified|ATEX Certified|BV Certified|CCC Certified|CSA C22.2 File No. 14|DNV/GL/GOST/LROS Certified|ECCN EAR99|IEC 61000-4-3,10/60068-2-27-15/60068-2-27,2/60068-2-6-4/60068-2-6/60695-2-12|IEC/EN 60947-1|IEC/EN 60947-6-2|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508 |
Application |
For basic protection requirements of motor starters overload and short circuit applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c483a7c1158f82c619a106e6f3c21372c1cece05f4d035e64e620f011a454020.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_adaae20ff118300b10f8c73228d2c3502a34852ebb783cead1345e6cbeb3ffe0.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_WFA1502C24W_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCA12BL_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a67dfdca388106b652526983006ac309c9f4fc0a292c3f12b2ad760ba794f799.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCA12BL_Specification_Sheet.pdf
