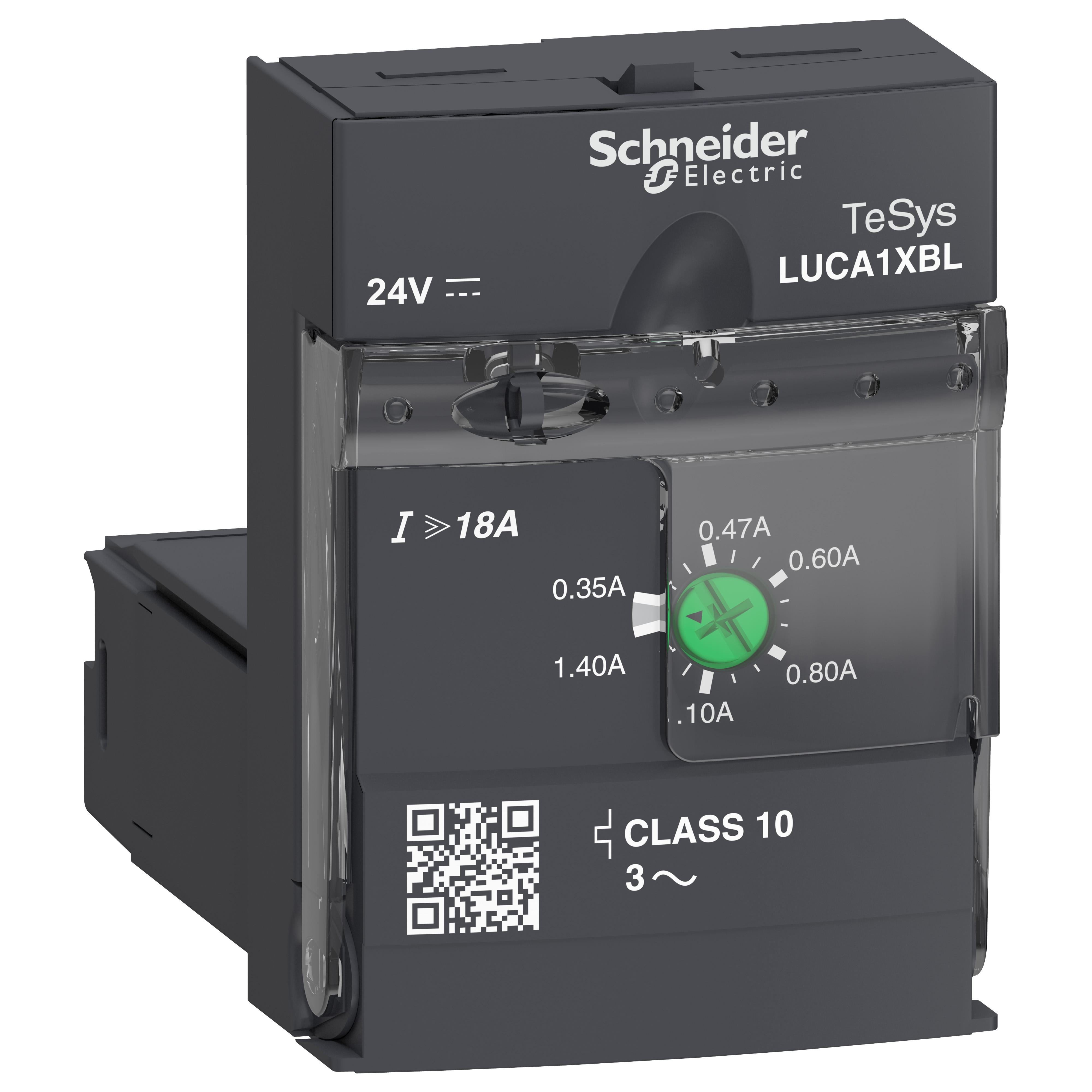

Schneider Electric LUCA1XBL
Schneider Electric Square D™ TeSys™ U LUCA1XBL 3-Phase Manual Solid State Standard Control Unit With Class 10 Solid State Reset, 3 Poles, For Use With ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module
Brand: Schneider Electric
Item ID: 521007
MPN: LUCA1XBL
UPC: 785901222118
Login for Price
Features
- IP20 front panel and wired terminals and IP40 front panel outside connection zone
- Front side plug-in mounting locations
- Earth fault protection, manual reset protection against overload and short circuit protection against phase failure and phase imbalance
- Provide basic protection requirements for motor starters
- Protection against overload and short circuit protection against phase failure and phase imbalance manual reset-earth fault protection
Description
Schneider Electric Square D™ TeSys™ U Control Unit, 3-Phase Manual Solid State Standard, Series: LUCA, 3 Pole, For Use With: ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module, Specifications: 600 VAC, 3 ph, 1.4 A, 0.25 kW, 50/60 Hz, 0.35 to 1.4 A Full Load Current, 24 VDC Coil, Front Side Mount, Plug-In
Specifications
Number of Poles |
3 |
Series |
LUCA |
Specifications |
600 VAC, 3 ph, 1.4 A, 0.25 kW, 50/60 Hz, 0.35 to 1.4 A Full Load Current, 24 VDC Coil, Front Side Mount, Plug-In |
Suitable For Use With |
ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module |
Type |
3-Phase Manual Solid State Standard |
Standard Approval |
ABS Approved|ASEFA/BV Certified|ATEX Compliant|CCC Certified|CSA C22.2 File No. 14|DNV/GOST Approved|ECCN EAR99|EN 60947-6-2|GL Certified|IEC 60947-6-2/60947-1|IEC 61000-4-3,10/60068-2-27-15/60068-2-27,2/60068-2-6-4/60068-2-6/60695-2-12|LROS Compliant|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508 |
Application |
For basic protection requirements of motor starters overload and short circuit applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9cfa4eda5de1d76e7fd7d00398b26ef4ccb8b1f65f806e430c601c0013a03ad2.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5b0cd273af7574450c2a5b975972131141dded51af1ea8ff9d71734c1c55deb0.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCD32B_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV630D30N4_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCA1XBL_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7232b4452344690265dcd530ccb4f769c53ebb1b444ea7f11c61071ee31f967e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LUCA1XBL_Specification_Sheet.pdf
