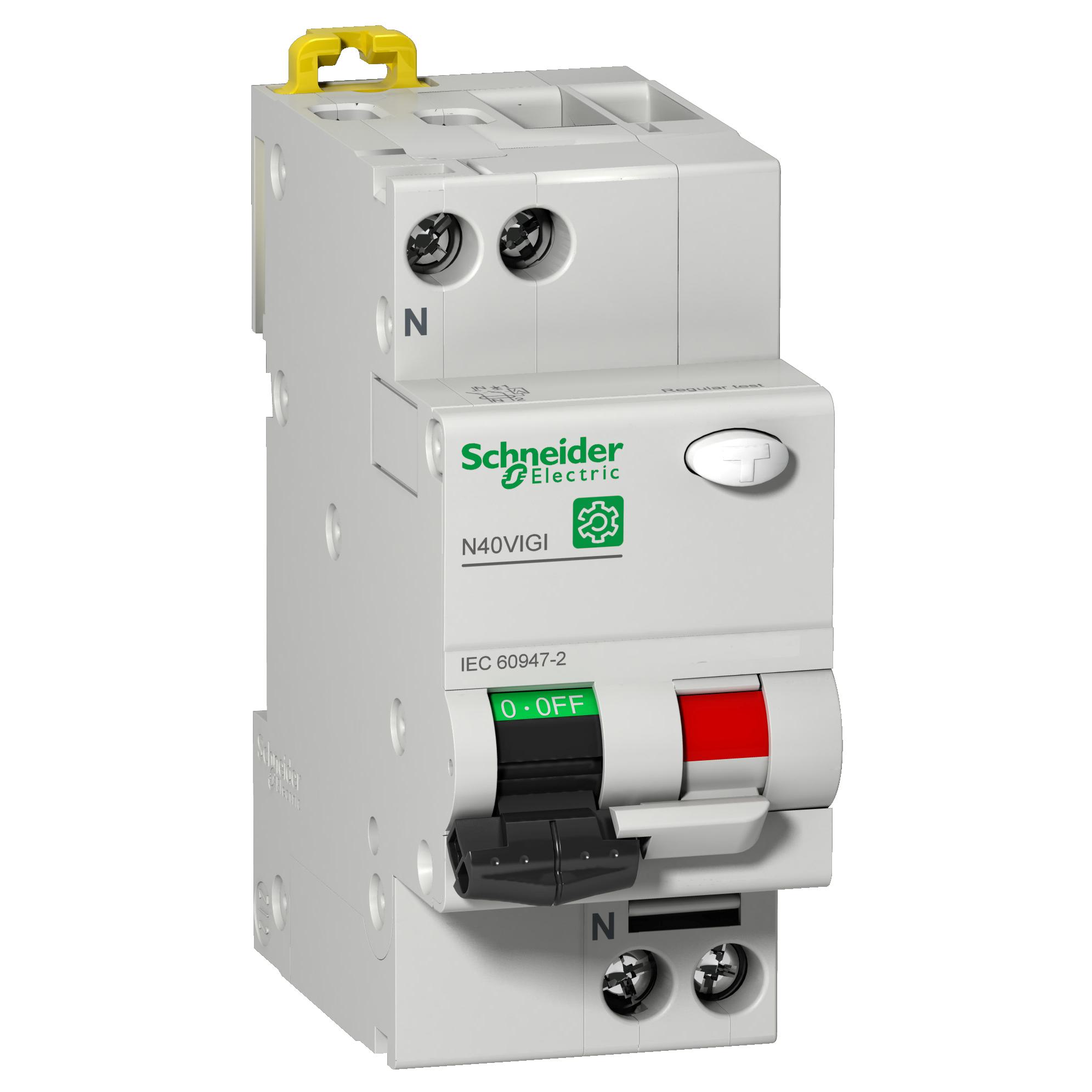

Schneider Electric Multi 9™ M9D11610 Type AC N40 Vigi™ Circuit Breaker With RCBO Overcurrent Protection, 240 VAC, 10 A, 6 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
Brand: Schneider Electric
Item ID: 515105
MPN: M9D11610
UPC: 785901231868
Login for Price
Features
- 0.75 to 16 sq-mm maximum top or bottom rigid wire, 0.33 to 10 sq-mm maximum top or bottom flexible wire, 0.33 to 10 sq-mm maximum top or bottom flexible with ferrule wire tunnel type terminal
Description
Schneider Electric Multi 9™ Circuit Breaker, Type AC N40 Vigi™, 240 VAC, 10 A, 50 Hz Frequency, 6 kA Interrupt, C-Curve/Thermal Magnetic Trip, 1 Pole, Toggle Actuator, Tunnel Connection, 0.75 to 16/0.33 to 10 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -5 to 60 deg C, 70 mm L x 36 mm W x 81 mm H Dimensions, Gray
Specifications
Actuator Type |
Toggle |
Amperage Rating |
10 A |
Color |
Gray |
Connection Type |
Tunnel |
Dimensions |
70 mm L x 36 mm W x 81 mm H |
Enclosure Type |
IP20/IP40 |
Frequency Rating |
50 Hz |
Interrupt Rating |
6 kA |
Mounting Type |
Clip-On/DIN Rail |
Number of Poles |
1 |
Temperature Rating |
-5 to 60 deg C |
Trip Type |
C-Curve/Thermal Magnetic |
Type |
Type AC N40 Vigi™ |
Voltage Rating |
240 VAC |
Wire Size |
0.75 to 16/0.33 to 10 sq-mm |
Standard Approval |
RoHS Compliant|EN/IEC 61009-1/60947-2|eccn: EAR99 |
Application |
Distribution Applications |
