Schneider Electric MD3304X

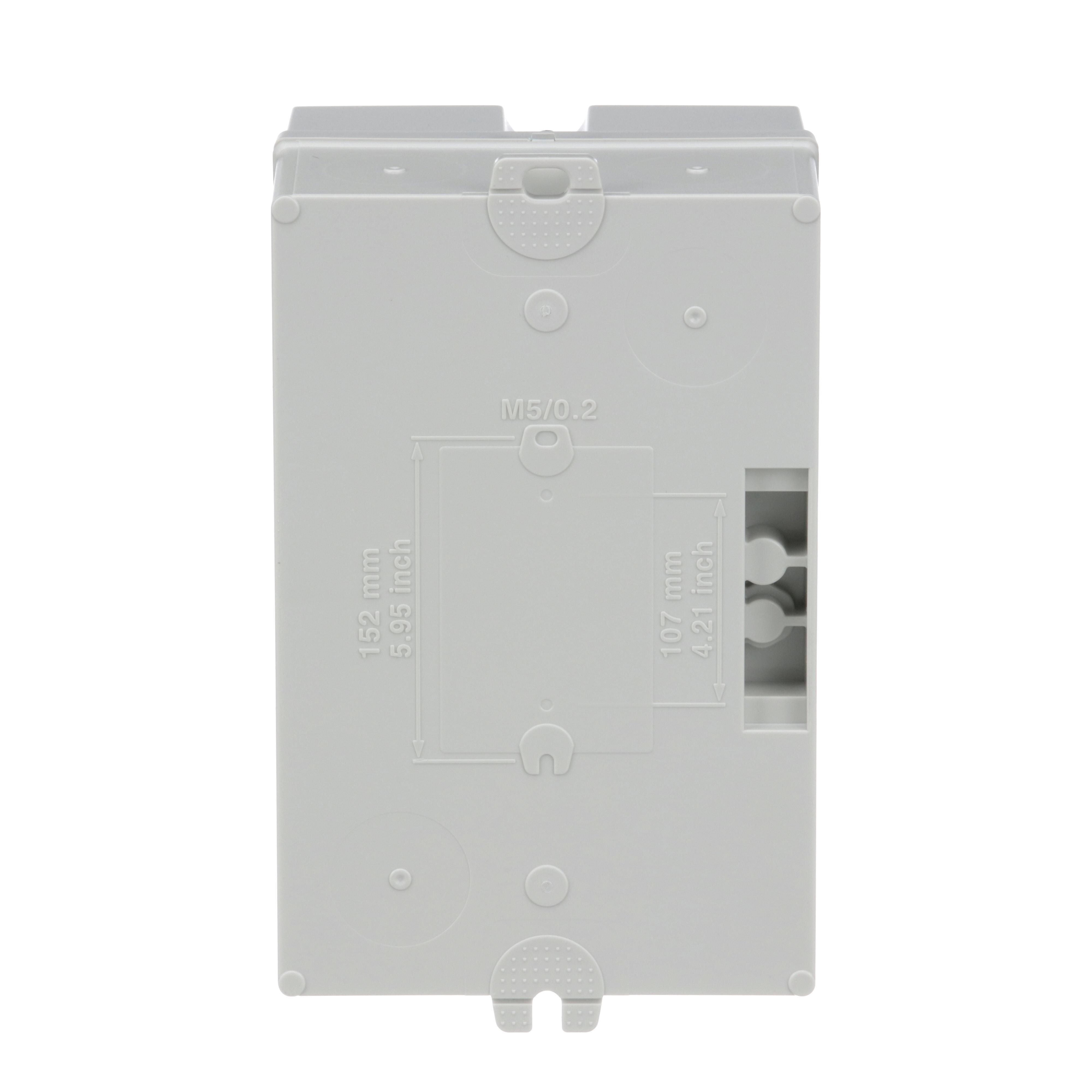

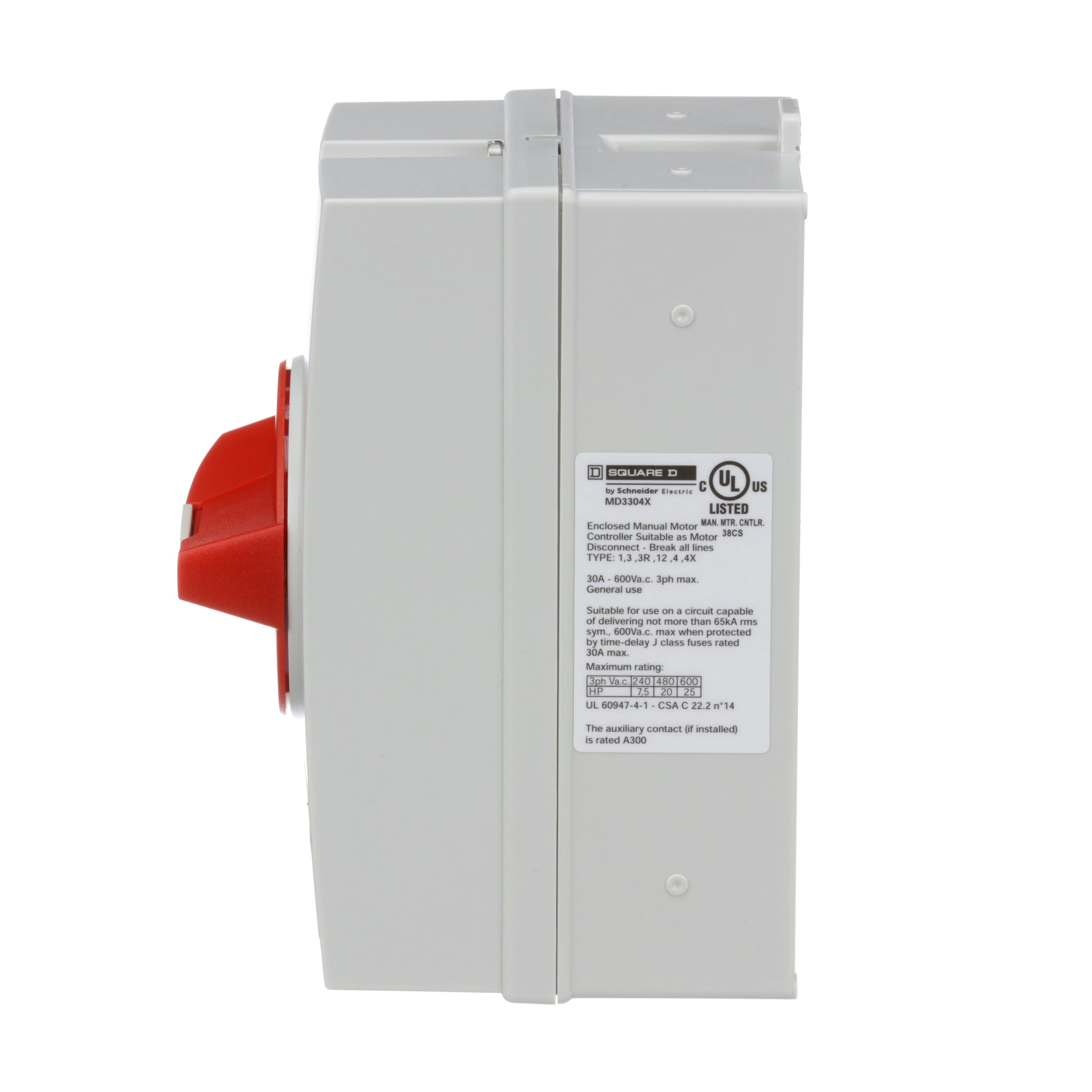

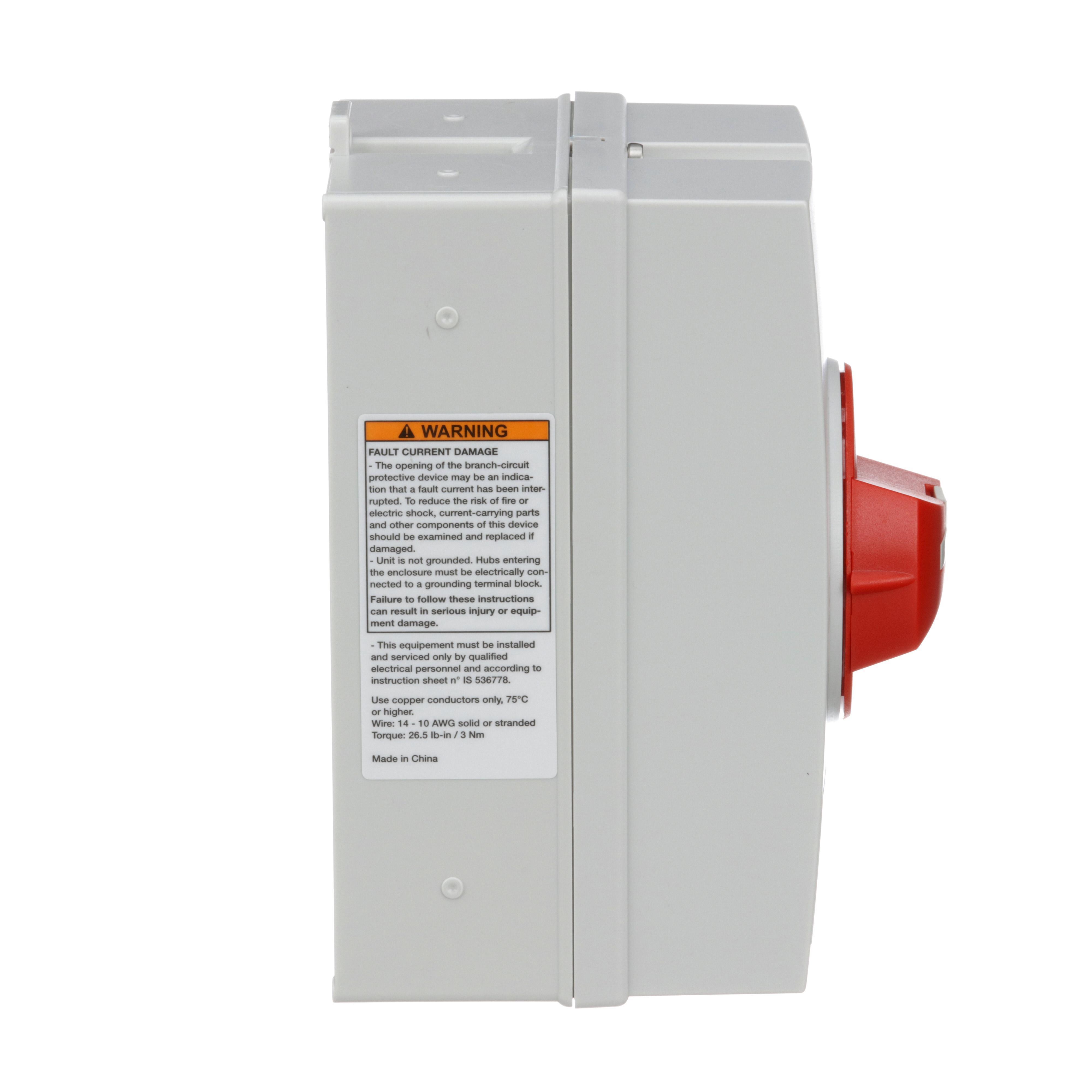

Schneider Electric Square D™ MD3304X Motor Disconnect Switch, 600 VAC, 30 A, 7-1/2 hp, 20 hp, 25 hp, 3 Poles
Brand: Schneider Electric
Item ID: 431223
MPN: MD3304X
UPC: 785901871712
Login for Price
Description
Schneider Electric Square D™ Motor Disconnect Switch, 600 VAC, 30 A, 7-1/2 hp, 20 hp, 25 hp, 3 ph, 3 Pole, NEMA 4X Enclosure, 6.38 in H x 3.9 in W x 4.37 in D Dimensions, Polycarbonate
Specifications
Amperage Rating |
30 A |
Dimensions |
6.38 in H x 3.9 in W x 4.37 in D |
Enclosure Type |
NEMA 4X |
Horsepower |
7-1/2 hp, 20 hp, 25 hp |
Material |
Polycarbonate |
Number of Poles |
3 |
Phase |
3 |
Voltage Rating |
600 VAC |
Standard Approval |
UL 508 File No. E164864|ECCN: EAR99 |
Application |
Wash Down/Rugged Industrial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KP11C31_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KP7LYA31_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_MD3304X_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b01fab7df85f0013abf930f1cdee595706aa19a78222d8c82ff2b7805bbc11f8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_MD3304X_Specification_Sheet.pdf
