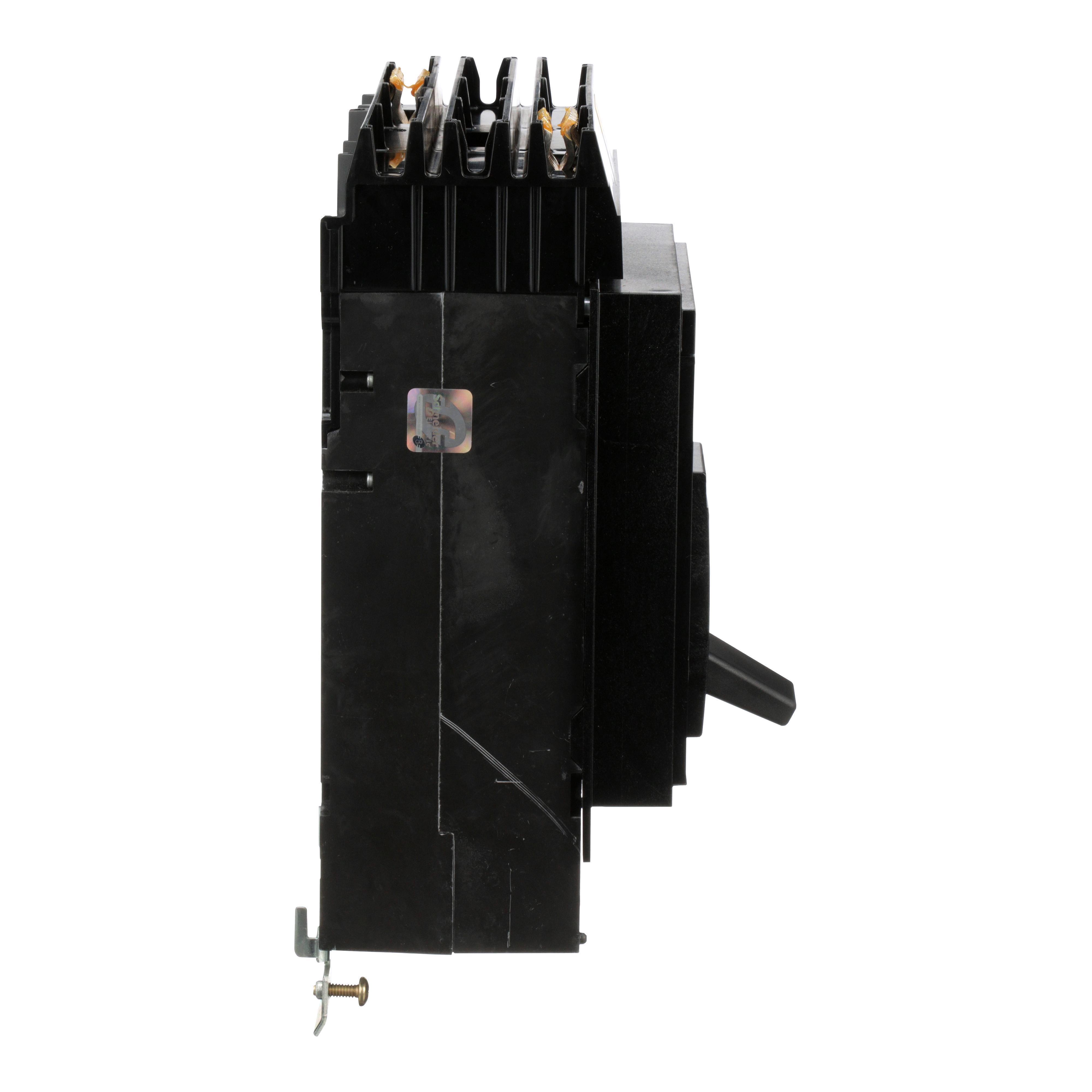

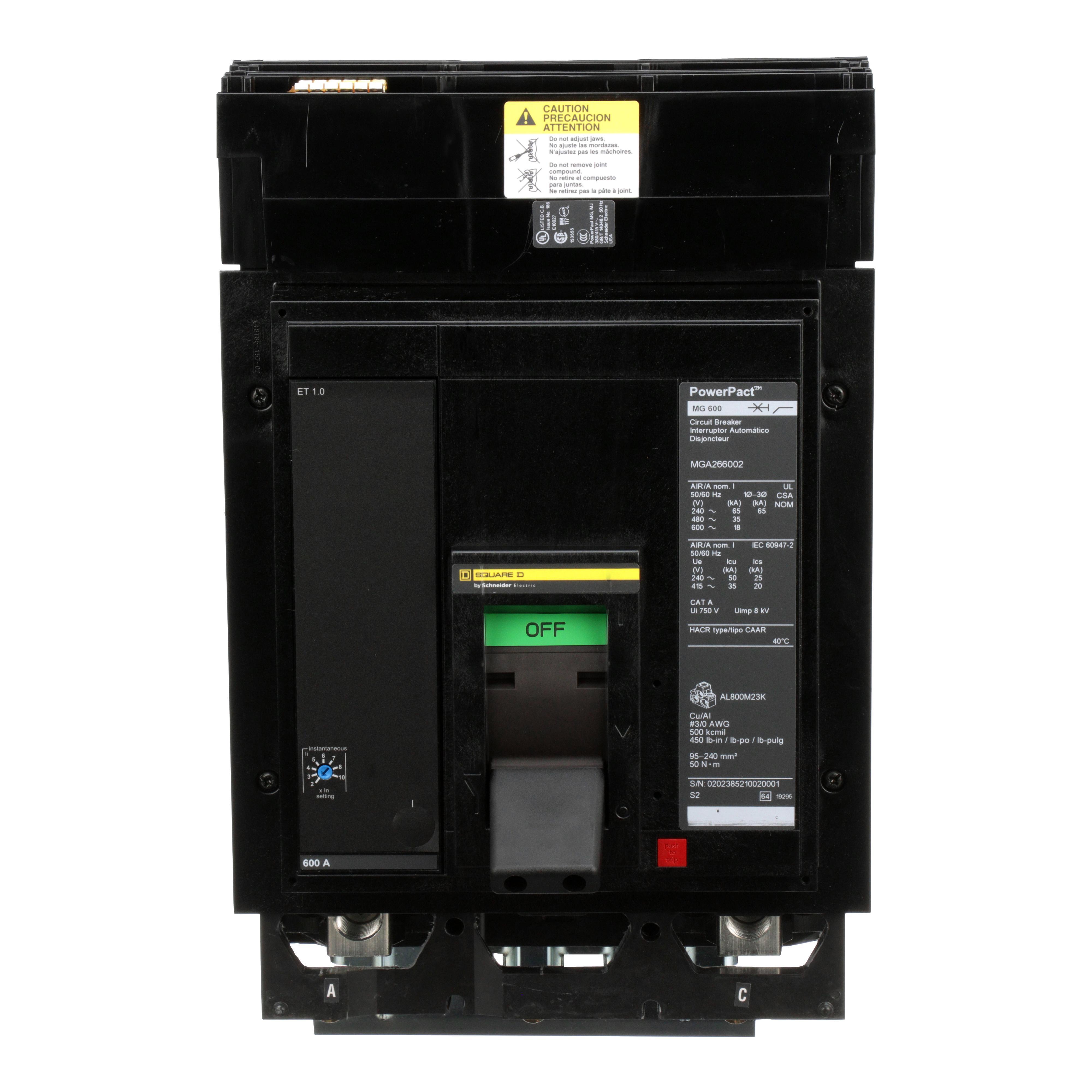

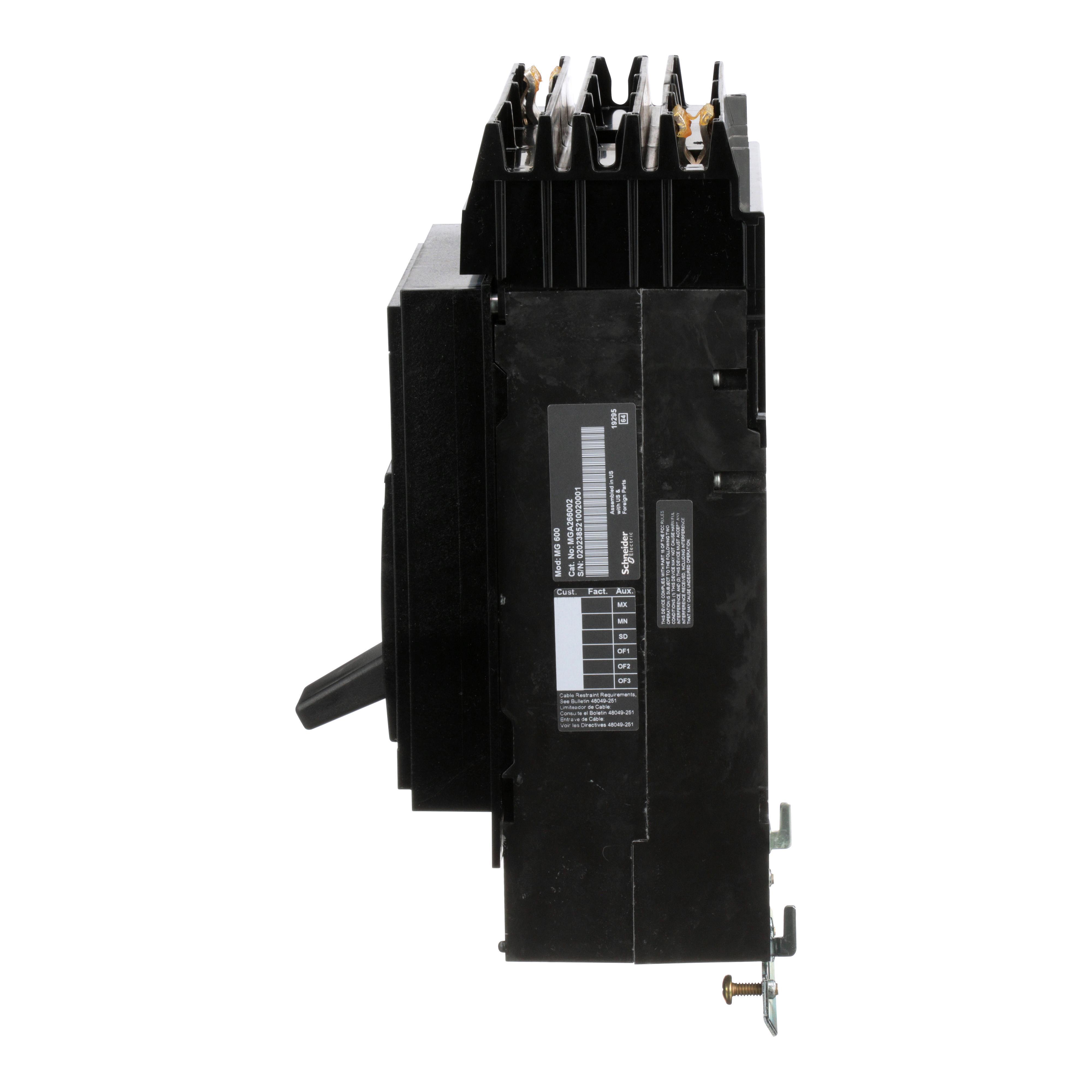

Square D™ MGA266002
Square D™ PowerPact™ M MGA266002 Molded Case Circuit Breaker, 600 VAC, 600 A, 18/35/65 kA Interrupt, 2 Poles, Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous Trip
Brand: Square D™
Item ID: 369495
MPN: MGA266002
Login for Price
Features
- I-Line™ connection (On end) - lugs (Off end)
- 3/0 AWG to 500 kcmil aluminum/copper cable wire size
- 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
Description
PowerPact M Molded CASE CIRCUIT BREAKER 600V 600A 2P
Square D™ PowerPact™ M Molded Case Circuit Breaker, Series: MGA, 600 VAC, 600 A, 50/60 Hz Frequency, 18/35/65 kA Interrupt, M Frame, Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous Trip, 2 Pole, 1 ph, Electronic Actuator, I-Line™/Load Lug Connection, 3/0 AWG to 500 kcmil Wire, Plug-On Mounting, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Specifications
Actuator Type |
Electronic |
Amperage Rating |
600 A |
Connection Type |
I-Line™/Load Lug |
Dimensions |
8.1 in L x 8.3 in W x 12.8 in H |
Frame |
M |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
18/35/65 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 |
Series |
MGA |
Temperature Rating |
40 deg C |
Trip Type |
Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous |
Voltage Rating |
600 VAC |
Wire Size |
3/0 AWG to 500 kcmil |
Standard Approval |
RoHS Compliant|CSA Certified|IEC Certified|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RWLED2T105_BL_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGP36600_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGP36600_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGA266002_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_efc163d5741fd9d462246d26b2095360c1acb07ad25b4a4f98b7ecd5b2a35434.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
