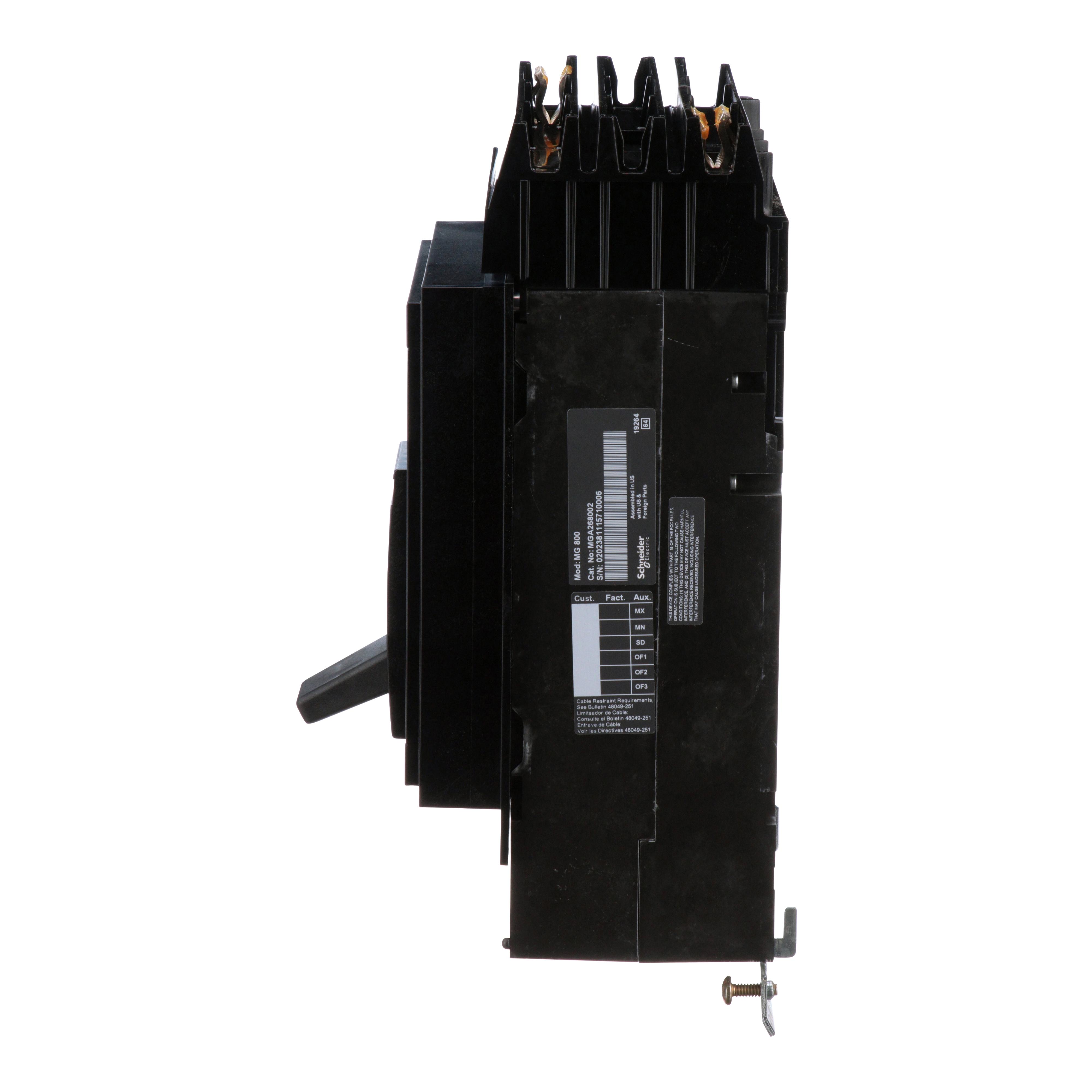

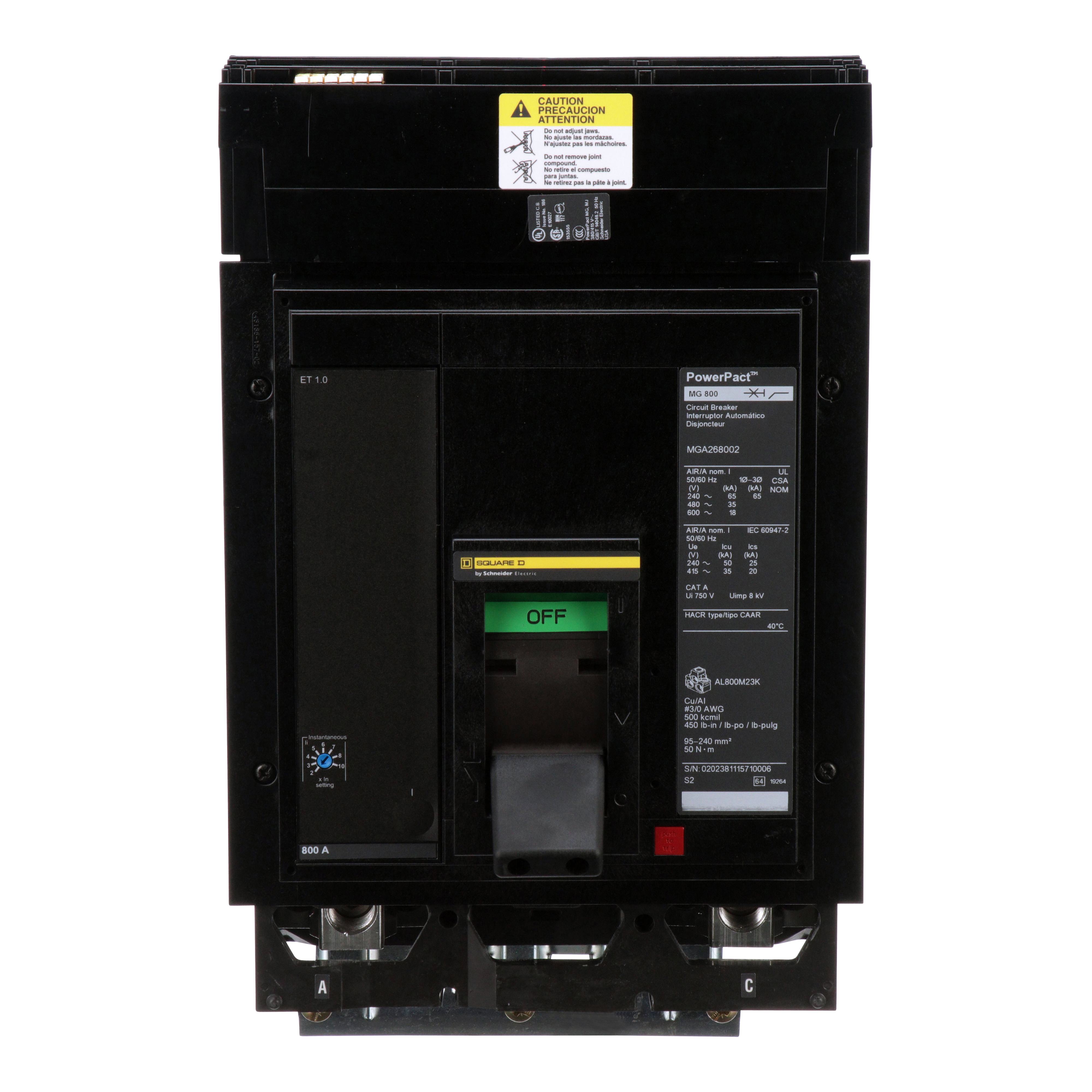

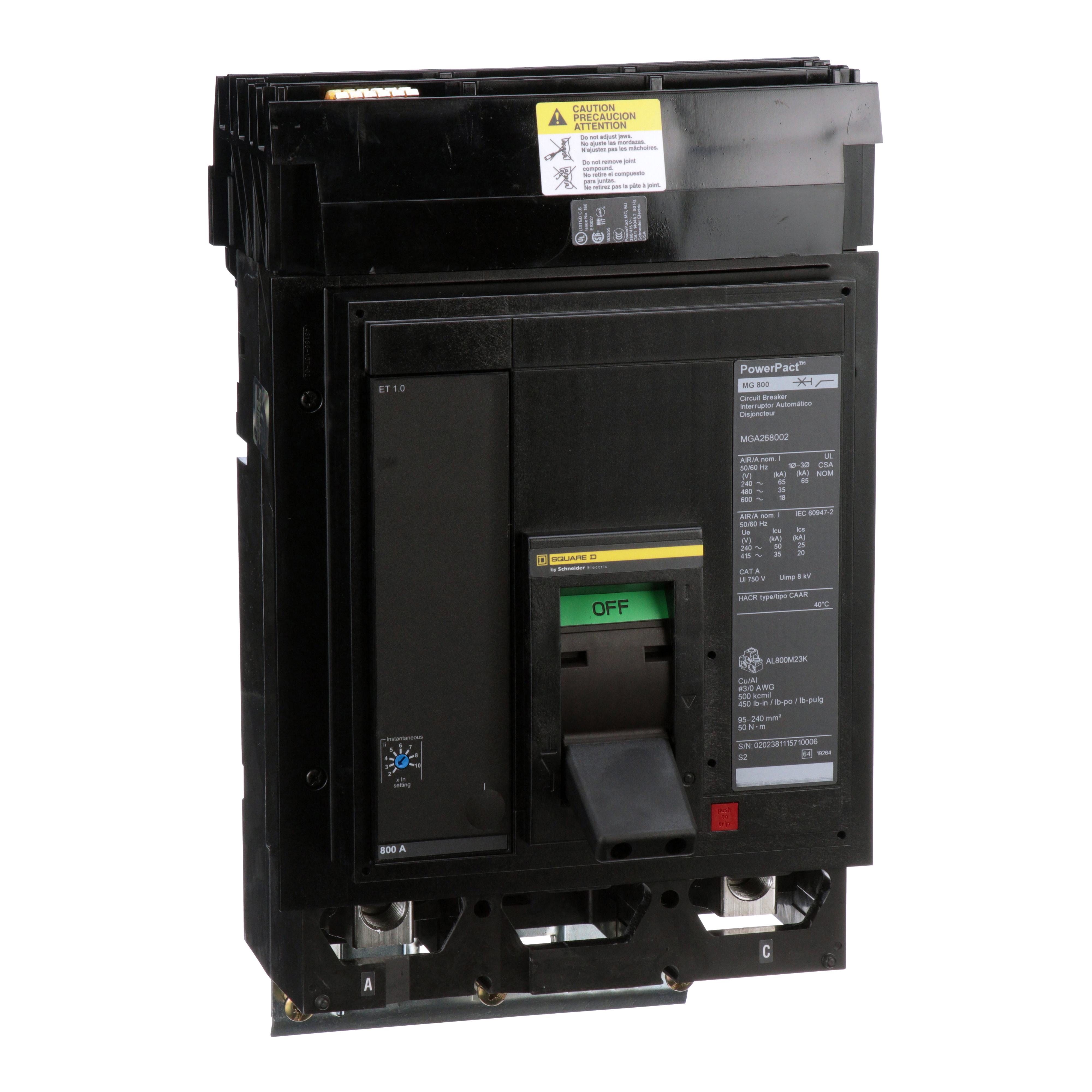

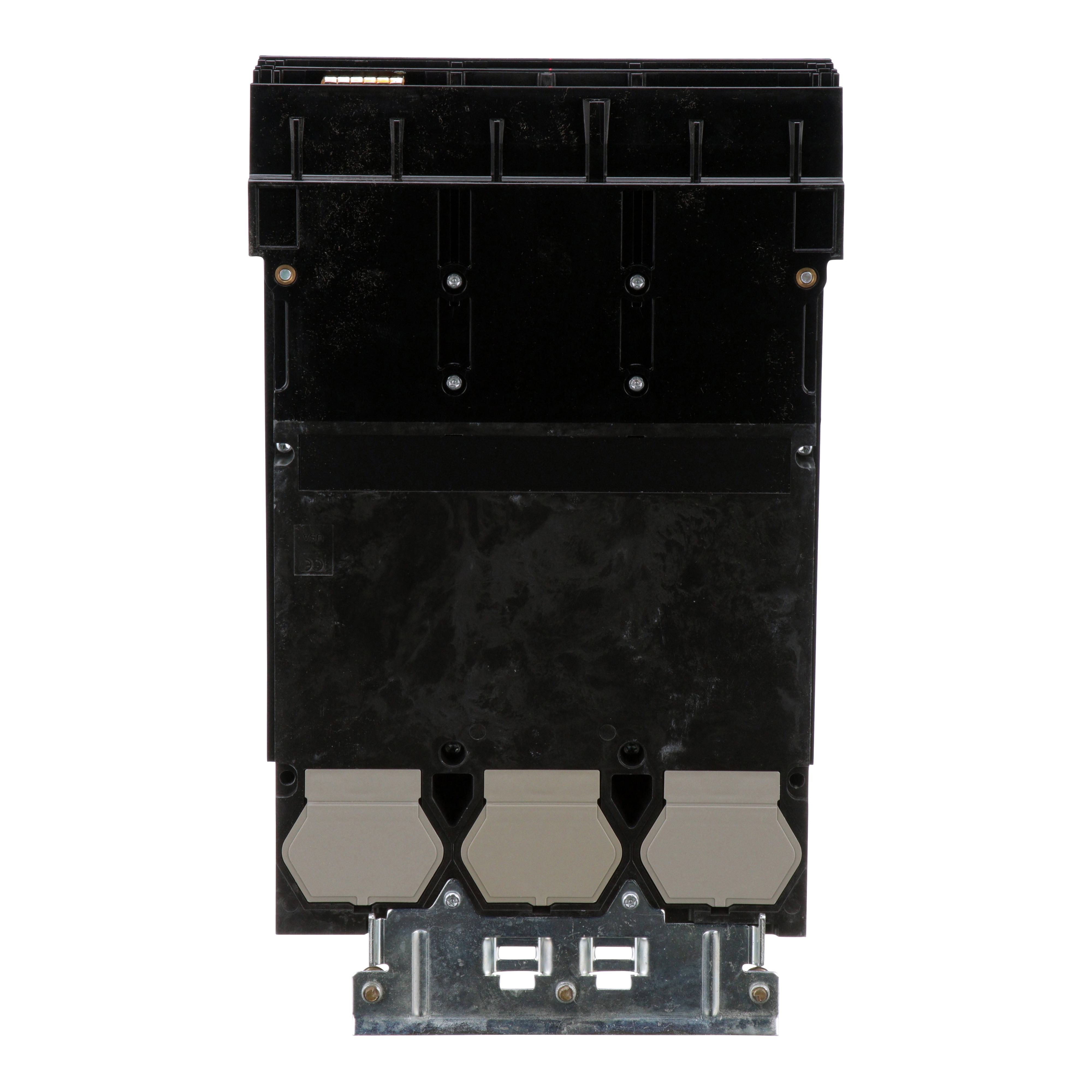

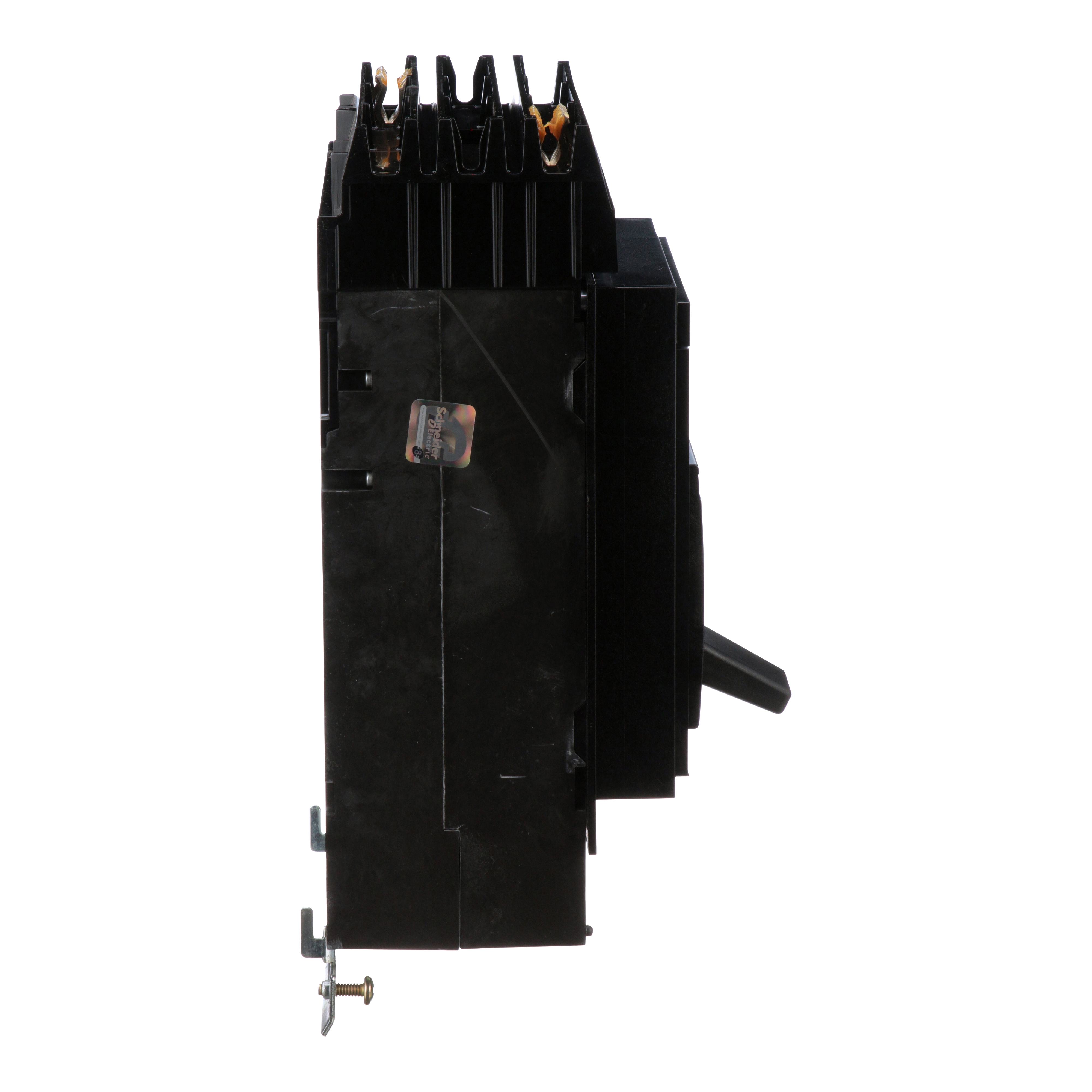

Square D™ MGA268002
Square D™ I-Line™ PowerPact™ M MGA268002 80% Rated Molded Case Circuit Breaker, 600 VAC, 800 A, 18/35/65 kA Interrupt, 2 Poles, Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous Trip
Brand: Square D™
Item ID: 369696
MPN: MGA268002
Login for Price
Features
- True RMS sensing devices
- Provide means to manually disconnect power to the circuit
- Provide enhanced coordination by their adjustability
- Provide high interrupting ratings and withstand ratings
- 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
Description
PowerPact™ M-frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits and ground faults. All circuit breakers are designed to open and close a circuit by non-automatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically.
Square D™ I-Line™ PowerPact™ M Molded Case Circuit Breaker, 80% Rated, 600 VAC, 800 A, 50/60 Hz Frequency, 18/35/65 kA Interrupt, M Frame, Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous Trip, 1600 to 8000 A Trip, 2 Pole, 1 ph, Electronic Actuator, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Plug-On Mounting, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Specifications
Actuator Type |
Electronic |
Amperage Rating |
800 A |
Connection Type |
Line/Load Lug |
Dimensions |
8.1 in L x 8.3 in W x 12.8 in H |
Enclosure Type |
NEMA AB1 |
Frame |
M |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
18/35/65 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 |
Temperature Rating |
40 deg C |
Trip Range |
1600 to 8000 A |
Trip Type |
Electronic Basic ET1.0 Fixed Long Time/Adjustable Instantaneous |
Type |
80% Rated |
Voltage Rating |
600 VAC |
Wire Size |
3/0 AWG to 500 kcmil Al/Cu |
Standard Approval |
UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_6FX50025CA011AB0_Catalog.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGA268002_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGA268002_Specification_Sheet.pdf
