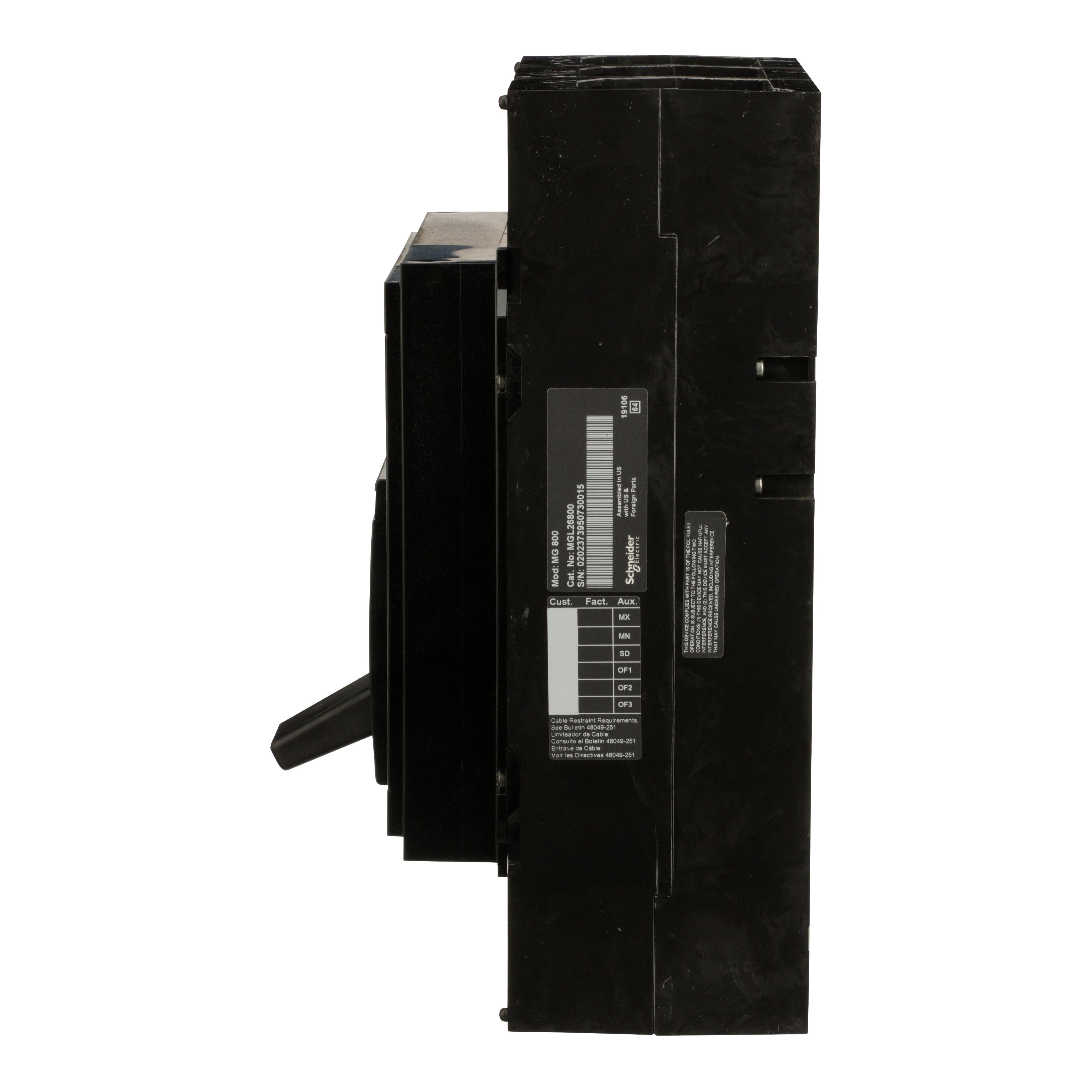

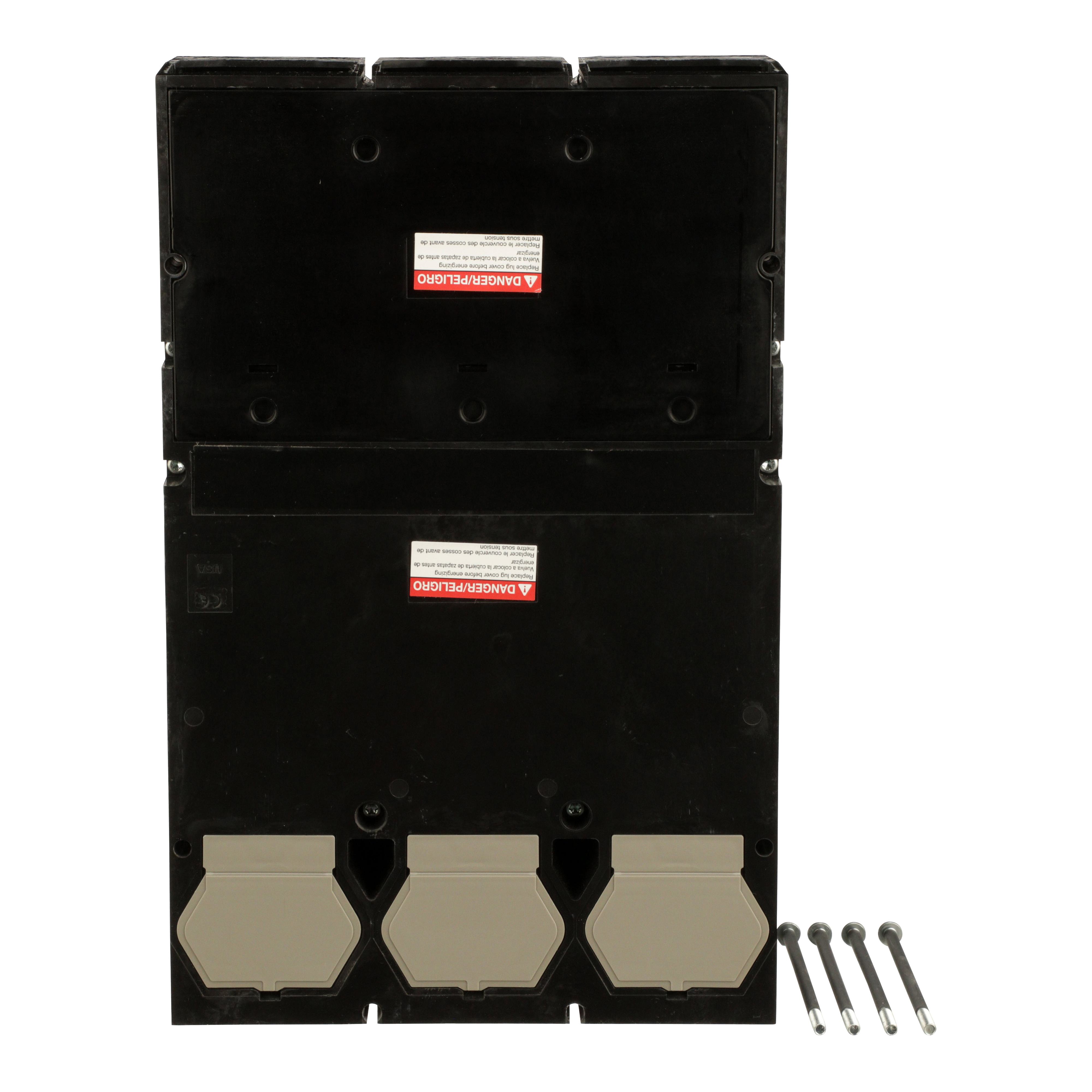

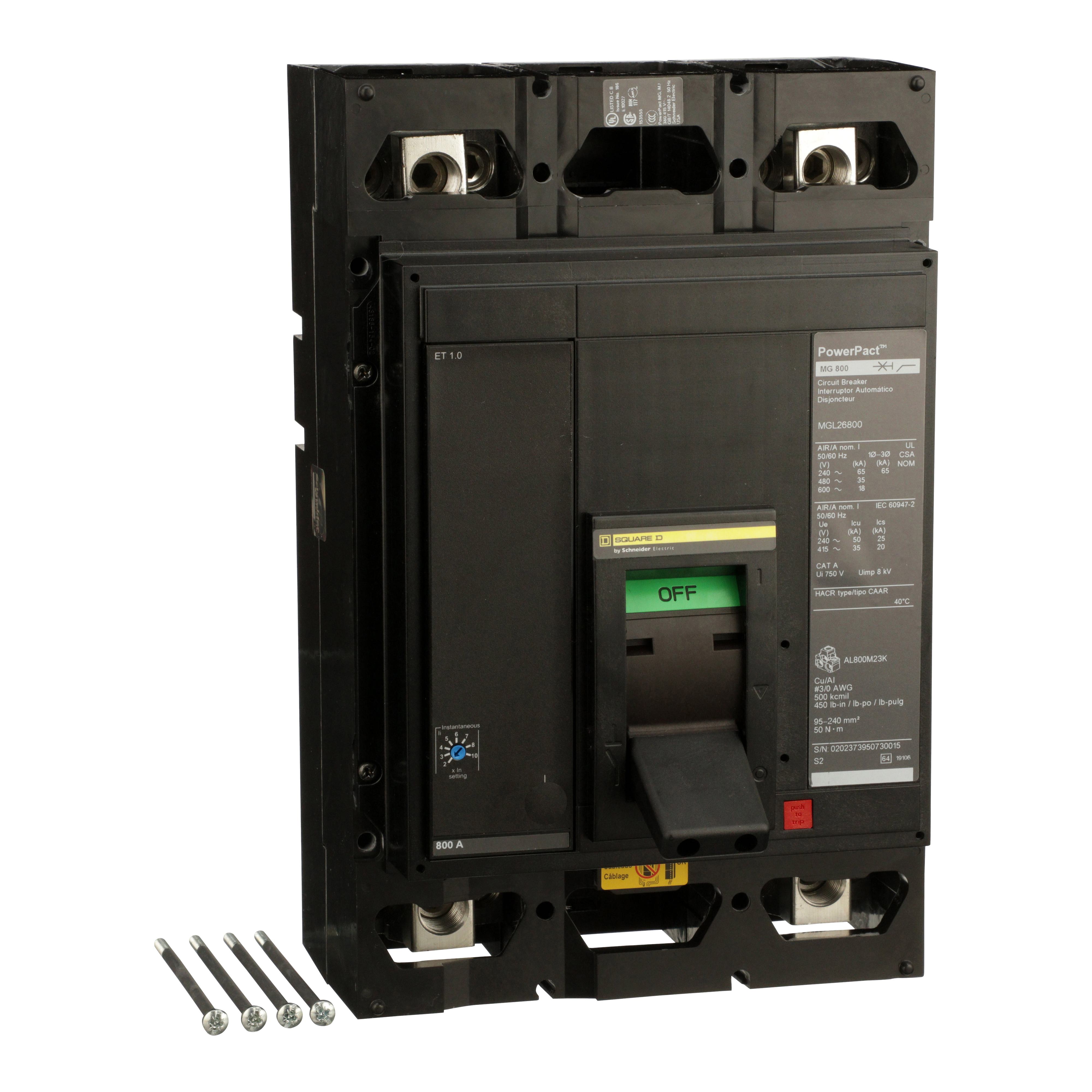

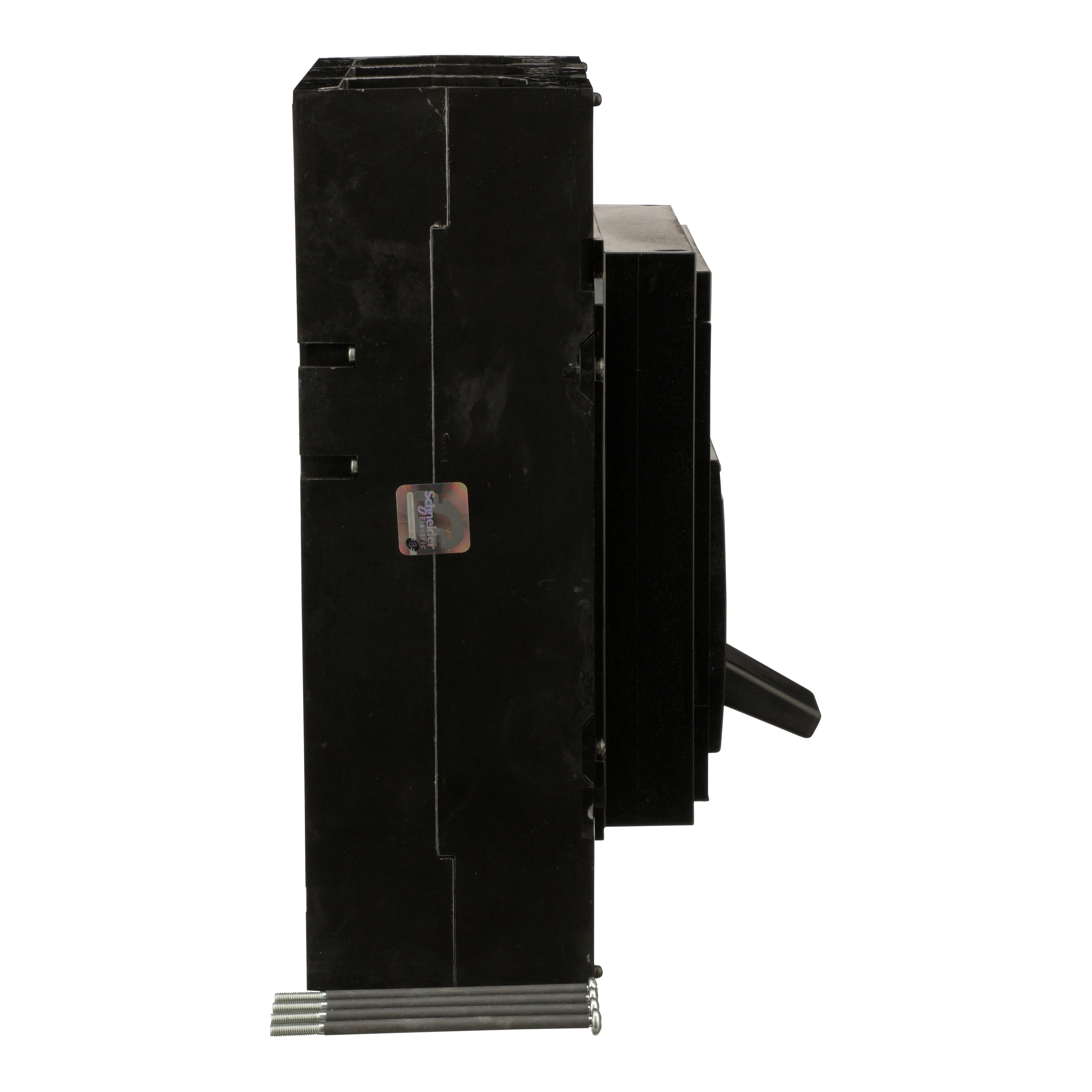

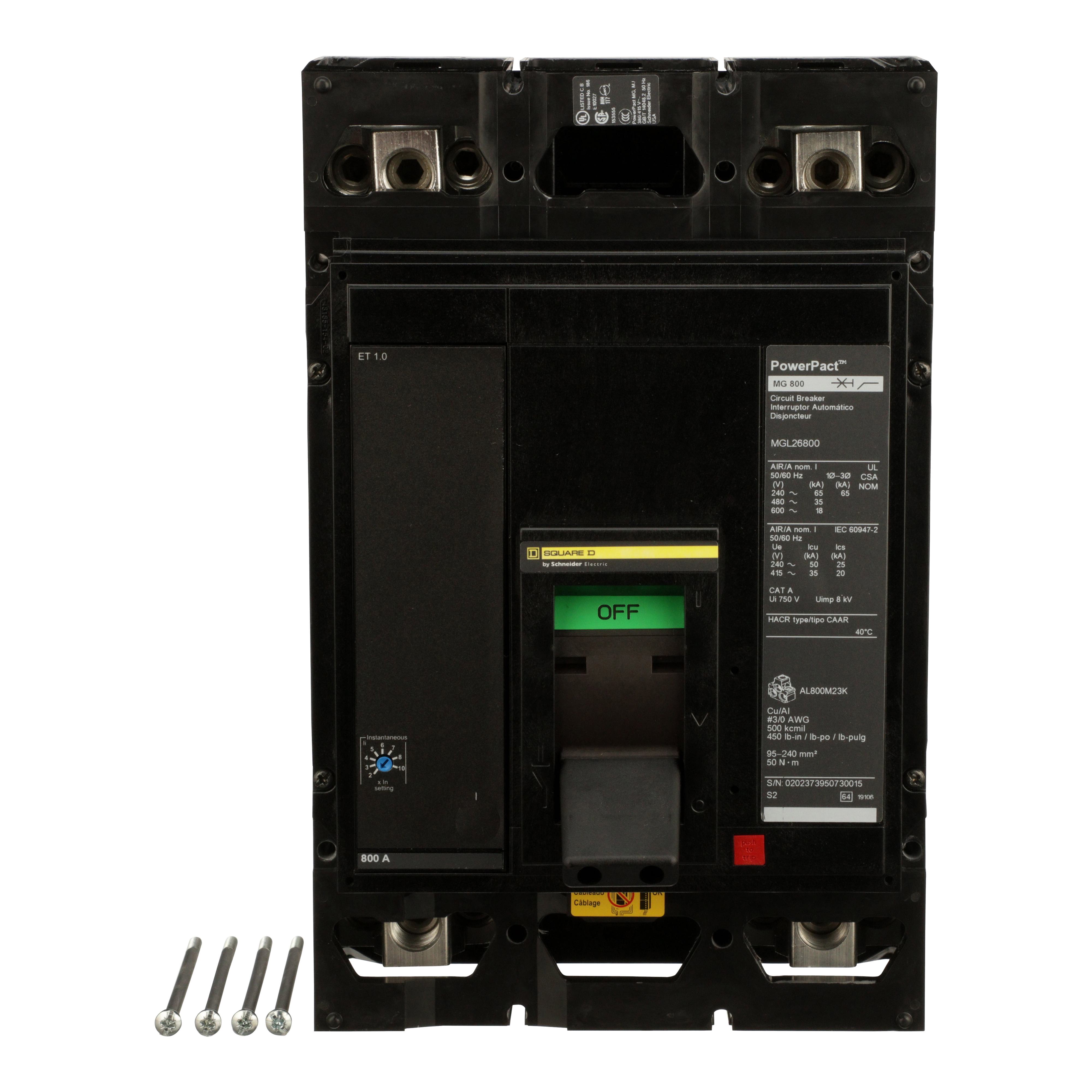

Square D™ MGL26800
Square D™ PowerPact™ M MGL26800 80% Rated Molded Case Circuit Breaker, 600 VAC, 250 VDC, 800 A, 18/35/65 kA Interrupt, 2 Poles, Electronic Basic ET 1.0 LI Trip
Brand: Square D™
Item ID: 375866
MPN: MGL26800
Login for Price
Features
- True RMS sensing devices
- Provide means to manually disconnect power to the circuit
- Provide enhanced coordination by their adjustability
- Provide high interrupting ratings and withstand ratings
- 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
Description
PowerPact™ M-frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits and ground faults. All circuit breakers are designed to open and close a circuit by non-automatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically.
Square D™ PowerPact™ M Molded Case Circuit Breaker, 80% Rated, 600 VAC, 250 VDC, 800 A, 50/60 Hz Frequency, 18/35/65 kA Interrupt, M Frame, Electronic Basic ET 1.0 LI Trip, 300 to 800 A Trip, 2 Pole, 1 ph, Electronic Actuator, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Specifications
Actuator Type |
Electronic |
Amperage Rating |
800 A |
Connection Type |
Line/Load Lug |
Dimensions |
8.1 in L x 8.3 in W x 12.8 in H |
Enclosure Type |
NEMA AB1 |
Frame |
M |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
18/35/65 kA |
Mounting Type |
Unit |
Number of Poles |
2 |
Phase |
1 |
Temperature Rating |
40 deg C |
Trip Range |
300 to 800 A |
Trip Type |
Electronic Basic ET 1.0 LI |
Type |
80% Rated |
Voltage Rating |
600 VAC, 250 VDC |
Wire Size |
3/0 AWG to 500 kcmil Al/Cu |
Standard Approval |
UL 489 File No. E10027|CE|CSA C22.2 File No. 5-02|LR 7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|RoHS Compliant |
Application |
For providing overload and short circuit protection |
