Square D™ MGL36300

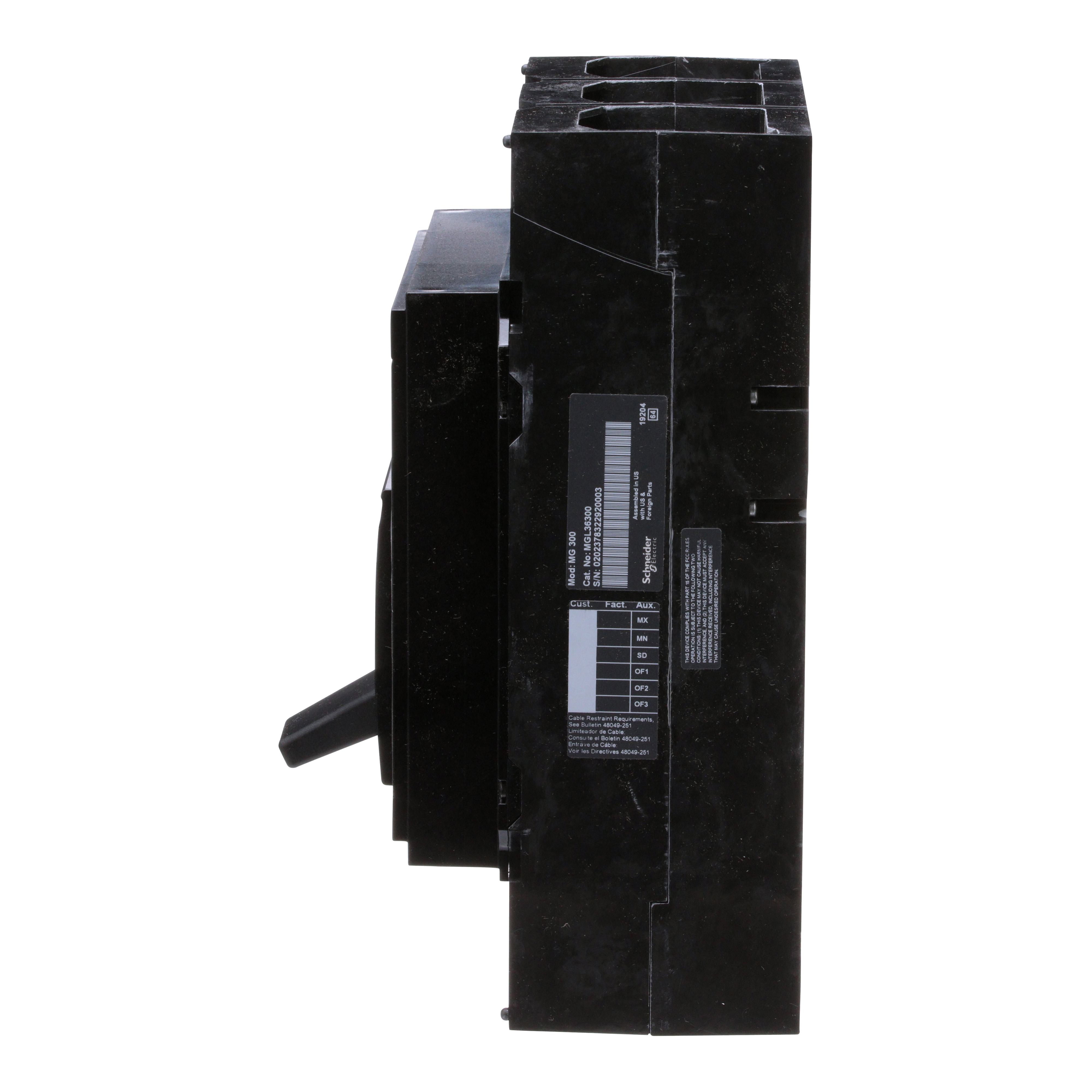

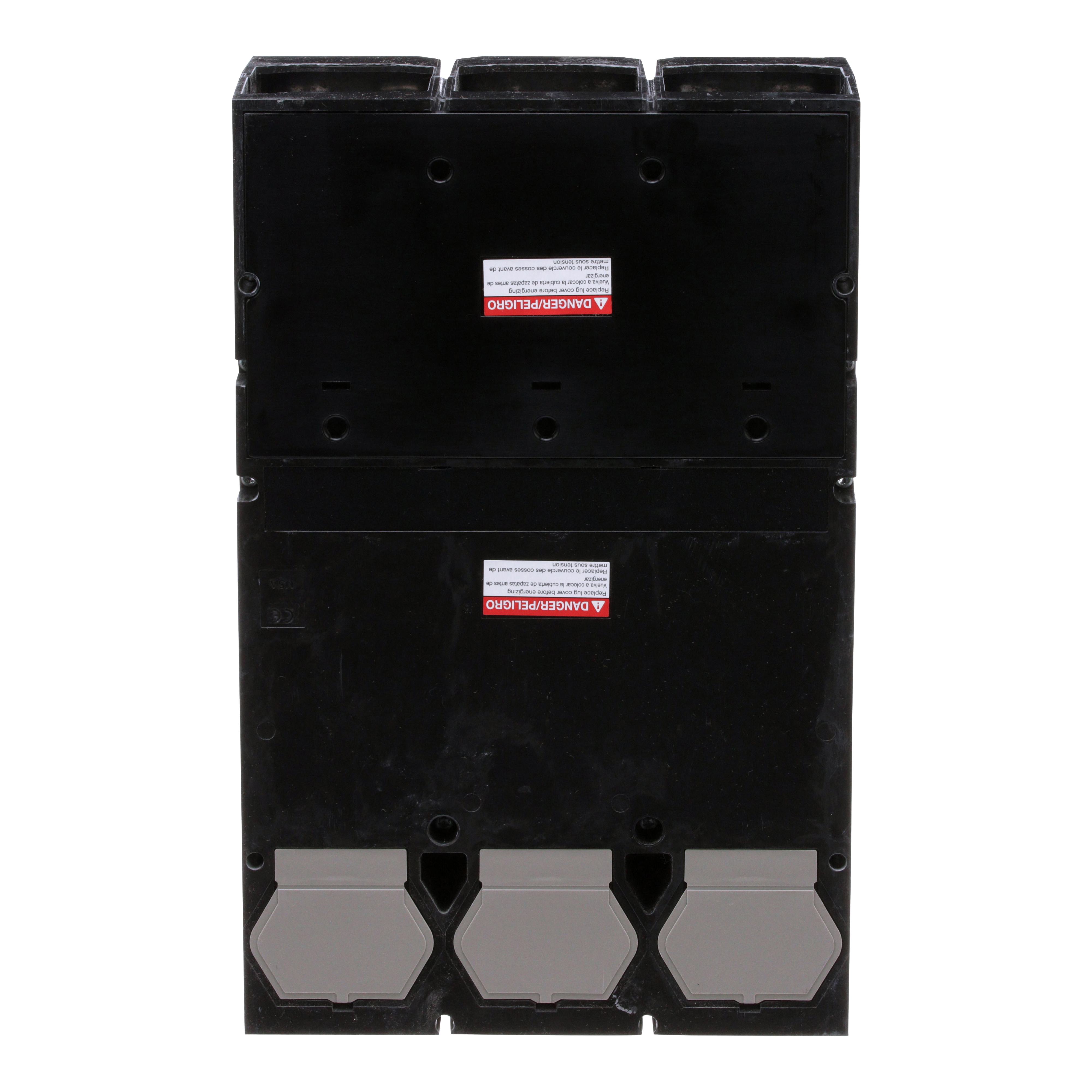

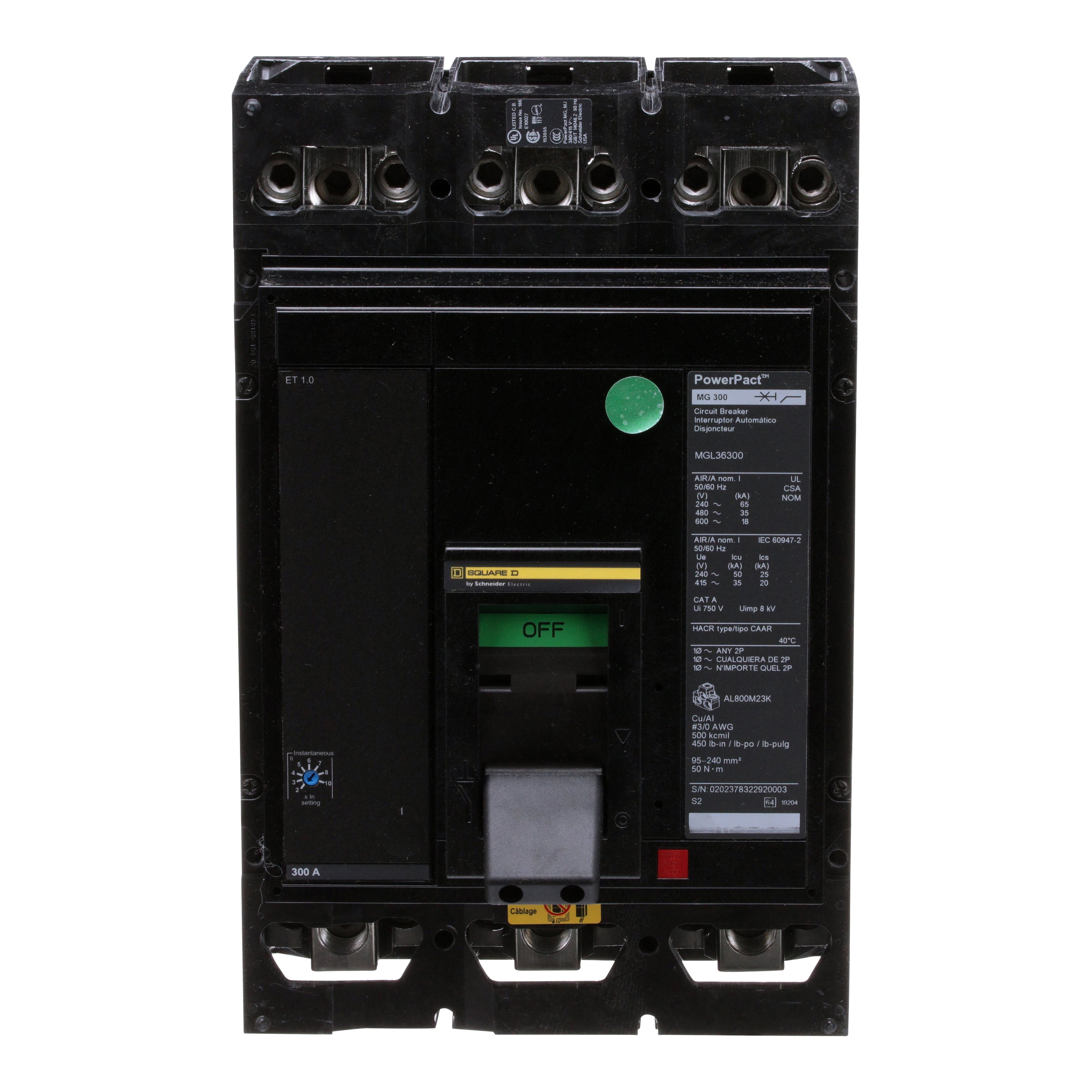

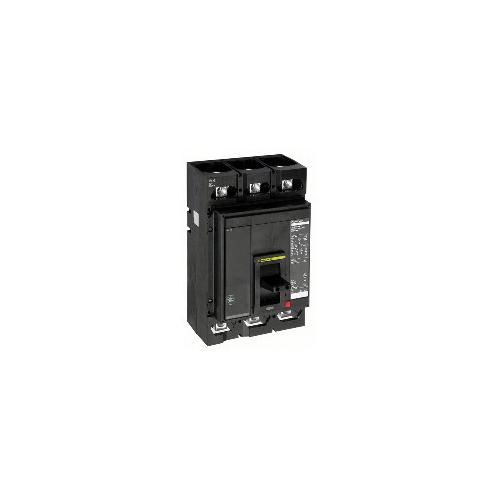

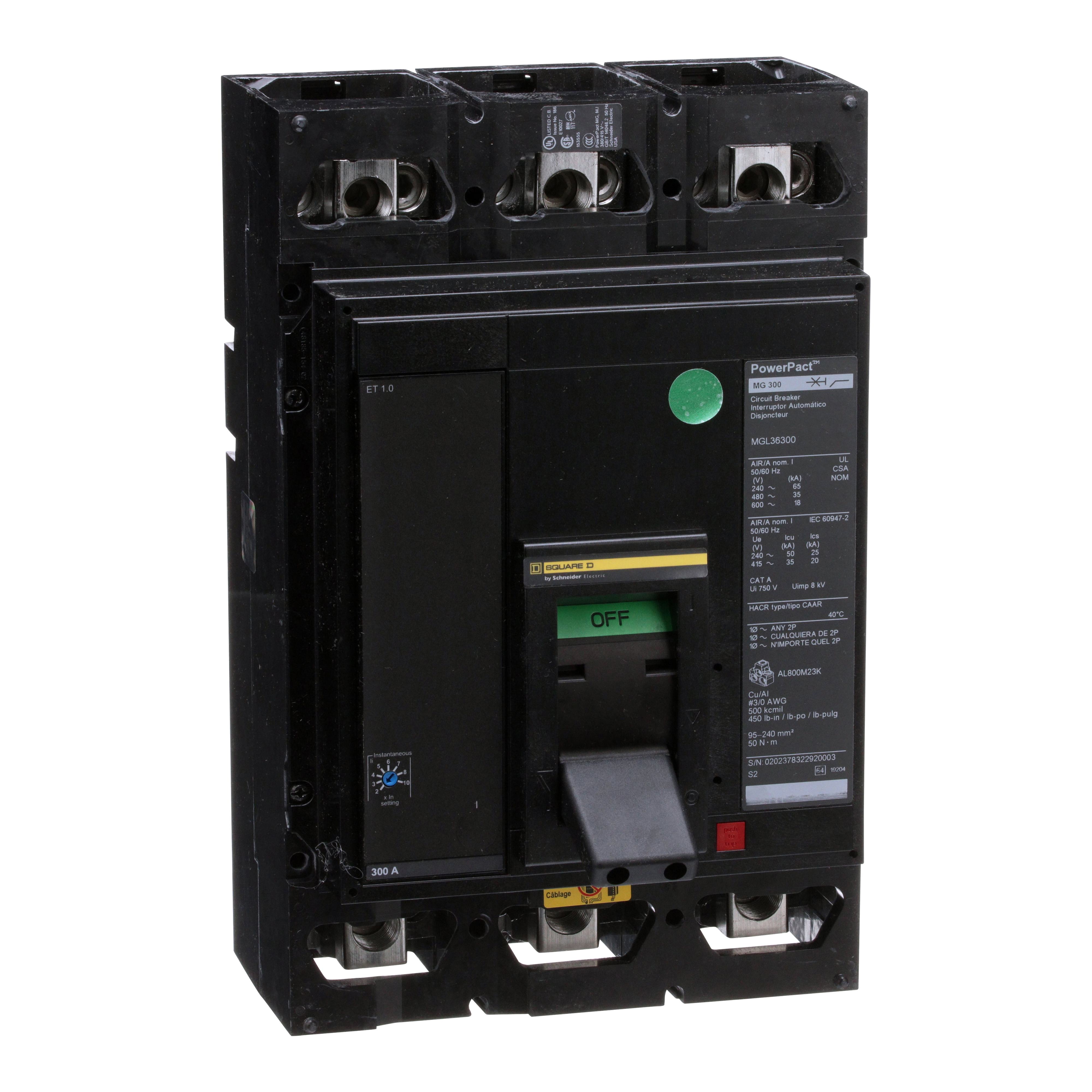

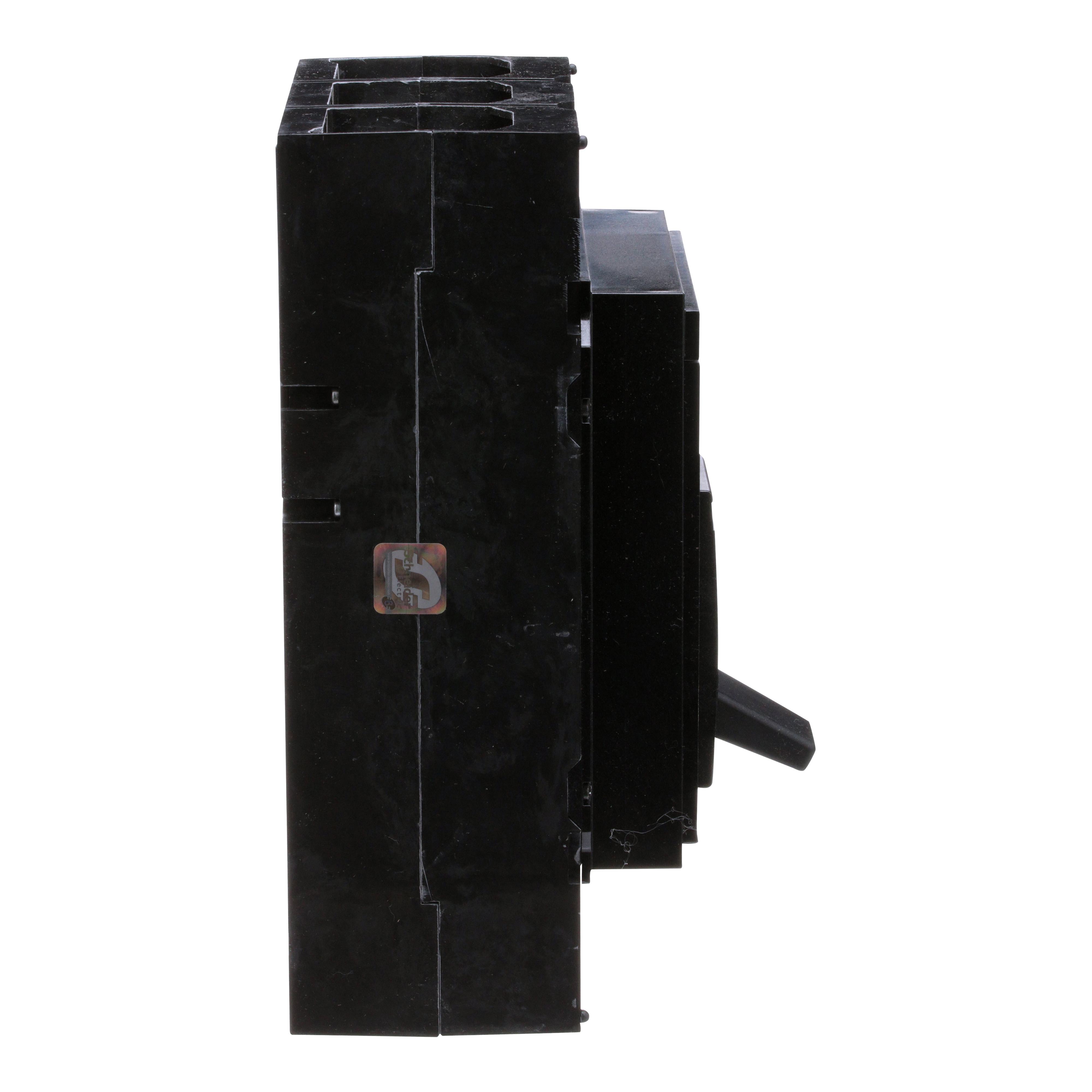

Square D™ PowerPact™ M MGL36300 Type MGL 80% Rated Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 LI Trip
Brand: Square D™
Item ID: 531976
MPN: MGL36300
Login for Price
Features
- MGL36300 is a PowerPact M Molded Case Circuit Breaker, 600V, 300A, 3P with a breaking capacity of 65kA at 240 VAC
- This unit mount circuit breaker has an electronic trip unit technology and has a magnetic tripping current rating of
- True-RMS sensing devices
- Provide means to manually disconnect power to the circuit
- Provide enhanced coordination by their adjustability
- Provide high interrupting ratings and withstand ratings
Description
PowerPact™ M-frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits and ground faults. All circuit breakers are designed to open and close a circuit by no automatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically.
Square D™ PowerPact™ M Molded Case Circuit Breaker, Type MGL 80% Rated, 600 VAC/250 VDC, 300 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, M Frame, Electronic Basic ET 1.0 LI Trip, 300 to 800 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Aluminum/Copper Wire, NEMA AB1 Enclosure, 104 deg F, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Specifications
Amperage Rating |
300 A |
Connection Type |
Line/Load Lug |
Dimensions |
8.1 in L x 8.3 in W x 12.8 in H |
Enclosure Type |
NEMA AB1 |
Frame |
M |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
Number of Poles |
3 |
Phase |
3 |
Temperature Rating |
104 deg F |
Trip Range |
300 to 800 A |
Trip Type |
Electronic Basic ET 1.0 LI |
Type |
Type MGL 80% Rated |
Voltage Rating |
600 VAC/250 VDC |
Wire Size |
3/0 AWG to 500 kcmil Aluminum/Copper |
Standard Approval |
UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|RoHS Compliant|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
