Square D™ MGL36600

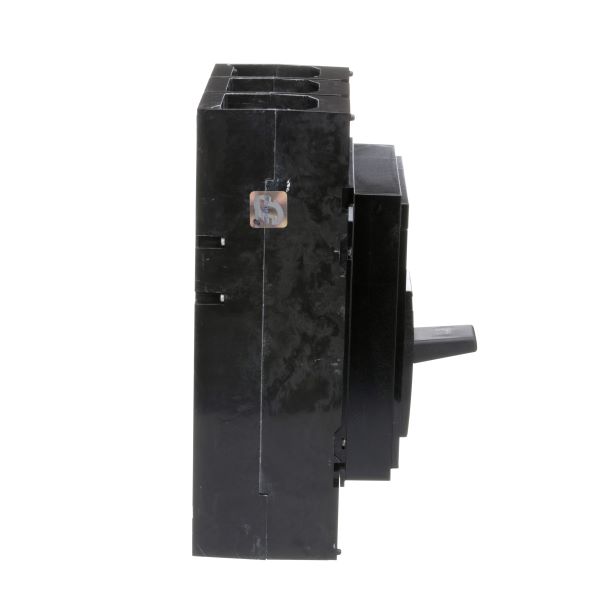

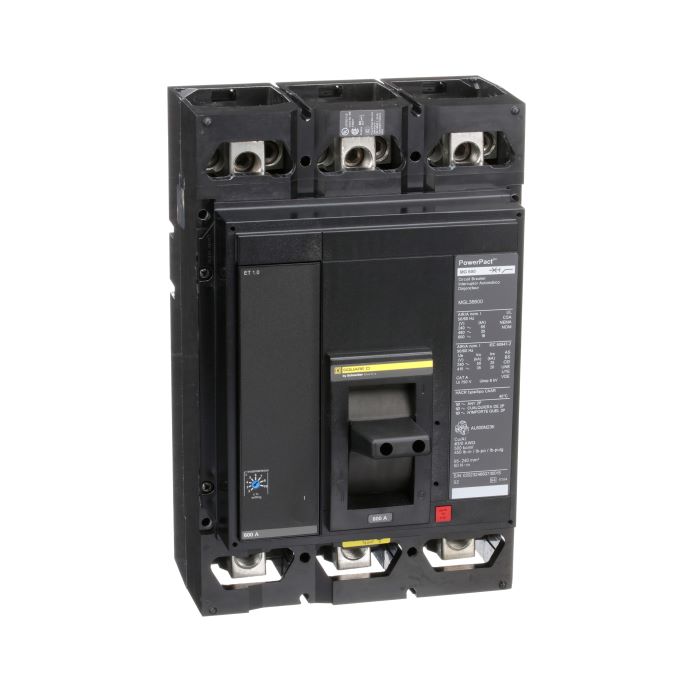

Square D™ PowerPact™ M MGL36600 Type MGL Molded Case Circuit Breaker, 600 VAC/250 VDC, 600 A, 18 kA Interrupt, 3 Poles, Electronic Basic ET1.0 Trip
Brand: Square D™
Item ID: 375865
MPN: MGL36600
Login for Price
Description
PowerPact™ M-Frame Molded Case Circuit Breaker, MGL36600 are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact™ M-frame circuit breakers are available with Micrologic electronic trip units. This breaker is certified to UL, IEC, CE, CSA Standards.
Square D™ PowerPact™ M Molded Case Circuit Breaker, Type MGL, 600 VAC/250 VDC, 600 A, 50/60 Hz Frequency, 18 kA Interrupt, M Frame, Electronic Basic ET1.0 Trip, 300 to 800 A Trip, 3 Pole, 3 ph, Electrical Actuator, Lug Connection, 3/0 AWG to 500 kcmil Wire, 40 deg C, 8.1 in L x 8.3 in W x 12.8 in H Dimensions
Specifications
Actuator Type |
Electrical |
Amperage Rating |
600 A |
Connection Type |
Lug |
Dimensions |
8.1 in L x 8.3 in W x 12.8 in H |
Frame |
M |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
18 kA |
Number of Poles |
3 |
Phase |
3 |
Temperature Rating |
40 deg C |
Trip Range |
300 to 800 A |
Trip Type |
Electronic Basic ET1.0 |
Type |
Type MGL |
Voltage Rating |
600 VAC/250 VDC |
Wire Size |
3/0 AWG to 500 kcmil |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|CSA Certified|IEC Certified|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_329dac7a30b1c43288fb6a8d624ce71e75d089a3b3c505cf3b354dddb3811019.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9252263b82e055d76369e4ef47593f618add540660345f261d1598f8ced0bdc.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGP36600_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGP36600_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MGL36600_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_73c83bad26a34f5e53aa5809de7956aa8ac147b5eff2c7d771f7061034e8383f.pdf
