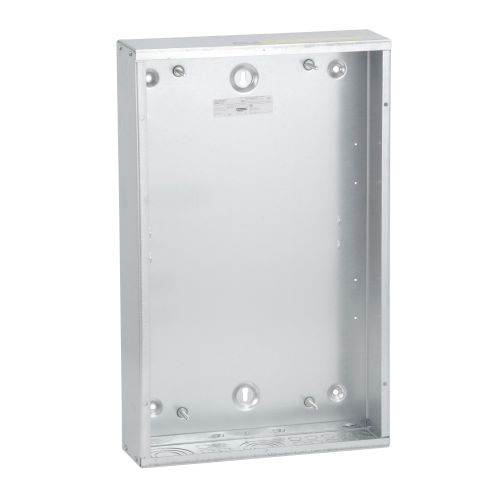

Square D™ MH32
Square D™ MH32 MH Series Nq+Nf Panelboard Enclosure Box, NEMA 1 NEMA Rating, 32 in L x 20 in W x 5-3/4 in D, Steel
Brand: Square D™
Item ID: 55551
MPN: MH32
Login for Price
Features
- 30 circuit 100/125/225 A main lug interior, 30 circuit 100 A/18 circuit 125 A main breaker interior
- Type NQ+NF panelboards
- Main lug only panelboards
- Single phase
- Three wire
Description
Square D™, MH32, Nq+Nf Panelboard Enclosure Box, Series: MH Series, 32 in Length, 20 in Width, 5-3/4 in Depth, Flush/Surface Mounting, Steel, Hot Dipped Galvanized, NEMA 1 NEMA Rating
Specifications
Depth |
5-3/4 in |
Finish |
Hot Dipped Galvanized |
Length |
32 in |
Material |
Steel |
Mounting Type |
Flush/Surface |
NEMA Rating |
NEMA 1 |
Series |
MH Series |
Type |
1-ph 3-Wire NQ+NF |
Width |
20 in |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 67|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6421fe8e802613a1f9a0984a28a4e1ac6d97149384c7b22dfd03e19fb2dfcd14.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a40de0203b9088db5ca6d6bdf9c49fb98877efdd7c2bc16d92bde9a82a52d014.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC50F_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_DRI0481C24W_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82e0be8845ea1f4ac4f3d68edbfcafbc08adef33fc41ecc64f42f972b9e42658.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Technical_Bulletin.pdf
