Square D™ MH38

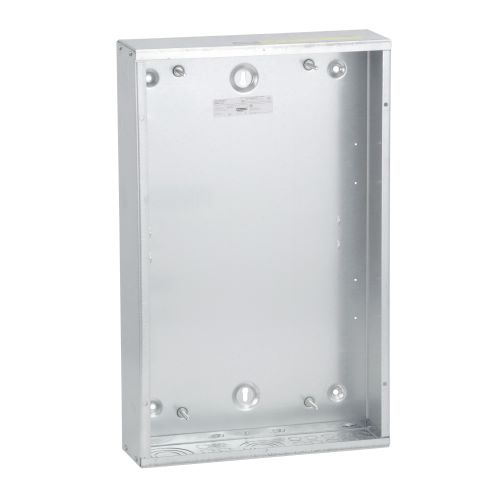

Square D™ MH38 MH Series 1-ph 3-Wire NQ+NF Enclosure Box, NEMA 1 NEMA Rating, 38 in L x 20 in W x 5-3/4 in D, Steel
Brand: Square D™
Item ID: 55568
MPN: MH38
Login for Price
Features
- 3-wire
- Type NQ+NF panelboards
- Main lug only panelboards
- Single phase
- 30 circuit w/225 amp sub-feed lugs /42 circuit w/225 amp feed-through lugs
Description
Square D™, MH38, Enclosure Box, 1-ph 3-Wire NQ+NF, Series: MH Series, 38 in Length, 20 in Width, 5-3/4 in Depth, Flush/Surface Mounting, Steel, Hot Dipped Galvanized, NEMA 1 NEMA Rating
Specifications
Depth |
5-3/4 in |
Finish |
Hot Dipped Galvanized |
Length |
38 in |
Material |
Steel |
Mounting Type |
Flush/Surface |
NEMA Rating |
NEMA 1 |
Series |
MH Series |
Type |
1-ph 3-Wire NQ+NF |
Width |
20 in |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 67|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For NQ and NF Panelboard applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MH38_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MH38_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MH38_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NC68S_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NC68S_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Technical_Bulletin.pdf
VIDEO LINK
https://www.youtube.com/watch?v=abIf06C7qgc
