Square D™ MP42200

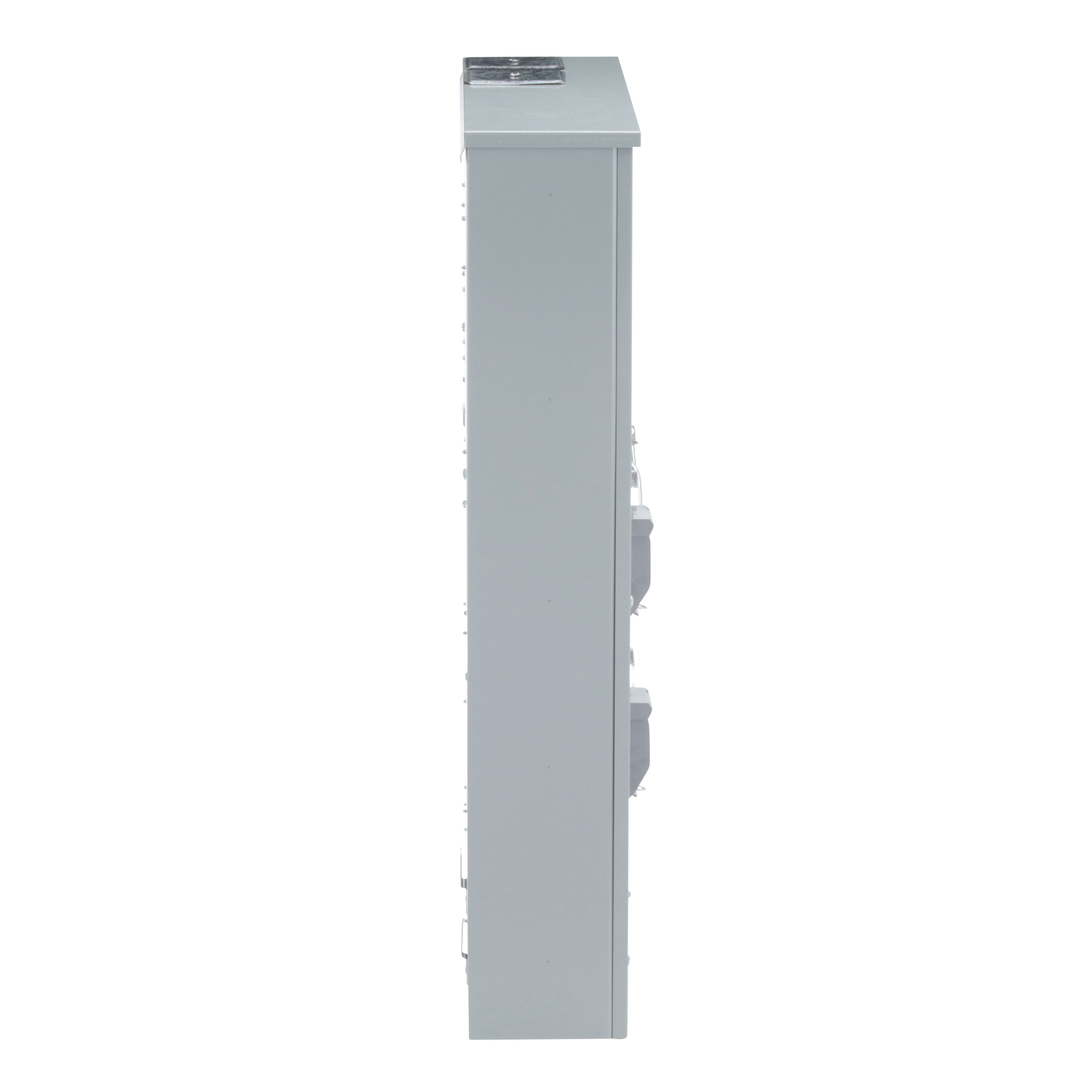

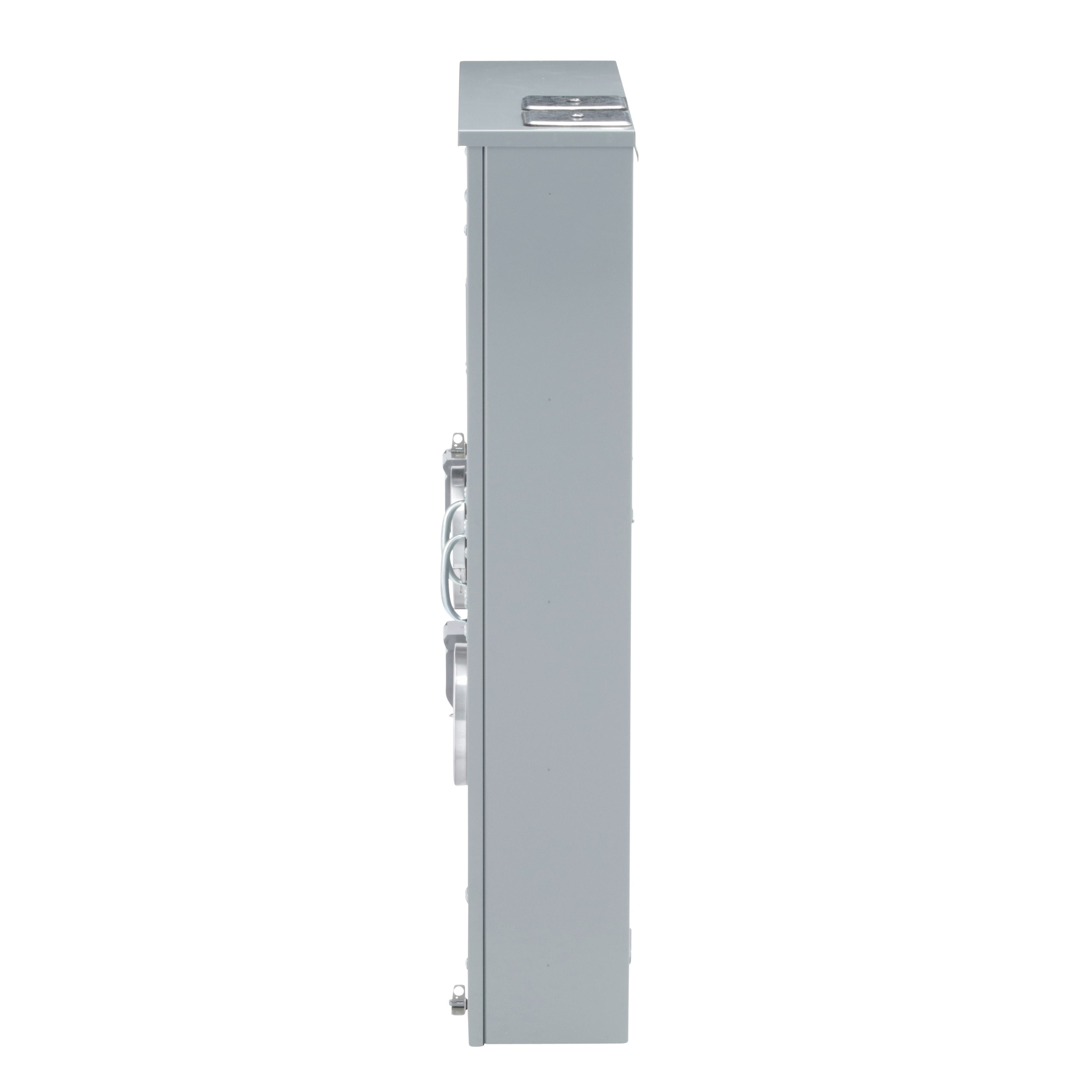

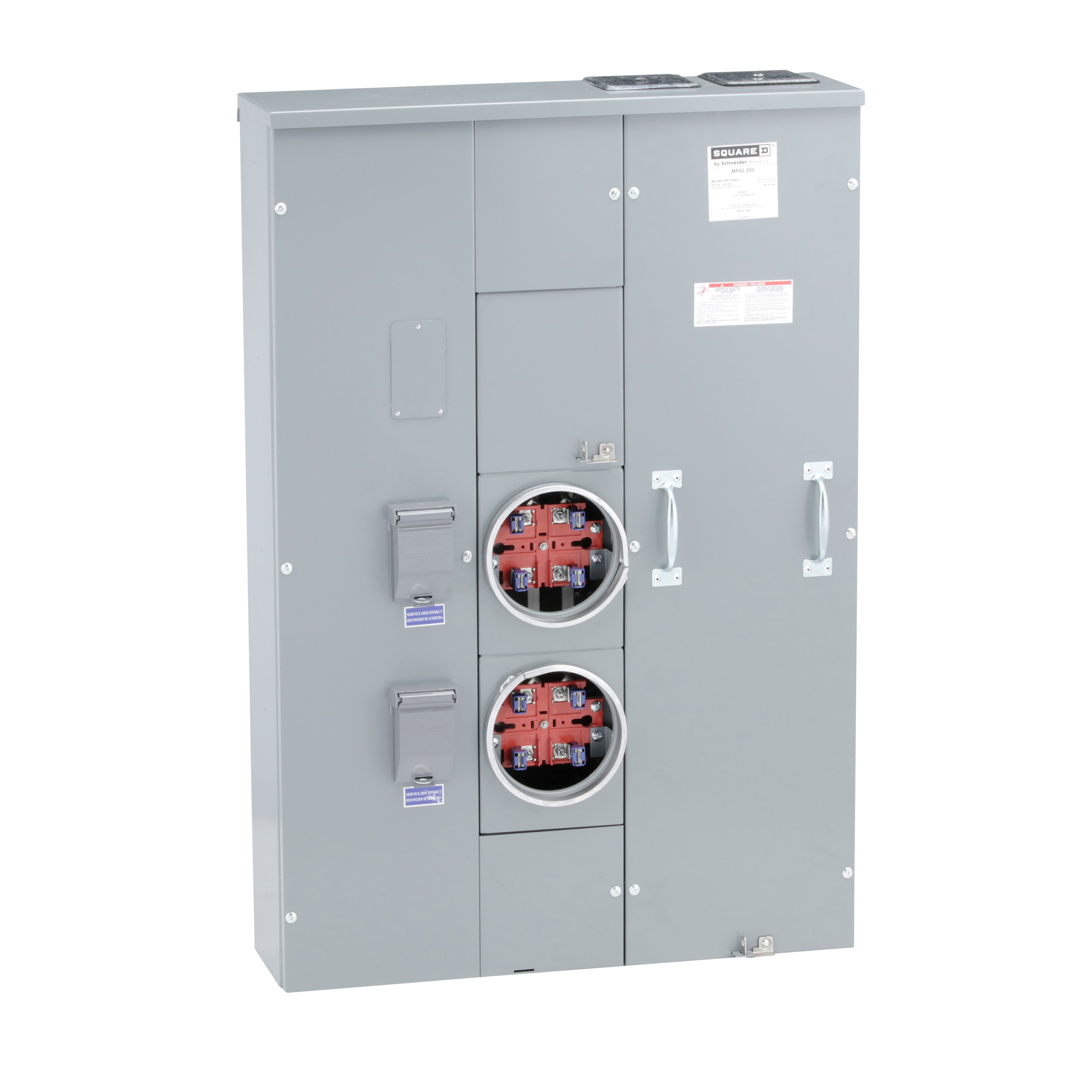

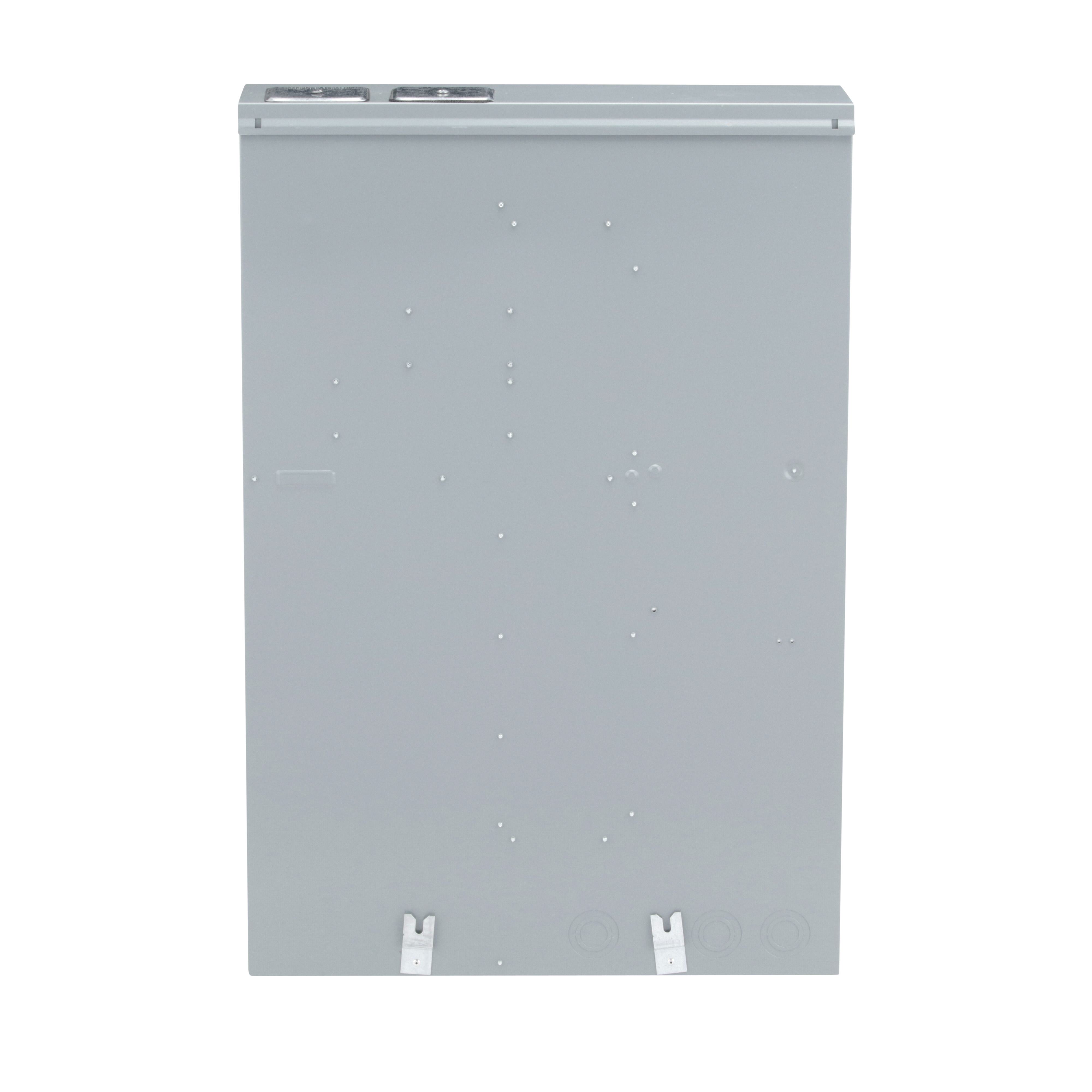

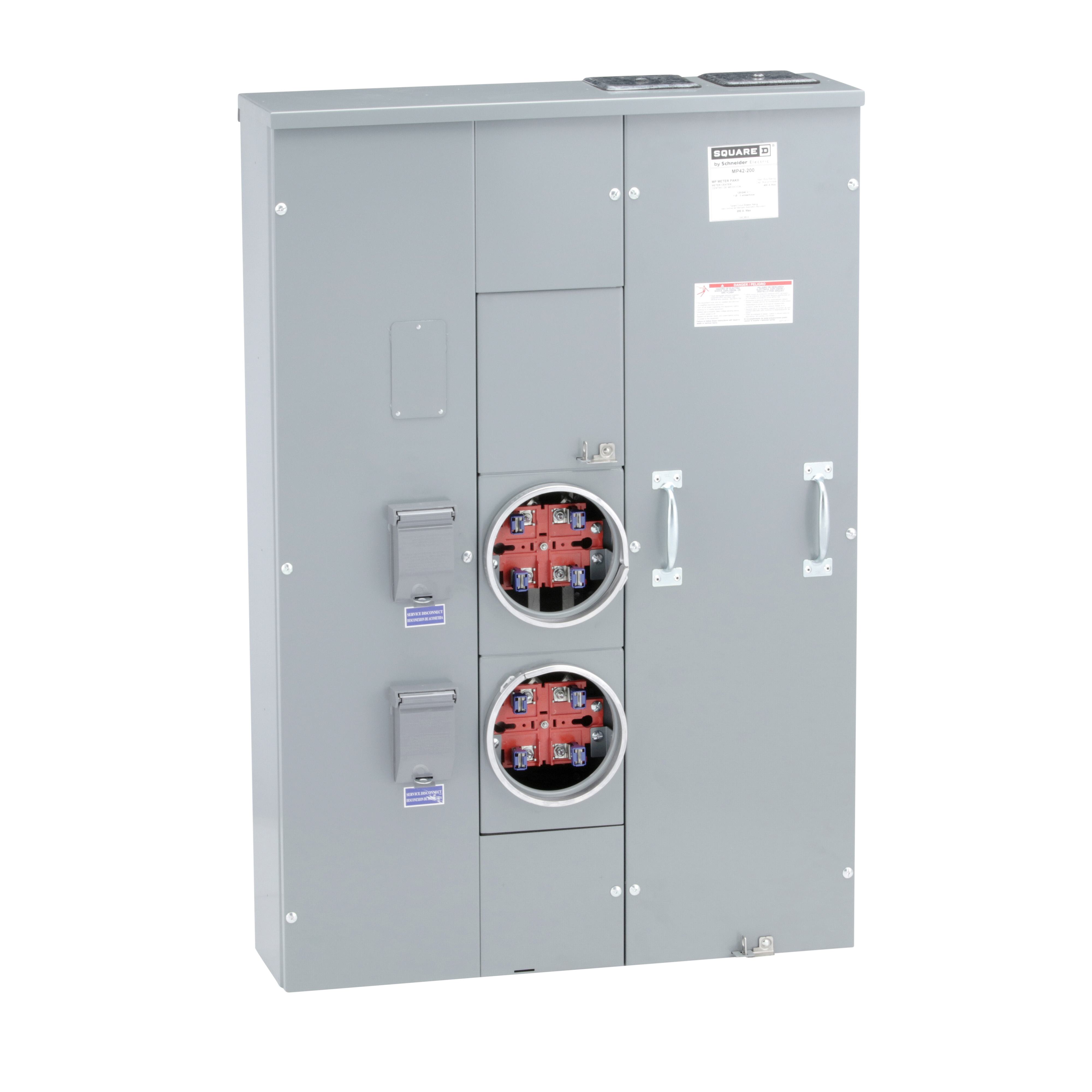

Square D™ Meter-Pak™ MP42200 2-Position 3-Wire Main Lug Meter Center, 240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure

Brand: Square D™

Item ID: 458228

MPN: MP42200

UPC: 785901410409

Login for Price

Features

  • Enclosures are indoor/rainproof NEMA 3R construction
  • Swingable mounting feet supplied at bottom of device
  • Surface mount or convertible to semi-flush with field installed flange kit
  • Aluminum busbar and steel enclosure
  • 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures
  • 400 A main rated and bus rated current
  • Without bypass
  • (2) ACPL closing plate

Description

Square D™ brand MP Meter-Pak™ meter centers from Schneider Electric offer a wide range of solutions for multi-metering applications.

Square D™ Meter-Pak™ Meter Center, 2-Position 3-Wire Main Lug, Series: MP Series, 240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ring Cover, Surface Mount, NEMA 3R

Specifications

Amperage Rating

200 A

Cover Type

Ring

Enclosure Type

NEMA 3R

Feed Type

Overhead/Underground

Hub Size

(2) A-L

Mounting Type

Surface

Number of Jaws

4

Phase

1 ph

Series

MP Series

Type

2-Position 3-Wire Main Lug

Voltage Rating

240 VAC

Wire Size

1/0 AWG to 600 kcmil

Standard Approval

BAA Compliant|UL Listed|EUSERC Approved|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

Application

For service equipment

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82486102cd0e454339208cb316f422c28c146f775a80a721f19eda585b2e3549.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1adc741b1da453cb66a98cda27b10eec48eefea46ca76e426dcb719498fe6024.pdf

Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP42200_Installation_Manual.pdf

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP43200_User_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP55125_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP55125_Owners_User_Manual.pdf

Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QC2442M200C_User_Manual.pdf

RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP42200_RoHS.pdf

RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Telemecanique_XUZASK004_RoHS.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d6d80c25194d2513ce187b75f225b8f4e1d41fbc0a1118fcb684404eb7a4662d.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP42200_Specification_Sheet.pdf
