Square D™ NC50FHR

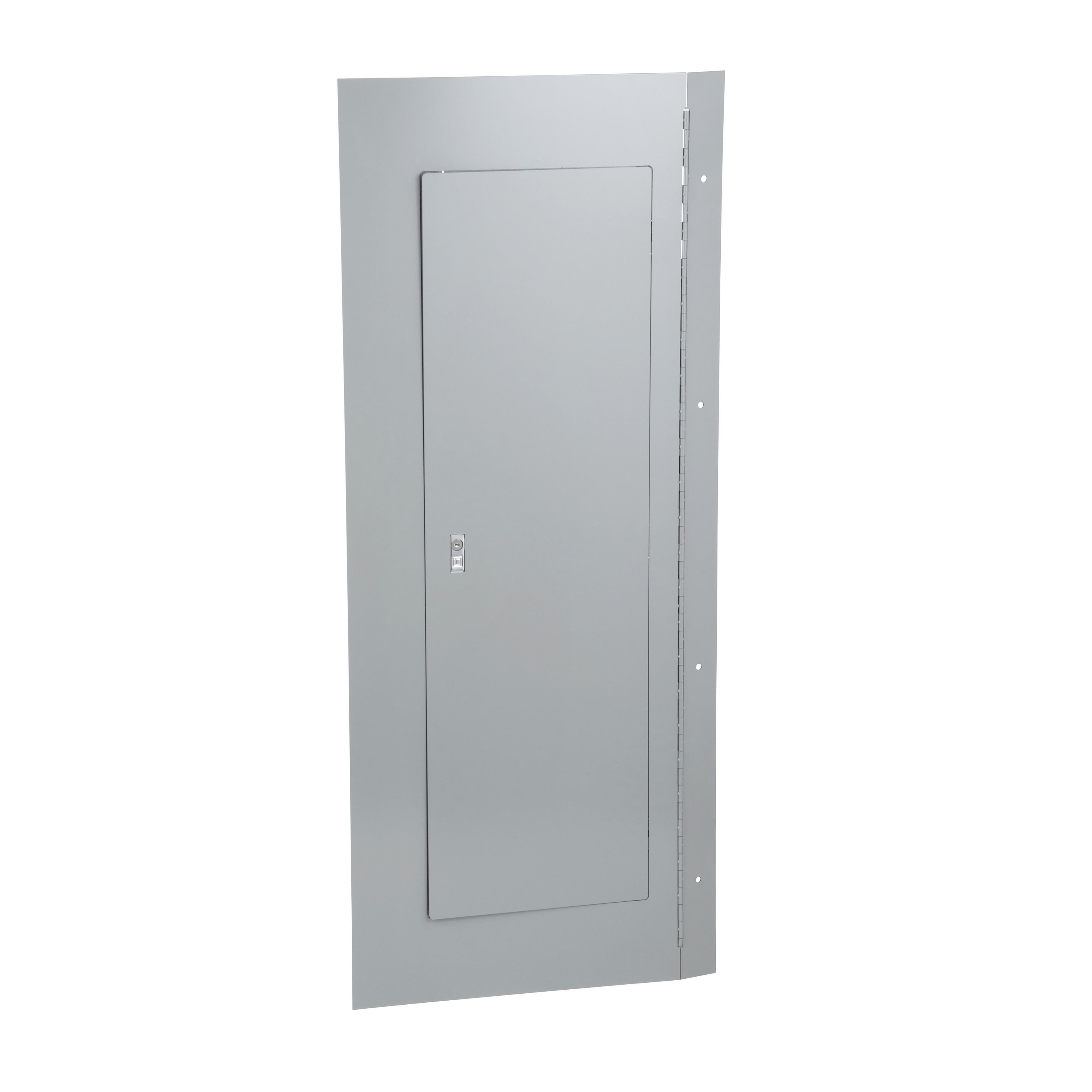

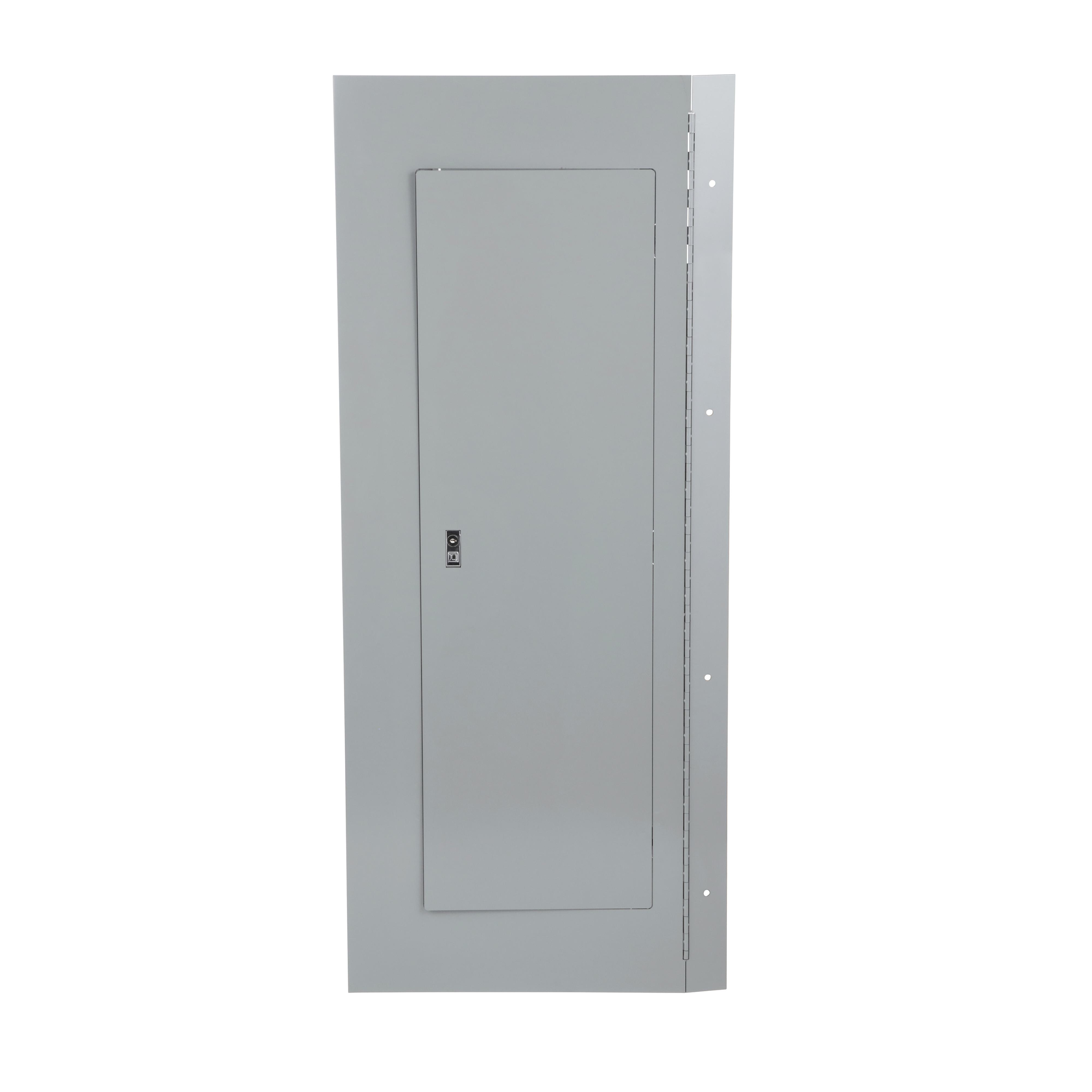

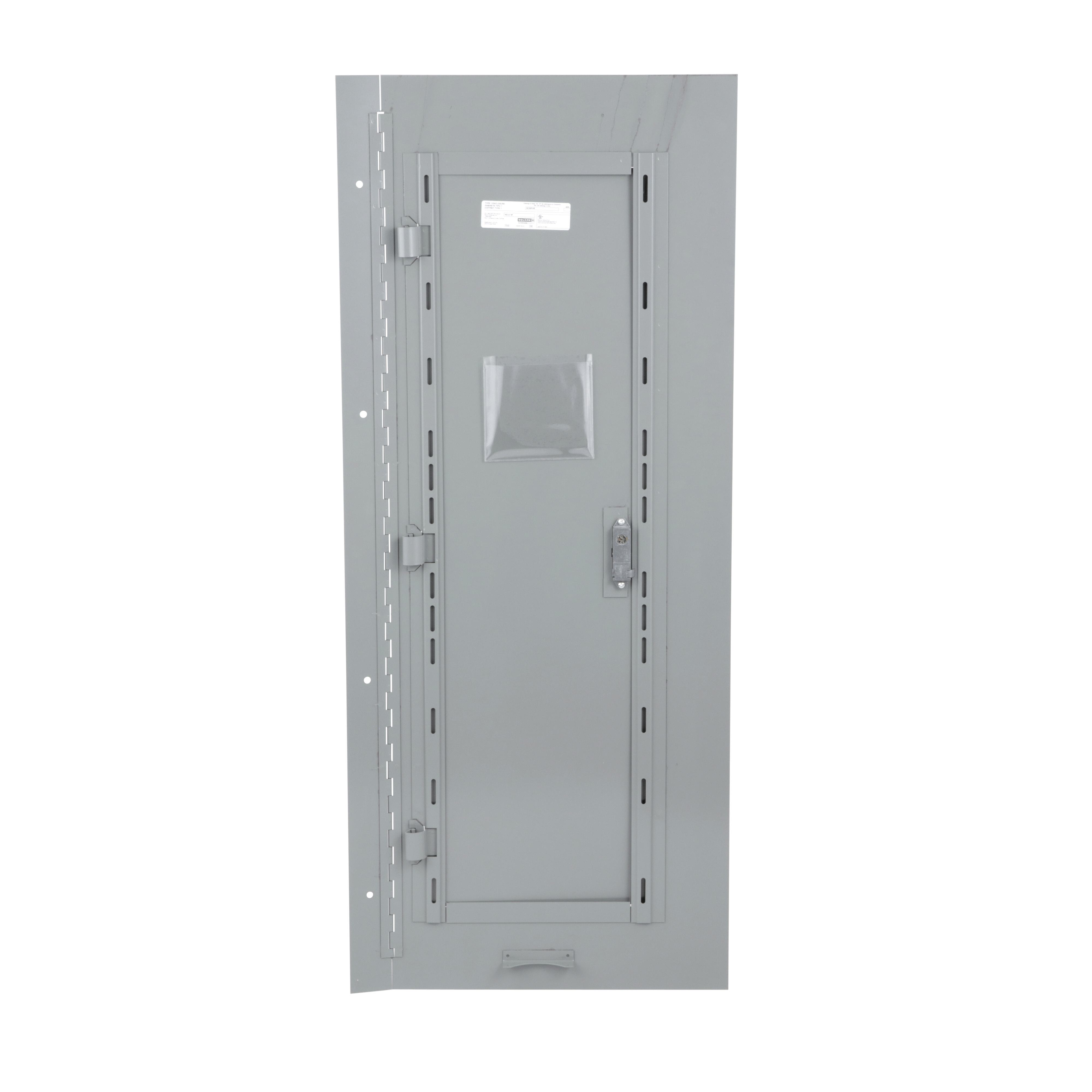

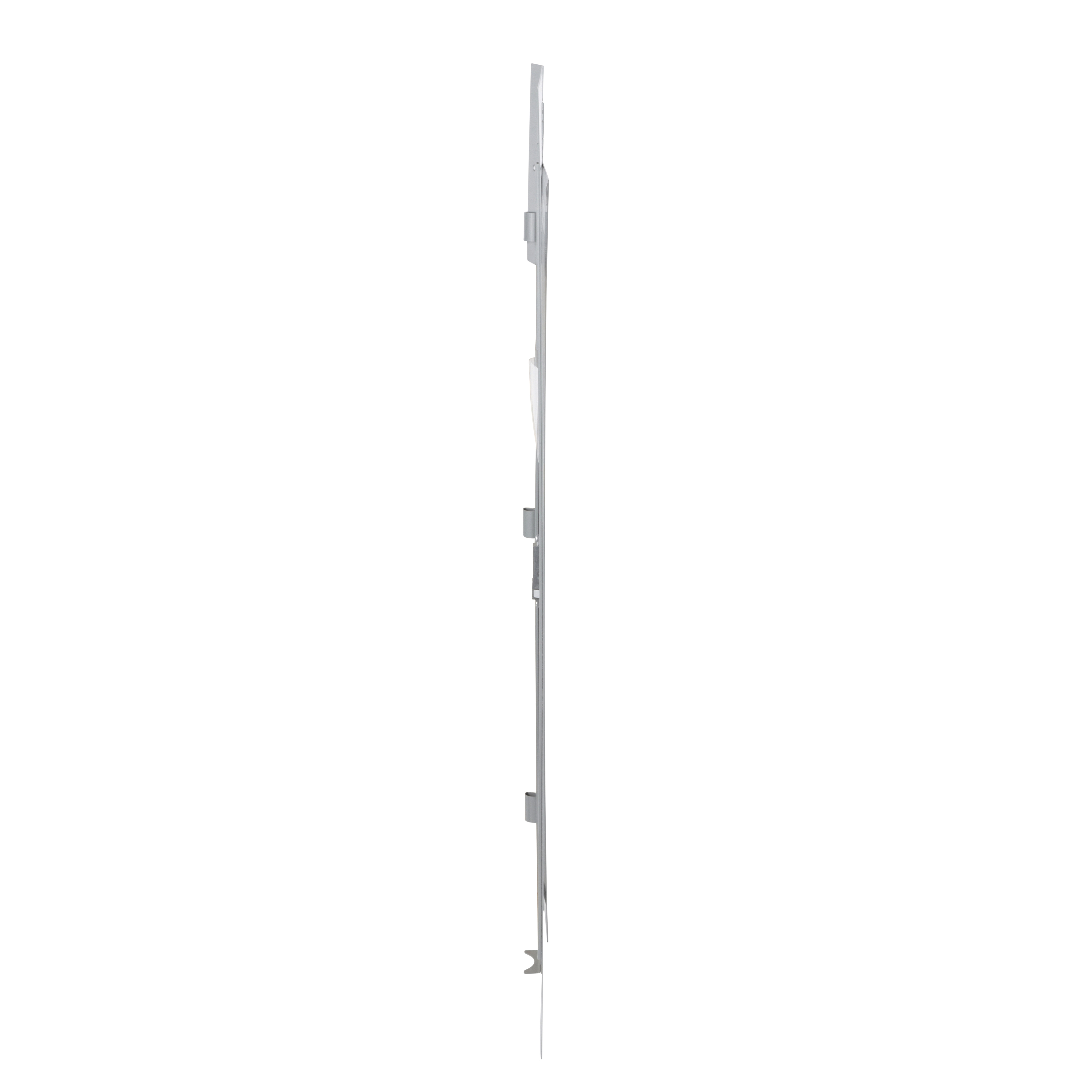

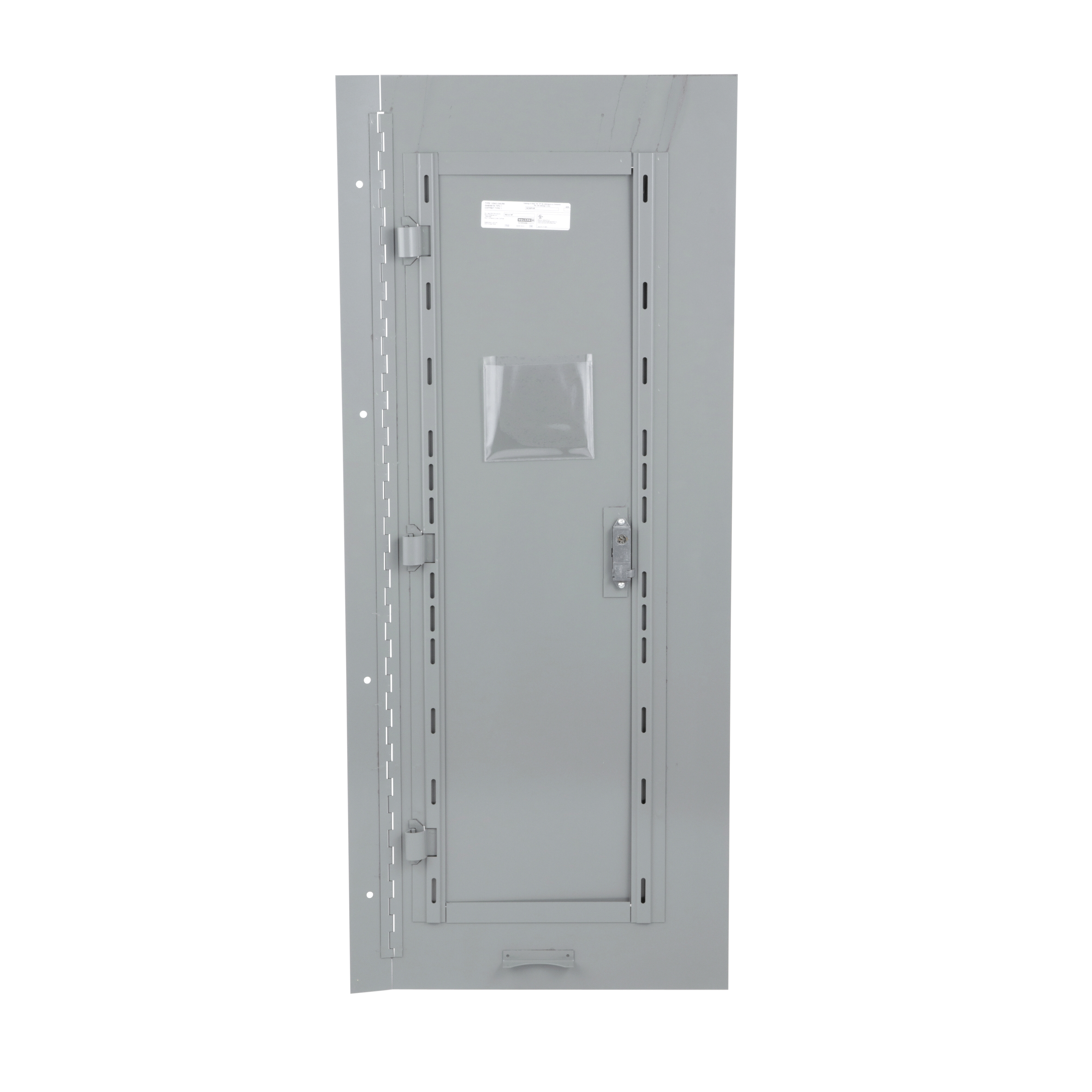

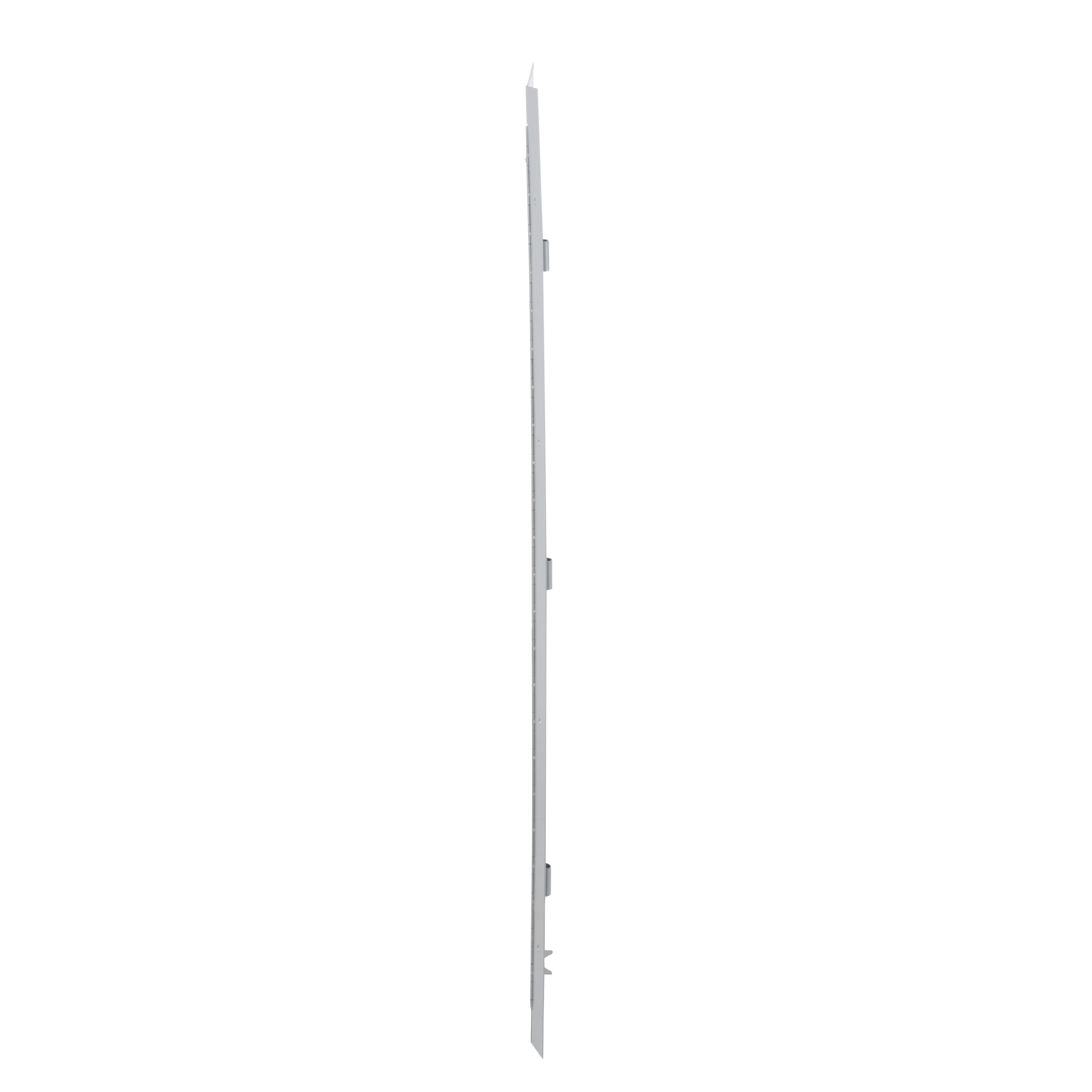

Square D™ NC50FHR Hinged Cover/Trim Kit, 50 in L x 20 in W, For Use With NQ/NF Series Main Lug Circuit Breaker Panelboard, Steel, Flush Mount
Brand: Square D™
Item ID: 382824
MPN: NC50FHR
UPC: 785901167488
Login for Price
Features
- Meets door in door specifications
- Provides continuous piano hinge
- Permits one person maintenance
- Right side of the trim being hinged
Description
Square D™ Cover/Trim Kit, Hinged, 50 in Length, 20 in Width, 5-3/4 in Depth, Flush Mounting, For Use With: NQ/NF Series Main Lug Circuit Breaker Panelboard, Steel, Gray
Specifications
Color |
Gray |
Depth |
5-3/4 in |
Length |
50 in |
Material |
Steel |
Mounting Type |
Flush |
Suitable For Use With |
NQ/NF Series Main Lug Circuit Breaker Panelboard |
Type |
Hinged |
Width |
20 in |
Standard Approval |
cULus Listed|UL 67|RoHS Compliant|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For panelboard component applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_99e4eb8cd29520f5e2058bb6f5de532c98be6dce4bc4af8f6ffb9e8a1d28795d.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7c2326c2bb0eef352f05440aac531ecb8fb5aaa275e05796bb7d7018a39619f6.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5b00a45c6efe1efd7ff98ccd4956241985d5a115051c41518d2311f4769a12f7.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC50F_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NC50FHR_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fe9fc1efe2f952baf8f68ffc82af3127977b4bb1afb94a4448a6998da495a658.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NC50FHR_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L6C_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NFN2CU_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NFN2CU_Technical_Bulletin.pdf
