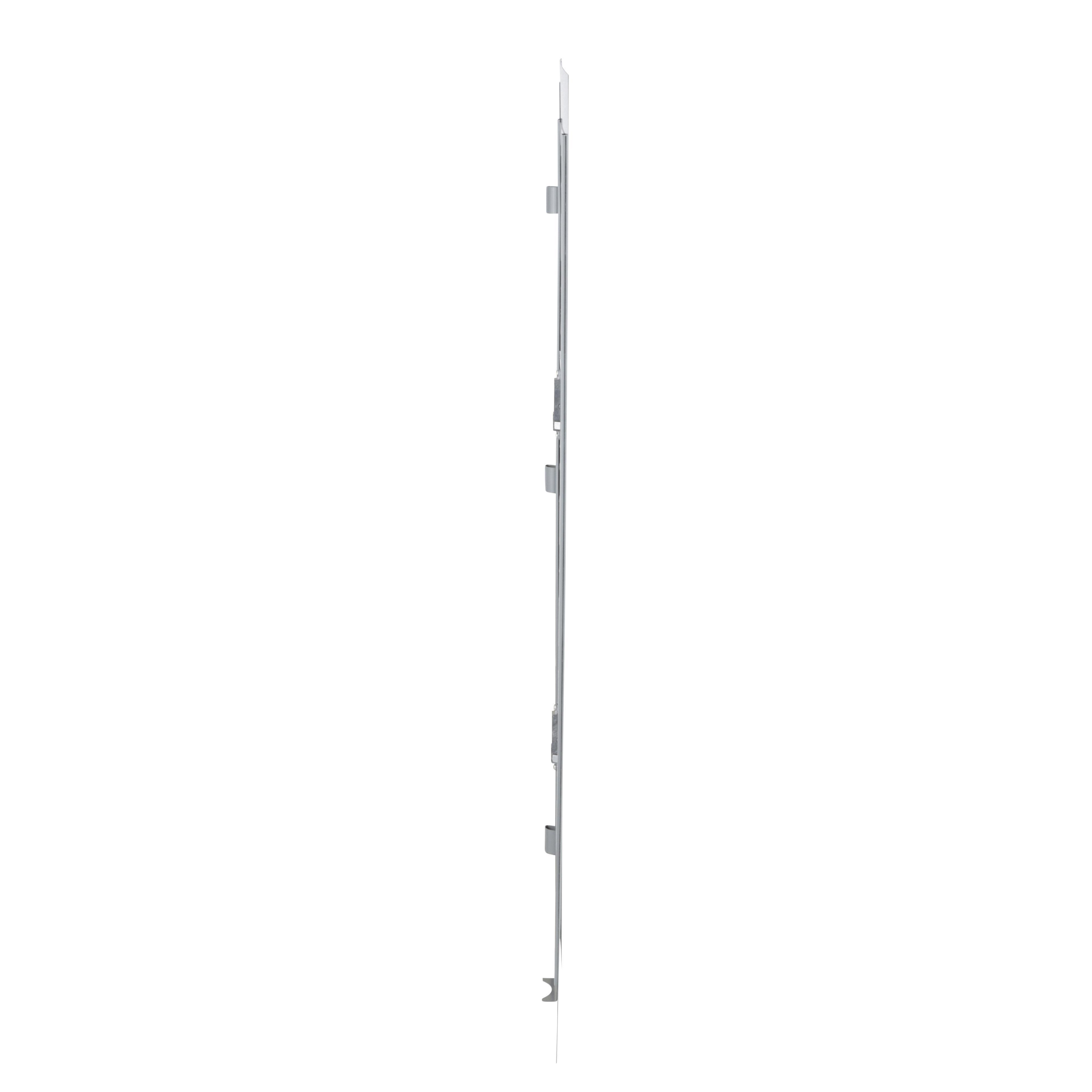

Square D™ NC56SHR
Square D™ NC56SHR Hinged Cover/Trim Kit, 56 in L x 20 in W, For Use With NQ/NF Series Main Lug Circuit Breaker Panelboard, Steel, Surface Mount
Brand: Square D™
Item ID: 80217
MPN: NC56SHR
UPC: 785901326397
Login for Price
Features
- Meets door in door specifications
- Provides continuous piano hinge
- Permits one person maintenance
- Right side of the trim being hinged
Description
Square D™ Cover/Trim Kit, Hinged, 56 in Length, 20 in Width, 5-3/4 in Depth, Surface Mounting, For Use With: NQ/NF Series Main Lug Circuit Breaker Panelboard, Steel, Gray
Specifications
Color |
Gray |
Depth |
5-3/4 in |
Length |
56 in |
Material |
Steel |
Mounting Type |
Surface |
Suitable For Use With |
NQ/NF Series Main Lug Circuit Breaker Panelboard |
Type |
Hinged |
Width |
20 in |
Standard Approval |
cULus Listed|UL 67|RoHS Compliant|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For panelboard component applications |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RWLED2T105_BL_Installation_Sheet.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC50F_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_32ee853106f6c102dc951cfe1fd655408d6ebde277b7b89821c42a61fedc74a9.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Technical_Bulletin.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
