Square D™ NC68VSHR

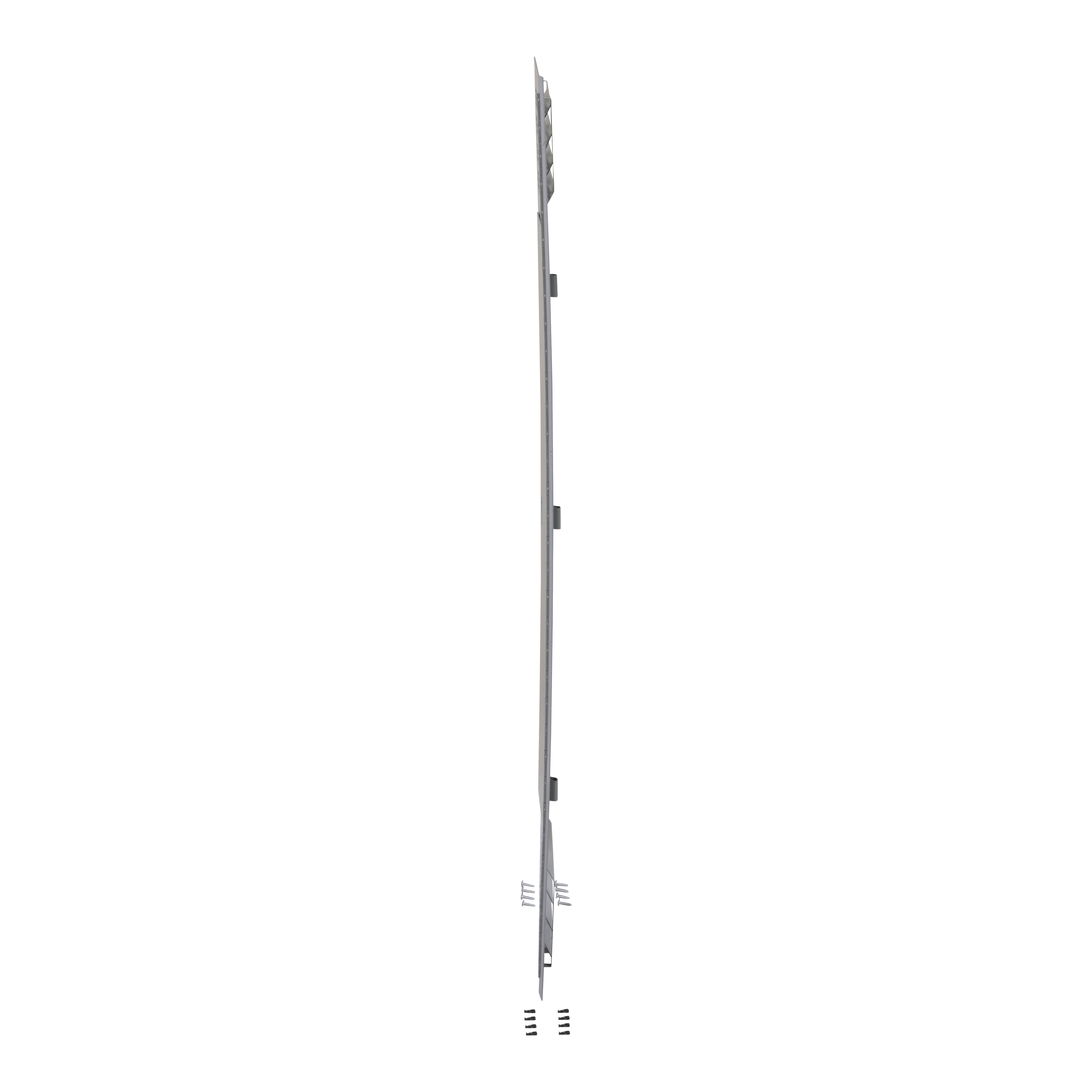

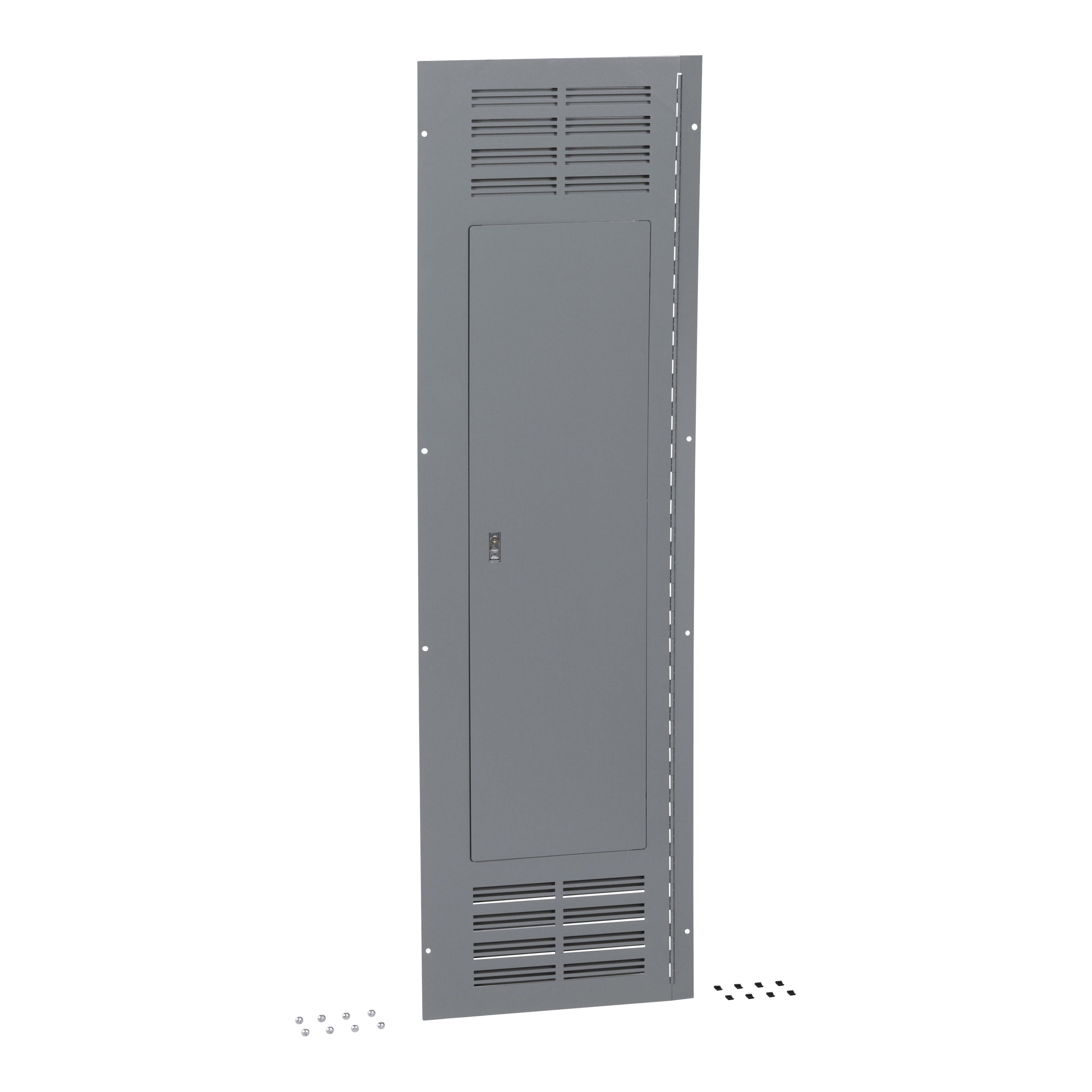

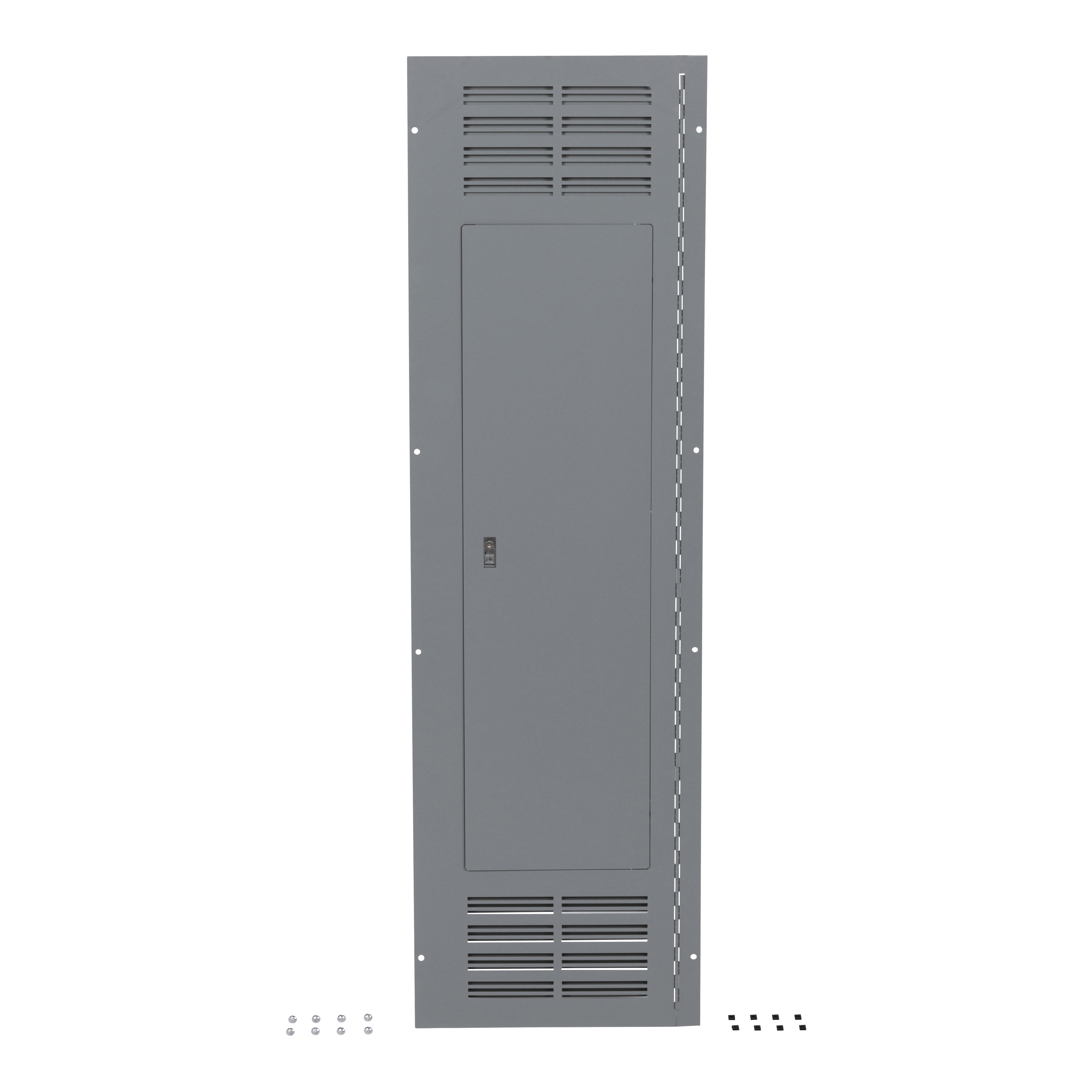

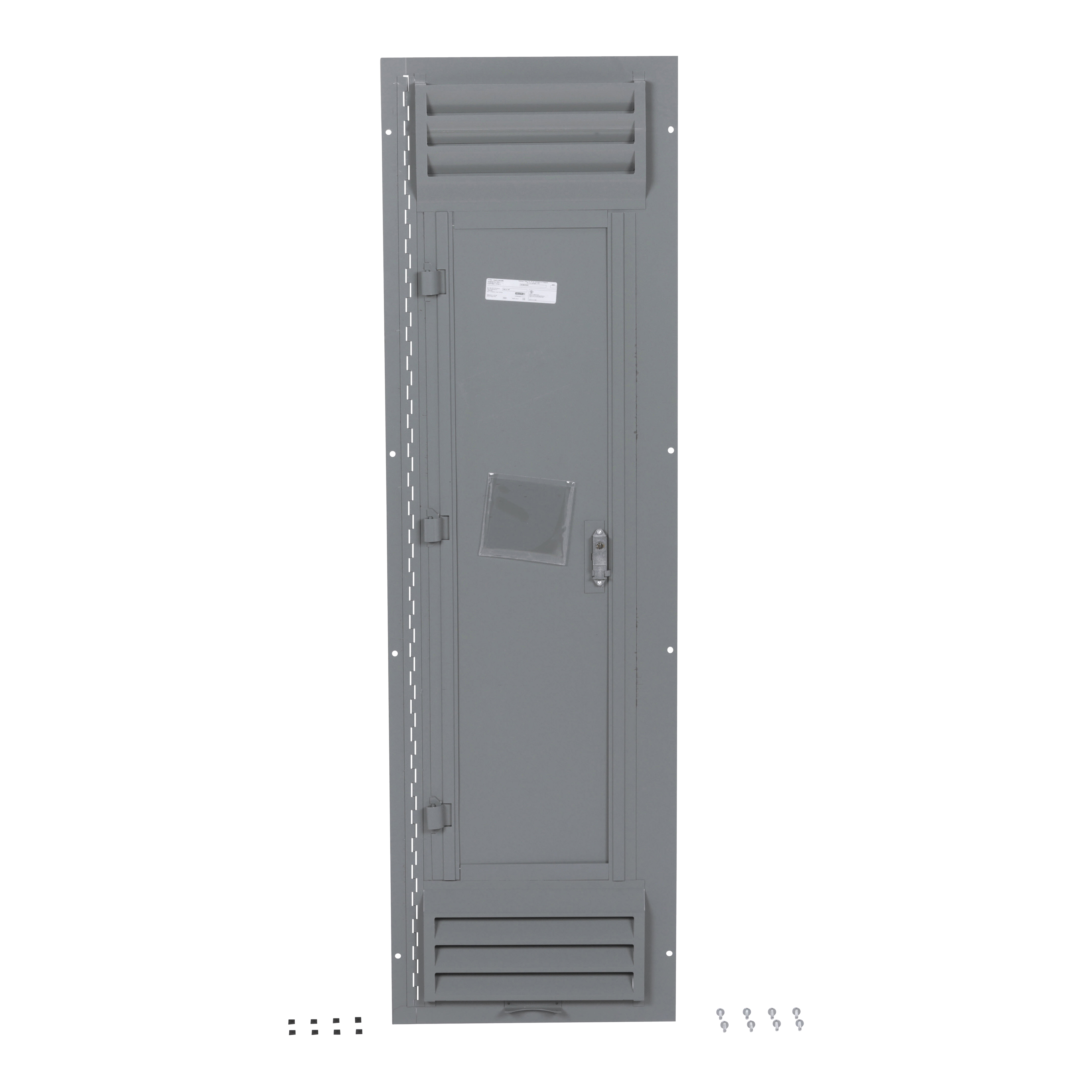

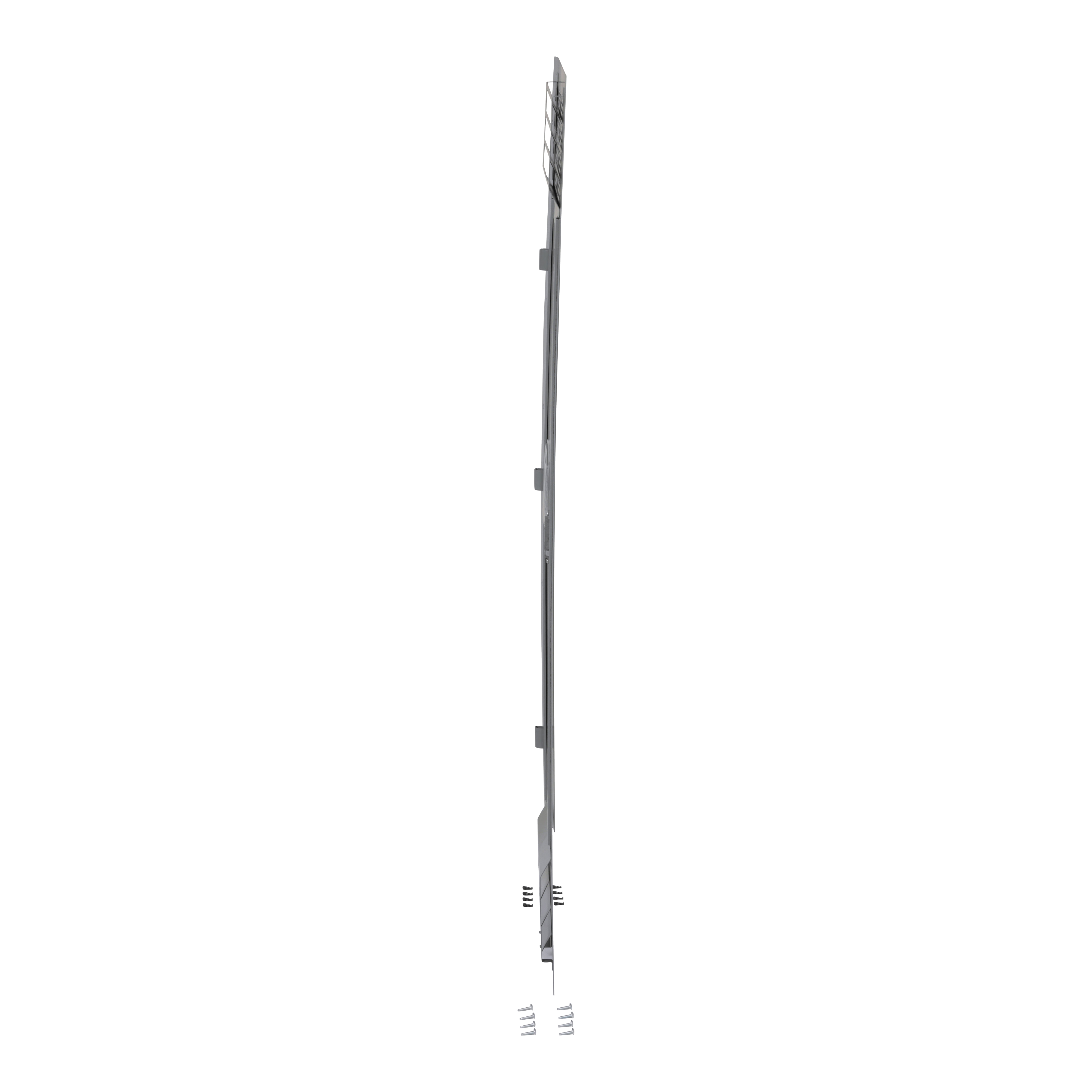

Square D™ NC68VSHR Hinged Ventilated Trim Front, 68 in L x 26 in W, For Use With NQ/NF Series Main Lug, Main Circuit Breaker and NF Series Main Circuit Breaker Panelboard, Steel, Surface Mount
Brand: Square D™
Item ID: 446569
MPN: NC68VSHR
UPC: 785901140306
Login for Price
Features
- Meets door in door specifications
- Provides continuous piano hinge
- Permits one person maintenance
- Right side of the trim being hinged
Description
Enclosure Cover - NQNF - Type 1 - Surface - Ventilated - Hinged - 20x68in
Square D™ Trim Front, Hinged Ventilated, 68 in Length, 26 in Width, 5-3/4 in Depth, Surface Mounting, For Use With: NQ/NF Series Main Lug, Main Circuit Breaker and NF Series Main Circuit Breaker Panelboard, Steel, Gray
Specifications
Color |
Gray |
Depth |
5-3/4 in |
Length |
68 in |
Material |
Steel |
Mounting Type |
Surface |
Suitable For Use With |
NQ/NF Series Main Lug, Main Circuit Breaker and NF Series Main Circuit Breaker Panelboard |
Type |
Hinged Ventilated |
Width |
26 in |
Standard Approval |
cULus Listed|UL 67|RoHS Compliant|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bab8e82378b456ab03854c1f193846ca7003e0243a6f87e96aabd3969302c74e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF6RDE_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC50F_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DP42V06_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4a227bceaf2d6135bc3dad27f38f0ac8fecef2cc9daad19b1af7da6d151bd0fb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ204S_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ204S_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC50F_Technical_Bulletin.pdf
