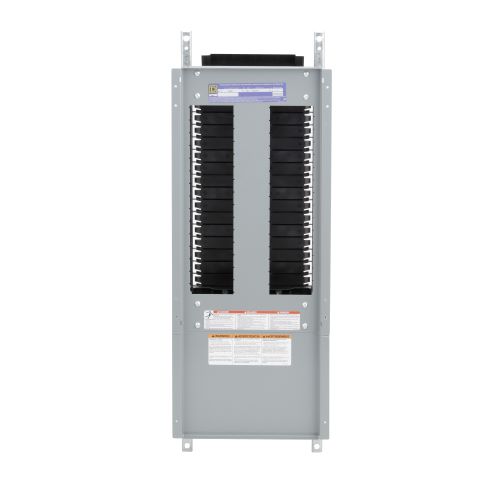

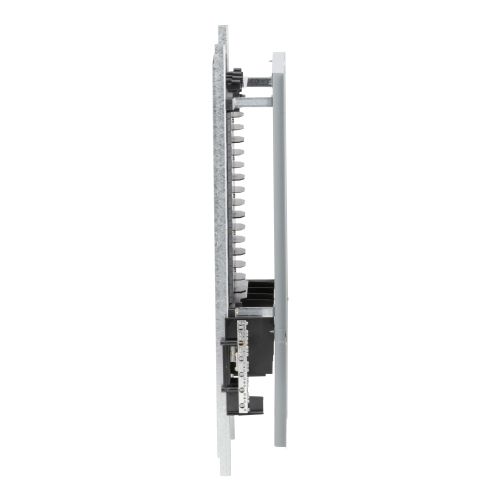

Square D™ NF430L2
Square D™ NF430L2 NF Series Main Lug Panelboard Interior, 480Y/277 VAC, 250 A, 30 Spaces, 100000 A Short Circuit
Brand: Square D™
Item ID: 544515
MPN: NF430L2
Login for Price
Features
- 3-phase
- 50, 38 in enclosure nominal height
- 20 in enclosure nominal width
- Bottom connection
- Main lugs only
Description
Square D™, NF430L2, Panelboard Interior, Main Lug, Series: NF Series, 480Y/277 VAC, 250 A, 30 Spaces, 100000 A Short Circuit, EDB Breaker, Bolt-On Breaker Mounting, 4-Wire Wiring Configuration, Aluminum Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, 33 in H x 10-7/16 in W x 5-3/4 in D Dimensions
Specifications
Amperage Rating |
250 A |
Breaker Mounting |
Bolt-On |
Breaker Type |
EDB |
Bus Material |
Aluminum |
Dimensions |
33 in H x 10-7/16 in W x 5-3/4 in D |
Enclosure Type |
NEMA 1/3R/5/12 |
Housing Material |
Aluminum |
Mounting Type |
Panel |
Number of Spaces |
30 |
Series |
NF Series |
Short Circuit Current Rating |
100000 A |
Type |
Main Lug |
Voltage Rating |
480Y/277 VAC |
Wiring Configuration |
4-Wire |
Standard Approval |
UL Listed |
Application |
For use in I-Line™ panelboards |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF430L2_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF430L2_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF430L2_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF430L2_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L6C_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L6C_Technical_Bulletin.pdf
