Square D™ NF442L2

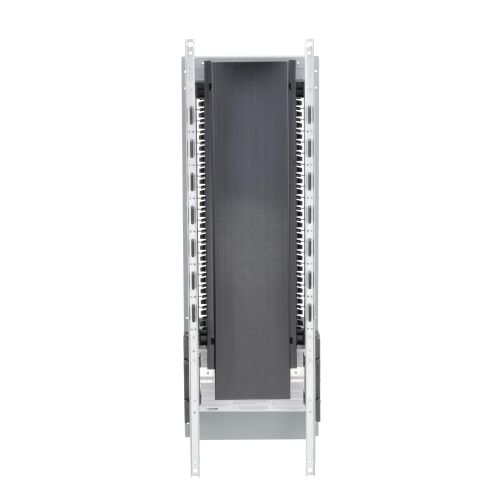

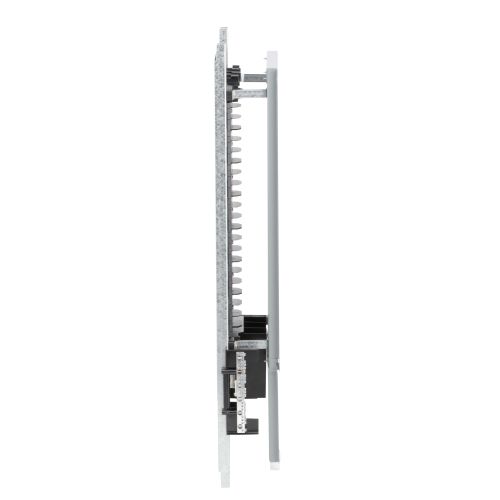

Square D™ NF442L2 NF Series Bottom Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 250 A, 42 Spaces, 100000 A Short Circuit
Brand: Square D™
Item ID: 55939
MPN: NF442L2
Login for Price
Features
- Bottom connection
- Main lugs only
- 20 in enclosure nominal width
- 3-phase
- 44, 56 in enclosure nominal height
Description
NF Panelboard, interior, main lug, 250 A, 3 PH, 4 wire, 42 CCT, Al
Square D™, NF442L2, Bottom Panelboard Interior, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 250 A, 42 Spaces, 100000 A Short Circuit, EDB Breaker, Bolt-On Breaker Mounting, 4-Wire Wiring Configuration, Aluminum Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, 56 in H x 20 in W x 5-3/4 in D Dimensions
Specifications
Amperage Rating |
250 A |
Breaker Mounting |
Bolt-On |
Breaker Type |
EDB |
Bus Material |
Aluminum |
Dimensions |
56 in H x 20 in W x 5-3/4 in D |
Enclosure Type |
NEMA 1/3R/5/12 |
Housing Material |
Aluminum |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NF Series |
Short Circuit Current Rating |
100000 A |
Type |
3-Phase Bottom |
Voltage Rating |
480Y/277 VAC, 600Y/347 VAC |
Wiring Configuration |
4-Wire |
Standard Approval |
BAA Compliant|RoHS Compliant|ECCN EAR99|UL 67|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For use with I-Line™ panelboards |
