Square D™ NF442L2C

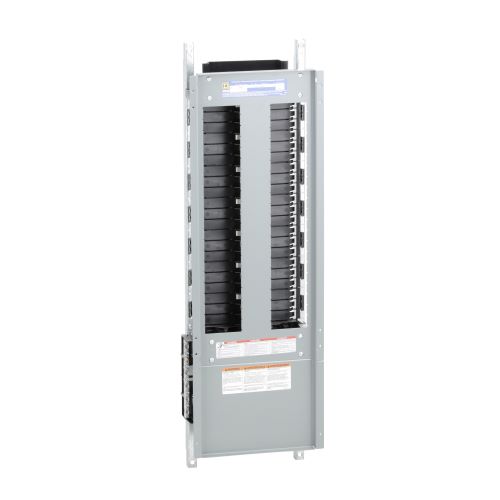

Square D™ I-Line™ NF442L2C NF Series 3-Phase Bottom Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 250 A, 42 Spaces, 100 kA SCCR
Brand: Square D™
Item ID: 55940
MPN: NF442L2C
Login for Price
Features
- Bottom service feed location
- Convertible main lug/main breaker
- LAL/LHL main breaker
- EDB branch breaker
- Branch breaker mounting bolt-on
Description
Square D™ I-Line™ Panelboard Interior, 3-Phase Bottom, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 250 A, 42 Spaces, Short Circuit Current Rating: 100 kA, EDB/LAL/LHL Breaker, 4-Wire Wiring Configuration, Copper Bus, Panel Mount, NEMA 1/3R/5/12, Copper Housing, 20 in W x 5-3/4 in D x 39 in H
Specifications
Amperage Rating |
250 A |
Breaker Type |
EDB/LAL/LHL |
Bus Material |
Copper |
Dimensions |
20 in W x 5-3/4 in D x 39 in H |
Enclosure Type |
NEMA 1/3R/5/12 |
Housing Material |
Copper |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NF Series |
Short Circuit Current Rating |
100 kA |
Type |
3-Phase Bottom |
Voltage Rating |
480Y/277 VAC, 600Y/347 VAC |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL 67|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HID_115_V_EX39_840_BYP_HB_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF442L2C_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e7f2afd99e4a5c807c8fb4e02695c1f832dc9981c790a8bef2b05283d502db4e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF442L2C_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L2C_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NF466L6C_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NFN2CU_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NFN2CU_Technical_Bulletin.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
