Square D™ NF454L2C

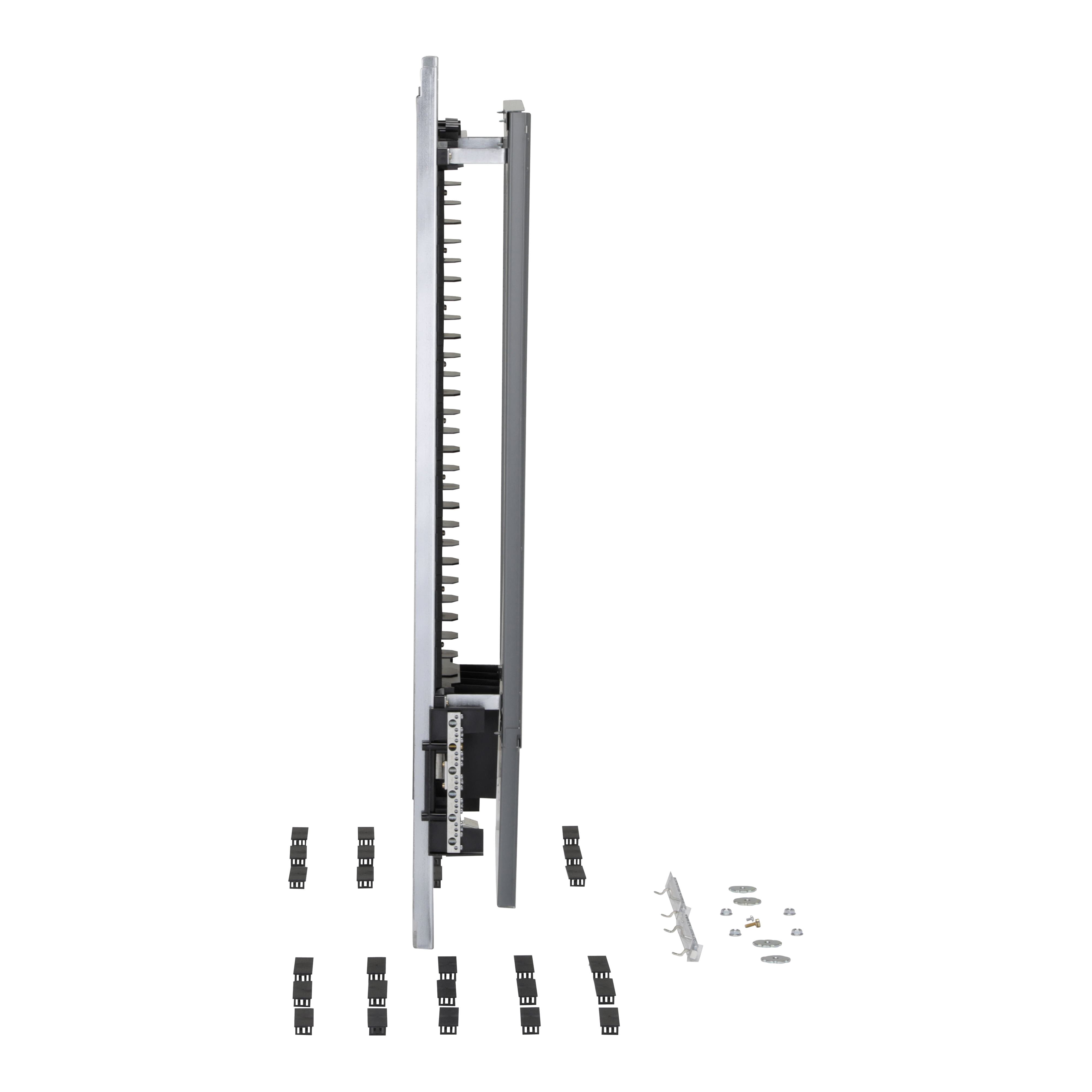

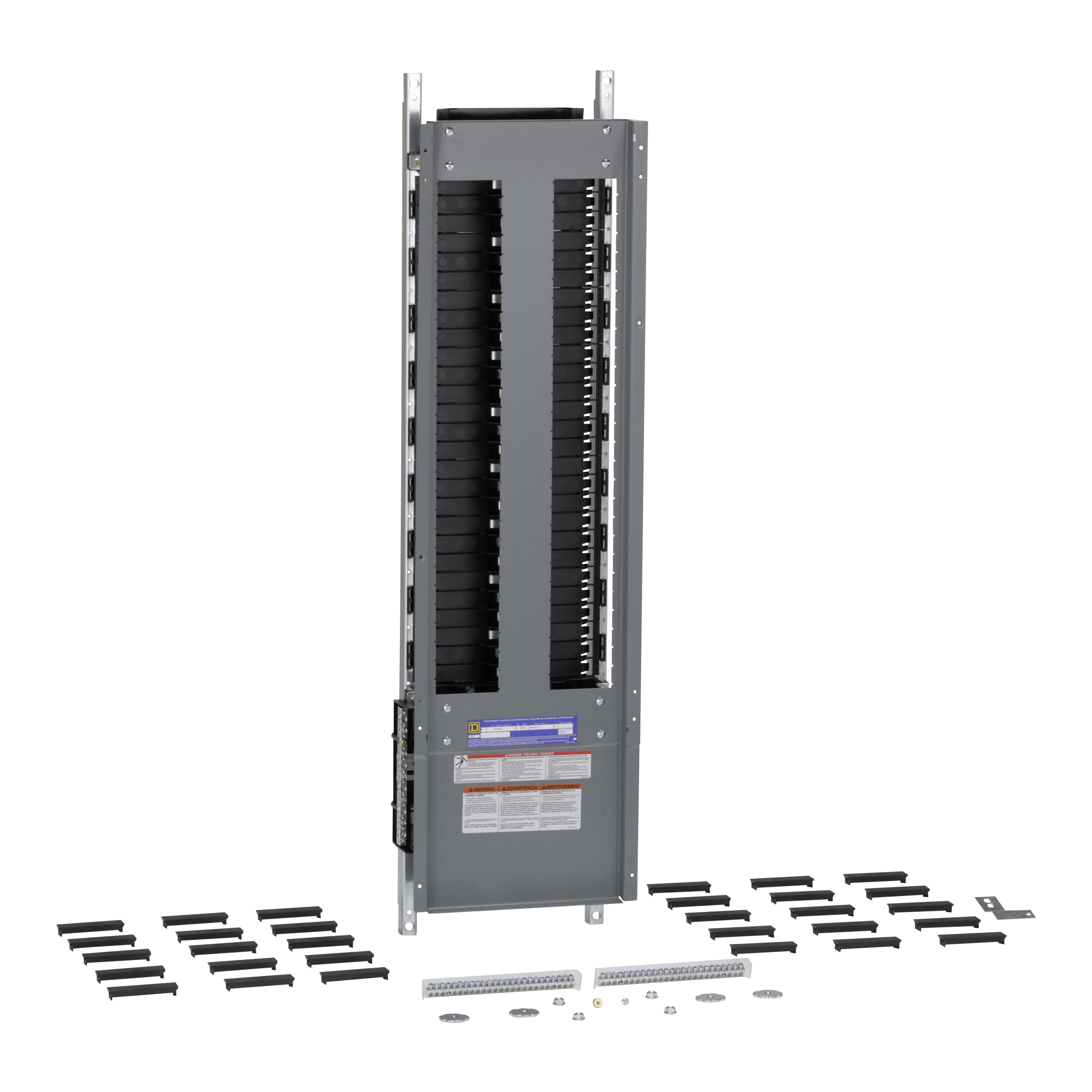

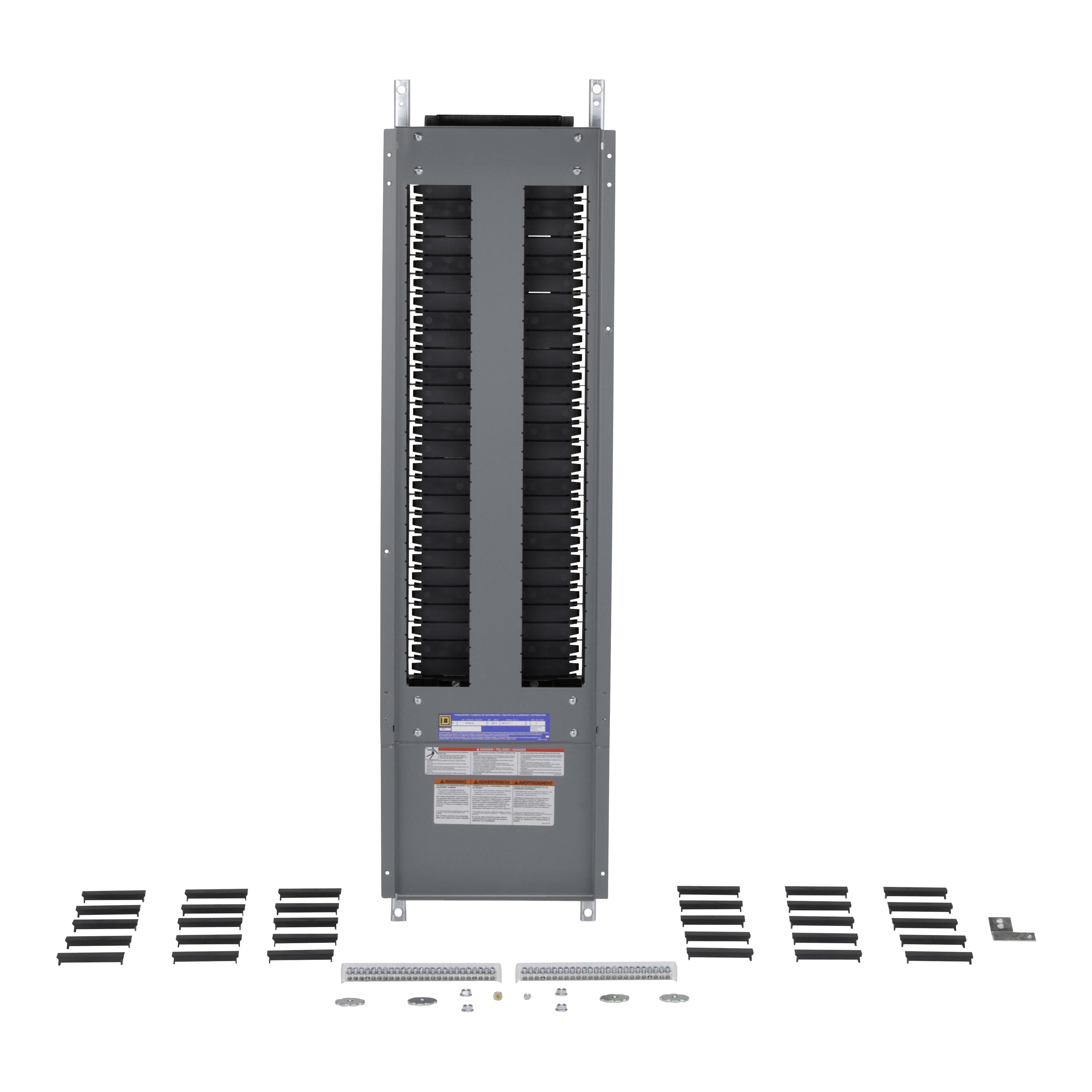

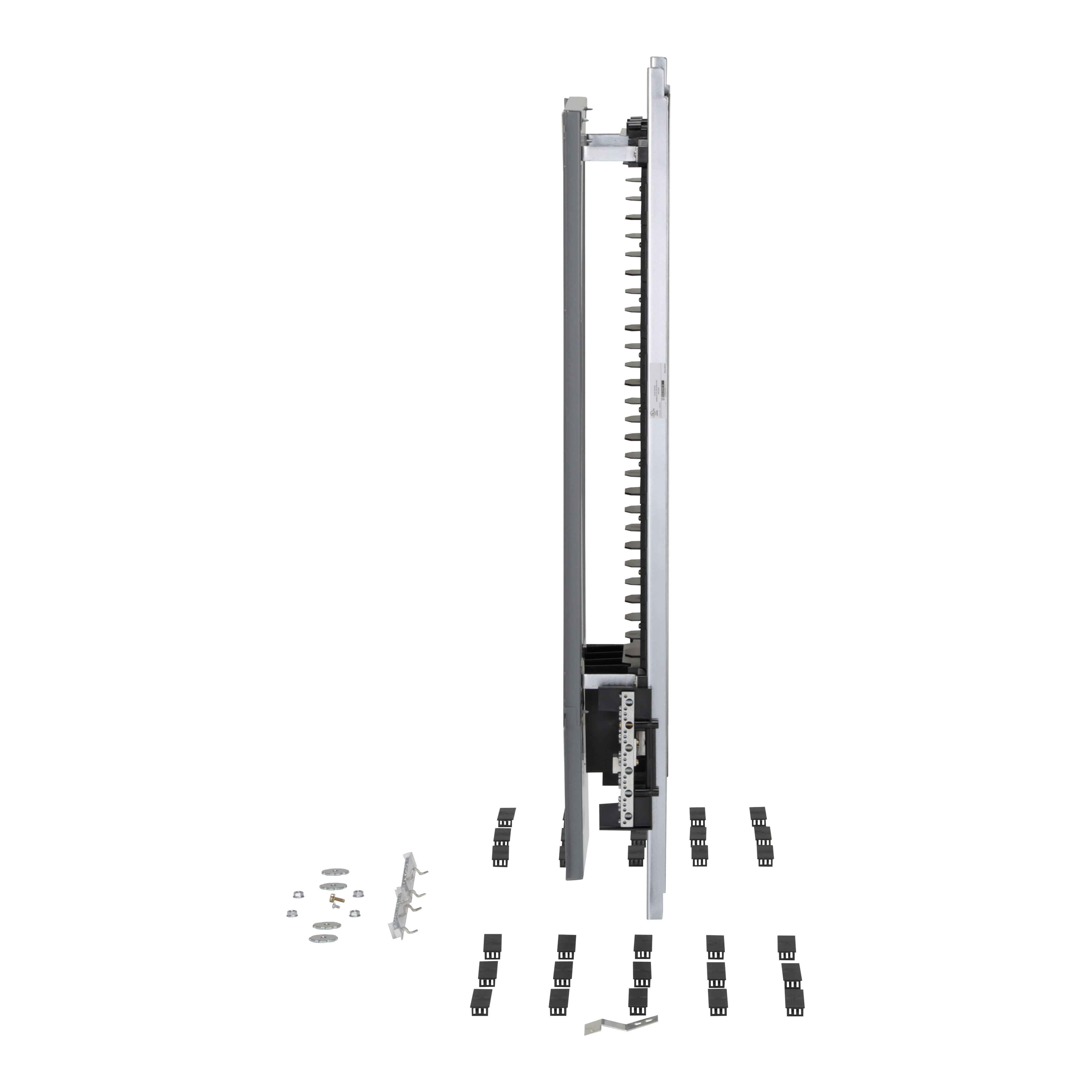

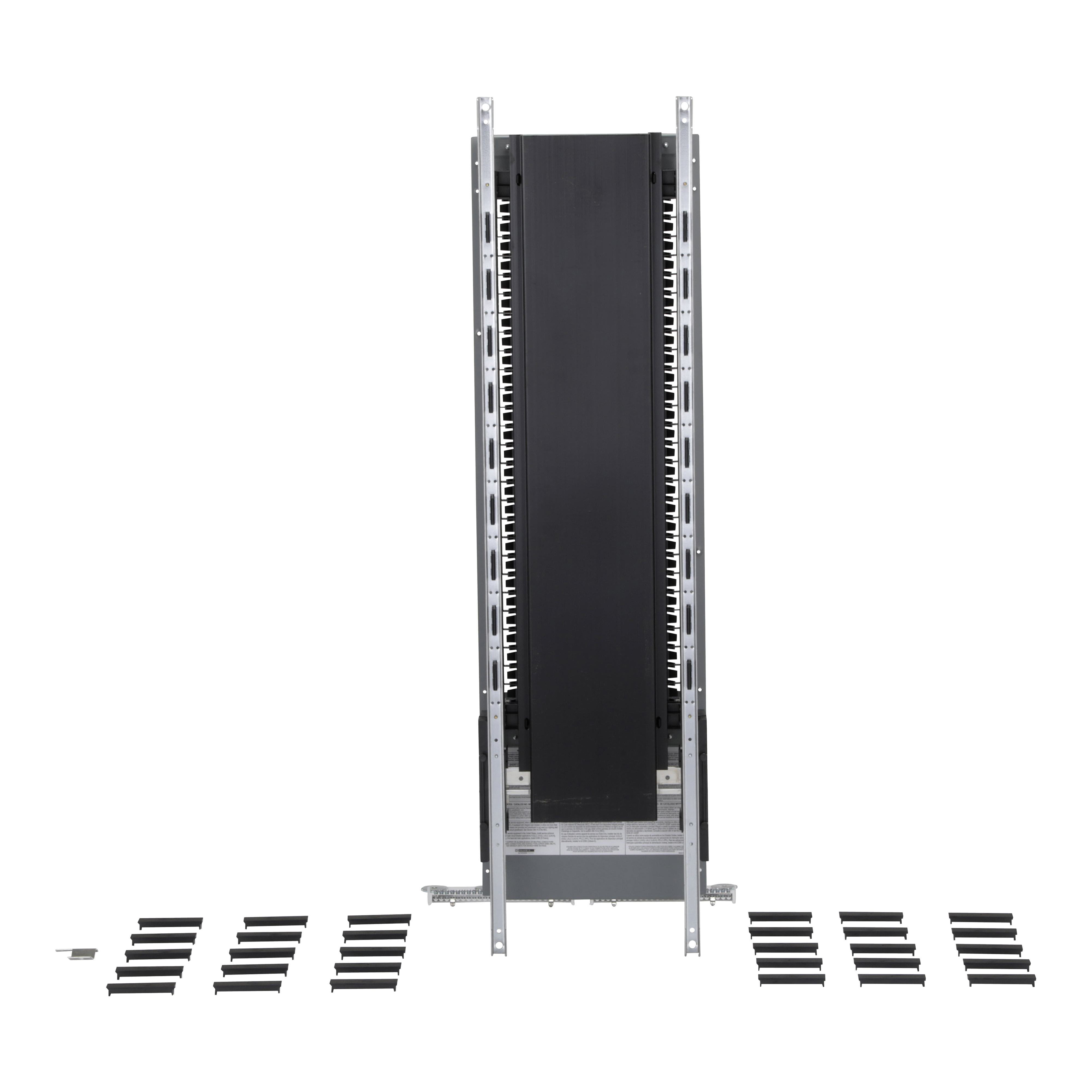

Square D™ NF454L2C Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 250 A, 54 Spaces
Brand: Square D™
Item ID: 453115
MPN: NF454L2C
UPC: 785901401209
Login for Price
Description
Square D™ Panelboard Interior, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 250 A, 54 Spaces, EDB/EDG/EDJ Breaker, Bolt-On Breaker Mounting, 3-Phase, 4-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, 56 in H x 20 in W Dimensions
Specifications
Amperage Rating |
250 A |
Breaker Mounting |
Bolt-On |
Breaker Type |
EDB/EDG/EDJ |
Bus Material |
Copper |
Dimensions |
56 in H x 20 in W |
Enclosure Type |
NEMA 1/3R/5/12 |
Mounting Type |
Panel |
Number of Spaces |
54 |
Series |
NF Series |
Voltage Rating |
480Y/277 VAC, 600Y/347 VAC |
Wiring Configuration |
3-Phase, 4-Wire |
Standard Approval |
RoHS Compliant|UL 67|CSA C22.2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For main lug load center |
