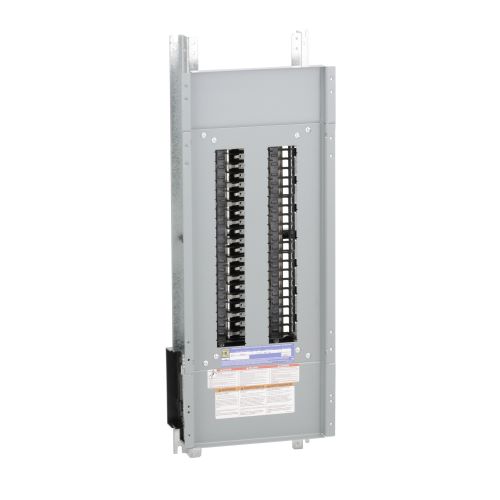

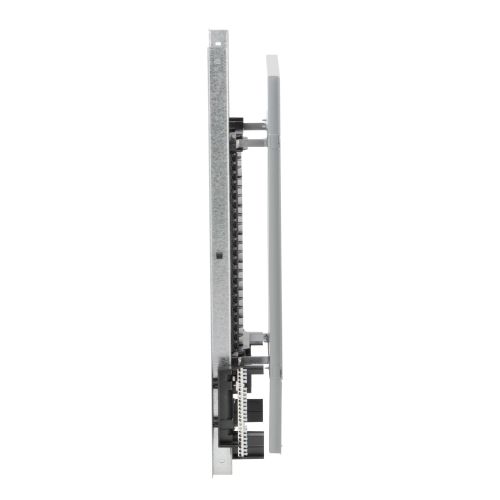

Square D™ NQ42L2C
Square D™ NQ42L2C NQ Series 1-Phase Panelboard Interior, 240 VAC/48 VDC, 225 A, 42 Spaces, 100 kA SCCR
Brand: Square D™
Item ID: 375888
MPN: NQ42L2C
Login for Price
Description
Square D™ Panelboard Interior, 1-Phase, Series: NQ Series, 240 VAC/48 VDC, 225 A, 42 Spaces, Short Circuit Current Rating: 100 kA, QB/QD/QJ/QL Breaker, 3-Wire Wiring Configuration, Silver Plated Copper Bus, Panel Mount, Copper Housing, 20 in W x 6-1/2 in D x 38 in H
Specifications
Amperage Rating |
225 A |
Breaker Type |
QB/QD/QJ/QL |
Bus Material |
Silver Plated Copper |
Dimensions |
20 in W x 6-1/2 in D x 38 in H |
Housing Material |
Copper |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NQ Series |
Short Circuit Current Rating |
100 kA |
Type |
1-Phase |
Voltage Rating |
240 VAC/48 VDC |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|CSA Certified|UL 67|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c50f67c6506a08de39d92bbed10d64855bca254579be71060a388e9fb306652b.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L2C14_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_809b2e60d28b01a07a6202056cba2d36b2335114ce7c06152b8546552564cfcf.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC6SNCU_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW8SNCU_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_ADRI0221C24SW_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ42L2C_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed9598ea453a18e05a2dc4e74d9101694689bfa04f5a300d743d8734229b9729.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ42L2C_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ430L4_Technical_Bulletin.pdf
