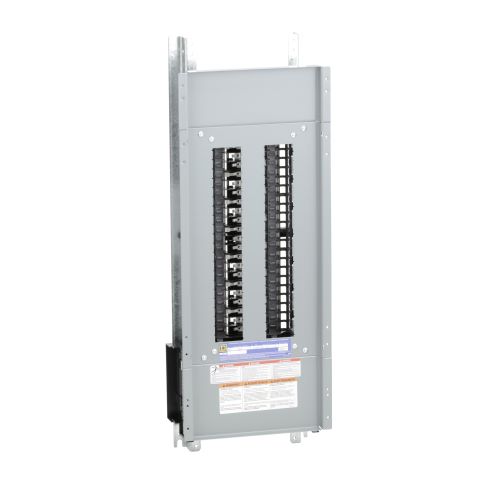

Square D™ NQ442L2
Square D™ NQ442L2 NQ Series 3-Phase Panelboard Interior, 240 VAC/48 VDC, 225 A, 42 Spaces, 100 kA SCCR
Brand: Square D™
Item ID: 405920
MPN: NQ442L2
Login for Price
Features
- Main lug, convertible
- 20 in W enclosure
Description
Square D™ Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC/48 VDC, 225 A, 42 Spaces, Short Circuit Current Rating: 100 kA, QB/QD/QJ/QL Breaker, 4-Wire Wiring Configuration, Tin Plated Aluminum Bus, Panel Mount, NEMA 1/3R/5/12, Aluminum Housing, 20 in W x 5-3/4 in D x 38 in H
Specifications
Amperage Rating |
225 A |
Breaker Type |
QB/QD/QJ/QL |
Bus Material |
Tin Plated Aluminum |
Dimensions |
20 in W x 5-3/4 in D x 38 in H |
Enclosure Type |
NEMA 1/3R/5/12 |
Housing Material |
Aluminum |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NQ Series |
Short Circuit Current Rating |
100 kA |
Type |
3-Phase |
Voltage Rating |
240 VAC/48 VDC |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|CSA Certified|UL 67|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
