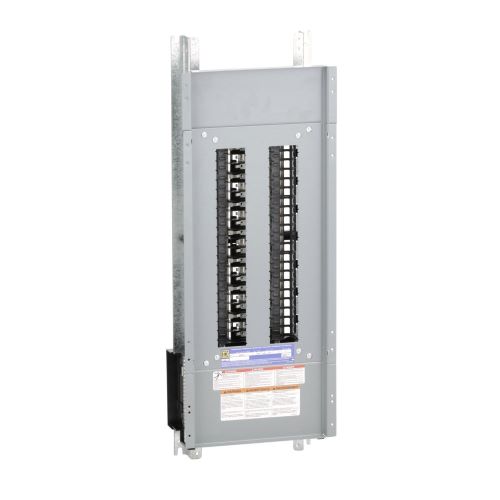

Square D™ NQ442L2C
Square D™ NQ442L2C NQ Series 3-Phase Panelboard Interior, 240 VAC/48 VDC, 225 A, 42 Spaces, 100 kA SCCR
Brand: Square D™
Item ID: 375889
MPN: NQ442L2C
Login for Price
Description
Square D™ Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC/48 VDC, 225 A, 42 Spaces, Short Circuit Current Rating: 100 kA, QB/QD/QJ/QL Breaker, 4-Wire Wiring Configuration, Silver Plated Copper Bus, Panel Mount, Copper Housing, 20 in W x 6-1/2 in D x 38 in H
Specifications
Amperage Rating |
225 A |
Breaker Type |
QB/QD/QJ/QL |
Bus Material |
Silver Plated Copper |
Dimensions |
20 in W x 6-1/2 in D x 38 in H |
Housing Material |
Copper |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NQ Series |
Short Circuit Current Rating |
100 kA |
Type |
3-Phase |
Voltage Rating |
240 VAC/48 VDC |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|CSA Certified|UL 67|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4b12e3aeafbe80e7415f69c3a66d5aa97386ac05b412004e879794aae4db87b8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L2C14_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC6SNCU_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW8SNCU_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ442L2C_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4e59fcd610a2abf904484784c8146b1aab12015be740131008009df9f493d0fa.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ442L2C_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ430L4_Technical_Bulletin.pdf
