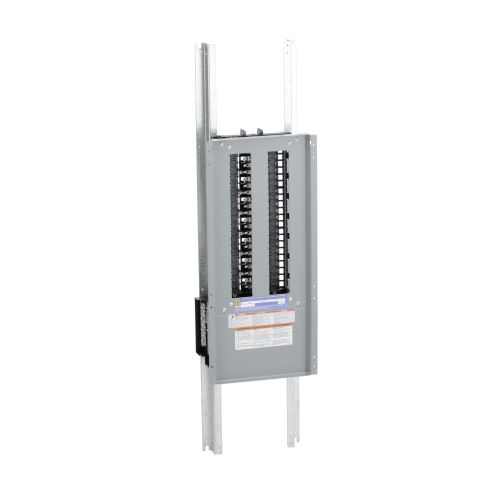

Square D™ NQ442L4
Square D™ NQ442L4 NQ Series 3-Phase Panelboard Interior, 240 VAC/48 VDC, 400 A, 42 Spaces, 100000 A SCCR
Brand: Square D™
Item ID: 442950
MPN: NQ442L4
Login for Price
Features
- Accepts plug-on and bolt-on circuit breakers
- 20 in W enclosure
- Main lugs only
Description
Square D™ Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC/48 VDC, 400 A, 42 Spaces, Short Circuit Current Rating: 100000 A, LA/LH Breaker, 4-Wire Wiring Configuration, Tin Plated Aluminum Bus, Panel Mount, NEMA 1/3R/5/12, Aluminum Housing, 20 in W x 5-3/4 in D x 50 in H
Specifications
Amperage Rating |
400 A |
Breaker Type |
LA/LH |
Bus Material |
Tin Plated Aluminum |
Dimensions |
20 in W x 5-3/4 in D x 50 in H |
Enclosure Type |
NEMA 1/3R/5/12 |
Housing Material |
Aluminum |
Mounting Type |
Panel |
Number of Spaces |
42 |
Series |
NQ Series |
Short Circuit Current Rating |
100000 A |
Type |
3-Phase |
Voltage Rating |
240 VAC/48 VDC |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL 67|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
Lighting and Distribution Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4526510e07e1c5af84f8268ae9877844185927e85b62c61c4788d8b3c95e1a7e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L2C14_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC6SNCU_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW8SNCU_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XS518B1MBU20_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ442L4_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b4c66bef3887050018a381d583245c91f9115d908d189fb452c510f7b87c44cc.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ442L4_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ430L4_Technical_Bulletin.pdf
