Square D™ NQ454L4C

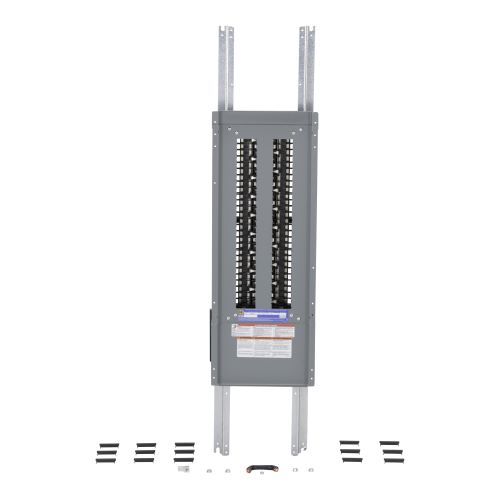

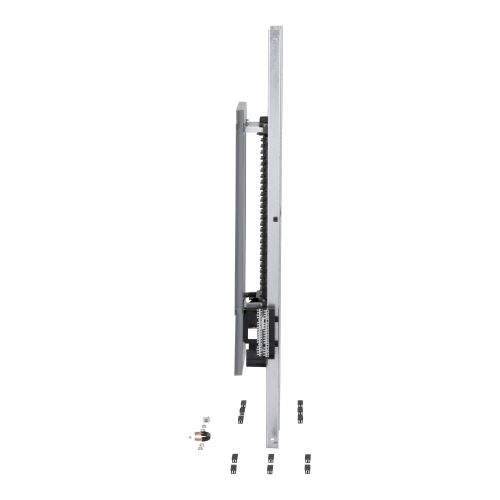

Square D™ NQ454L4C 3-Phase Panelboard Interior, 240 VAC, 48 VDC, 400 A, 54 Spaces
Brand: Square D™
Item ID: 459187
MPN: NQ454L4C
Login for Price
Description
Square D™ Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC, 48 VDC, 400 A, 54 Spaces, Bolt-On/Plug-On Breaker Mounting, 4-Wire Wiring Configuration, Copper Bus
Specifications
Amperage Rating |
400 A |
Breaker Mounting |
Bolt-On/Plug-On |
Bus Material |
Copper |
Number of Spaces |
54 |
Series |
NQ Series |
Type |
3-Phase |
Voltage Rating |
240 VAC, 48 VDC |
Wiring Configuration |
4-Wire |
Standard Approval |
PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8edfadeb27fa3daa2433e7ef0d1f8bbd470a9502373b0191f74f19b0c4fc5626.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L2C14_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HC6SNCU_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW12SN_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HCW8SNCU_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_NSYTRV24DBL_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ454L4C_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fa19a560c2eb1ac25f2f1dcc184311f489ef01805ee7ce4f612b0857e8b8deb6.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ454L4C_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1C_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ18L1_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ430L4_Technical_Bulletin.pdf
