Square D™ NQ472L4

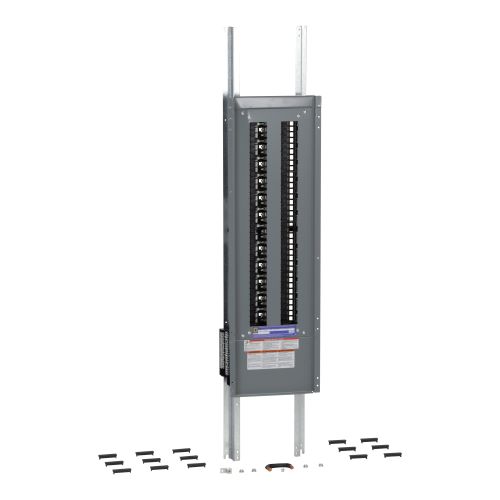

Square D™ NQ472L4 NQ Series 3-Phase Panelboard Interior, 240 VAC/48 VDC, 400 A, 72 Spaces
Brand: Square D™
Item ID: 543651
MPN: NQ472L4
Login for Price
Features
- 3 ph
- Main lugs only
Description
Square D™ Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC/48 VDC, 400 A, 72 Spaces, LA/LH Breaker, 4-Wire Wiring Configuration, Aluminum Bus, NEMA 3R/5/12, Aluminum Housing, 20 in W x 6-1/2 in D x 62 in H
Specifications
Amperage Rating |
400 A |
Breaker Type |
LA/LH |
Bus Material |
Aluminum |
Dimensions |
20 in W x 6-1/2 in D x 62 in H |
Enclosure Type |
NEMA 3R/5/12 |
Housing Material |
Aluminum |
Number of Spaces |
72 |
Series |
NQ Series |
Type |
3-Phase |
Voltage Rating |
240 VAC/48 VDC |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|CSA Certified|UL Listed|PROP65:Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC32S_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQC32S_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ472L4_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ472L4_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ472L4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ472L4_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L4_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_NQ30L4_Technical_Bulletin.pdf
