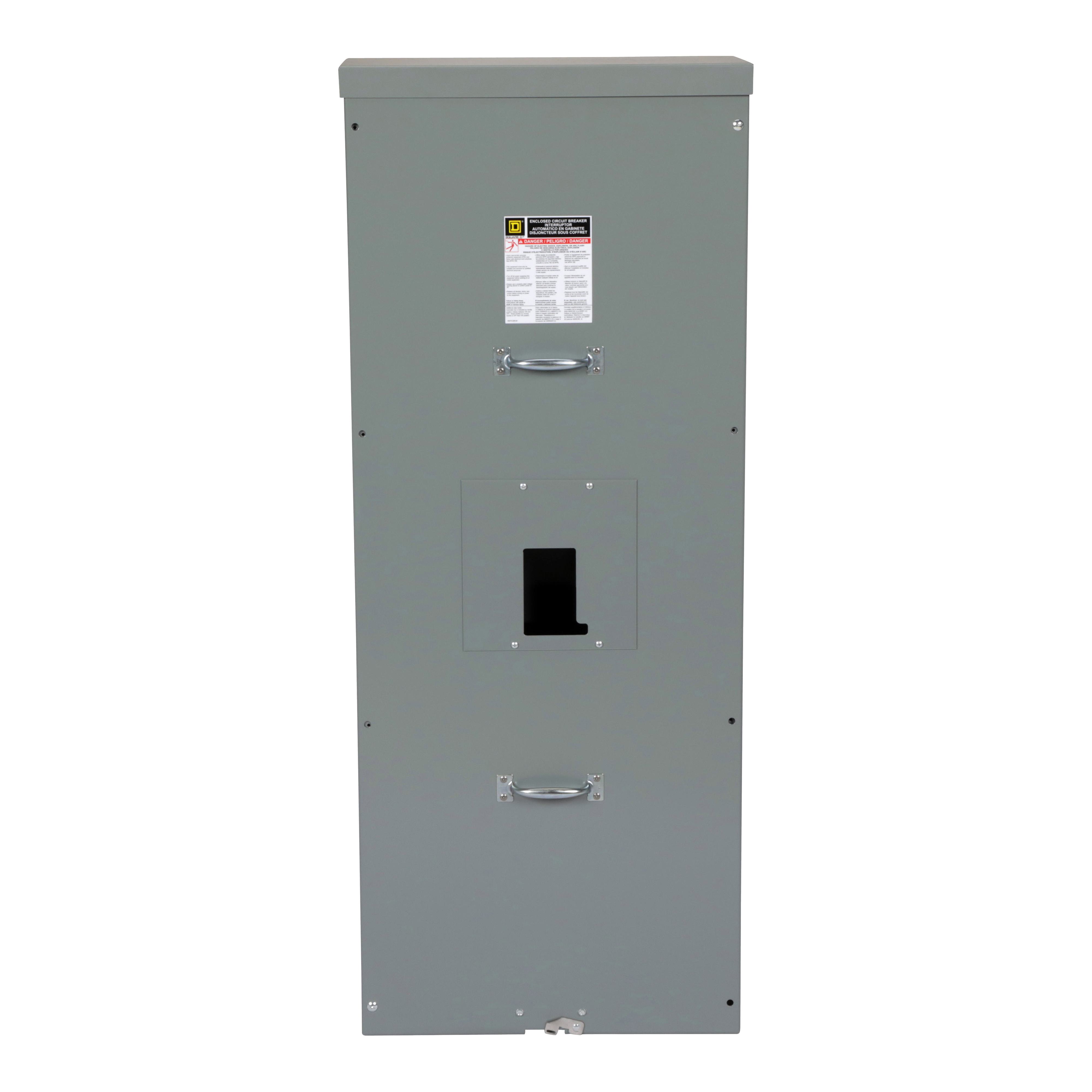

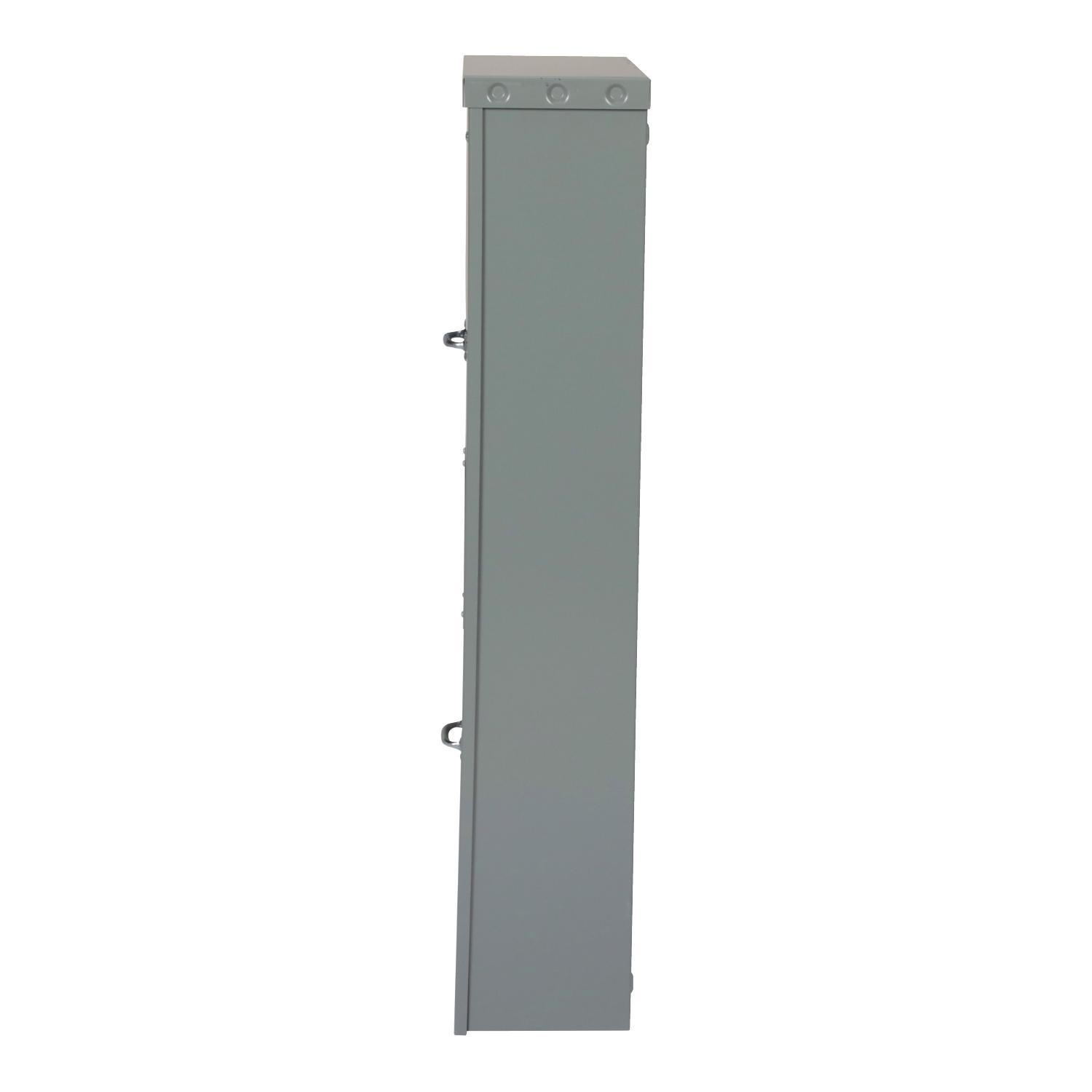

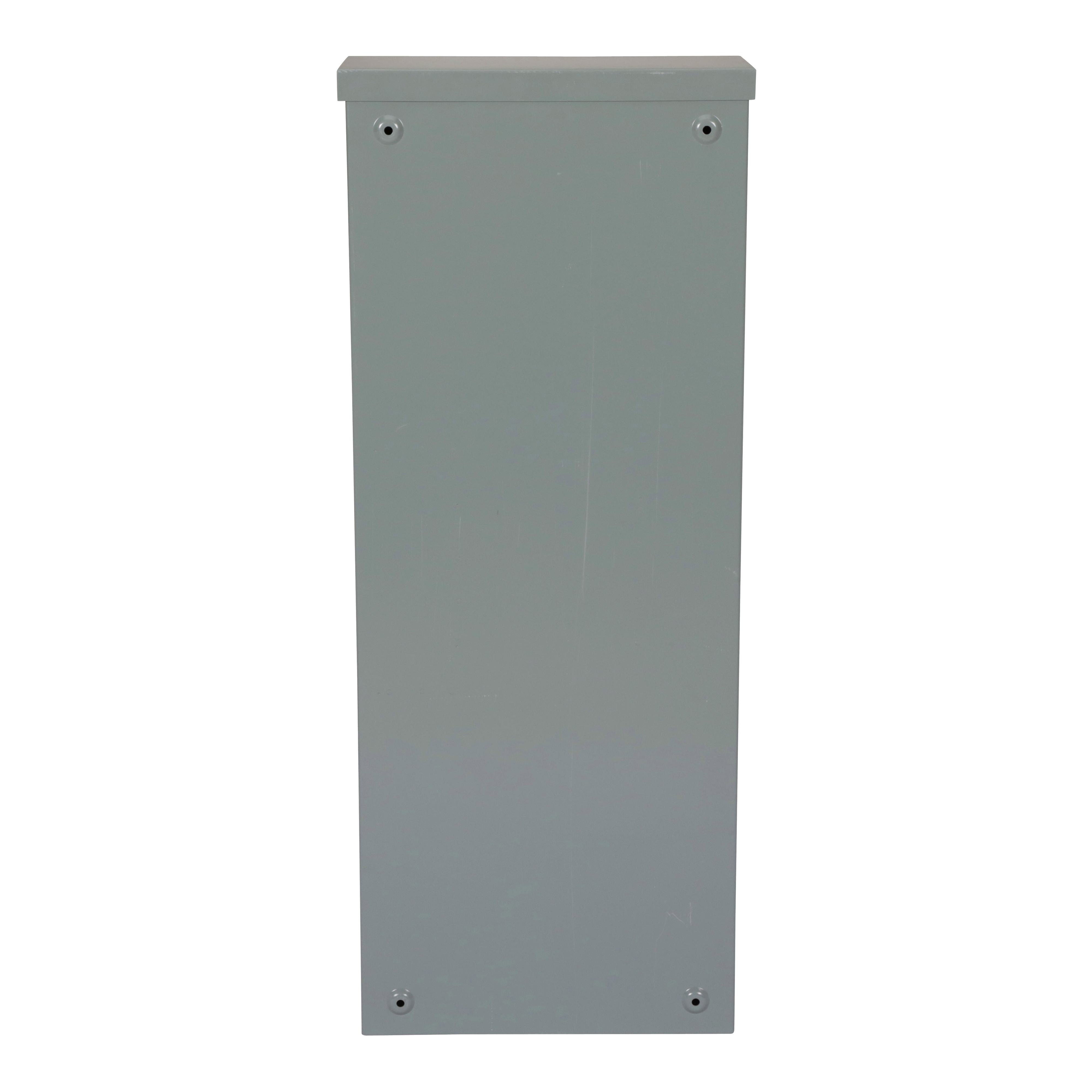

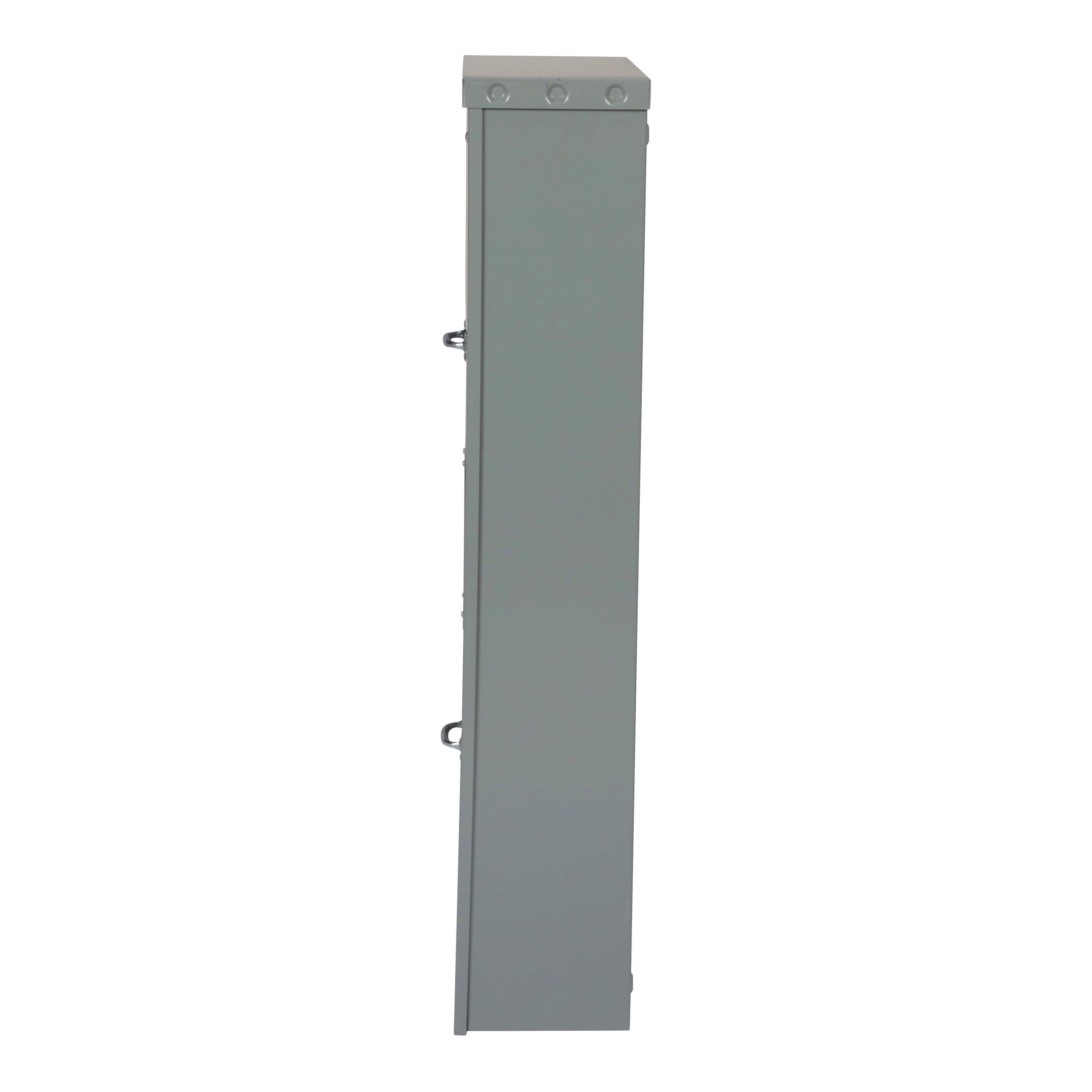

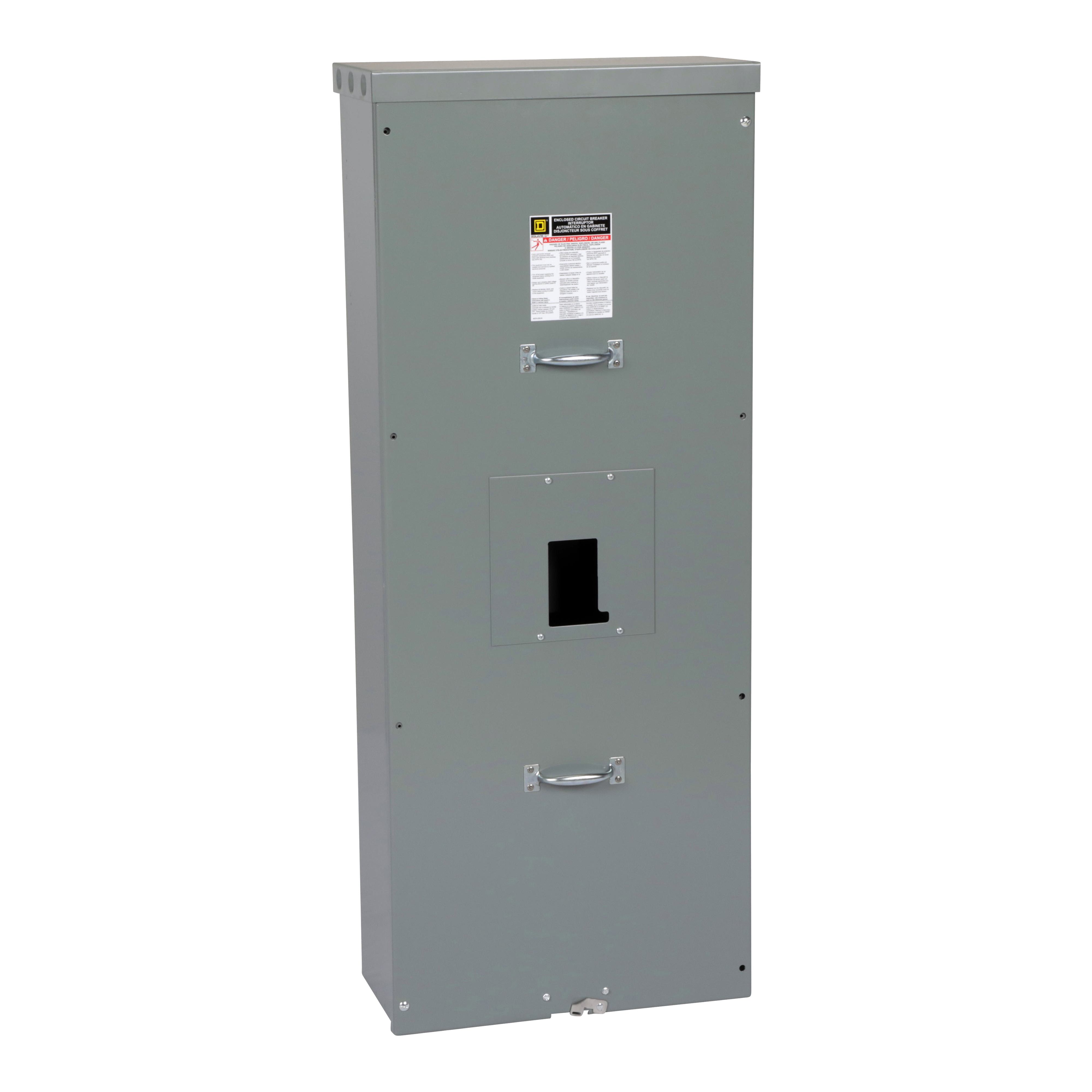

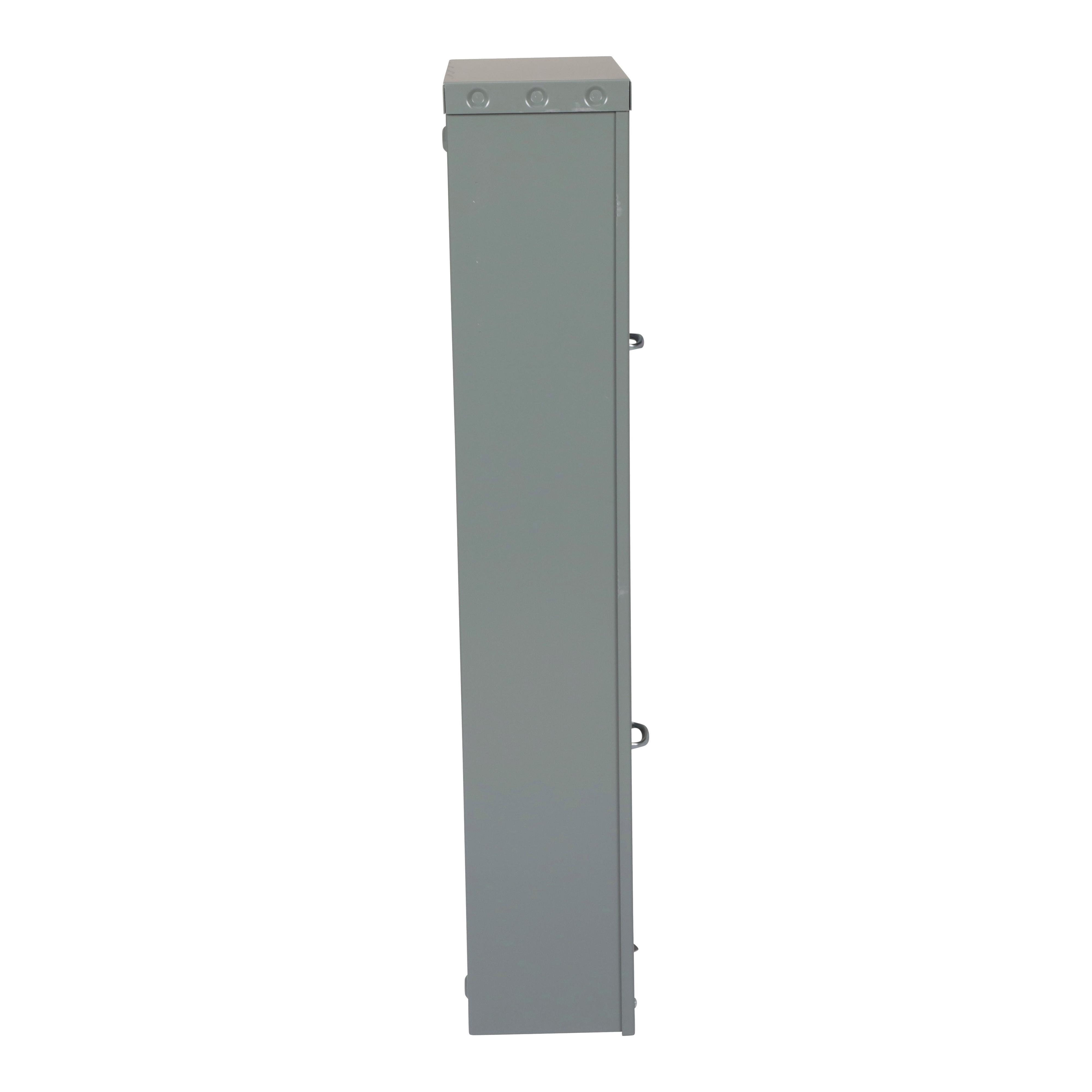

Square D™ P1200S
Square D™ P1200S PGL/PJL/PKL/PLL Frame Circuit Breaker Enclosure, 600 to 1200 A, 2/3 Poles
Brand: Square D™
Item ID: 461417
MPN: P1200S
UPC: 785901577706
Login for Price
Description
TYPE 1 600 to 1200A SURFACE MOUNT MOULDED CASE CIRCUIT BREAKER ENCLOSURE
Square D™ Circuit Breaker Enclosure, PGL/PJL/PKL/PLL Frame, 600 to 1200 A, 2/3 Pole, Surface Mount, NEMA 1, Steel Housing, 247.65 mm L x 533.4 mm W x 1323.98 mm H
Specifications
Amperage Rating |
600 to 1200 A |
Dimensions |
247.65 mm L x 533.4 mm W x 1323.98 mm H |
Enclosure Type |
NEMA 1 |
Housing Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2/3 |
Type |
PGL/PJL/PKL/PLL Frame |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|REACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov |
Application |
For use with PGL, PJL, PKL, PLL circuit breaker |
Documentation
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_P1200S_RoHS.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e867daa790874d5c875d4fc3542a7daee94bc2dc1717a05574dfff4c38298b2e.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_P1200S_Specification_Sheet.pdf
